Product Description

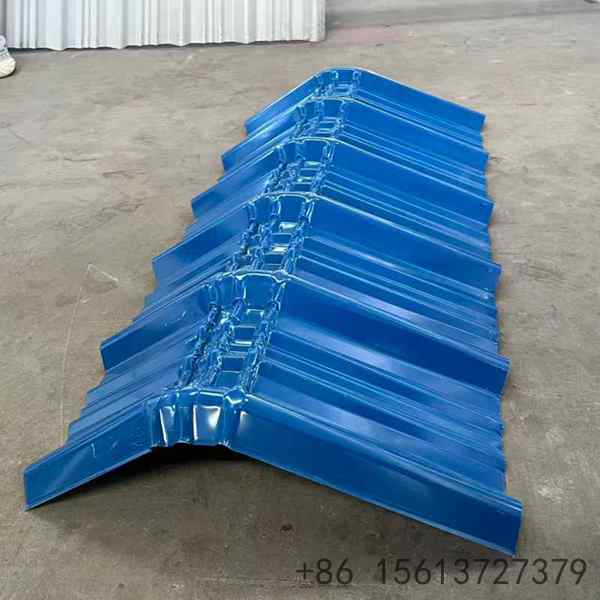

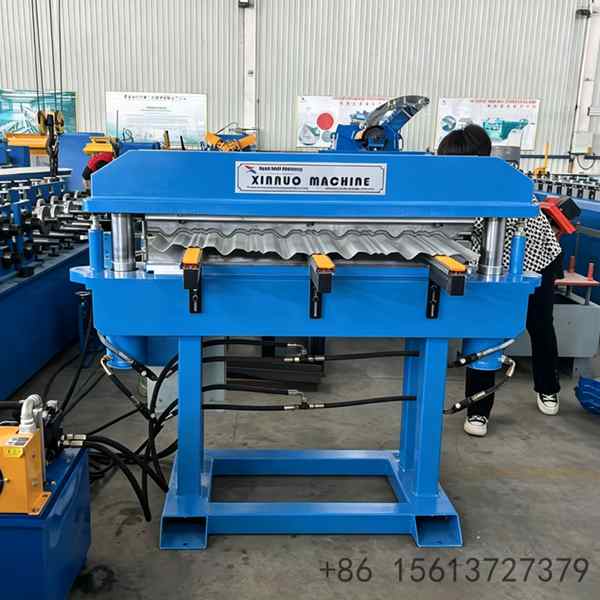

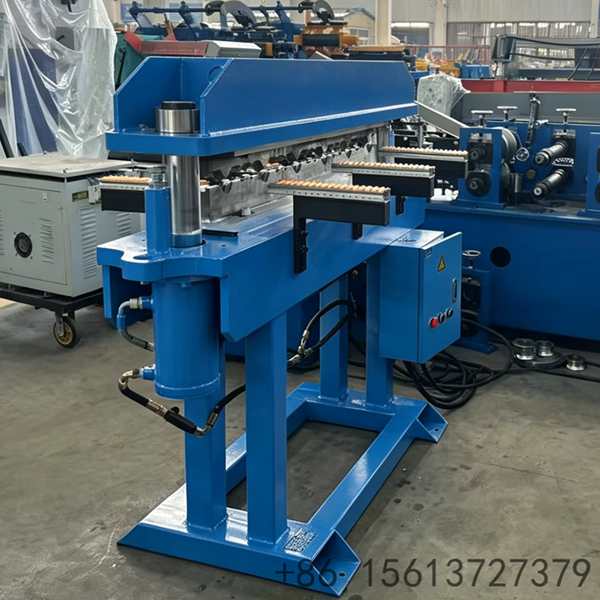

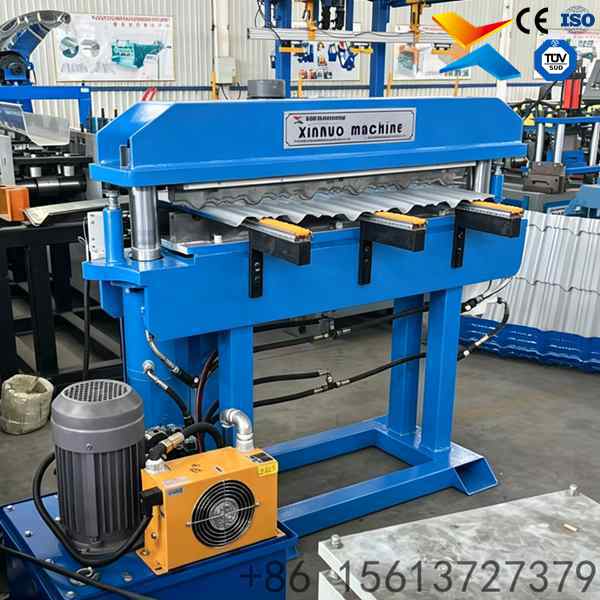

The Ridge Tile Bending Machine is a highly efficient, fully automated equipment dedicated to manufacturing precision metal ridge caps and hip tiles for roofing systems. Designed for the building materials sector, it efficiently processes color steel, galvanized steel, and aluminum coils into smooth, aesthetically pleasing ridge caps—critical components for ensuring watertight sealing and structural integrity at the peak of pitched roofs.
Core Features
Smooth Surface & Excellent Forming Quality
The machine is engineered to produce ridge caps with a flawless, scratch-free surface finish. The forming rollers are crafted from high-grade 45# steel or bearing steel (GCr15), featuring precision CNC machining and hard chrome plating. This ensures the final panels have a smooth appearance, high dimensional accuracy, and long-lasting durability.
The machine is engineered to produce ridge caps with a flawless, scratch-free surface finish. The forming rollers are crafted from high-grade 45# steel or bearing steel (GCr15), featuring precision CNC machining and hard chrome plating. This ensures the final panels have a smooth appearance, high dimensional accuracy, and long-lasting durability.
Fully Automated & Easy Operation

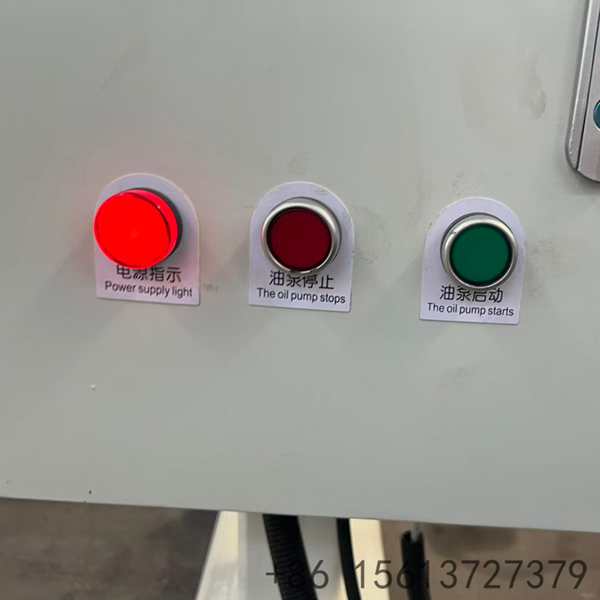

Equipped with an advanced PLC control system and a user-friendly touch screen, the machine automates the entire workflow from uncoiling, sheet guiding, and roll forming to measuring length and hydraulic cutting. Operators only need to input the desired length and quantity on the control panel, making it highly efficient and easy to operate.
Equipped with an advanced PLC control system and a user-friendly touch screen, the machine automates the entire workflow from uncoiling, sheet guiding, and roll forming to measuring length and hydraulic cutting. Operators only need to input the desired length and quantity on the control panel, making it highly efficient and easy to operate.
Customizable Profiles & Strong Adaptability
The equipment is highly versatile, capable of producing both straight ridge caps and step tile ridge caps. It supports custom profile designs based on customer drawings and can process material thicknesses ranging from 0.3mm to 0.8mm, making it suitable for various roofing tile systems and architectural requirements.
The equipment is highly versatile, capable of producing both straight ridge caps and step tile ridge caps. It supports custom profile designs based on customer drawings and can process material thicknesses ranging from 0.3mm to 0.8mm, making it suitable for various roofing tile systems and architectural requirements.
Robust Structure & Reliable Cutting System
Built with a heavy-duty welded frame for stable, low-vibration operation. The hydraulic post-cutting system utilizes Cr12 mold steel blades with quenching treatment (HRC 60-62°), ensuring clean, burr-free cuts without distorting the panel shape. The machine requires only 1-2 workers to operate, significantly reducing labor costs.
Built with a heavy-duty welded frame for stable, low-vibration operation. The hydraulic post-cutting system utilizes Cr12 mold steel blades with quenching treatment (HRC 60-62°), ensuring clean, burr-free cuts without distorting the panel shape. The machine requires only 1-2 workers to operate, significantly reducing labor costs.
Application Scope
Widely used by metal roofing manufacturers, steel structure factories, and building material suppliers. The finished ridge caps are essential for residential villas, industrial warehouses, commercial buildings, and large-scale steel structure roof projects, perfectly matching various types of colorful roofing tile sheets.
| No. | Item | Parameter |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 914mm/1000mm/1200mm/1220mm/1250mm |
| 3 | Thickness of the plate | 0.3-0.8mm |
| 4 | De-coiler | Manual one, can load 5 tons raw material |
| 5 | Rollers for forming | 12-18rows |
| 6 | Diameter of the roller | 80mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 5.5kw |
| 9 | Material of the cutting blade | Cr12 mov |
| 10 | Hydraulic cutting power | 4kw |
| 11 | Processing precision | Within 1.00mm |
| 12 | Control system | Delta PLC control |
| 13 | Side panel of machine | 16mm |
