115mm Gutter Section: A deep channel sized for rain gutter runs and building drainage.

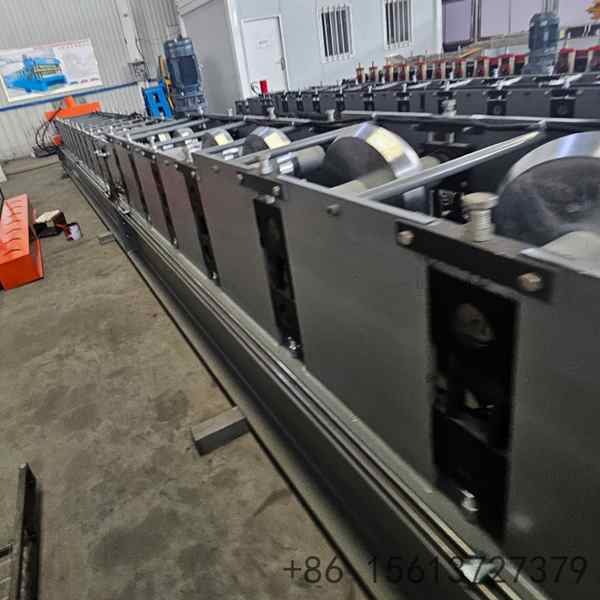

21 Forming Stations: Gutter walls and return edges build step by step, keeping the section square.
Deep Section Design: A 305mm coil into a 115mm cover gives water room to run.
Stable Frame: A 350H frame with a 16mm middle plate holds the section on long runs.

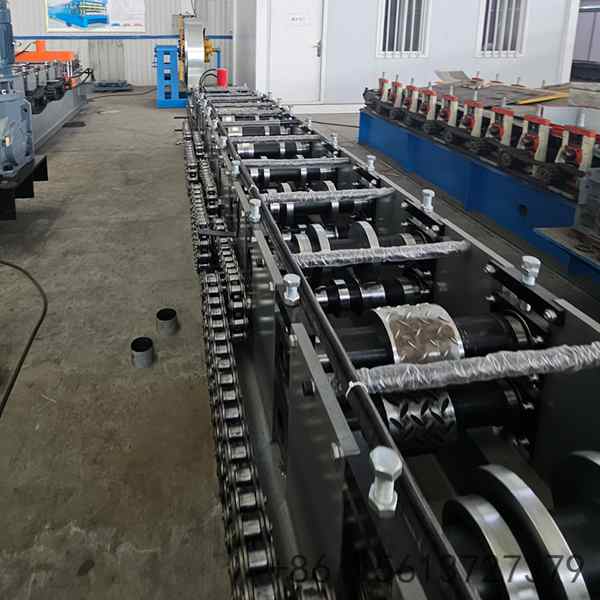

Outboard Chain Drive: The single row chain sits outside the roller area, so servicing stays clear.
Set From Panel: Running length and batch count are set from the control panel.
Drawing Matched: Gutter width and edge form follow the section drawing you supply.
Custom Sections Welcome: Roll design is set to your own drawing, not a fixed catalogue profile.
| Component | Specification |
|---|---|
| Machine type | Custom gutter roll forming machine |
| Model | HY100×115 |
| Effective width | 115 mm |
| Coil feed width | 305 mm |
| Forming stations | 21 |
| Middle plate | 16 mm |
| Frame | 350H |

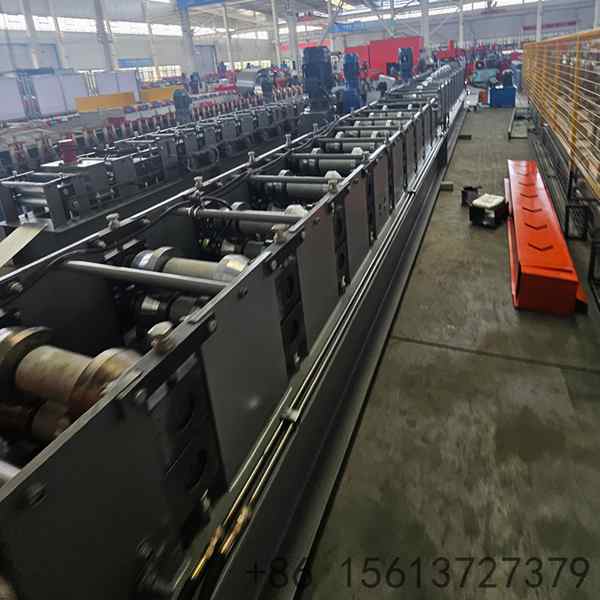

| Shafts | 65 mm |
| Main motor | 5.5 KW |
| Chain drive | One inch single row, outboard mounted |
| Sheet thickness | [To be confirmed] |
| Cutting | [To be confirmed] |
| Control system | [To be confirmed] |
| Running speed | [To be confirmed] |
| Line length | [To be confirmed] |
Deep Gutter Section: A 305mm coil into a 115mm cover gives a stiff channel that drains freely.
Square Section: 21 stations form the gutter walls and return edges without twisting the strip.
Servicing Access: The outboard chain drive leaves the roller area clear for adjustment.
Fewer Operations: Forming, sizing and cutting run as one line.
Low Waste: A 305mm coil yields a 115mm section with modest offcut.
Simple Settings: Length and batch count are entered on the control panel.
Custom Work Welcome: Roll design is set to your own section drawing
