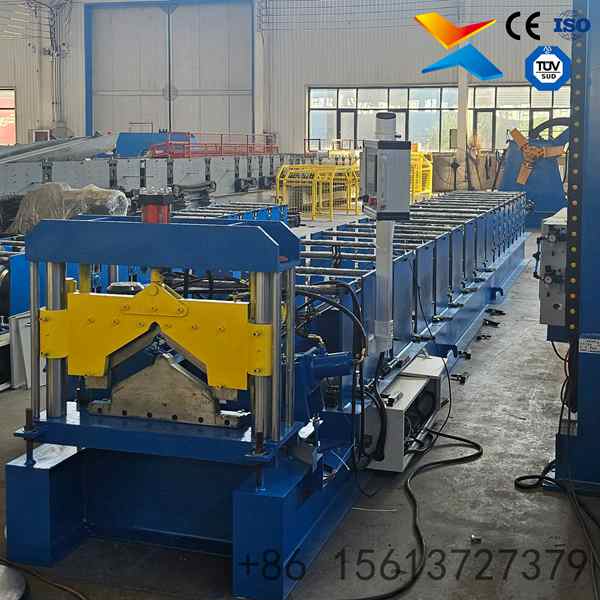

Ridge Cover: A capping profile that closes the joint where two roof slopes meet.

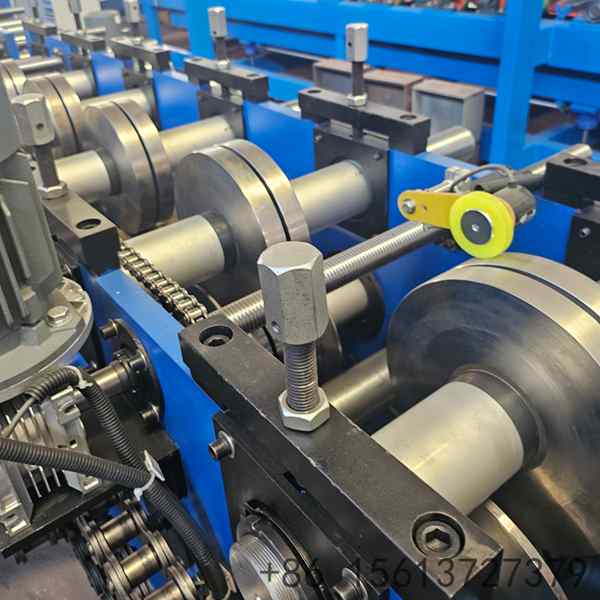

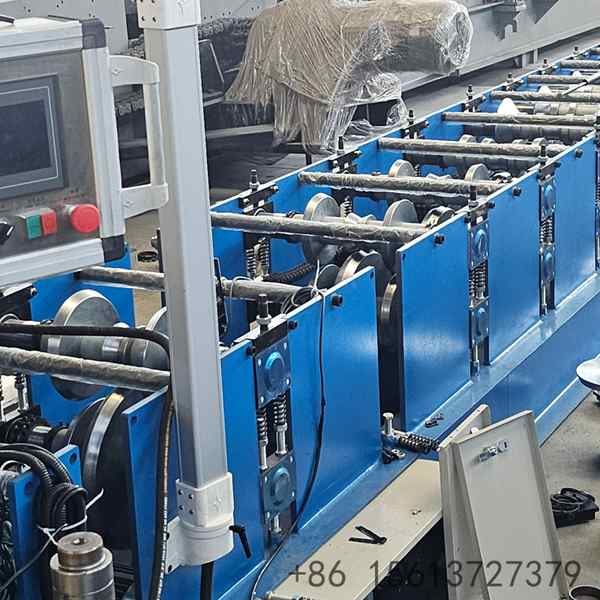

18 Forming Stations: Four more than the standard build, so the section folds in smaller steps.
Straight Ridge Line: The extra stations hold the ridge line straight along the run.
Heavy Build: A 350H frame, a 14mm middle plate and 70mm shafts suit long production runs.

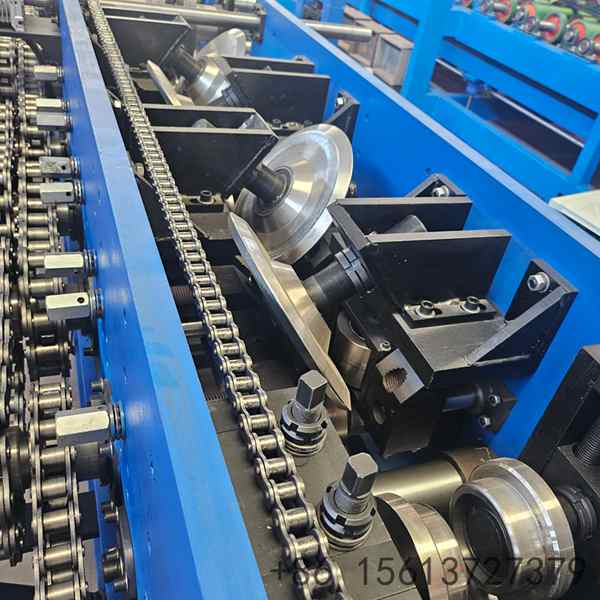

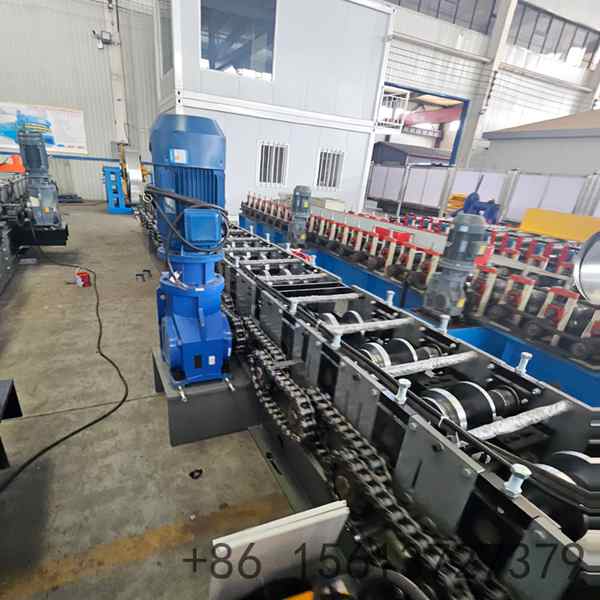

Matched Drive: A 4KW motor with a six point double row chain drive carries the line.

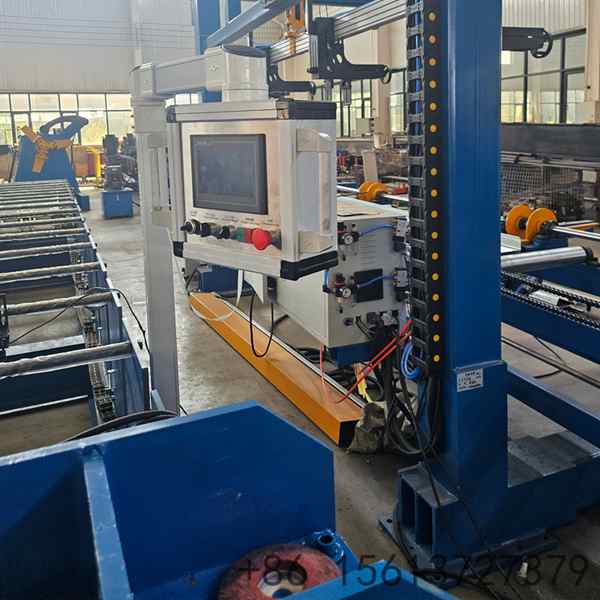

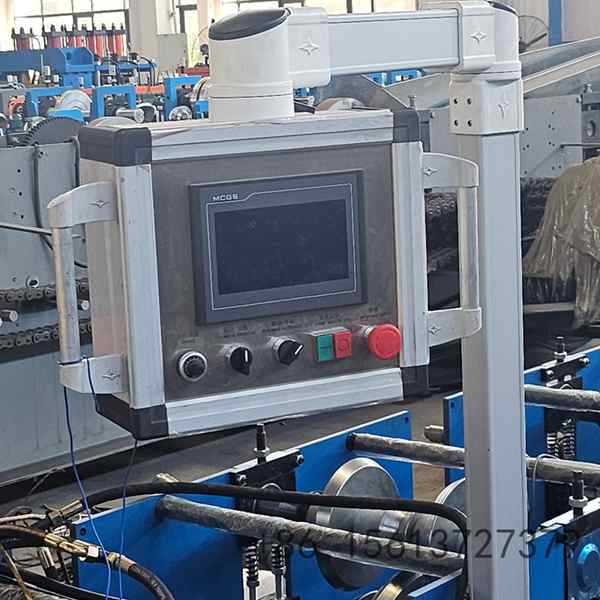

Set From Panel: Running length and batch count are set from the control panel.
Drawing Matched: Ridge height, ridge coverage and slope angle follow your section drawing.
| Component | Specification |
|---|---|
| Machine type | Ridge cap roll forming machine |
| Profile | Roof ridge cover |
| Model | HY84-333 |
| Effective width | 264.55 mm |
| Coil feed width | 333 mm |
| Ridge height | 84 mm |
| Forming stations | 18 |
| Middle plate | 14 mm |
| Frame | 350H |
| Shafts | 70 mm |
| Main motor | 4 KW |
| Chain drive | Six point double row |
| Section shape | [To be confirmed] |
| Sheet thickness | [To be confirmed] |

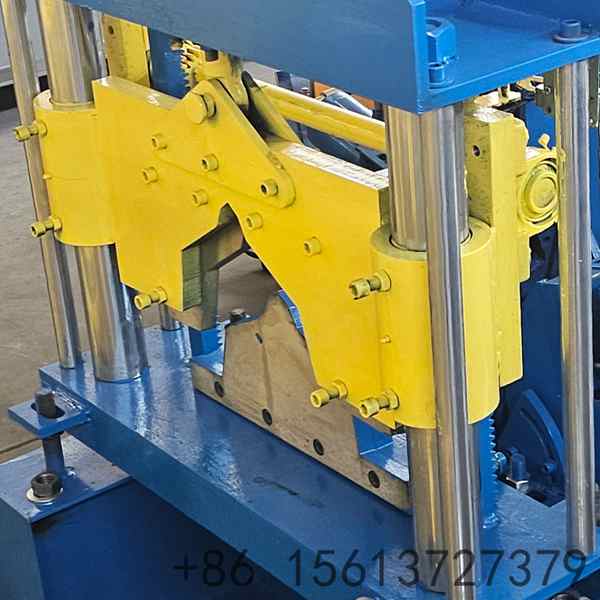

| Cutting | [To be confirmed] |
| Control system | [To be confirmed] |
| Running speed | [To be confirmed] |
| Line length | [To be confirmed] |
18 Stations: Four more than a standard ridge cap line, so the section folds in smaller steps.
Straight Cover: The extra stations keep the ridge line straight over long production runs.
Heavy Frame: A 350H frame with a 14mm middle plate and 70mm shafts holds the section.
Matched Drive: A 4KW motor and a six point double row chain drive carry the load.

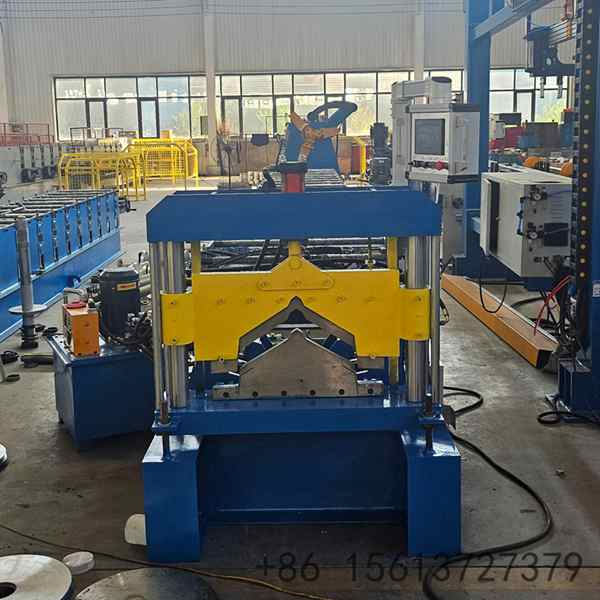

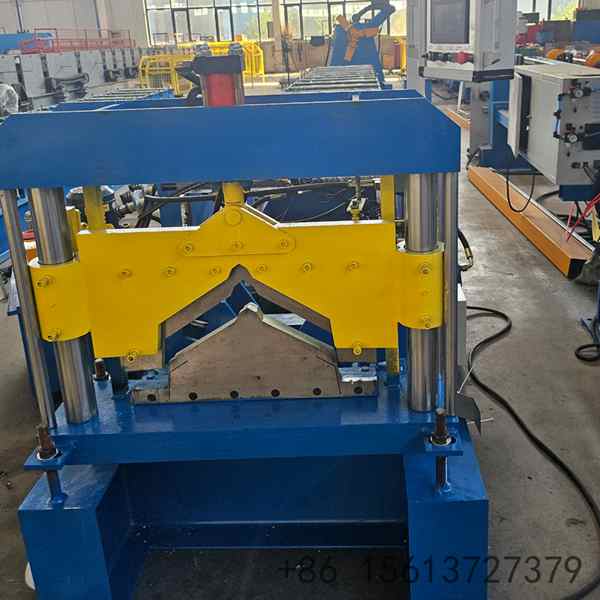

Fewer Operations: Forming and cutting run as one line.
Low Waste: A 333mm coil yields a 264.55mm cover with modest offcut.
Drawing Matched: Ridge height, coverage and slope angle follow your section drawing.
