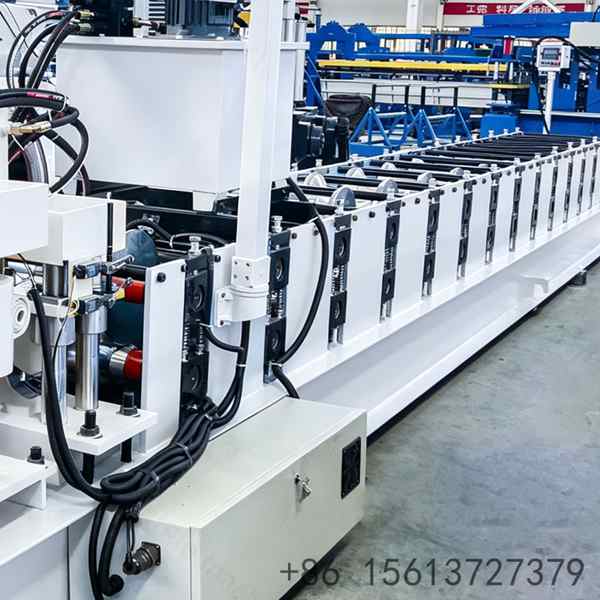

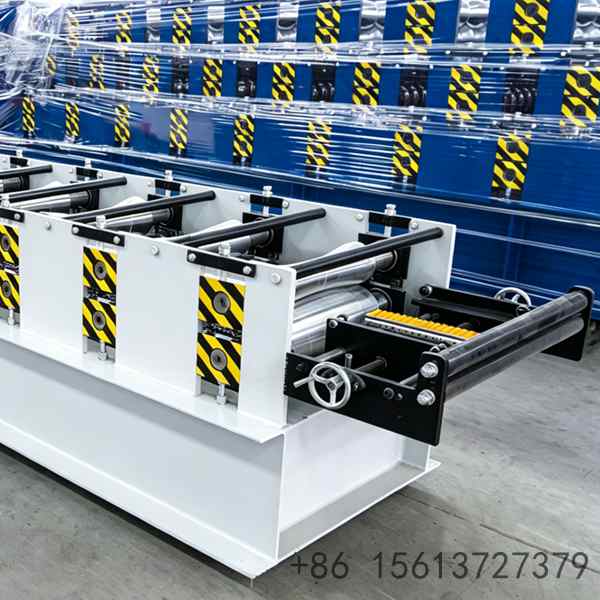

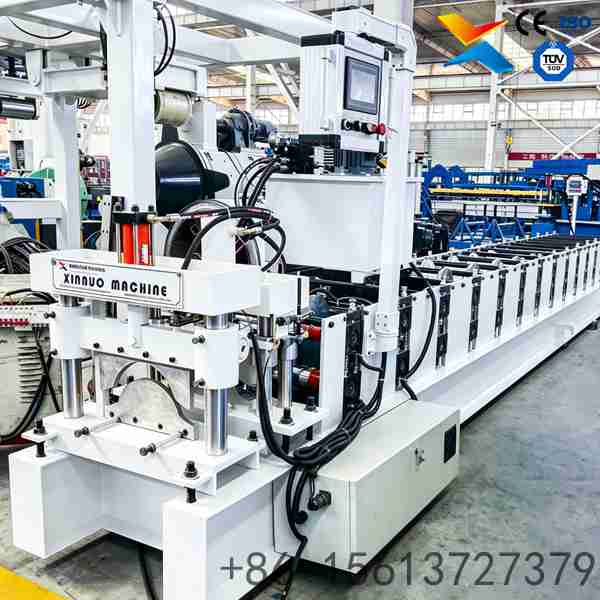

Glazed Ridge Tile Roll Forming Machine

Product Attributes :

Material of rollers High grade 45# forged steel, surface hard chromium plating

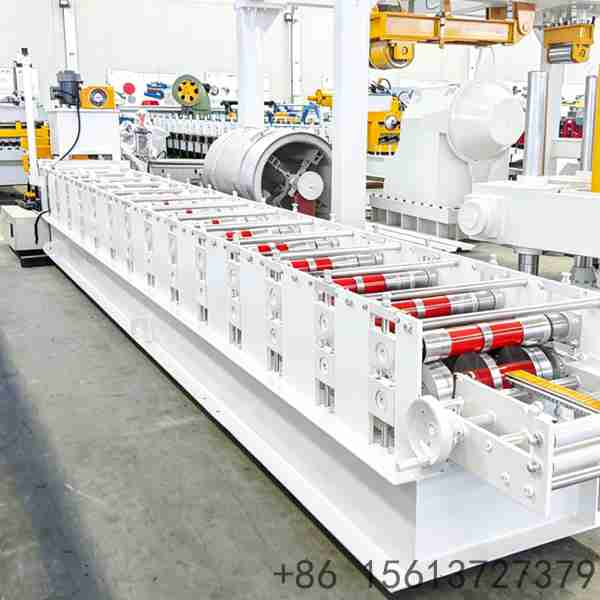

Rows of rollers 14 stations

Material of shafts High grade 45# forged steel

Diameter of shafts 50 mm

Material of cutting blade Cr12 Heat Treatment

Speed 10-15 m/min

Side plate thickness 16 mm

Product Description

Product Introduction

The Ridge Cap Roll Forming Machine is a highly efficient and automated industrial equipment specifically designed to produce metal ridge caps and flashings for roofing systems. By continuously bending and shaping color steel or galvanized coils into precise angular profiles, this machine creates essential components that seal the roof's peak, preventing water infiltration while enhancing the building's aesthetic appeal. Widely used in industrial, commercial, and residential construction, this equipment replaces traditional manual bending processes, offering superior dimensional consistency, high production speed, and significant labor cost savings.

tem	Specification
Product Name	Ridge Tile
Material	PP & galvanized steel coil
Material Thickness	0.3–0.8 mm
Yield Stress	Q235–Q345 MPa
Max. Forming Speed	12–15 m/min
Roller Material	#45 steel with hard chrome treatment
Roller Driven Type	Chain transmission
Controller	PLC
Operation	Touch screen and button
Hydraulic System Pressure	12 MPa
Main Motor Power	5.5 KW
Hydraulic Station Motor Power	4 KW
Overall Dimension (LWH)	About 6800×900×1400 mm
Machine Weight	About 2800 KG

Key Features & Advantages

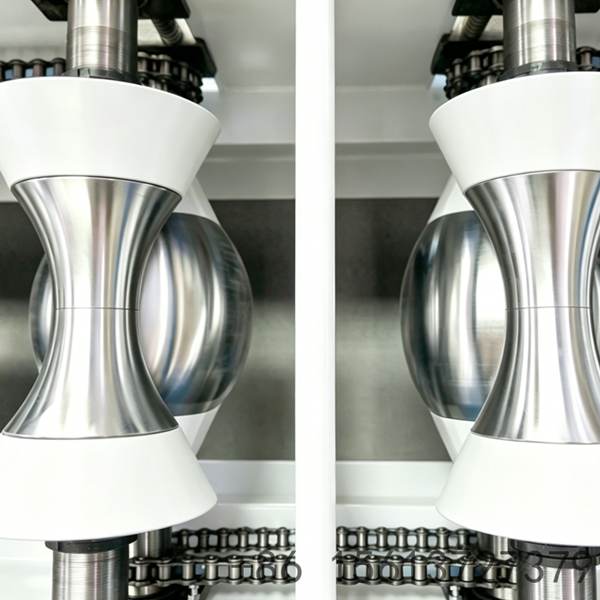

Impeccable Surface Quality: Rollers are precision-machined from high-grade steel, heat-treated, and hard chrome plated to ensure the finished ridge caps have a smooth, scratch-free surface and exact dimensions.

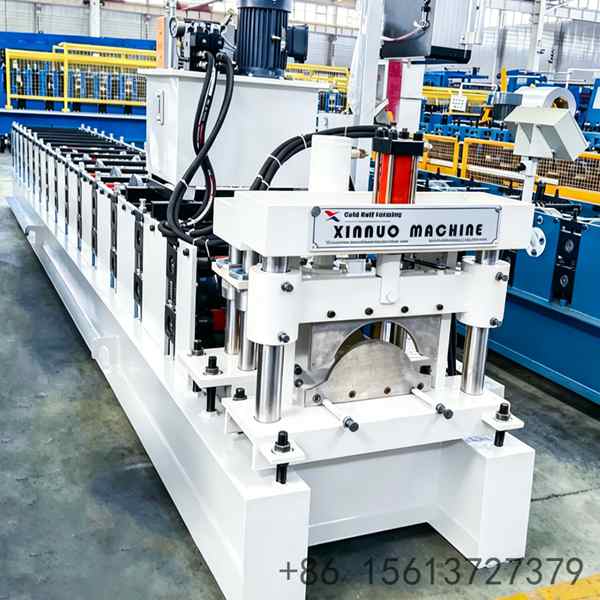

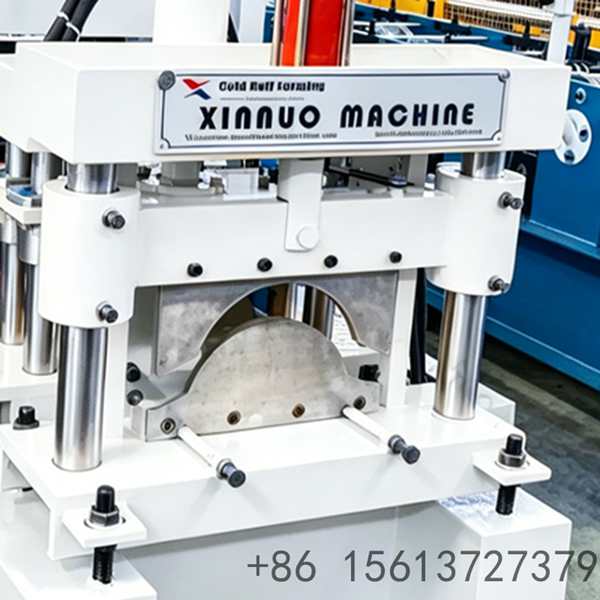

Fully Automatic Hydraulic Cutting: The integrated hydraulic system with Cr12 steel blades performs automatic, burr-free cutting to the exact programmed length, ensuring high efficiency and clean edges.

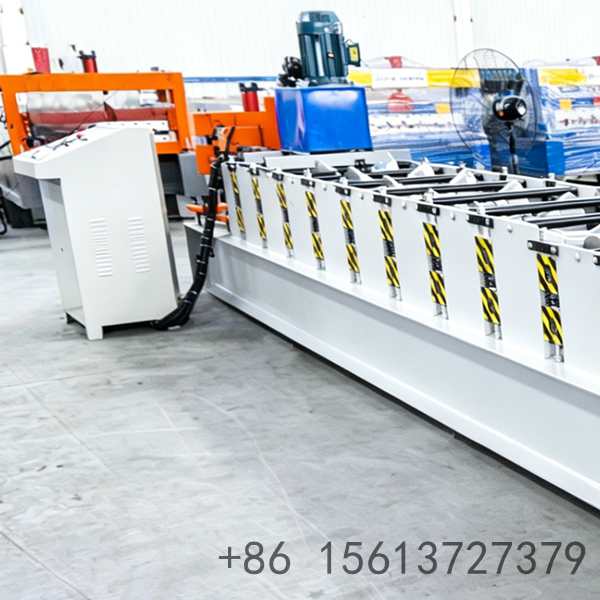

Smart PLC Control: Equipped with an intuitive touch screen that allows operators to easily set batch quantities, target lengths, and production speeds. It supports both automatic and manual operating modes for maximum flexibility.

Robust Machine Frame: The main body is constructed from heavy-duty welded steel and undergoes stress-relief treatment, guaranteeing high stability and zero deformation during continuous high-speed operation.

Versatile Customization: We offer comprehensive OEM/ODM services. The roller sets can be customized to produce various ridge cap profiles (e.g., box profile, angular, or custom architectural designs) to perfectly match specific roofing panels.
