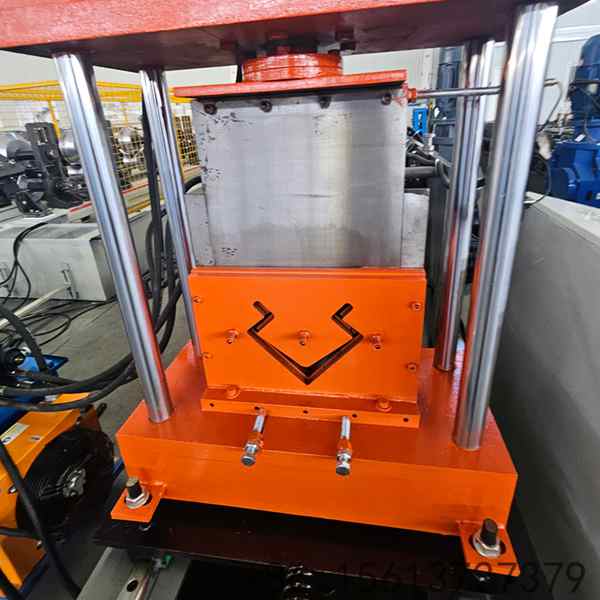

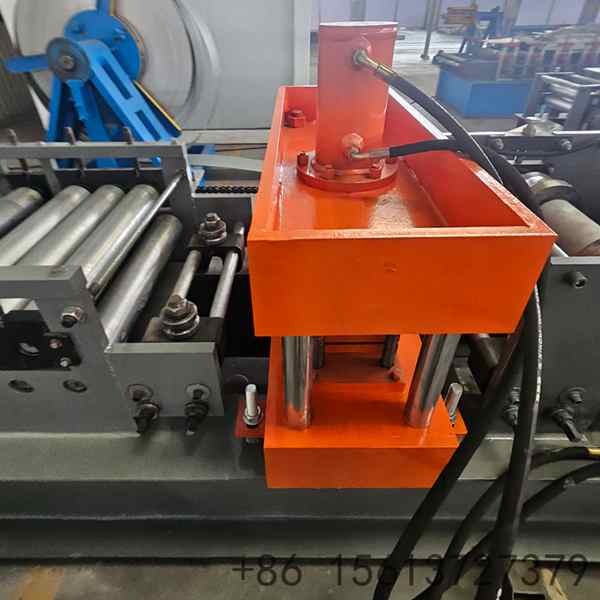

V Shaped Groove Die: A hydraulic station with a V die presses the gutter profile to the depth your drawing shows.

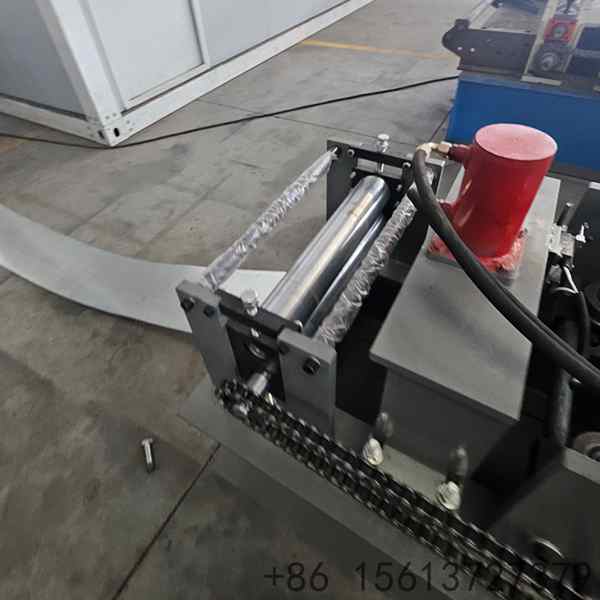

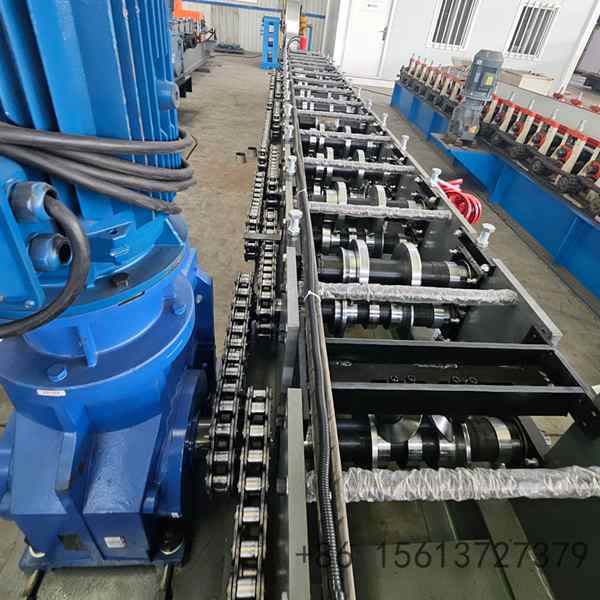

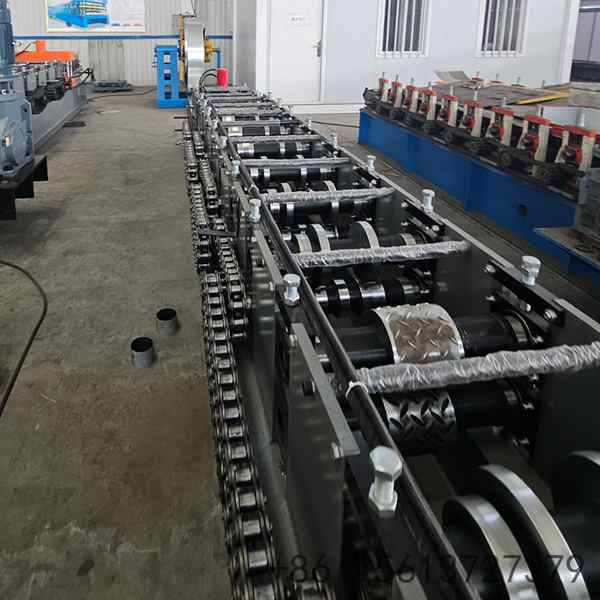

18 Forming Stations: Gutter walls and return edges build step by step, keeping the section square.
Deep Section: An 85mm cover from a 300mm coil gives a deep channel that carries water openly.
Stable Frame: A 350H frame with a 16mm middle plate and 70mm shafts holds the section on long runs.
Set From Panel: Running length and batch count are set from the control panel.
Drawing Matched: Gutter width, wall height and edge form follow the section drawing you supply.
Custom Profile Ready: Roll design is set to your own section, not a fixed catalogue profile.
| Component | Specification |
|---|---|
| Machine type | Gutter roll forming machine |
| Profile | Custom gutter and drainage section |
| Model | HY98-85 |
| Effective width | 85 mm |
| Coil feed width | 300 mm |
| Forming stations | 18 |
| Middle plate | 16 mm |
| Frame | 350H |
| Shafts | 70 mm |
| Main motor | 5.5 KW |
| Chain drive | One inch single row |
| Groove station | Hydraulic press with V shaped die |
| Sheet thickness | [To be confirmed] |
| Press tonnage | [To be confirmed] |
| Cutting | [To be confirmed] |
| Control system | [To be confirmed] |
| Running speed | [To be confirmed] |
| Line length | [To be confirmed] |
Groove Pressed To Drawing: The V die sets the groove depth, so the section matches the drawing you supply.
Square Section: 18 stations form the gutter walls and return edges without twisting the strip.
Fewer Operations: Forming, groove pressing and cutting run as one line.
Low Waste: A 300mm coil yields an 85mm section with modest offcut.
Simple Settings: Length and batch count are entered on the control panel.
Custom Work Welcome: Roll design is set to your own section drawing.
