Ridge Cap Tile Roll Forming Machine

Product Attributes :

Parameter	Specification
Material of rollers	High grade 45# forged steel, surface hard chromium plating
Rows of rollers	14 stations
Material of shafts	High grade 45# forged steel
Diameter of shafts	50 mm
Material of cutting blade	Cr12 Heat Treatment
Speed	10-15 m/min
Side plate thickness	16 mm

Product Description

Product Introduction

High-Precision Profile Forming: Advanced roller design and precision machining ensure consistent ridge cap tile dimensions with tight tolerances for perfect roof peak sealing and alignment.
Automatic Hydraulic Cutting: Equipped with Cr12 mould steel cutting blades that are quenched for hardness, providing precise length-set cutting with minimal tolerance (±1mm).
PLC Intelligent Control: Utilizes imported brand PLC and touch screen interface for easy operation, accurate length measurement, and reliable automatic production.
Durable Machine Construction: Built with heavy-duty steel frame and high-strength shafts to ensure stable, vibration-free operation during continuous production.
Versatile Material Compatibility: Engineered to process galvanized steel, pre-painted galvanized steel (PPGI), aluzinc, and aluminum coils with varying yield strengths.

Product Description & Parameters
The Ridge Cap Tile Roll Forming Machine is a specialized cold roll forming equipment designed for manufacturing high-quality ridge cap tiles widely used in residential buildings, industrial factories, warehouses, and steel structure projects. The ridge cap tiles produced by this machine provide excellent weather protection at roof peaks and enhance the overall aesthetic appearance of metal roofing systems. The machine integrates decoiling, guiding, roll forming, length measuring, and automatic hydraulic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth panel surfaces.

No.	Main Parameter / Feature	Details
1	Applicable Material	Color steel coil / Galvanized steel coil / PPGI / Aluzinc
2	Material Thickness Range	0.3 - 0.8 mm
3	Material Yield Strength	235 - 550 MPa
4	Forming Speed	8 - 12 m/min (adjustable via transducer)
5	Number of Roller Stations	10 - 15 stations (depending on profile design)
6	Main Motor Power	3 - 5.5 kW
7	Hydraulic Station Power	3 - 4 kW
8	Roller Material	High-grade 45# forged steel with hard chrome plating (0.05mm)
9	Shaft Material	45# steel, diameter 65-80mm, tempered and polished
10	Cutting Blade Material	Cr12 mould steel with quenching treatment (HRC 58-62)
11	Cutting Method	Hydraulic post-cut, automatic pause and cut
12	Control System	PLC control with touch screen (Mitsubishi / Delta / Siemens)
13	Voltage	380V / 50Hz / 3 Phase (customizable)
14	Machine Dimensions	Approx. 5.5m - 8.0m × 1.0m - 1.5m × 1.1m - 1.5m
15	Machine Weight	Approx. 2.8 - 5 Tons
16	Length Tolerance	±1 - 2 mm
17	Uncoiler Capacity	Up to 3 - 5 tons (manual or hydraulic)
18	Driving Mode	Chain transmission
19	Warranty	1-2 years free warranty + lifelong technical support

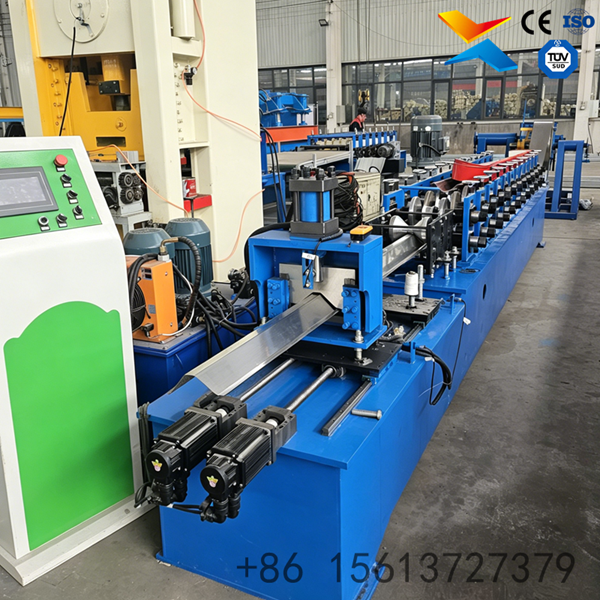

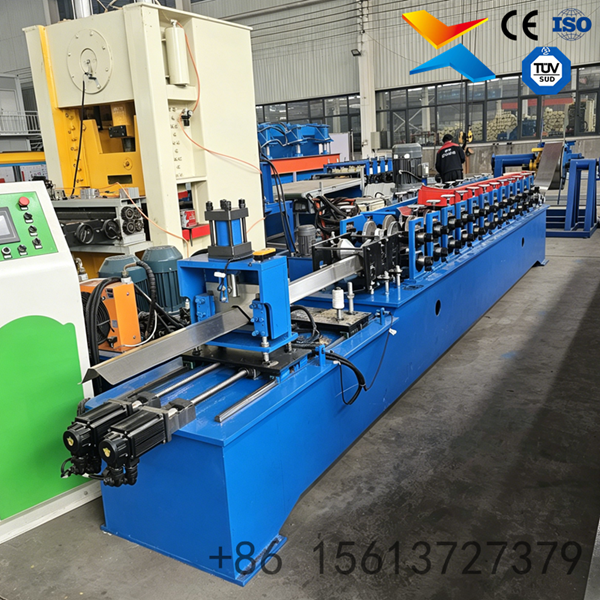

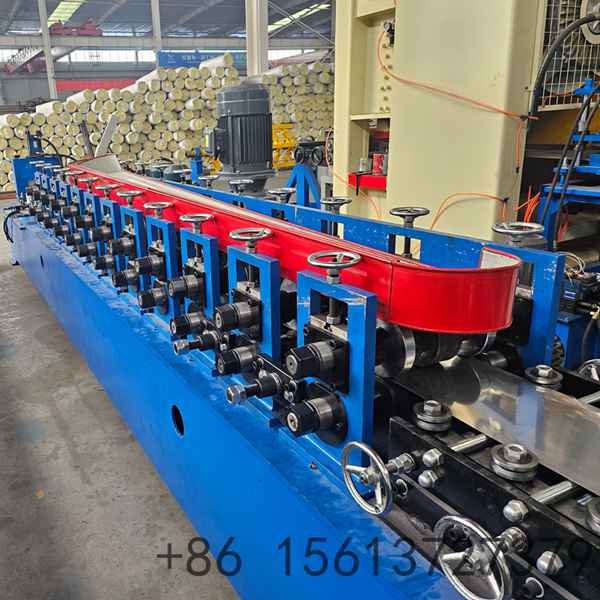

Automatic ridge cap tile roll forming machine designed for continuous metal roof cap production

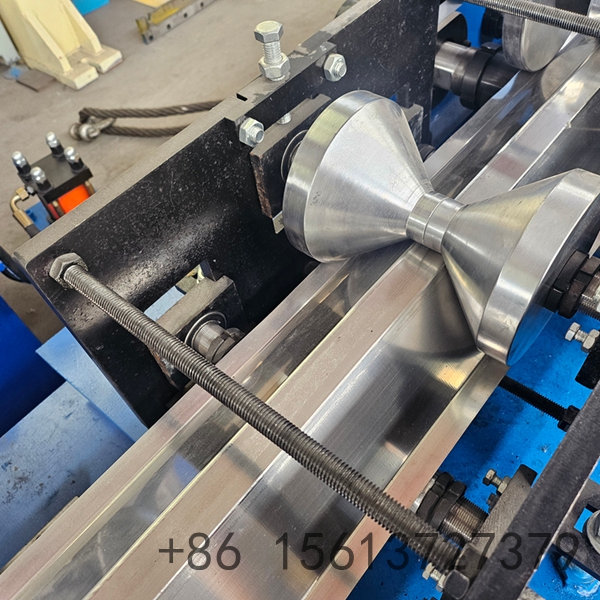

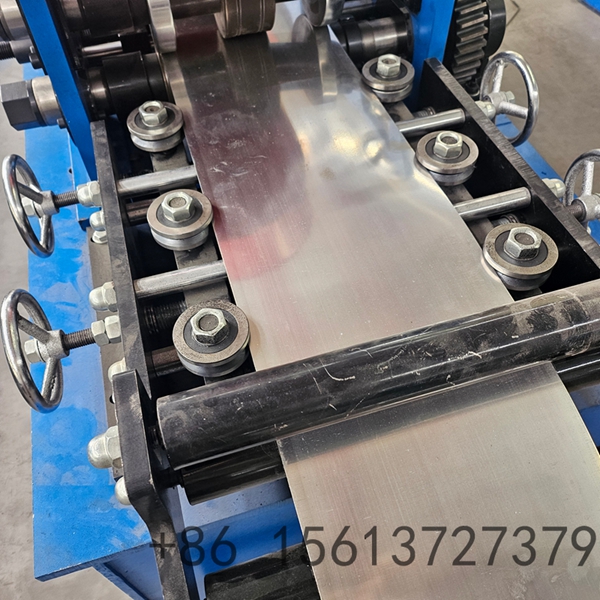

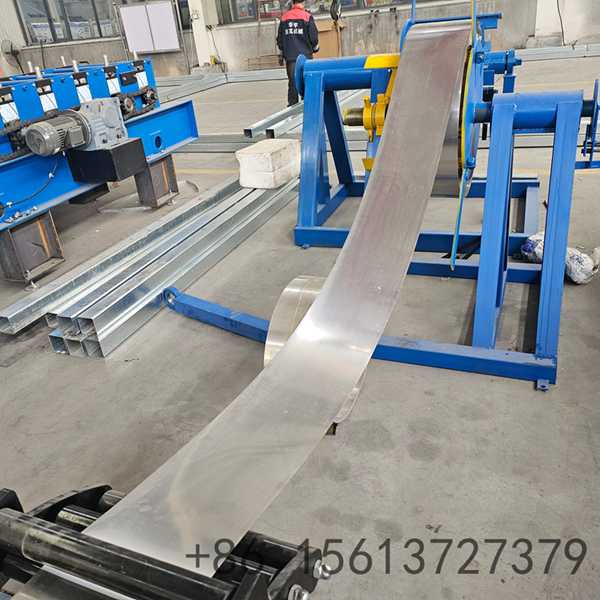

Precision roll forming station with multiple roller stations ensuring accurate ridge cap tile profile shaping

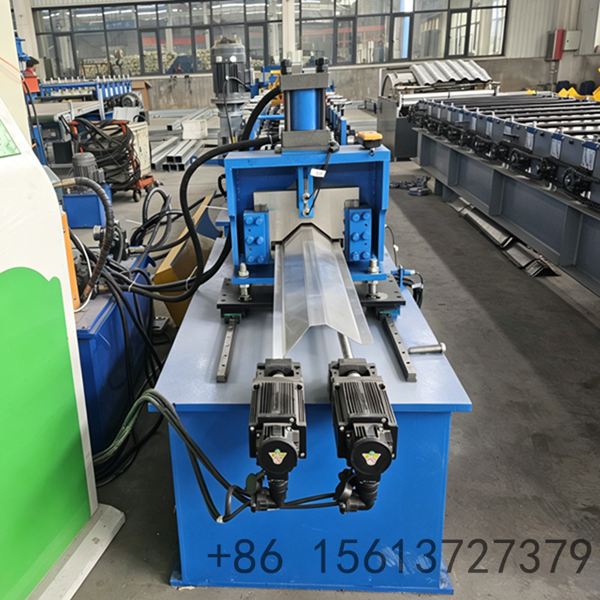

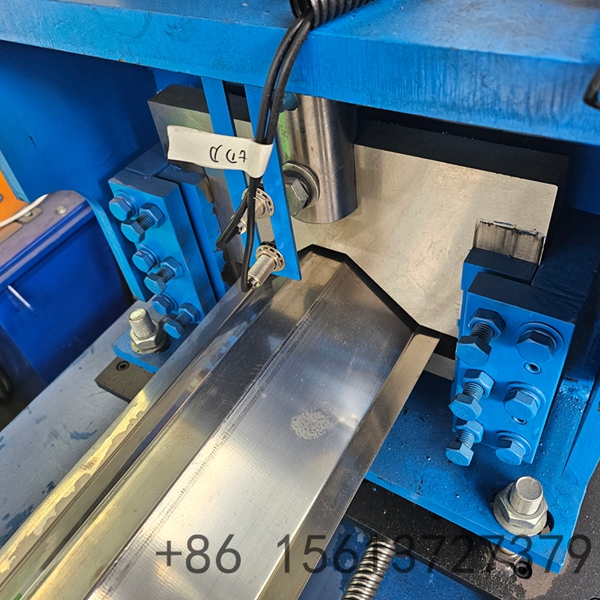

Hydraulic automatic cutting system integrated into the ridge cap machine for exact length cutting

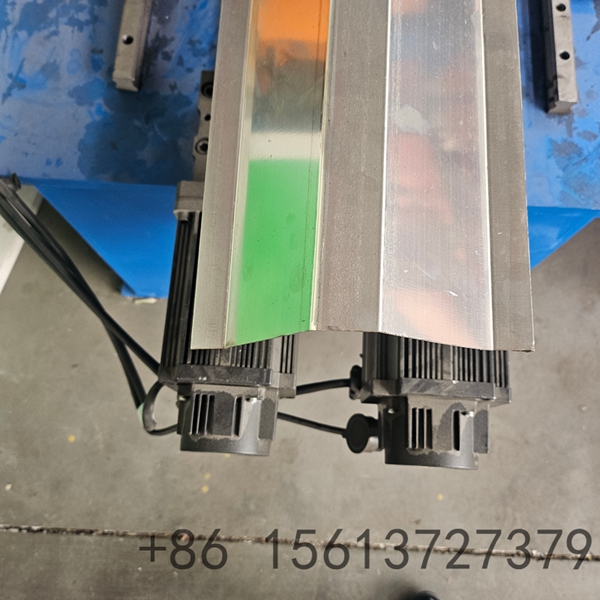

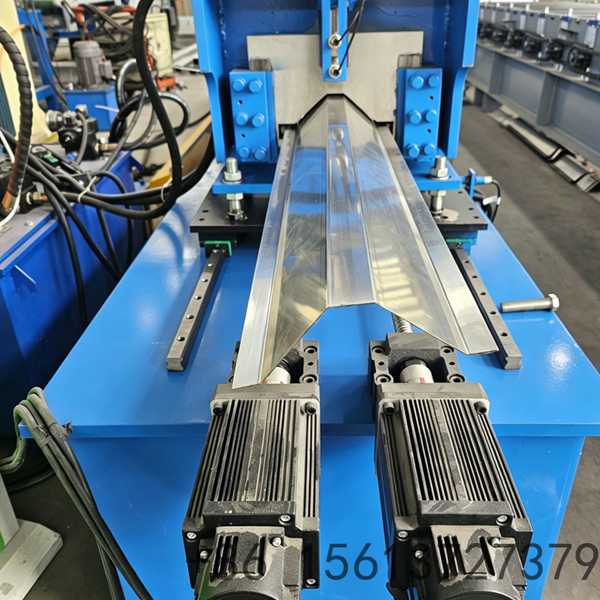

Finished metal ridge cap tiles produced by the high-precision roll forming equipment

Heavy-duty welded steel frame structure of the ridge cap machine ensuring maximum stability during operation
