Highly Automated Sandwich Panel Production Line

Highly Automated Sandwich Panel Production Line

Product Attributes :

Product Name: Color steel sandwich panel

Definition: An insulation composite board constructed from color-coated steel plates, bottom plates, and an insulation core material, bonded together with high-strength adhesive.

Applications: Widely used in anti-corrosion, pressure vessels, power generation, petrochemical, and pharmaceutical industries.

Advantages: Lightweight (10-14kg/㎡), excellent thermal insulation, easy installation, aesthetic appearance, and high structural strength.

Product Description

Product Introduction

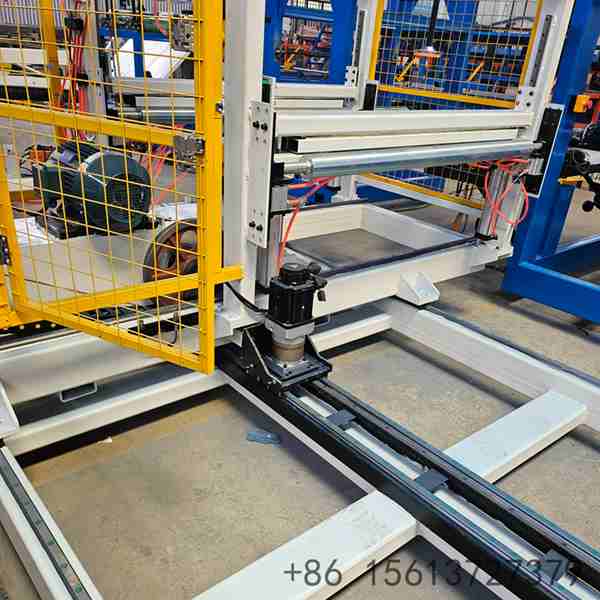

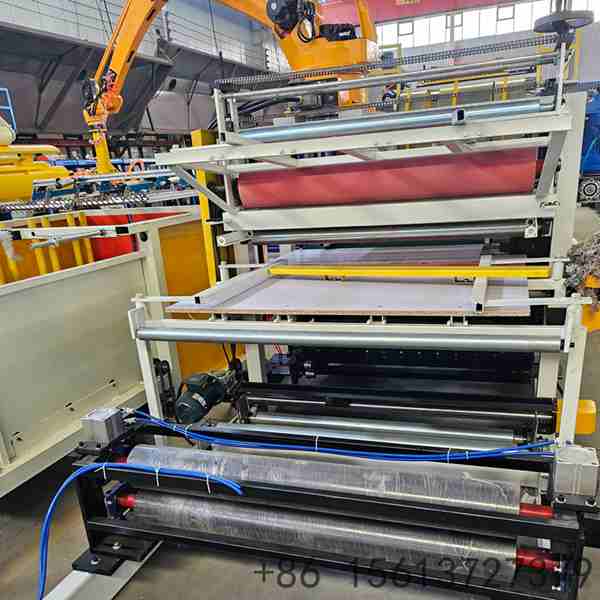

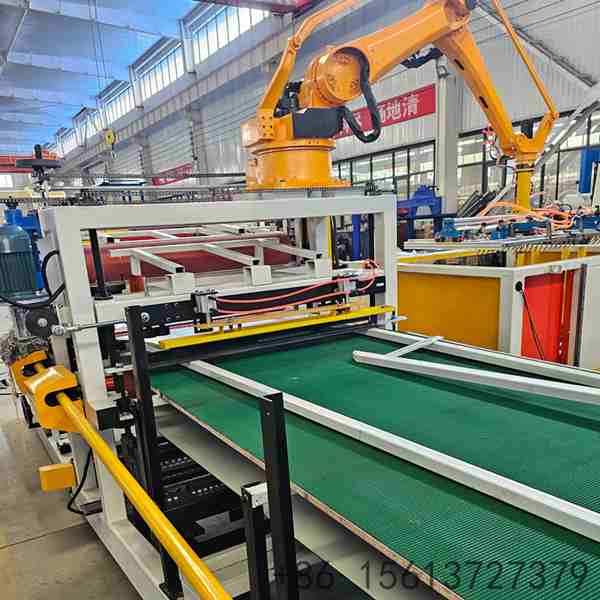

End-of-Line Robotic Automation: Transcends traditional manual handling by integrating multi-axis industrial robotic arms. These smart arms seamlessly execute picking, flipping, and transferring tasks, ensuring zero surface damage to finished panels while drastically reducing reliance on manual labor.

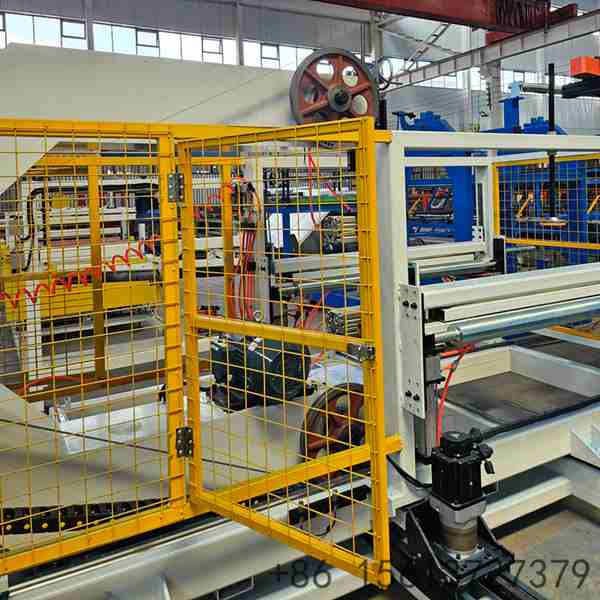

Intelligent High-Speed Cutting: Features a dynamic tracking cutting system that synchronizes flawlessly with the continuous line speed. It guarantees precise length execution with minimal tolerance, eliminating manual measurement errors and maximizing raw material yield.
Autonomous Palletizing & Stacking: Equipped with an advanced stacking algorithm that automatically calculates optimal stacking patterns based on panel dimensions. The system builds highly stable, uniform pallets at high speeds, preparing them directly for warehouse logistics.

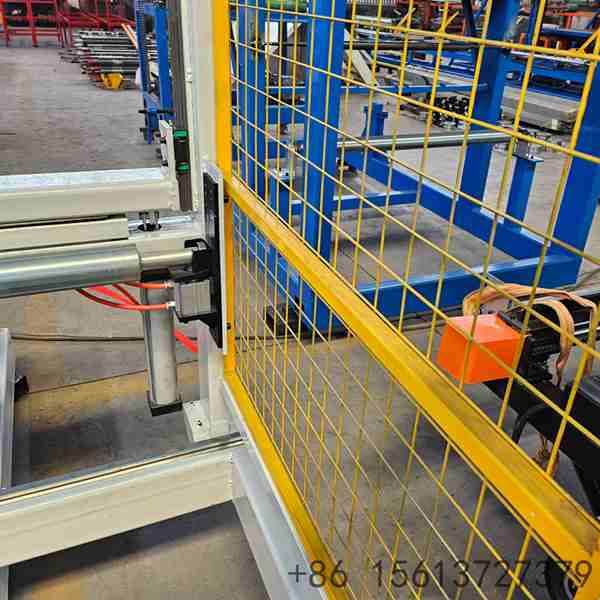

Fully Integrated Packaging System: Incorporates a seamless end-of-line packaging unit that automatically wraps and secures the palletized panels. This turnkey solution transforms loose panels into ready-to-ship products, streamlining the entire supply chain without human intervention.

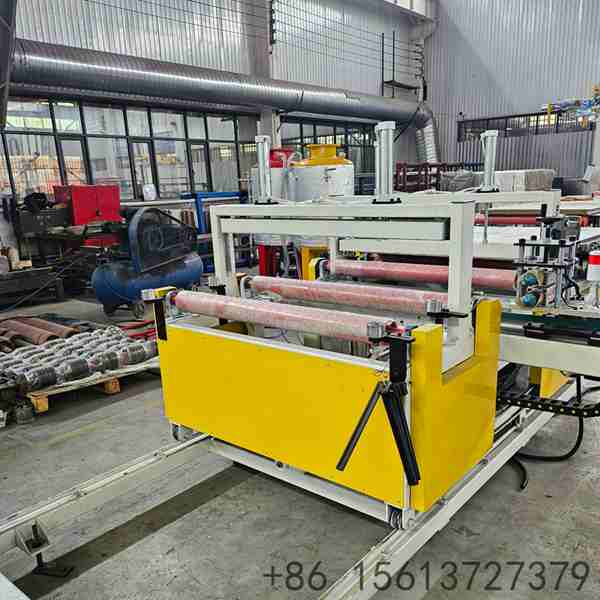

Smart Factory Ecosystem: Driven by a centralized digital control system that monitors every robotic and mechanical action in real-time. It allows for one-touch parameter adjustments and predictive maintenance, making the transition to an unmanned smart factory a reality.

Product Description & Parameters

The Smart Robotic Composite Panel Production Line is engineered specifically for manufacturers seeking to eliminate the traditional bottlenecks of post-production handling. While standard lines require significant manual labor for sorting, stacking, and wrapping, this premium system redefines the workflow through deep integration of robotics and automated logistics.

The core differentiation lies in the post-laminating phase. As panels exit the double-belt press, they are met by an intelligent cutting station that operates with flying-saw precision. Instead of falling onto a manual sorting table, the cut panels are immediately intercepted by industrial robotic arms. Utilizing advanced vision systems and adaptive gripping technology, the mechanical arms gently pick up panels, rotate them if necessary, and place them onto the palletizing station. The automated stacker then builds perfectly aligned, high-capacity pallets based on pre-set digital templates. Finally, the pallets are automatically conveyed to the packaging station, where they are securely wrapped and labeled. This closed-loop automation not only guarantees a pristine, scratch-free finish on every panel but also ensures that the final output is immediately ready for forklift transport, effectively bridging the gap between manufacturing and modern smart warehousing.

No.	Main Parameter / Feature	Details
1	Core Automation Highlight	Multi-axis Robotic Arms + Auto-Palletizer + Auto-Wrapping
2	Applicable Core Materials	EPS / Rock Wool / PU / PIR / Glass Wool
3	Steel Sheet Thickness	0.3 - 0.8 mm
4	Core Thickness Range	40 - 300 mm
5	Max Coil Width	1250 mm (customizable)
6	Production Speed	2 - 15 m/min (synchronized with robotic cycle)
7	Robotic Payload Capacity	Customized based on panel weight (Heavy-duty grippers)
8	Palletizing Height	Up to 2.5 meters (adjustable via PLC)
9	Cutting System	Auto-tracking flying saw with dust extraction
10	Packaging Mode	Automatic radial/circumferential stretch wrapping
11	Laminating System	Heavy-duty double belt press with uniform pressure
12	Control System	Centralized PLC with digital twin / IoT interface
13	Voltage	380V / 50Hz / 3 Phase (customizable)
14	Machine Dimensions	Approx. 60m - 80m × 4m × 3.5m
15	Machine Weight	Approx. 35 - 50 Tons
16	Length Tolerance	±1 mm
17	Labor Requirement	1-2 operators (Monitoring & Forklift only)
18	Warranty	12-24 months free warranty + lifelong technical support
