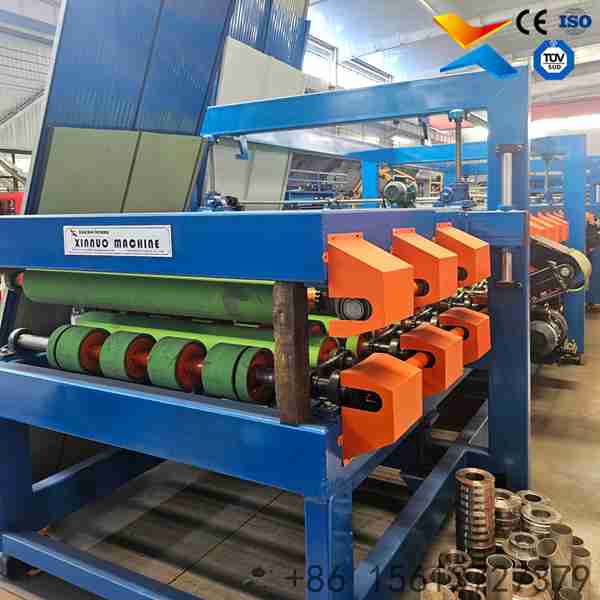

Flexible Rock Wool And EPS Foam Composite Panel Machine
Product output: Rock wool / EPS foam sandwich (composite) panels
Applicable material: Galvanized steel / Pre-painted (color coated) steel
Feeding width: 1200 mm (standard) / Customizable
Sheet thickness: 0.3-0.8 mm
Core material & thickness: Rock wool / EPS foam, thickness customizable
Profile length: Customizable
Operation mode: PLC automatic control
Product Briefing

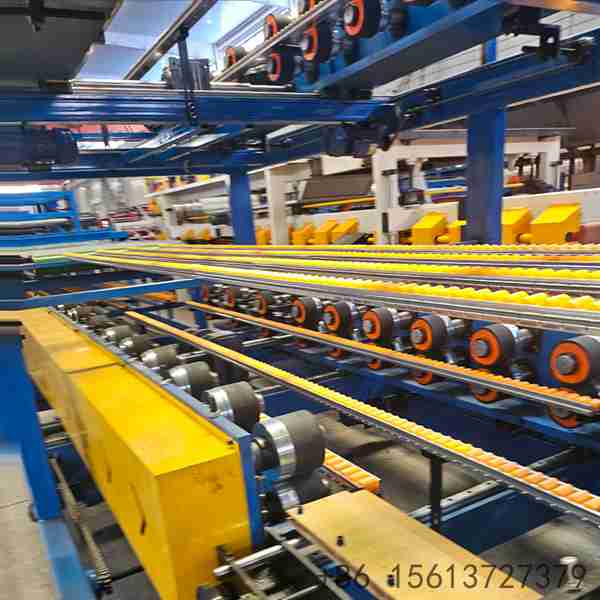

Multi Core Flexibility: Handles rock wool and EPS foam cores with adjustable thickness settings.
Compact Straight-Line Layout: Reduced floor space compared to complex multi-stage lines.
Dual Skin Forming: Top and bottom steel profiles formed in parallel for balanced panel quality.
Customizable Dimensions: Feeding width, sheet thickness, core thickness and panel length configurable.
Rock Wool Fire Resistance: Produces fire resistant panels without relying on certification claims.
Simple Maintenance: Modular sections allow quick access to rollers, glue pumps and cutting unit.
Detailed Description
Technical Specifications
| Component | Specification |
|---|---|
| Material of rollers | High grade 45# forged steel, surface hard chromium plating |
| Rows of rollers | 14 stations |
| Material of shafts | High grade 45# forged steel |
| Diameter of shafts | 50 mm |
| Material of cutting blade | Cr12 Heat Treatment |
| Speed | 10-15 m/min |
| Side plate thickness | 16 mm |

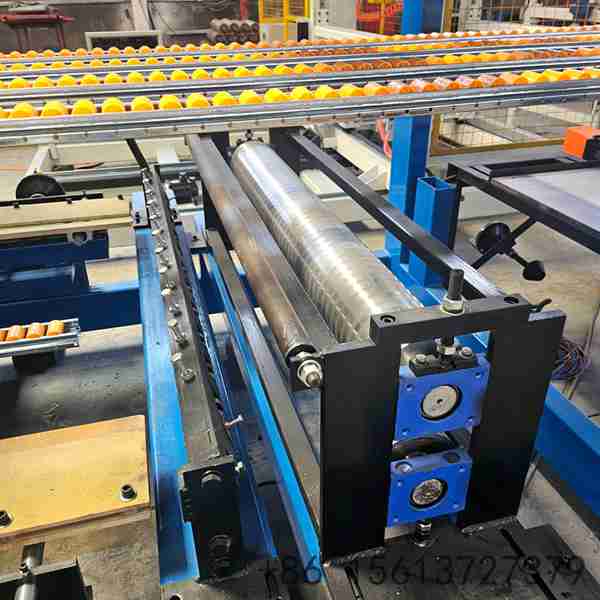

| Forming units | Upper and lower dual forming units |
| Glue system | Dual glue pumps |

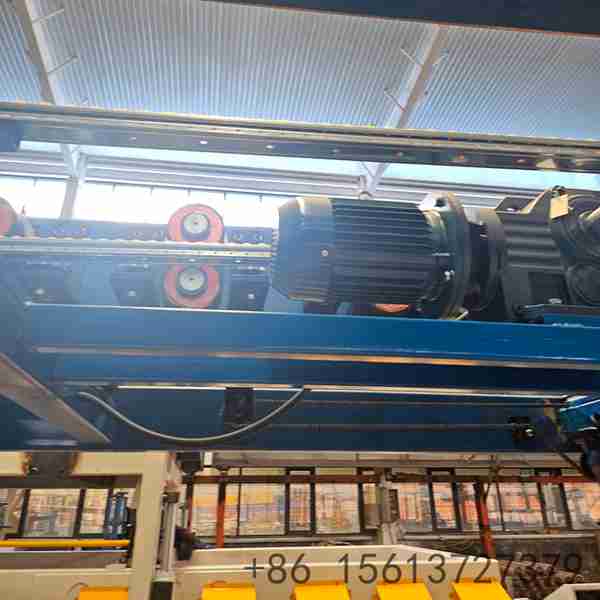

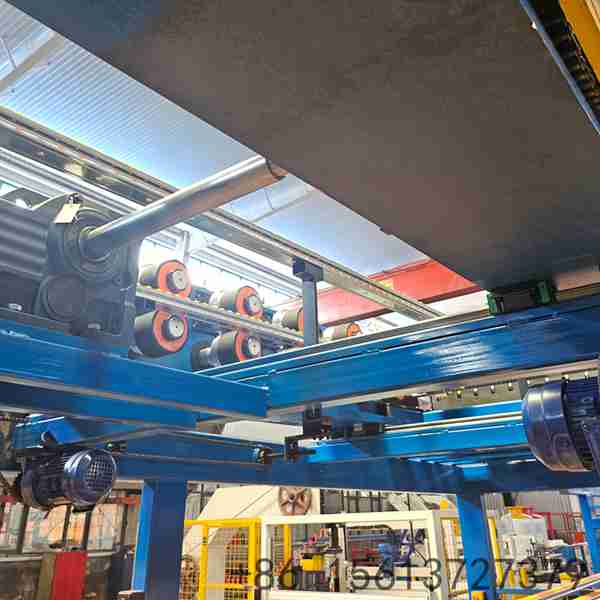

| Core feeding | Rock wool feeding unit + EPS foam feeding system |
| Cutting | Automatic length cutting, length customizable |
Technical Advantages (Based on Specifications)
Long Service Forming: 45# forged steel rollers with hard chromium plating resist wear during continuous dual-skin forming.
Coating Protection: Hard chromium surfaces reduce friction against pre-painted steel, protecting panel surface finish.
Frame Stability: 16 mm side plates keep the upper and lower forming units aligned for consistent panel dimensions.
Reliable Drive: 50 mm solid shafts in 45# forged steel support stable roller rotation at production speed.
Accurate Sizing: Cr12 heat-treated blades deliver clean cuts across the full panel width.
Steady Throughput: 10-15 m/min speed suits standard sandwich panel production volumes.

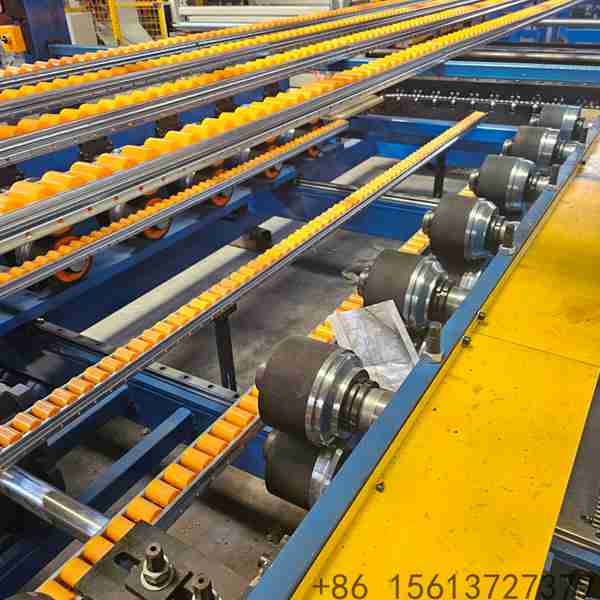

Uniform Bonding: Dual glue pumps supply consistent adhesive for a stable skin-to-core bond.
