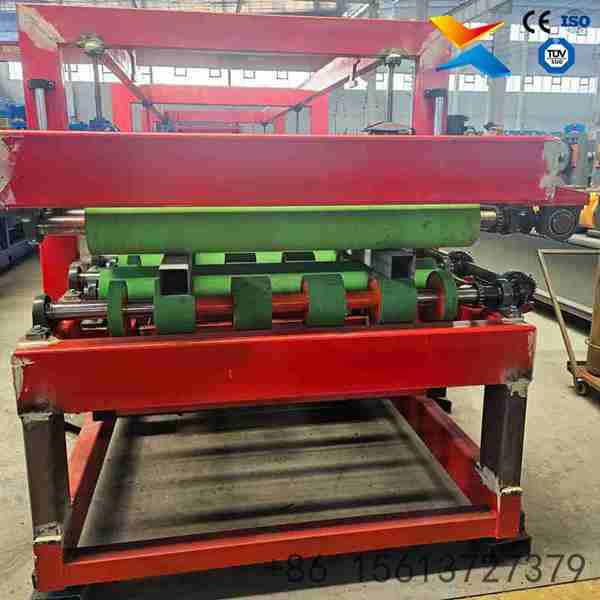

Automatic Rockwool Sandwich Panel Former Machine

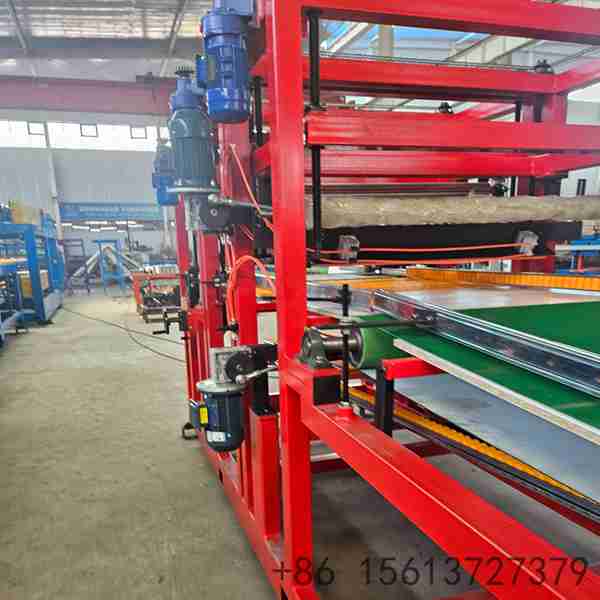

This specialized Fire-Resistant Rock Wool Sandwich Panel Production Line is engineered exclusively for manufacturers producing non-combustible, A2-class insulated panels. Featuring a dedicated rock wool handling system with integrated dust extraction, this line ensures clean, precise processing of fireproof core materials. The heavy-duty continuous laminating press delivers the uniform high pressure required for dense rock wool cores, producing panels with exceptional fire resistance and structural integrity. This is the essential equipment for suppliers targeting industrial factories, cold storage facilities, and high-safety-compliant construction markets.
Product Briefing
A2 Fire-Rated Capability: Specifically engineered for the production of fire-resistant rock wool panels meeting the highest international fire safety standards.

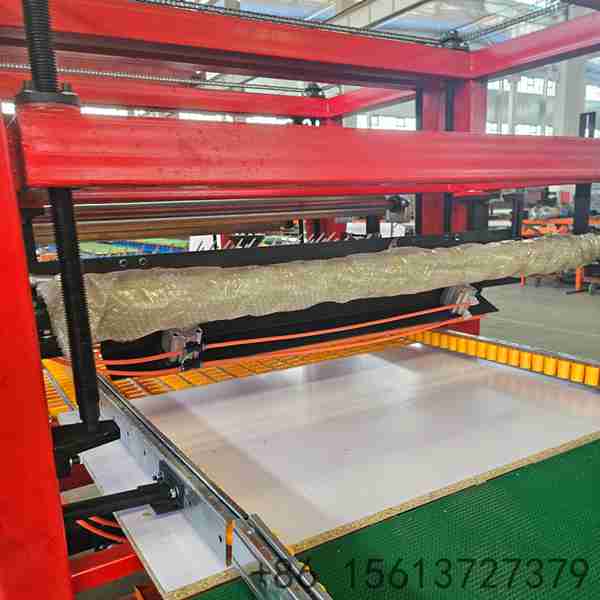

Dedicated Rock Wool Handling: Includes specialized unwinding, cutting, and feeding systems designed for dense rock wool core materials.

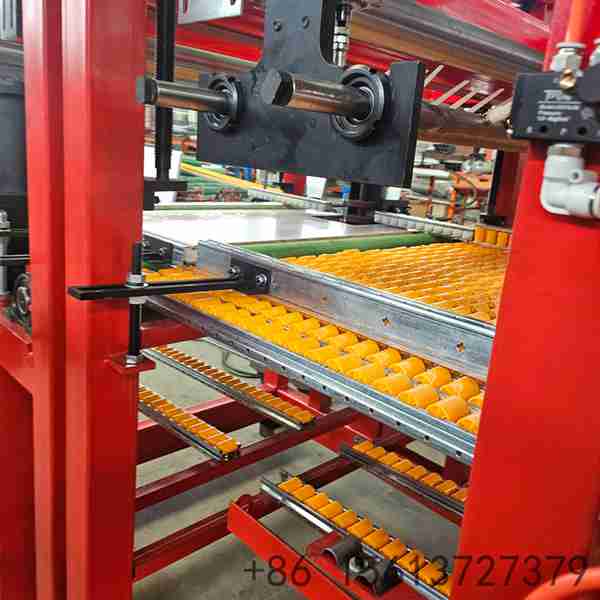

Industrial Dust Extraction: Integrated collection system removes rock wool fibers during cutting, ensuring a clean and safe factory environment.

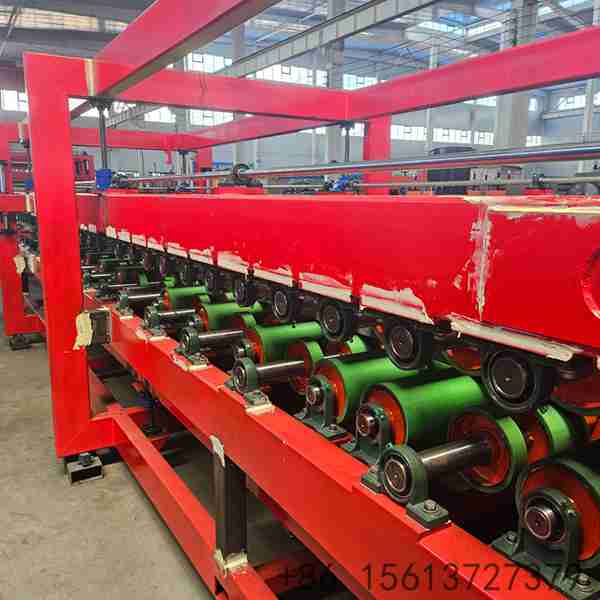

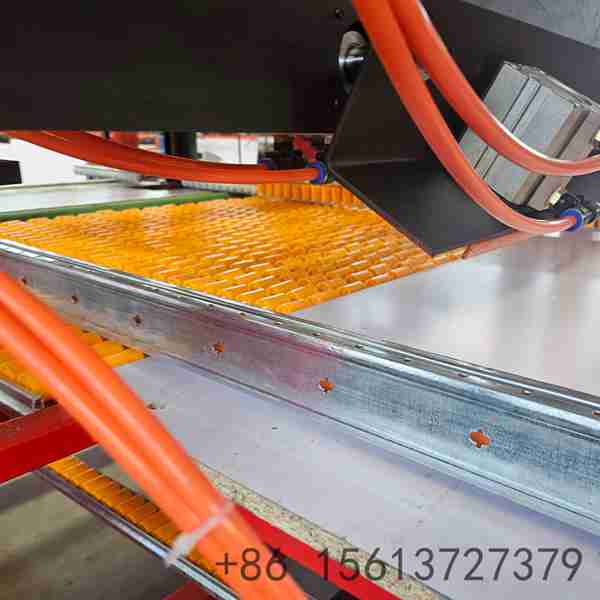

High-Pressure Laminating: The continuous caterpillar press is optimized to compress dense rock wool without damaging the steel skins.

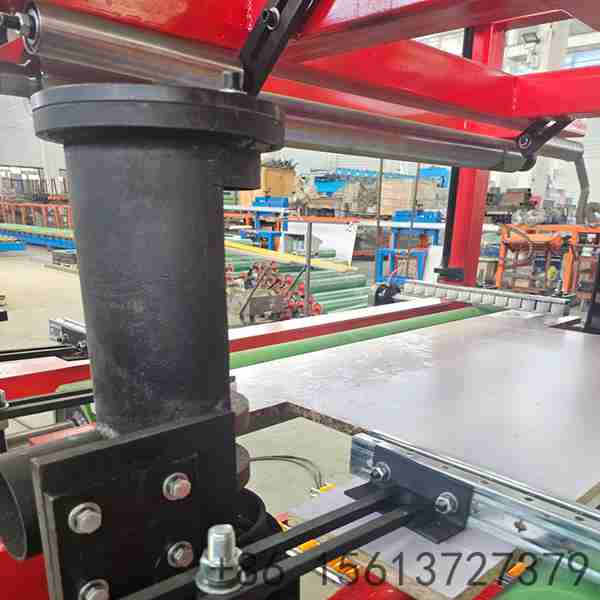

Precise Synchronized Cutting: Equipped with a high-precision cutting unit designed to handle the abrasive nature of rock wool cores.
Detailed Description
Technical Parameters
| Component | Technical Specification |
|---|---|
| Core Material | Rock Wool (Fire-Resistant / A2 Class) |
| Panel Thickness | 50mm - 200mm (Dense Core Capability) |
| Effective Width | 950mm / 960mm / 1000mm / 1150mm |
| Steel Skin Thickness | 0.4mm - 0.8mm (Pre-painted Galvanized) |
| Core Density Support | Up to 150kg/m³ (High-Density Rock Wool) |
| Laminating Press | Continuous Caterpillar Type (High Pressure) |
| Dust Extraction | Integrated Multi-Stage Collection System |
| Cutting Unit | Reinforced Saw / Ribbon Cutter (Abrasion Resistant) |
| Line Speed | 3m - 5m Per Minute (Dense Core) |
Unique Technical Advantages
Fiber-Dust Containment: The cutting section features a sealed enclosure with industrial suction, capturing rock wool fibers at the source.
Dense Core Compression Logic: The press system is calibrated with variable pressure control to compress dense rock wool evenly without surface deformation.
Anti-Abrasion Tooling: Cutting blades and guides are manufactured from abrasion-resistant alloys to extend service life when processing rock wool.
Temperature-Stable Press Zone: Multi-zone heating maintains optimal adhesive curing temperatures for dense core materials.
