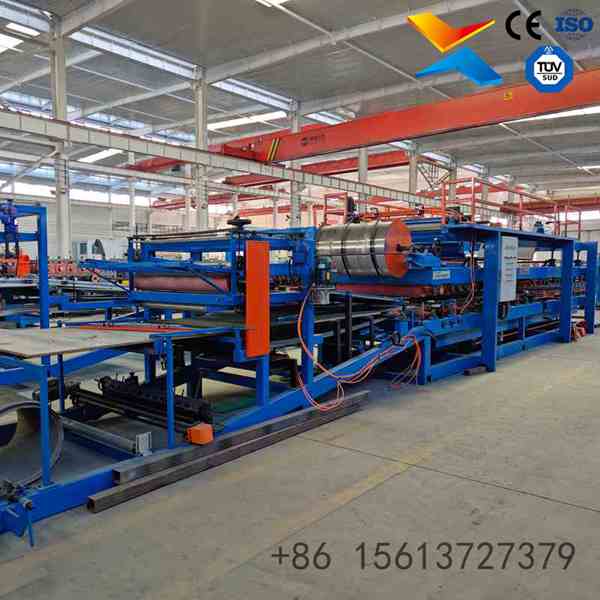

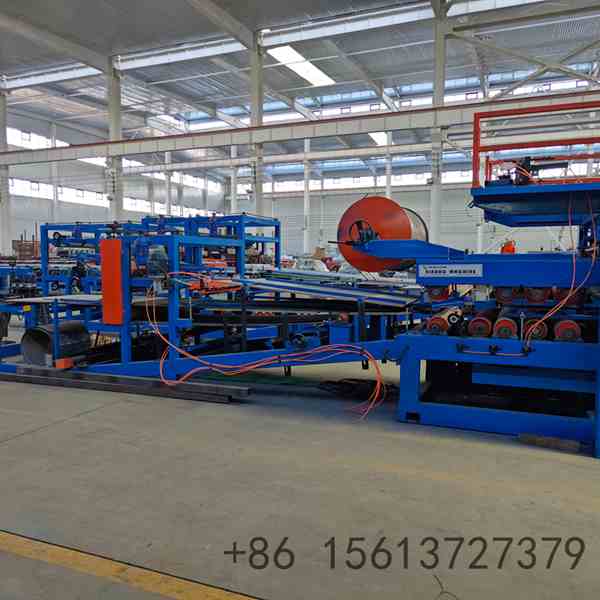

Z-Lock Sandwich Panel Production Line
Product Attributes :
Product Name: Color steel sandwich panel
Definition: An insulation composite board constructed from color-coated steel plates, bottom plates, and an insulation core material, bonded together with high-strength adhesive.
Applications: Widely used in anti-corrosion, pressure vessels, power generation, petrochemical, and pharmaceutical industries.
Advantages: Lightweight (10-14kg/㎡), excellent thermal insulation, easy installation, aesthetic appearance, and high structural strength.
Product Description
Product Introduction
Product Description & Parameters

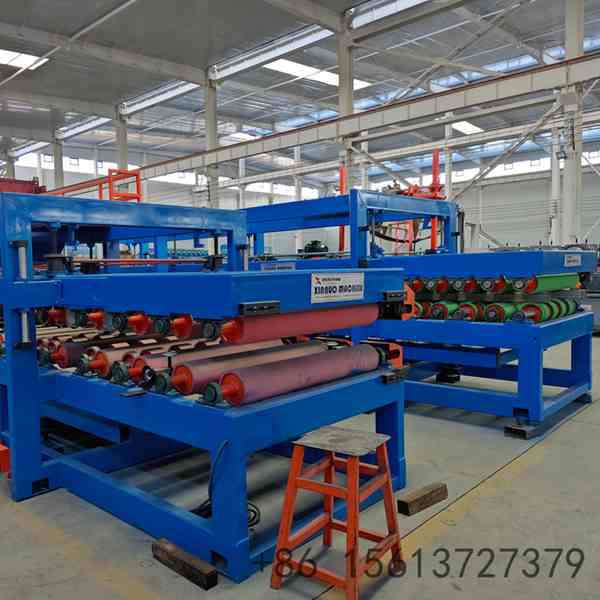

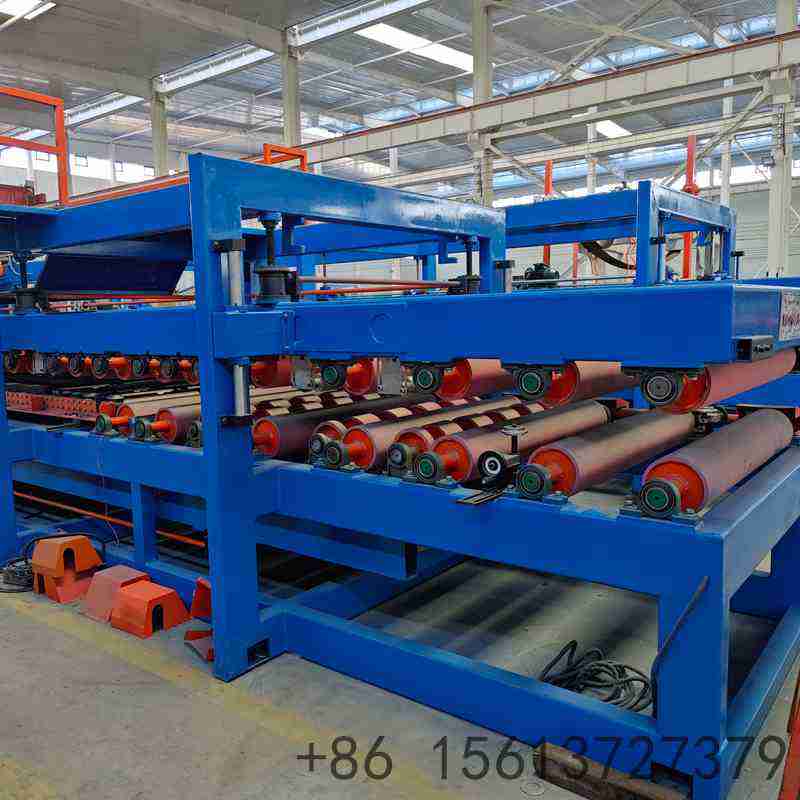

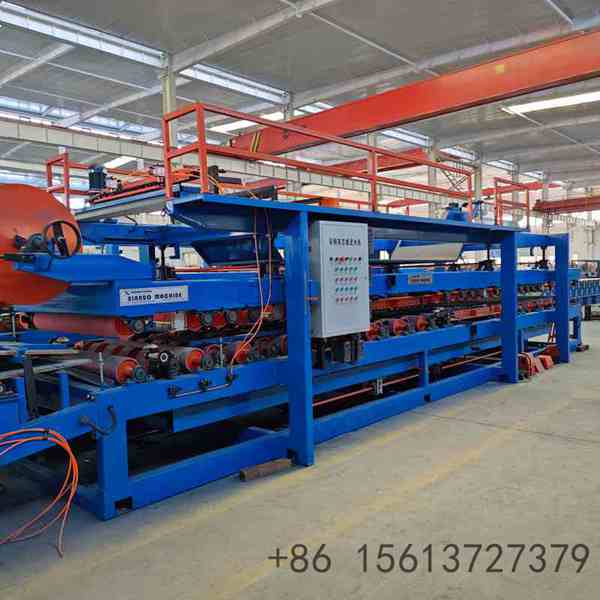

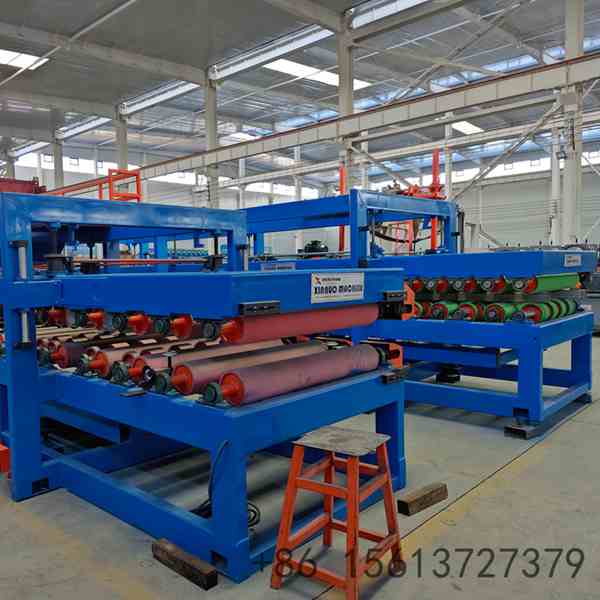

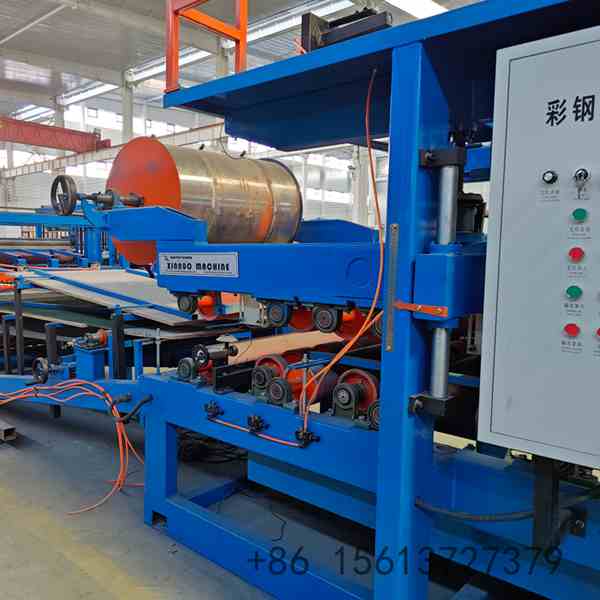

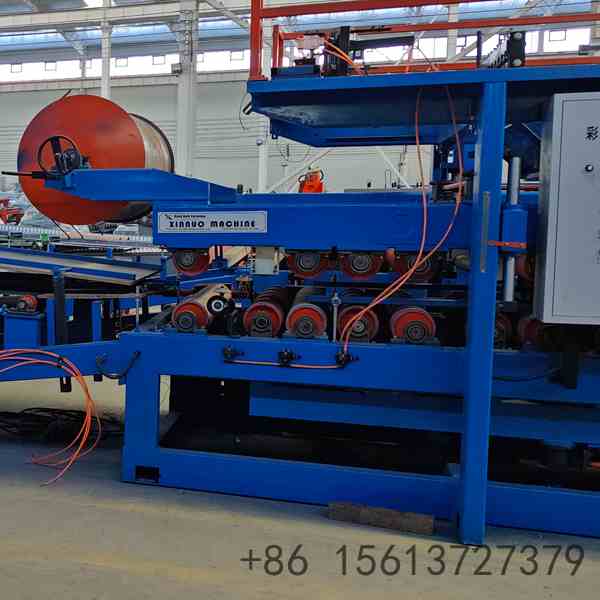

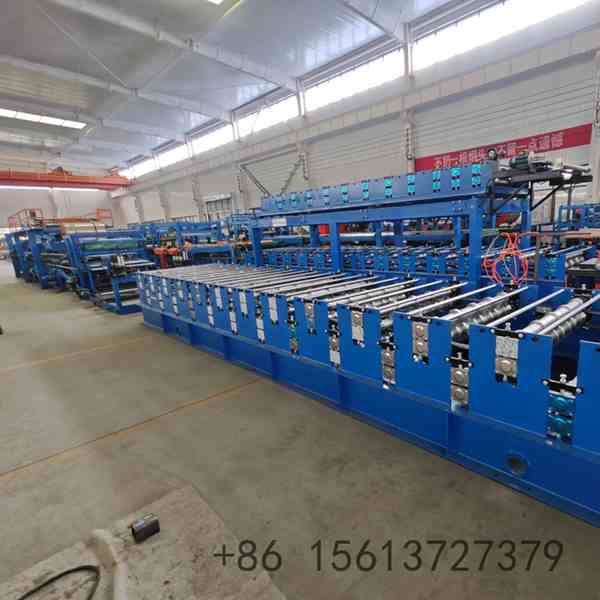

The Z-Lock Sandwich Panel Production Line is a highly automated cold roll forming equipment designed to manufacture premium insulated panels for steel structure buildings, warehouses, workshops, and cold storages. The unique Z-Lock joint design provides superior interlocking strength and thermal efficiency. The production line integrates composite decoiling, roll forming, core material feeding, automatic glue spraying, continuous laminating, and automatic cutting into one seamless process. It can produce both wall and roof panels with EPS cores ranging from 40-300mm or Rock Wool cores from 40-150mm, making it an ideal solution for modern energy-efficient construction.
The Z-Lock Sandwich Panel Production Line is a highly automated cold roll forming equipment designed to manufacture premium insulated panels for steel structure buildings, warehouses, workshops, and cold storages. The unique Z-Lock joint design provides superior interlocking strength and thermal efficiency. The production line integrates composite decoiling, roll forming, core material feeding, automatic glue spraying, continuous laminating, and automatic cutting into one seamless process. It can produce both wall and roof panels with EPS cores ranging from 40-300mm or Rock Wool cores from 40-150mm, making it an ideal solution for modern energy-efficient construction.

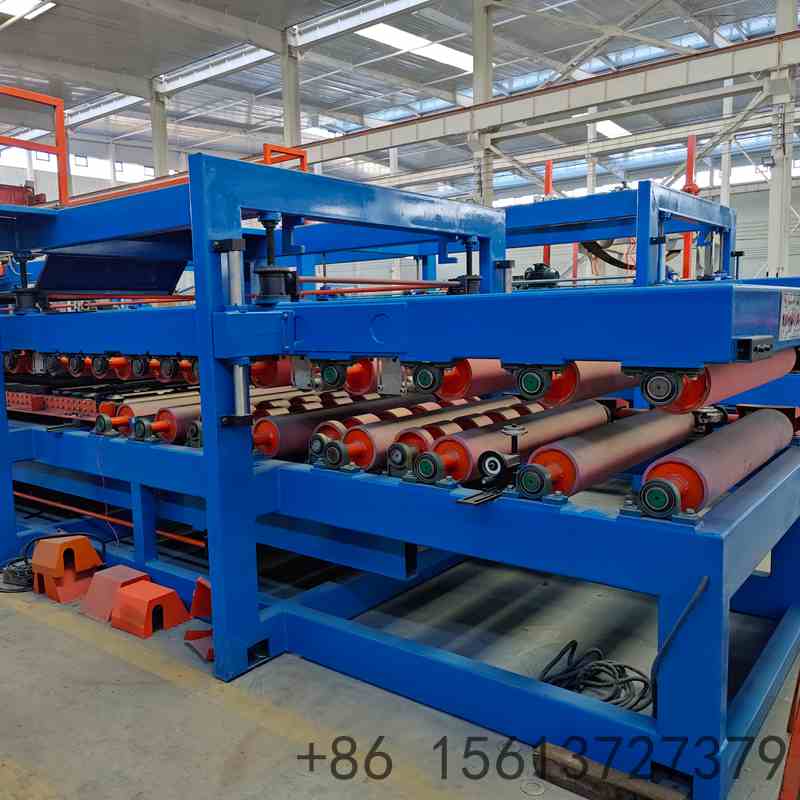

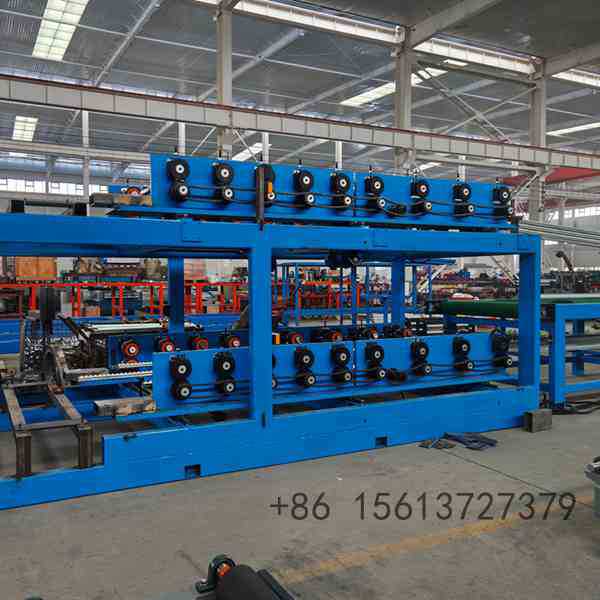

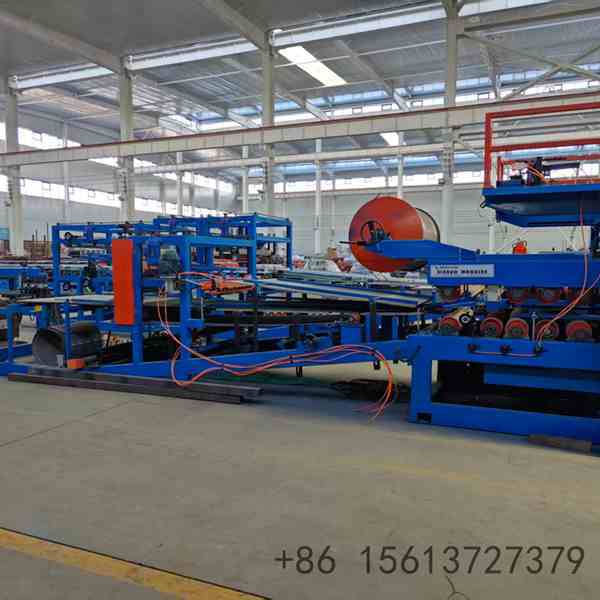

| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Core Material | EPS (Expanded Polystyrene) / Rock Wool / Glass Wool |
| 2 | Steel Sheet Thickness Range | 0.3 - 0.8 mm |
| 3 | EPS Core Thickness Range | 40 - 300 mm |
| 4 | Rock Wool Core Thickness Range | 40 - 150 mm |
| 5 | Max Coil Width | 1250 mm (customizable) |
| 6 | Production Speed | 0 - 6 m/min (adjustable via frequency converter) |
| 7 | Production Capacity | 1500 - 2000 m² / 8 hours |
| 8 | Main Motor Power | 30 - 32 kW (depending on configuration) |
| 9 | Hydraulic Station Power | 4 - 5.5 kW |
| 10 | Roller Material | High-grade 45# forged steel with hard chrome plating |
| 11 | Frame Material | Heavy-duty 25# channel steel welded structure |

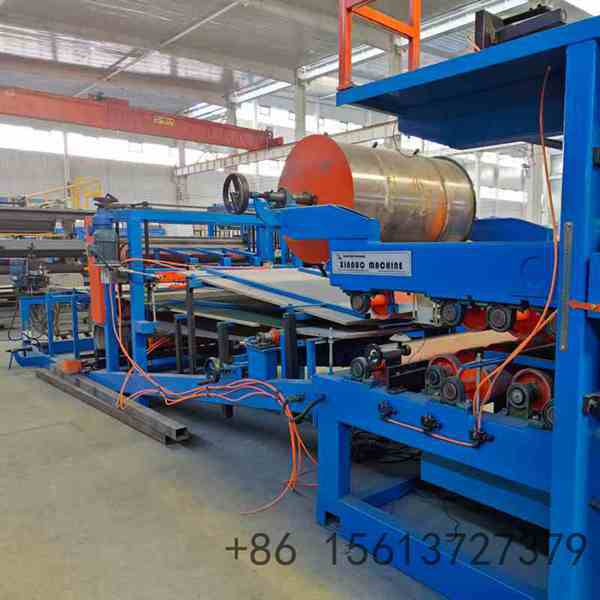

| 12 | Laminating System | Automatic glue spraying and caterpillar pressing |
| 13 | Cutting Blade Material | Cr12 mould steel with quenching treatment (HRC 58-62) |
| 14 | Cutting Method | Hydraulic automatic cutting, automatic pause and cut |
| 15 | Control System | PLC control with touch screen (Siemens / Mitsubishi / Delta) |
| 16 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 17 | Machine Dimensions | Approx. 45m × 3m × 2.8m |
| 18 | Machine Weight | Approx. 20 - 25 Tons |
| 19 | Length Tolerance | ±1 - 2 mm |
| 20 | Warranty | 12-24 months free warranty + lifelong technical support |
