Automatic EPS and Mineral Wool Sandwich Panel Line

Automatic EPS and Mineral Wool Sandwich Panel Line

Product Attributes :

Product Name: Color steel sandwich panel

Definition: An insulation composite board constructed from color-coated steel plates, bottom plates, and an insulation core material, bonded together with high-strength adhesive.

Applications: Widely used in anti-corrosion, pressure vessels, power generation, petrochemical, and pharmaceutical industries.

Advantages: Lightweight (10-14kg/㎡), excellent thermal insulation, easy installation, aesthetic appearance, and high structural strength.

Product Description

Product Introduction

Dual-Core Versatility: Highly adaptable production line capable of processing both EPS (Expanded Polystyrene) and Mineral Wool (Rock Wool) cores, catering to diverse building insulation, lightweight, and fireproofing requirements.

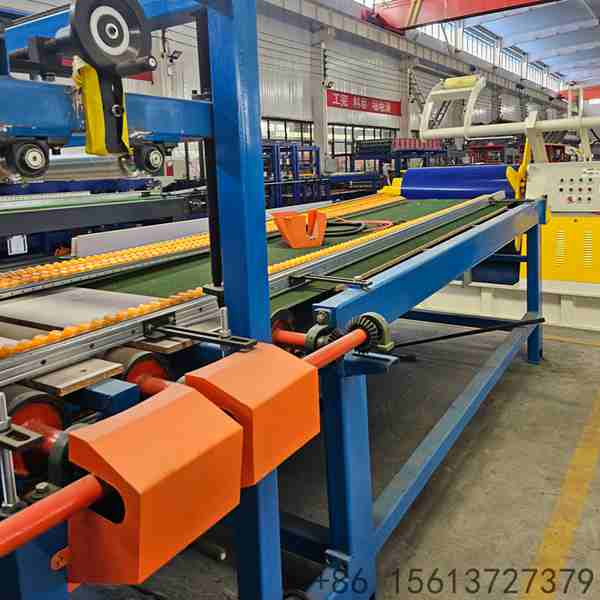

Continuous Automated Laminating: Features a highly efficient glue spraying and continuous pressing system that guarantees uniform adhesive distribution and strong bonding strength between the color steel sheets and the core materials.
Versatile Profile Compatibility: Capable of producing both corrugated roof panels and flat wall panels, catering to diverse construction needs for warehouses, workshops, cold storages, and steel structure buildings.
PLC Intelligent Control: Utilizes a centralized PLC control system with a touch screen interface for easy parameter adjustment, accurate length measurement, and stable automated production.

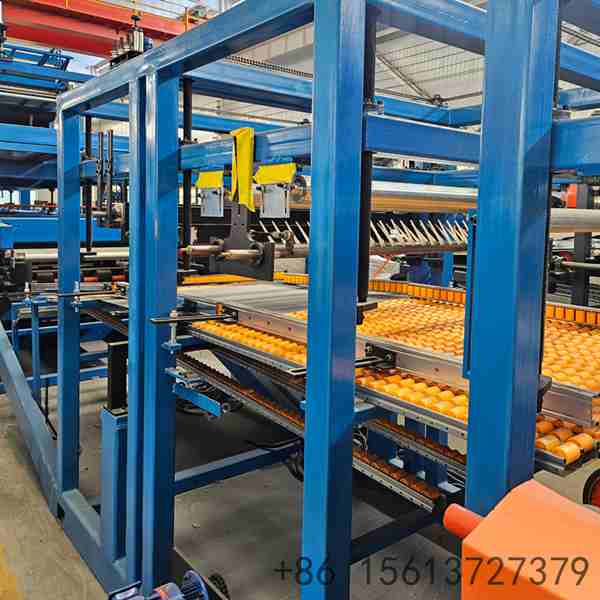

Durable Machine Construction: Built with a heavy-duty welded steel frame and premium 45# steel rollers with hard chrome plating, ensuring long service life and consistent panel quality.

Product Description & Parameters

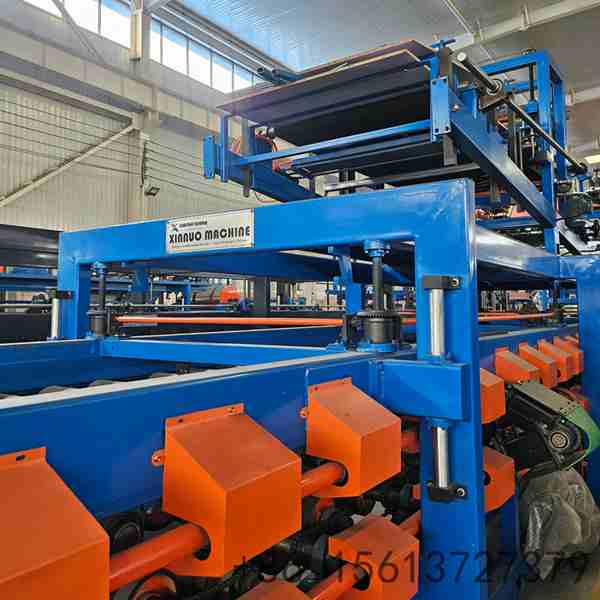

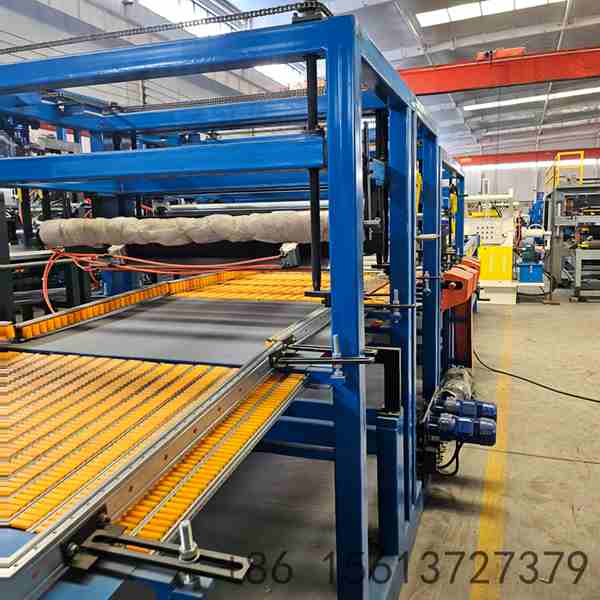

The Automatic EPS and Mineral Wool Sandwich Panel Line is a highly automated continuous composite equipment designed to manufacture premium insulated panels for modern construction projects. The production line integrates composite decoiling, roll forming, core material feeding, automatic glue spraying, continuous laminating, and automatic cutting into one seamless process. It can produce both wall and roof panels with EPS cores ranging from 40-300mm or Mineral Wool cores from 40-150mm, making it an ideal solution for energy-efficient and fire-resistant construction.

No.	Main Parameter / Feature	Details
1	Applicable Core Material	EPS (Expanded Polystyrene) / Mineral Wool / Rock Wool
2	Steel Sheet Thickness Range	0.3 - 0.8 mm
3	EPS Core Thickness Range	40 - 300 mm
4	Mineral Wool Core Thickness Range	40 - 150 mm
5	Max Coil Width	1250 mm (customizable)
6	Production Speed	0 - 6 m/min (adjustable via frequency converter)
7	Production Capacity	1500 - 2000 m² / 8 hours
8	Main Motor Power	30 - 32 kW (depending on configuration)
9	Hydraulic Station Power	4 - 5.5 kW
10	Roller Material	High-grade 45# forged steel with hard chrome plating
11	Frame Material	Heavy-duty 25# channel steel welded structure
12	Laminating System	Automatic glue spraying and caterpillar pressing
13	Cutting Blade Material	Cr12 mould steel with quenching treatment (HRC 58-62)

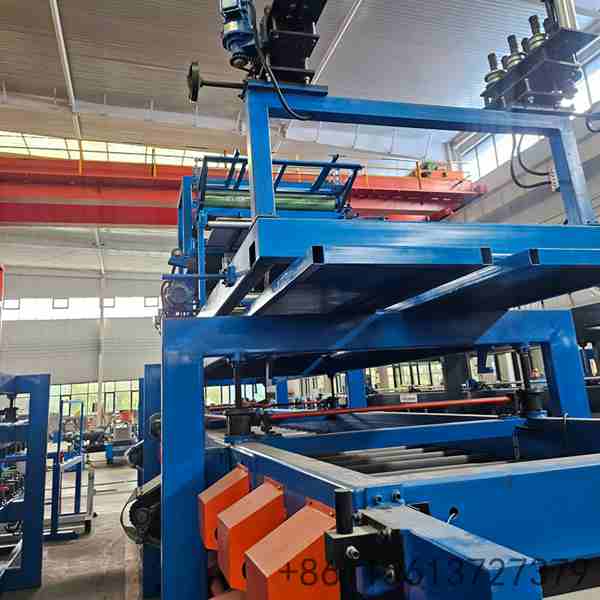

14	Cutting Method	Hydraulic automatic cutting, automatic pause and cut
15	Control System	PLC control with touch screen (Siemens / Mitsubishi / Delta)
16	Voltage	380V / 50Hz / 3 Phase (customizable)
17	Machine Dimensions	Approx. 45m × 3m × 2.8m
18	Machine Weight	Approx. 20 - 25 Tons
19	Length Tolerance	±1 - 2 mm
20	Warranty	12-24 months free warranty + lifelong technical support
