Profile: PU/PIR sandwich panel, cold room / roof / wall
Feed width: 1200 mm (1220-1250 mm for wide panels, customizable)
Panel thickness: Customizable per project spec
Effective width: 950 / 970 / 1000 / 1050 / 1120 mm (by profile)
Skin material: Color coated steel coil 0.3-0.8 mm (top), 0.3-0.6 mm (bottom)
Cold Chain Core: PU core gives very low thermal conductivity for cold rooms and cold stores.

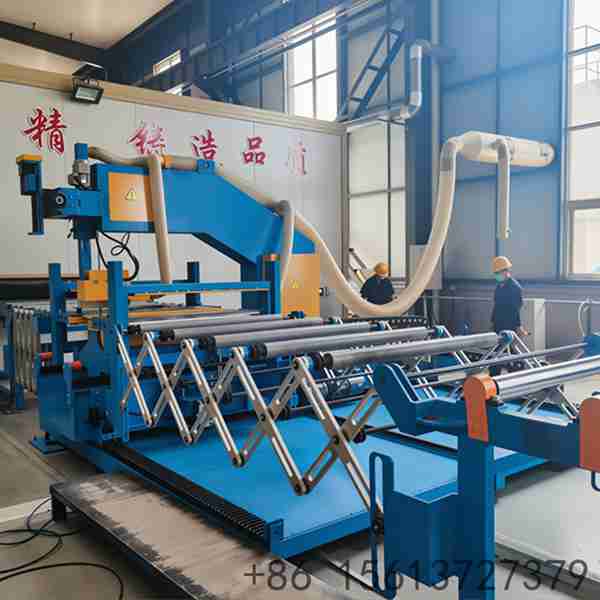

Coil To Panel: One continuous process from steel coil to finished insulated panel.

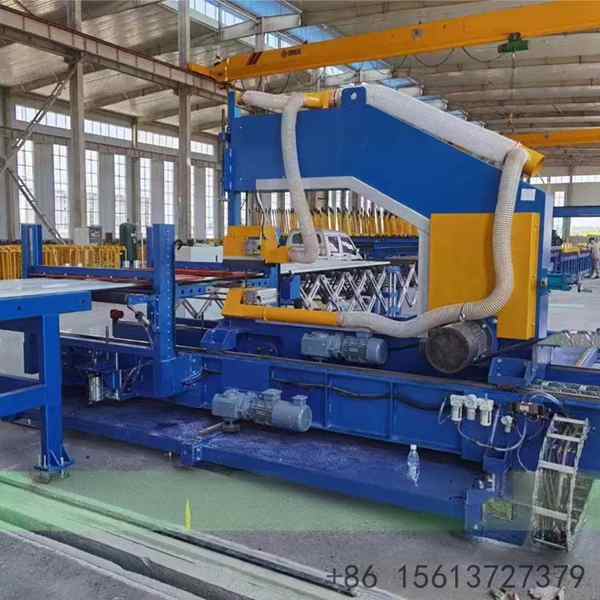

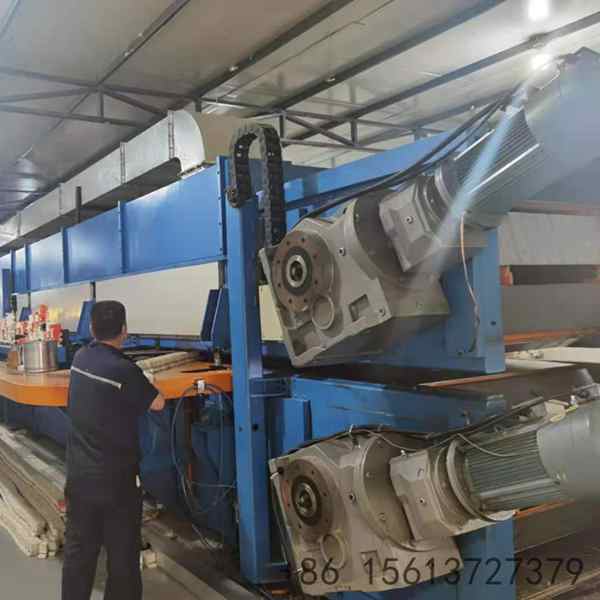

Twin Forming Units: Upper and lower skins formed in one line, bonded with PU foam.

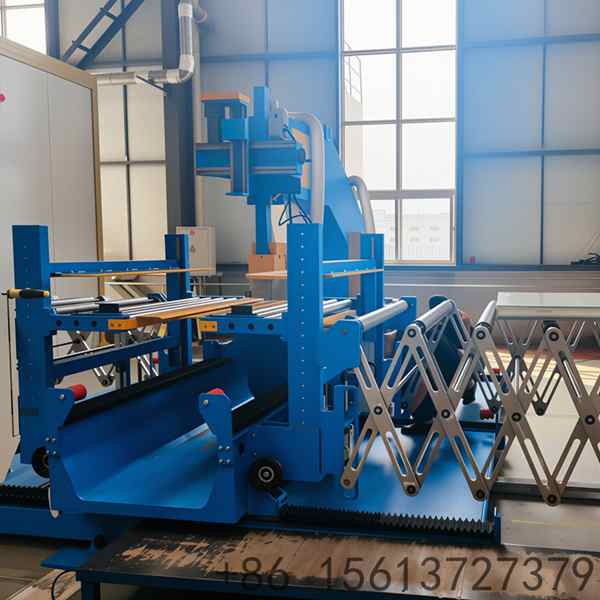

High Pressure Foaming: Continuous PU foaming unit with adjustable core density.

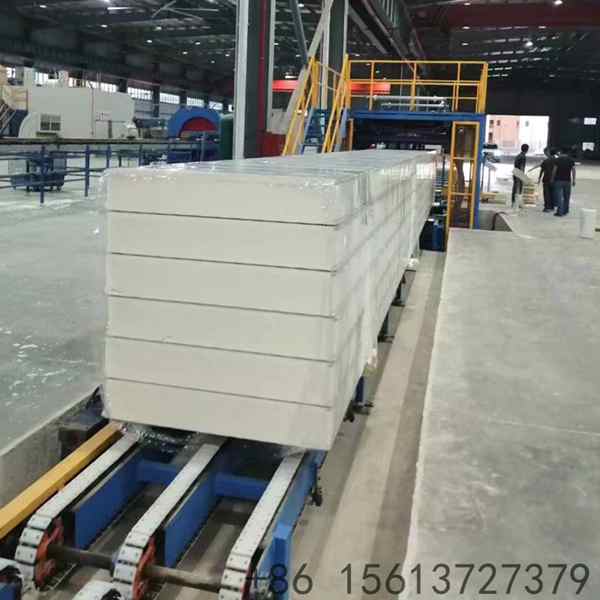

Consistent Output: Automatic length cutting with PLC control.
Width Range: Effective widths 950-1120 mm, thickness per project drawing.
Single Factory Supply: Complete line with installation, training and remote support.
| Component | Specification |
|---|---|
| Profile | PU foam sandwich panel, cold room / roof / wall |
| Feed width | 1200 mm (1220-1250 mm for wide panels, customizable) |
| Panel thickness | Customizable per project spec |
| Effective width | 950 / 970 / 1000 / 1050 / 1120 mm (by profile) |
| Skin material | Color coated steel coil 0.3-0.8 mm (top) / 0.3-0.6 mm (bottom) |
| Core | Continuous high pressure PU foam, density adjustable |
| Forming rows | 14 (16-18 for wide panels) |
| Frame | 300H (350H heavy duty optional) |
| Rollers / shafts | Hardened rollers, Φ70 mm shafts (Φ75-80 heavy duty) |
| Main motor | 3-4 KW single or 5×3 KW multi motor |

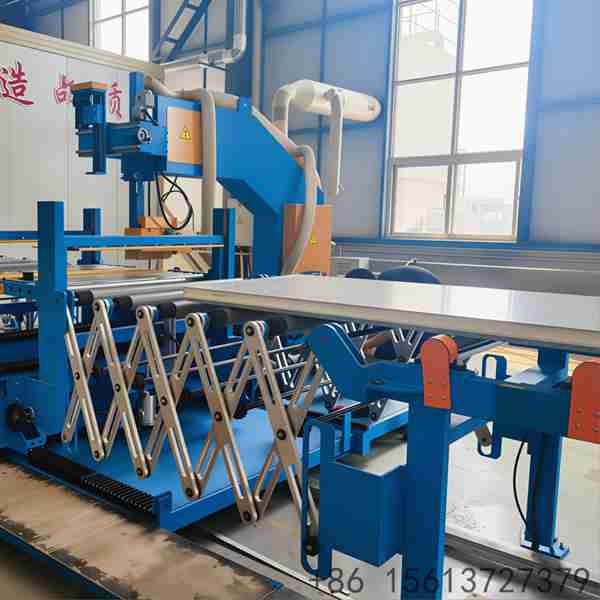

| Cutting | Automatic length cutting |

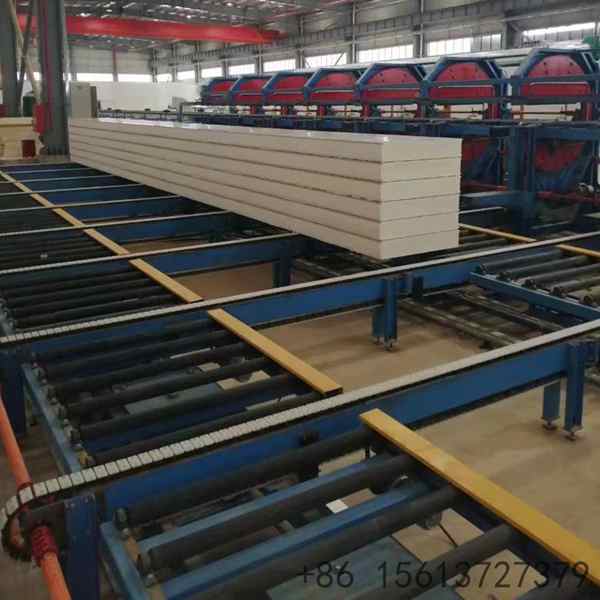

| Control | PLC based system |
| Optional | Complete line with installation, training, spare parts, remote support |
Low Thermal Conductivity: PU core keeps cold rooms and cold stores energy efficient.
Continuous Production: Coil in, finished panel out, one automatic line.

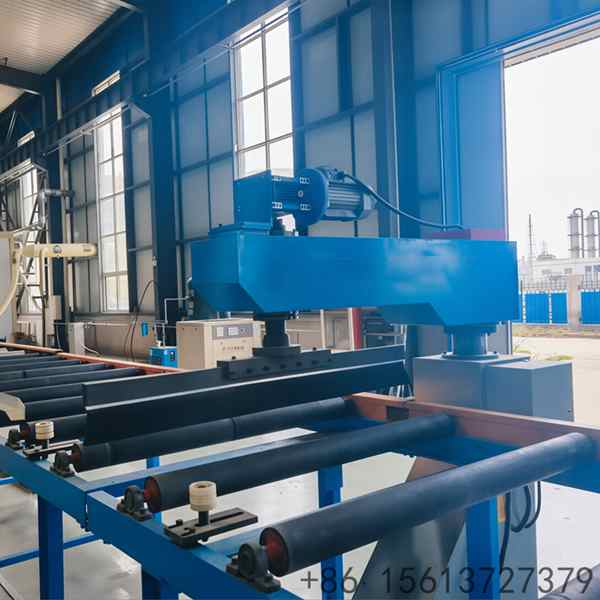

Dual Forming Units: Upper and lower skins formed and bonded in the same process.
Adjustable Core Density: Foaming unit tuned to your insulation requirement.
Length Accuracy: Automatic cutting holds panel length per order.
Custom Sizes: Width, thickness and length configured from your drawings.

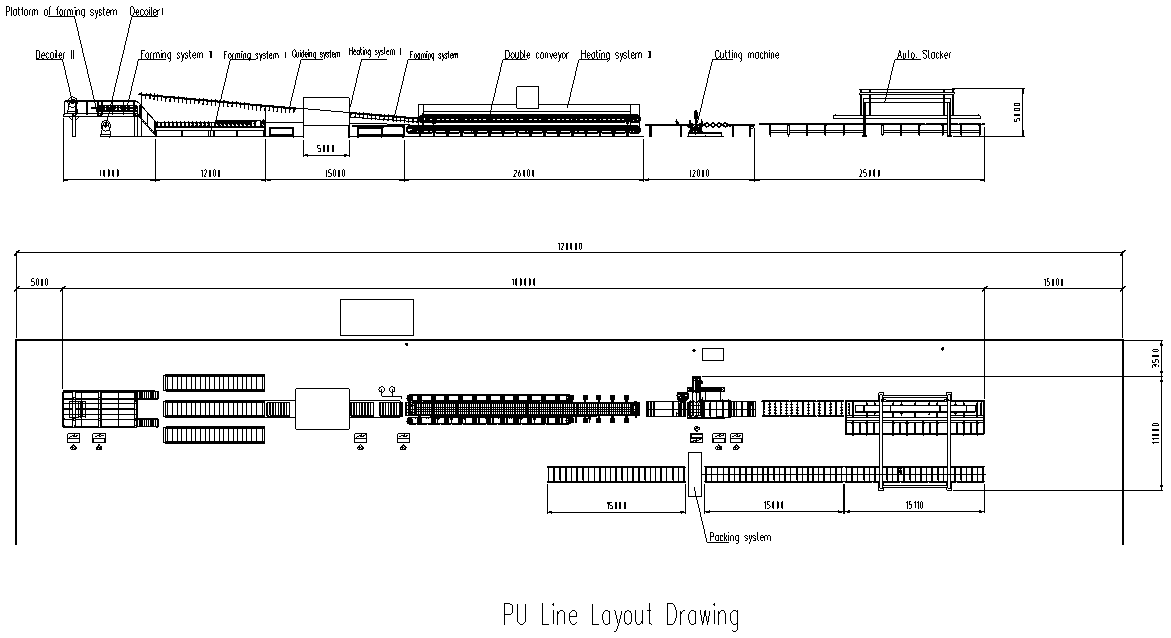

Single Supplier: Machine, line layout, installation and training from one factory.
