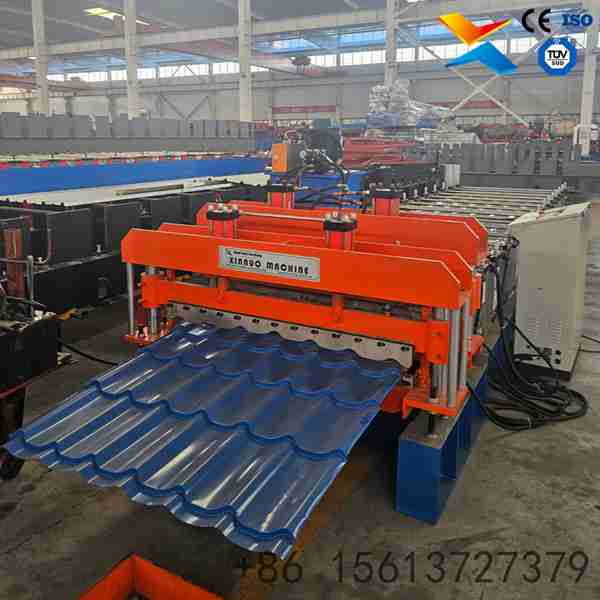

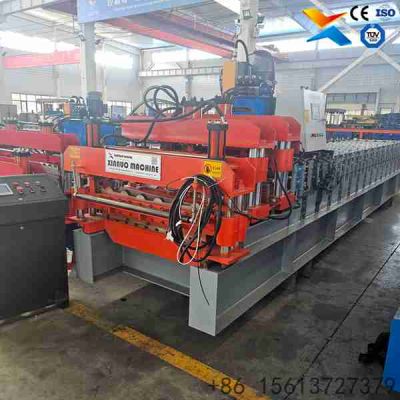

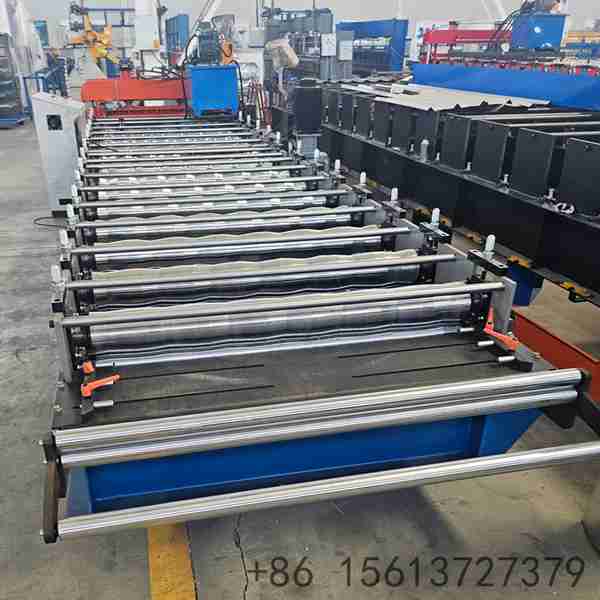

Heavy-Duty Corrugated & Glazed Tile Roll Forming Machine

Heavy-Duty Corrugated & Glazed Tile Roll Forming Machine

Product Attributes :

Application Production of trapezoidal metal roof sheets

Material Thickness 0.3 – 0.8 mm

Feeding Width 1000-1220 mm

Production Speed 8-15m/min

Note Custom sizes & profiles available

WhatsApp 15613727379

Product Description

Product Introduction:

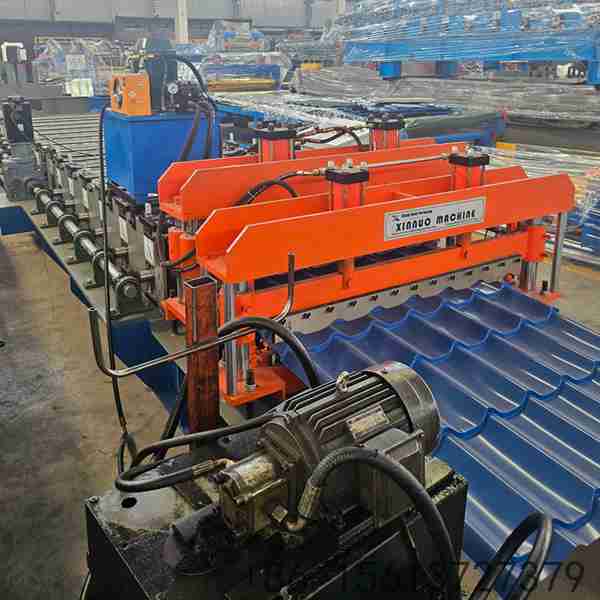

Reinforced H-Beam Chassis: The main frame is constructed with 350-400 H-beams and 18-20mm thick side plates. This massive industrial structure absorbs vibrations generated during high-speed forming and cutting, ensuring absolute dimensional accuracy.

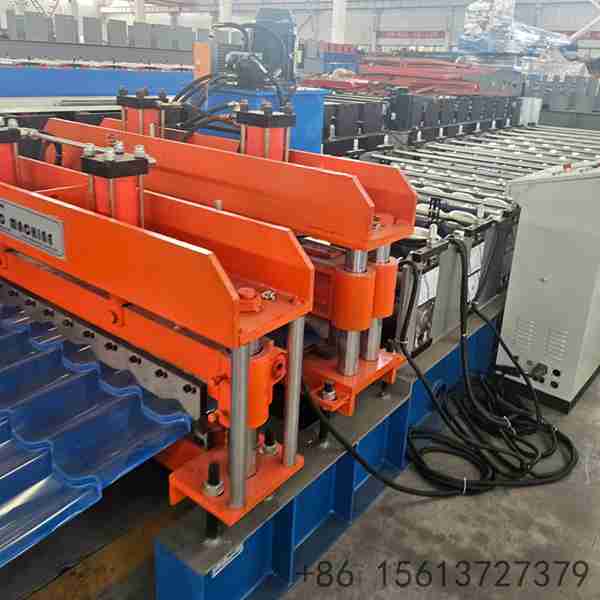

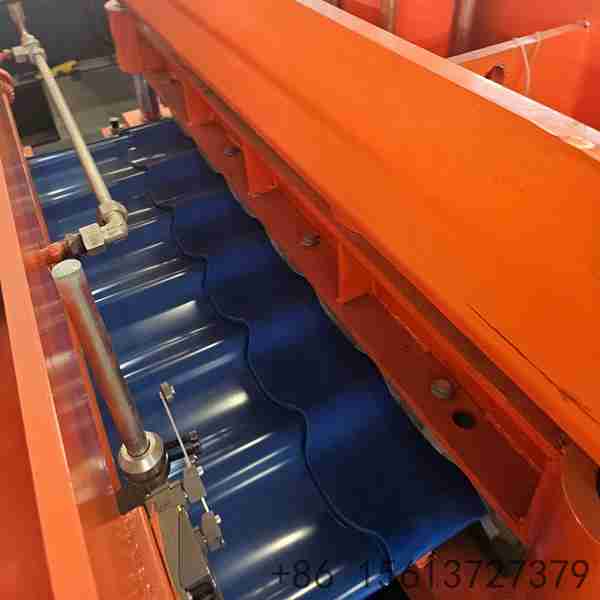

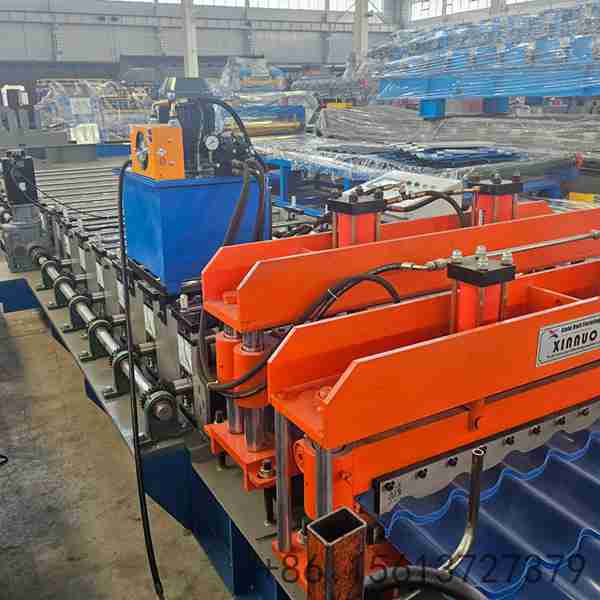

Precision Hydraulic Cutting: Equipped with Cr12MoV quenched blades (HRC 58-62) and a four-pillar cutting structure. Guarantees clean, burr-free cuts with a strict tolerance of ±1mm, even at maximum operating speeds.

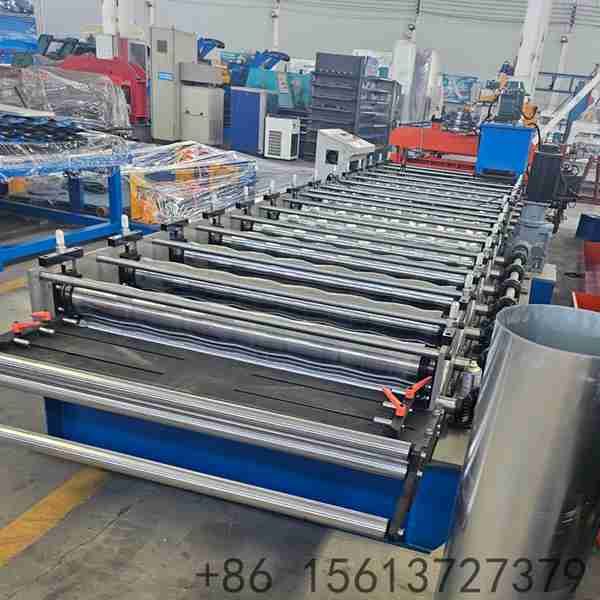

Zero-Deflection Solid Shafts: Main shafts boast a diameter of 70-80mm, made of high-grade 45# steel with heat treatment and key-way polishing. Ensures zero deflection under heavy load and significantly extends bearing life.

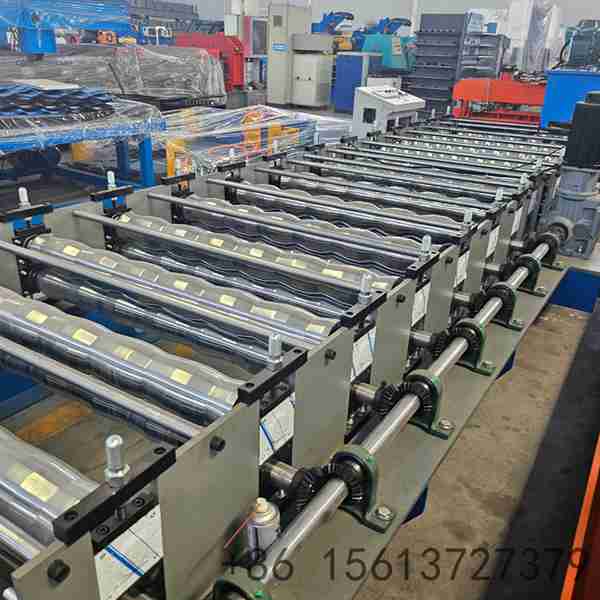

Stable Chain Transmission: Utilizes 1.2-inch double-row chains and precision gears for power transmission, providing stronger torque and smoother operation compared to standard belt drives.

Customizable Antique Profiles: Can be tailored to produce any combination of arc and glazed tile profiles (e.g., 828, 840, 800 series) based on specific architectural market demands.

Product Description & Parameters:
The Heavy-Duty Arc & Glazed Tile Press Machine is engineered for clients who demand extreme durability and flawless product quality. The biggest challenge in multi-layer machines is maintaining stability during the cutting phase; our reinforced H-beam frame solves this by providing a rock-solid foundation.

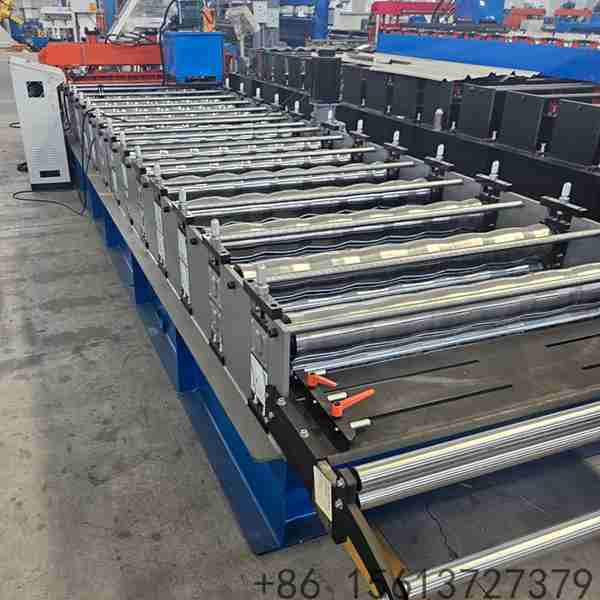

This industrial-grade stability allows the hydraulic system to execute precise cuts without causing frame deflection or panel deformation. The solid 80mm shafts and chrome-plated GCr15 rollers ensure that the panel geometry remains perfectly consistent even after years of continuous industrial operation. It is the ideal investment for large-scale manufacturers who require low maintenance, high reliability, and premium-quality roofing sheets for major construction projects.

No.	Main Parameter / Feature	Details
1	Applicable Material	Pre-painted Steel, Galvanized Steel
2	Material Thickness	0.3 - 0.8 mm
3	Feeding Width	Max 1220 mm
4	Forming Speed	10 - 15 m/min
5	Forming Stations	14-18 rows per layer
6	Main Motor Power	5.5 - 7.5 kW
7	Hydraulic Power	4 - 5.5 kW (10-12 MPa)
8	Roller Material	45# Steel, CNC Machined, Hard Chrome Plated
9	Shaft Material	45# Forged Steel, Dia. 75-80mm
10	Cutting Blade Material	Cr12MoV, Quenched (HRC 58-62)
11	Cutting Tolerance	±1 mm
12	Control System	PLC + Encoder (Siemens / Omron)
13	Voltage	380V / 50Hz / 3 Phase
14	Machine Dimensions	Approx. 9.0m x 1.6m x 1.5m
15	Machine Weight	Approx. 7 - 9 Tons
16	Decoiler	5T Hydraulic Decoiler
17	Warranty	12-24 Months + Lifetime Support
