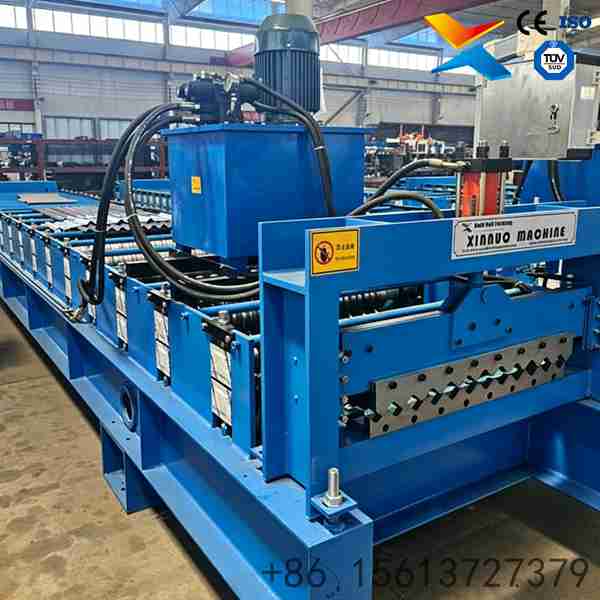

750 Corrugated Profile: Continuous arc wave at 75mm pitch, 18.5mm rib height.

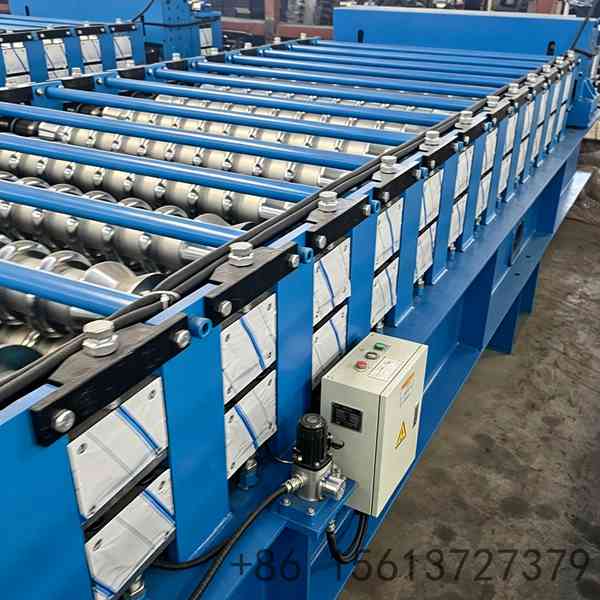

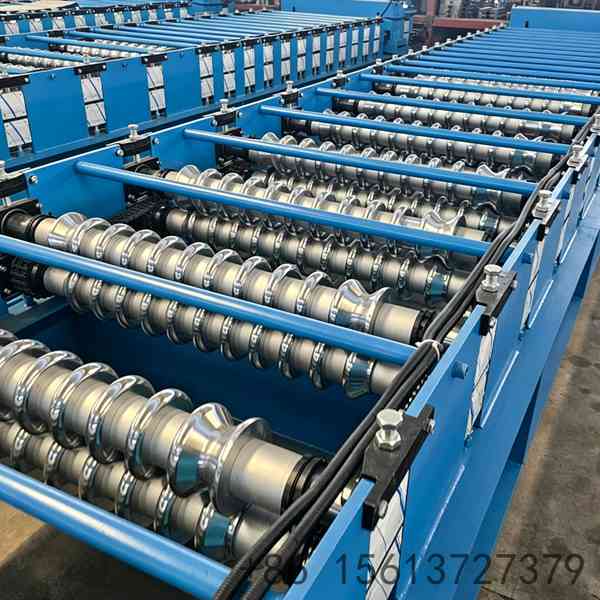

27 Station Forming Train: The wave is raised step by step for a smoother surface.

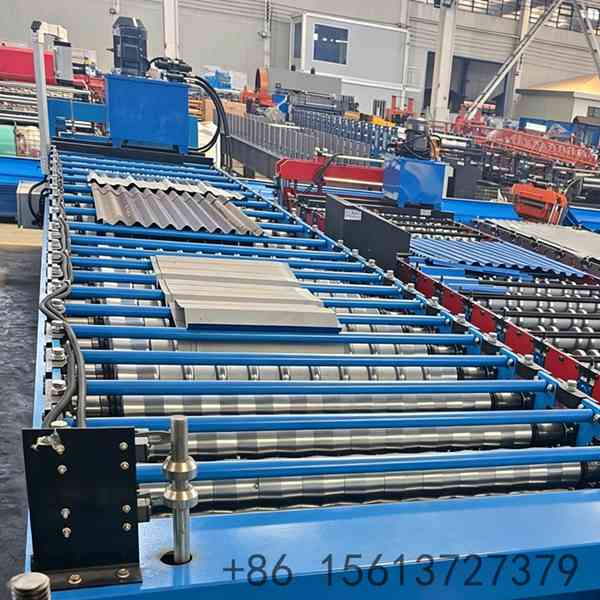

Continuous Wave: Sine wave section without flat breaks across 750mm of cover.
Narrow Coil Match: 914mm feed width suits common coated coil sizes.
Proven Tooling: The 750 profile has an existing production record.

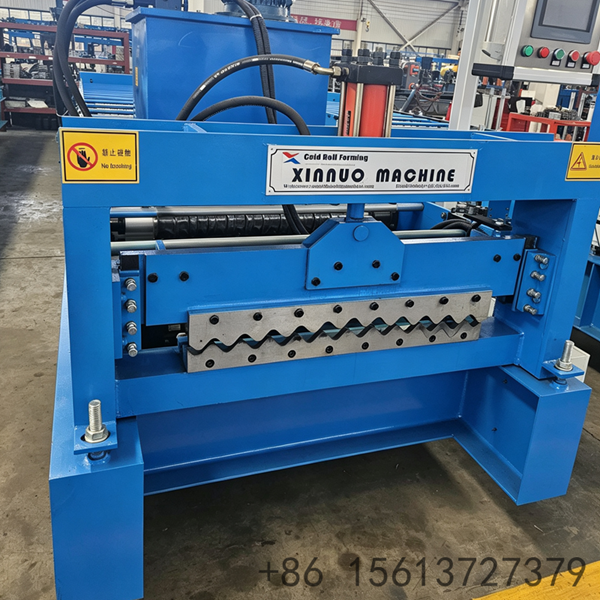

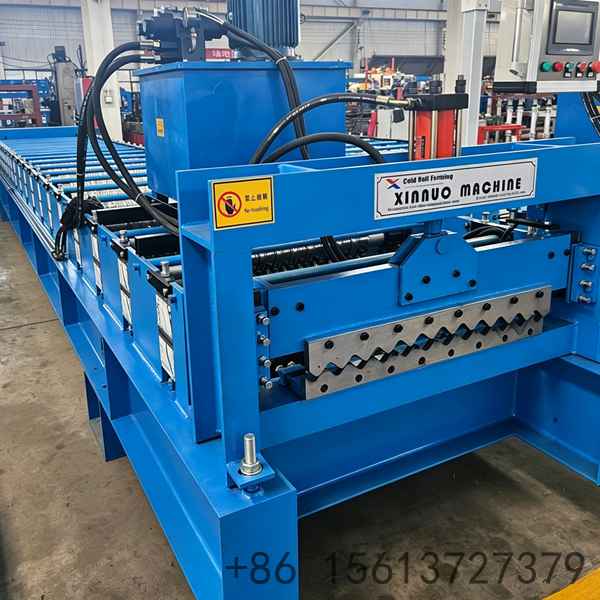

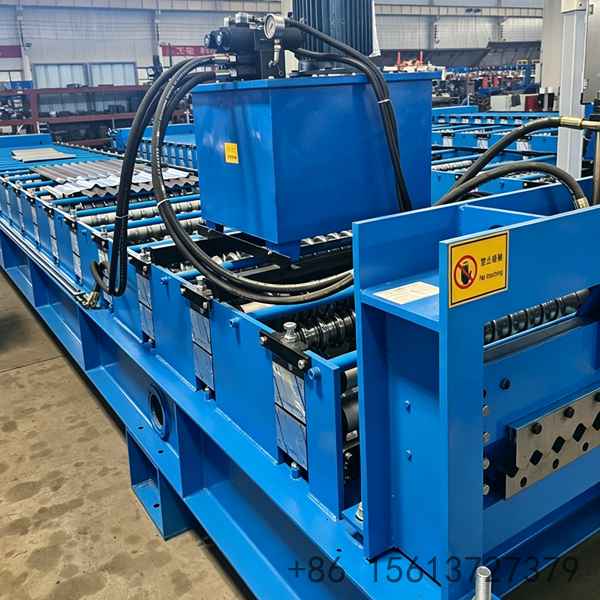

Automatic Control: Hydraulic cutting with PLC length setting, simple roller adjustment.
Single Factory Supply: Machine, cutting, control and service from one supplier.
| Component | Specification |
|---|---|
| Profile | 750 corrugated arc wave panel, 75mm pitch, 18.5mm rib height |
| Effective width | 750 mm |
| Feed width | 914 mm |
| Sheet thickness | Customizable per roofing spec |
| Forming rows | 27 |
| Frame | [To be confirmed] |
| Shafts | [To be confirmed] |
| Main motor | [To be confirmed] |
| Transmission | [To be confirmed] |
| Coil types | Prepainted colored / galvanized steel coil |
| Production record | 750 profile produced and delivered in 2019 |
| Optional | Hydraulic cutting with PLC control, coil car, stacker |
Fine Even Wave: 75mm pitch arc wave over 750mm of effective cover.
Gradual Forming: 27 stations raise the profile step by step, easing the steel.
Continuous Section: Sine wave shape runs the full panel without flat breaks.
Coil Match: 914mm feed width keeps offcut low on standard narrow coil.

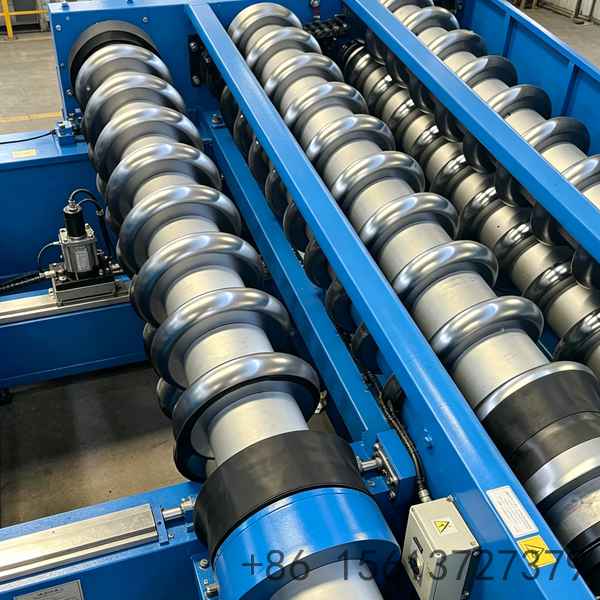

Proven Rollers: An existing production record backs the 750 tooling.

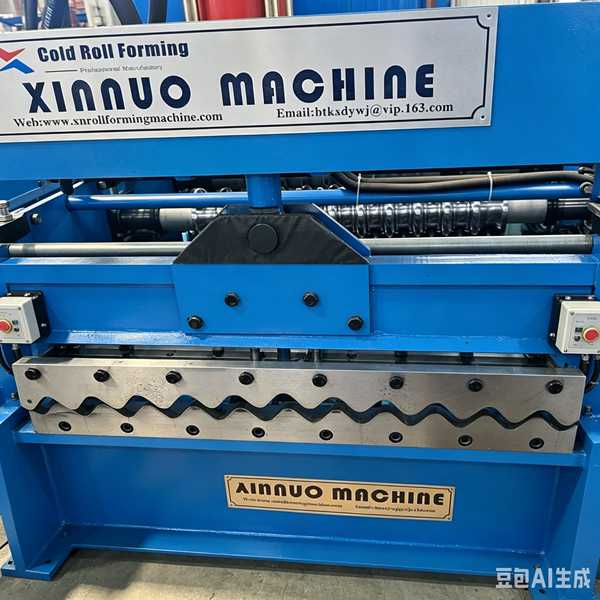

Automatic Cutting: Hydraulic shear with PLC length setting for repeat panels.
Single Supplier: Machine, cutting, control and service from one factory.
