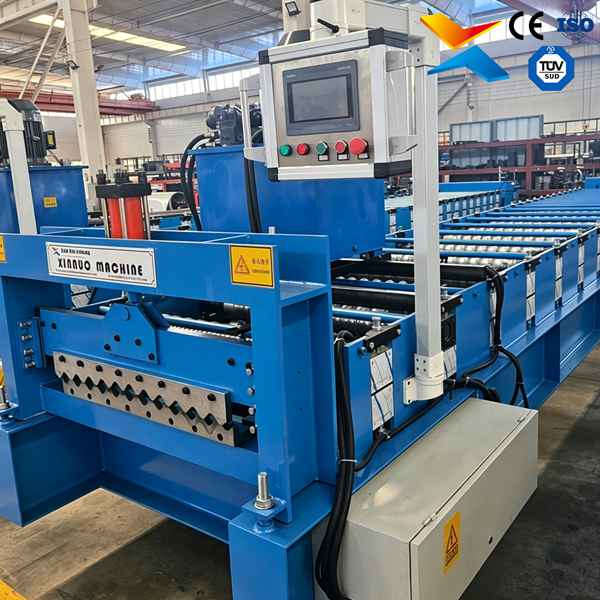

Surface Finish First: Gradual 27 station forming keeps the wave surface even.
Made To Your Sheet: Wave pitch, rib profile and coil width agreed before production.
Several Widths: Coil width can be fixed to one product or left open for more.
Line Level Supply: Uncoiler, forming, cutting, PLC control and stacking as one set.
Visible Work Ready: Suits prefab house, light steel and clean room cladding.

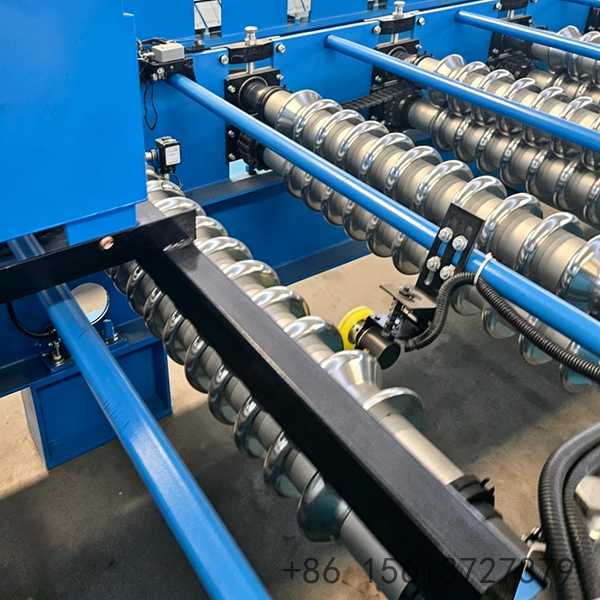

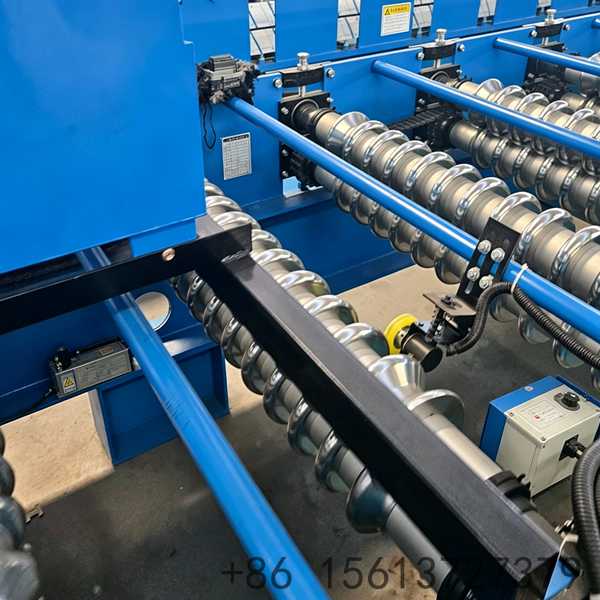

Re-settable Rollers: Roller groups adjust when the wave pitch changes.
Project Support: Layout drawings, OEM branding and voltage matching.
| Component | Specification |
|---|---|
| Profile | 750 corrugated arc wave panel, 75mm pitch, customized on request |
| Rib height | 18.5 mm |
| Effective width | 750 mm |
| Feed width | 914 mm, other coil widths on request |
| Sheet thickness | As agreed to your requirement |
| Forming rows | 27 |
| Frame | [To be confirmed] |
| Shafts | [To be confirmed] |
| Main motor | [To be confirmed] |
| Transmission | [To be confirmed] |
| Coil types | Prepainted colored / galvanized steel coil |
| Line scope | Uncoiler, forming section, cutting unit, PLC control, stacking |
| Production record | 750 profile produced and delivered in 2019 |

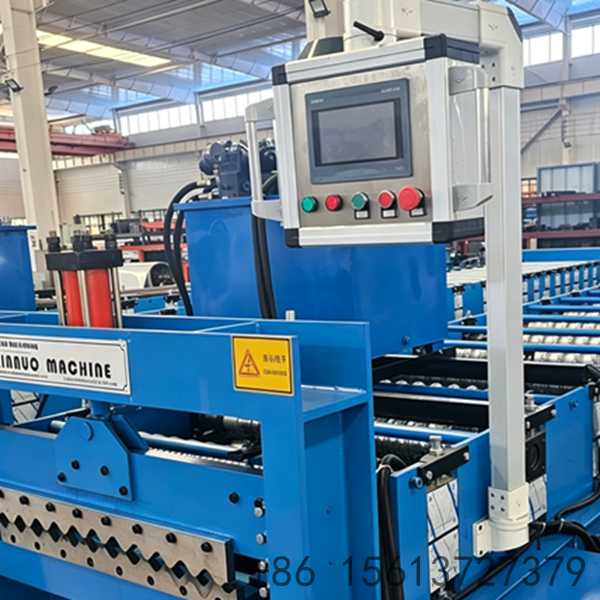

Even Surface: 27 stations shape the wave step by step, easing the steel.
Matched To Drawing: Wave pitch, rib profile and coil width agreed up front.
Width Options: Coil width fixed to one product or open for several.
One Coordinated Line: Uncoiler, forming, cutting and stacking supplied together.
Re-settable Rollers: Roller groups adjust when the wave pitch changes.
Layout Ready: Floor plan drawings provided for the installation team.
OEM And Voltage: Branding, drawings and power supply matched to your market.
