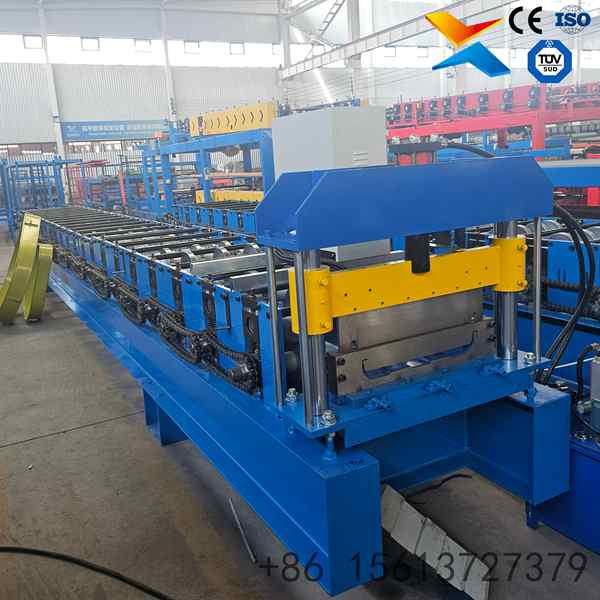

Two Wave Cladding Panel: A horizontal cladding panel for exterior walls, built from a 500mm coil.

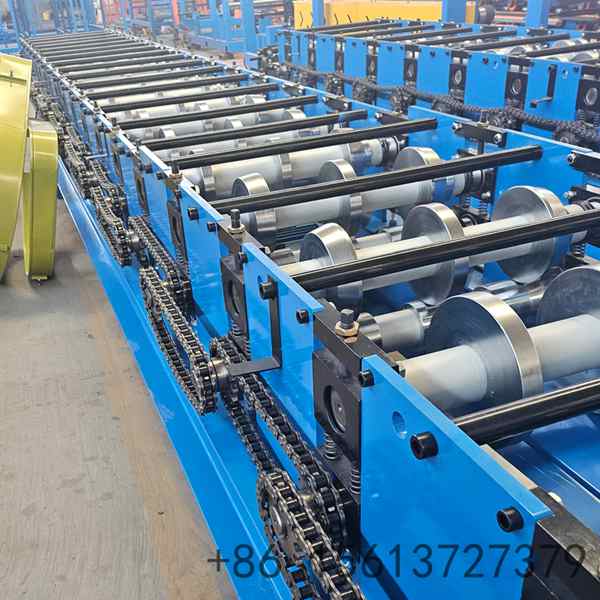

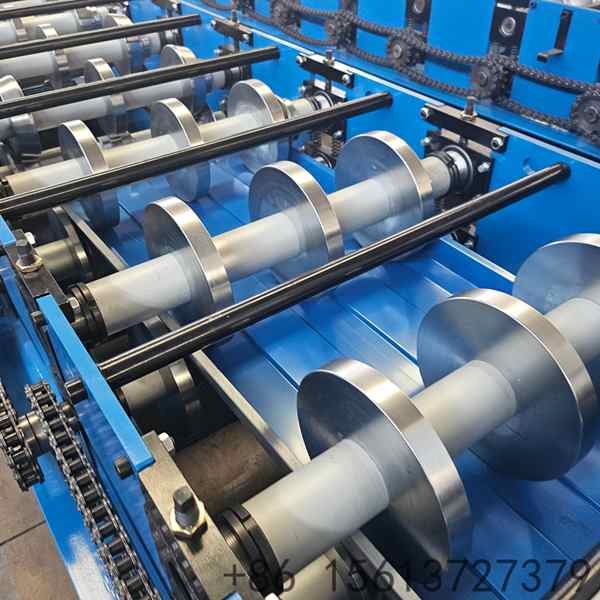

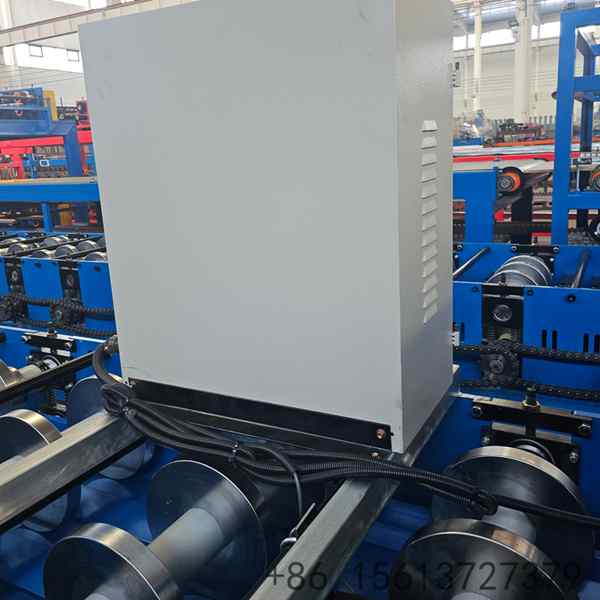

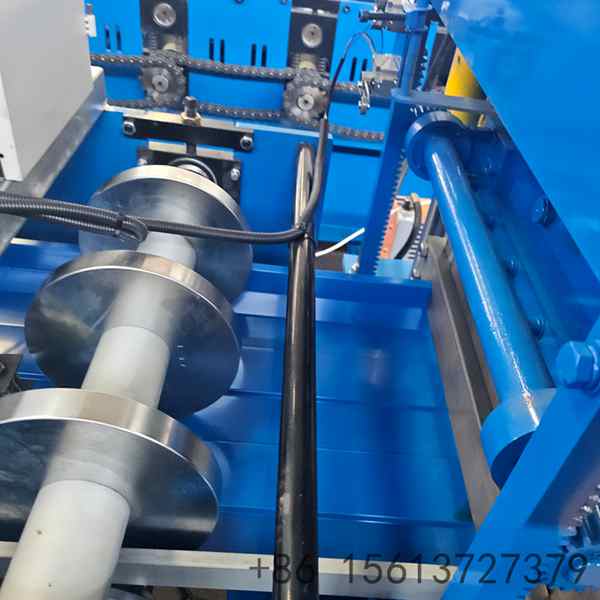

24 Forming Stations: The two waves and edge folds build step by step, keeping the panel square.

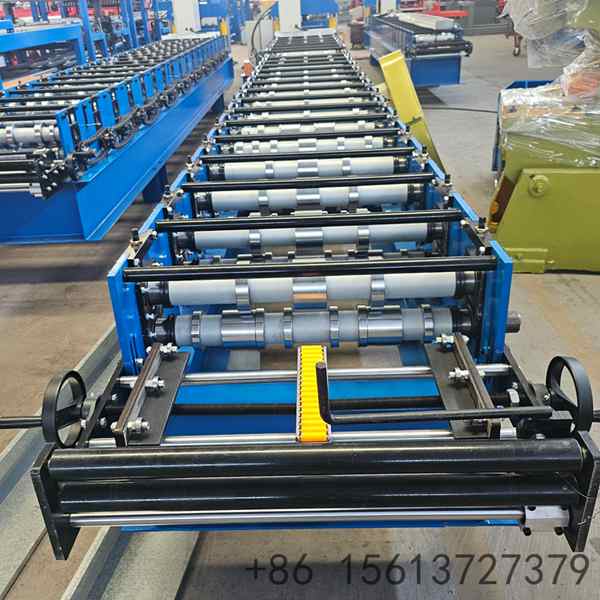

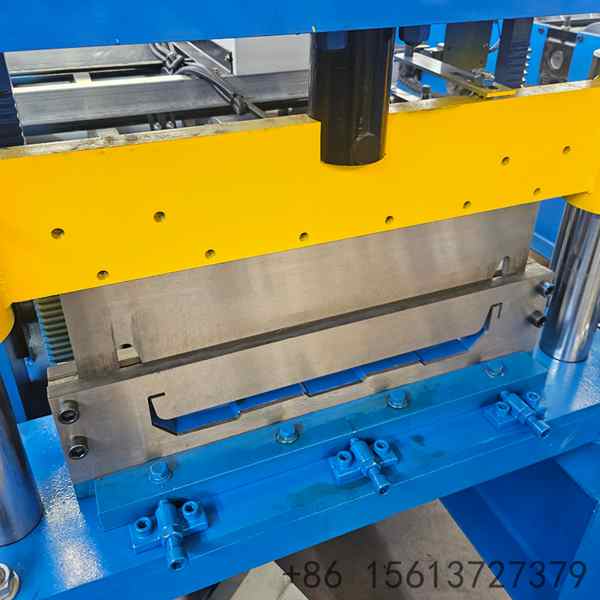

Edge Drainage Fold: Both edges carry a 44mm fold so water runs off the panel face.
350H Frame: A heavy frame with a 14mm middle plate and a 5.5KW motor suits long runs.

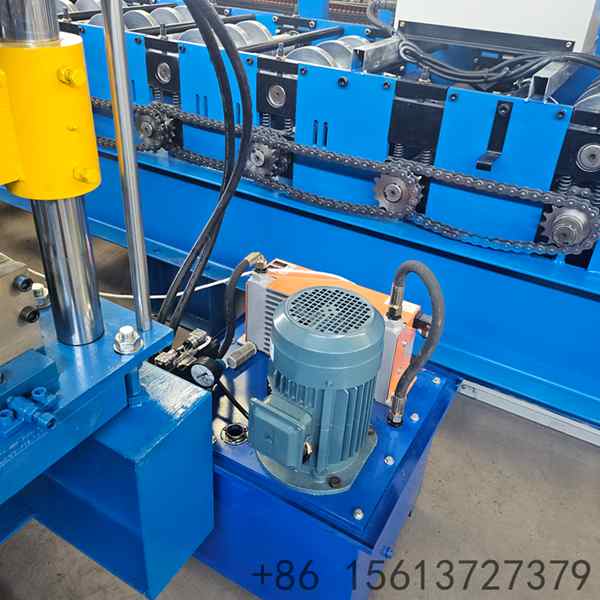

One Inch Chain Drive: A heavy chain carries the drive load of a 24 station line.
Set From Panel: Running length and batch count are set from the control panel.
Drawing Matched: Panel width, wave pitch, rib height and edge fold follow your section drawing.
| Component | Specification |
|---|---|
| Machine type | Wall cladding roll forming machine |
| Panel | Two wave horizontal cladding panel |
| Model | HY38-312 |
| Effective width | 312 mm |
| Coil feed width | 500 mm |
| Forming stations | 24 |
| Wave pitch | 156 mm |
| Rib height | 38 mm |
| Edge drainage fold | 44 mm |
| Middle plate | 14 mm |
| Frame | 350H |
| Shafts | 70 mm |
| Main motor | 5.5 KW |
| Chain drive | One inch chain |
| Sheet thickness | [To be confirmed] |
| Cutting | [To be confirmed] |
| Control system | [To be confirmed] |
| Running speed | [To be confirmed] |
| Line length | [To be confirmed] |
Two Wave Face: The wave pattern runs horizontally, so water follows the folds across the panel.
24 Stations: A high station count for a 312mm panel holds the wave shape along the run.
Edge Drainage: A 44mm fold on both edges keeps run off water away from the joint.
Heavy Frame: A 350H frame and 70mm shafts hold the section on long production runs.
Matched Drive: A one inch chain carries the load of the 24 station line.

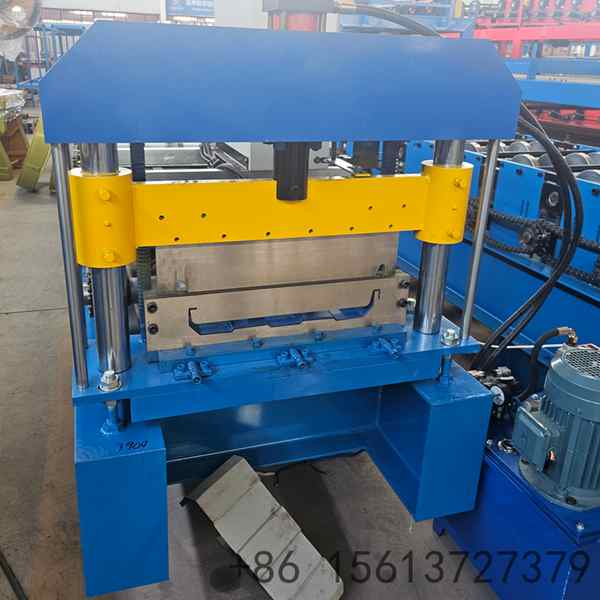

Fewer Operations: Forming and cutting run as one line.
Drawing Matched: Wave pitch, rib height and edge fold follow your section drawing.
