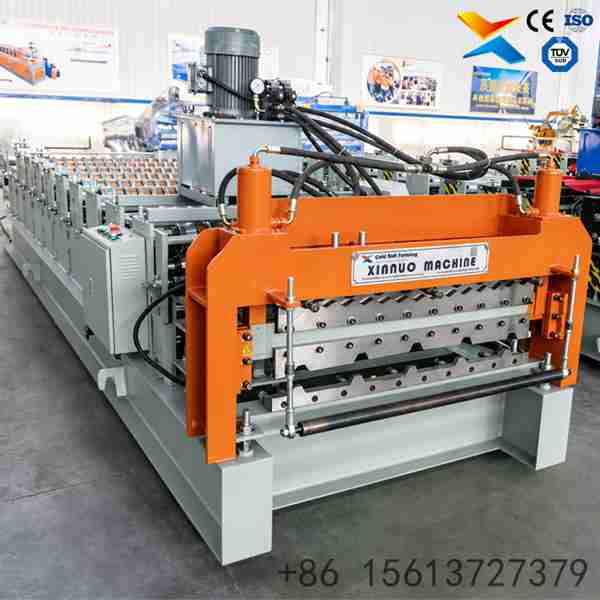

Wide 1200mm Feed: Suits wide panel programmes on one machine body.
Equal 16 And 16 Stations: Both layers form at the same pace, load stays even.

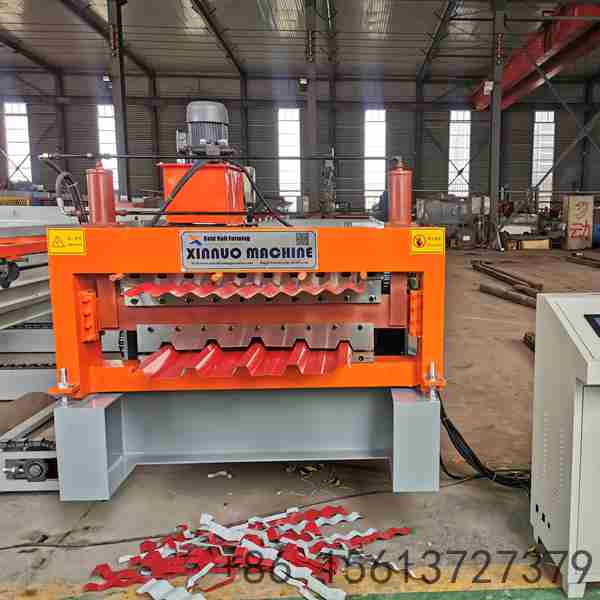

Two Profiles One Frame: 980 trapezoidal and 995 corrugated sheets together.

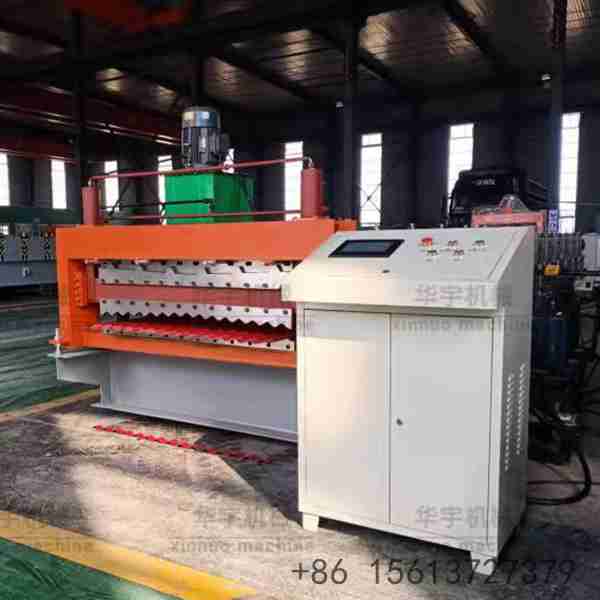

Heavy 80mm Shafts: Extra shaft diameter to carry the wider forming load.
Strong Drive: High power main motor with two strand double row chain.
Fast Switch: Material path switch in a few minutes, no roller change.
Latest Build: Based on the final pages of the machine drawing set.
| Component | Specification |
|---|---|

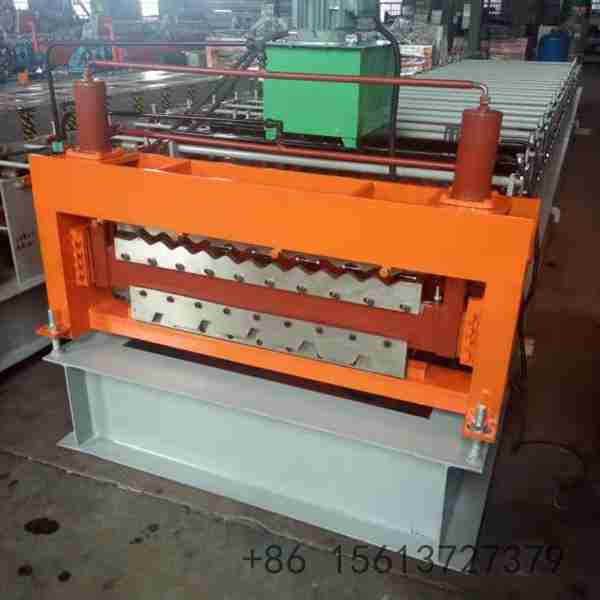

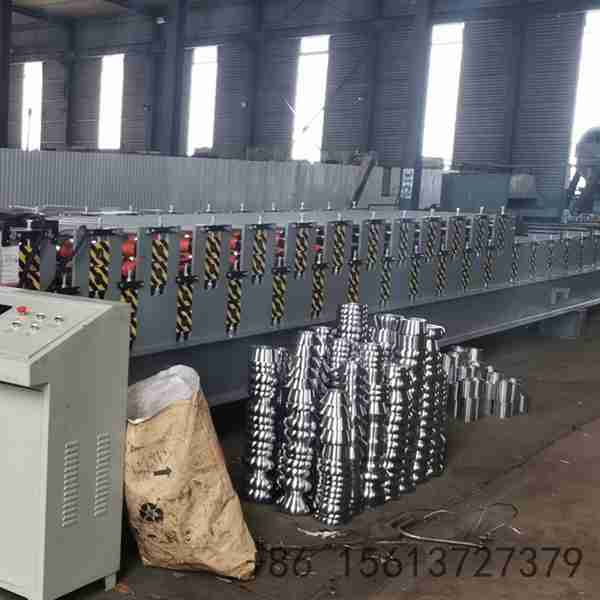

| Layer 1 roller set | 980 trapezoidal panel, 6 peaks, 16 forming stations |

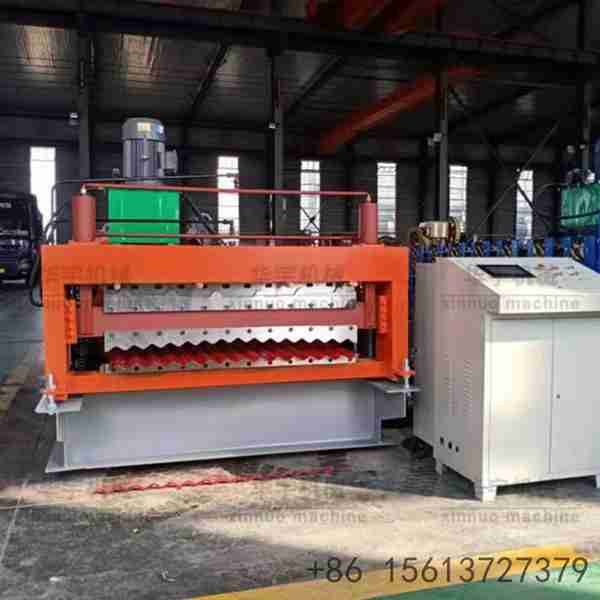

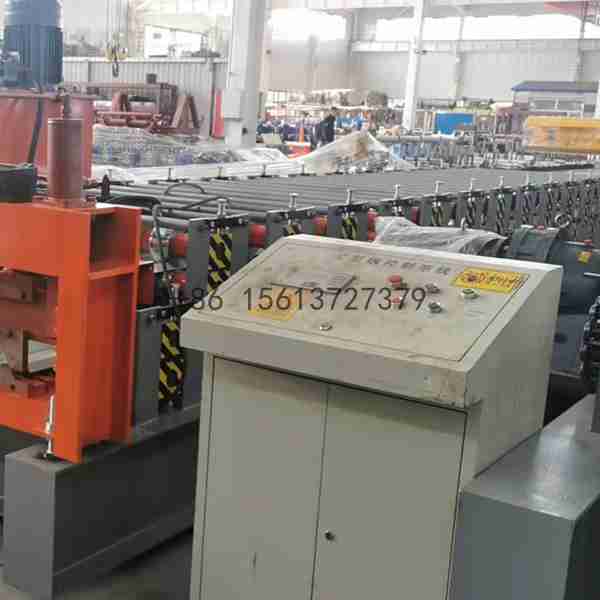

| Layer 2 roller set | 995 corrugated panel, 14 waves, 16 forming stations |
| Feed width | 1200 mm |
| Sheet thickness | As agreed to your requirement |
| Frame | 350H |
| Shafts | 80 mm |
| Main motor | 7.5 KW |
| Transmission | Two strand double row chain drive |
| Coil types | Prepainted colored / galvanized steel coil |
| Profile switching | Material path switch, a few minutes, no roller change |
| Production mode | One layer runs at a time |
| Optional | Hydraulic cutting with PLC control, coil car, stacker |
Equal Row Count: 16 and 16 stations keep both layers forming at one pace.

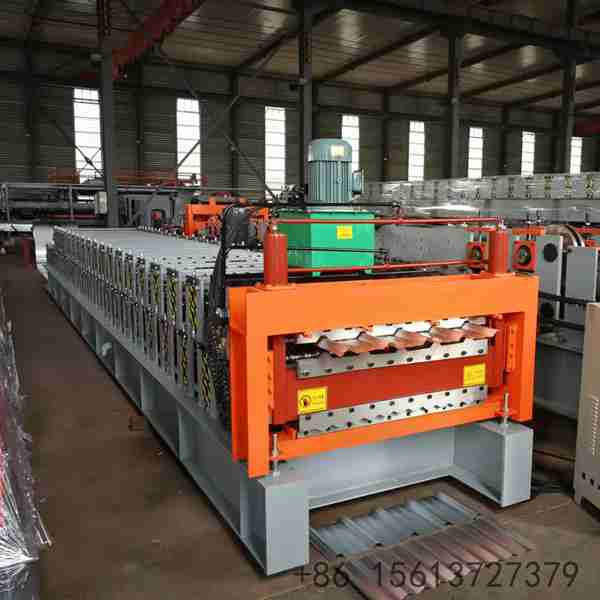

Wide Panel Range: 1200mm feed width for wider corrugated and trapezoidal sheets.
Heavier Shafts: 80mm shafts carry the additional load of the wider forming.
Strong Drive: 7.5KW main motor with two strand double row chain transmission.

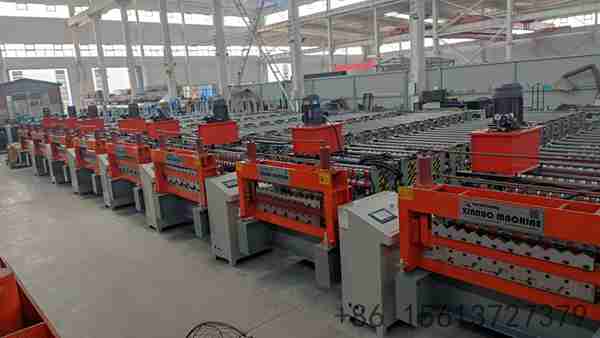

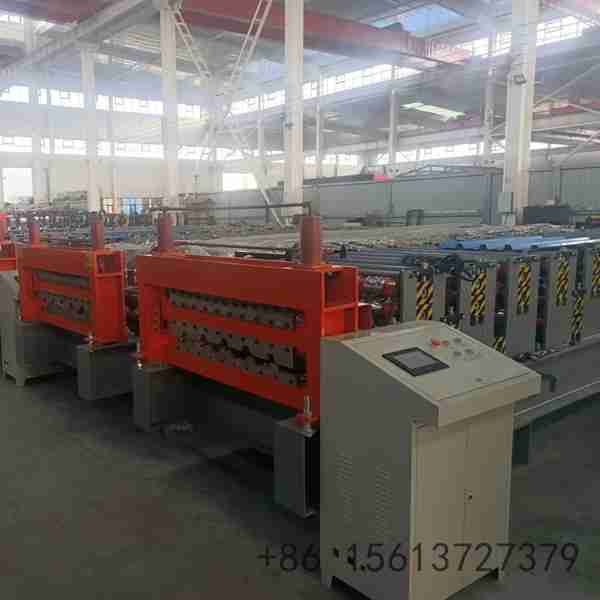

Two Profiles, One Machine: 980 trapezoidal and 995 corrugated from one frame.
Quick Changeover: Switch the material path in a few minutes, no roller change.
Even Surface Quality: Matched layers keep finish consistent across a batch.
