Grain Silo Profile: 13 ribs at 76mm pitch, 912mm effective width for silo wall assembly.
Tight Splicing: Panel edge design suits circular and square silo construction.
Rust Resistant: Runs galvanized and aluminum-zinc coated steel coil.
Long Panel Stability: 300H frame, 16mm middle plate and hardened shafts.

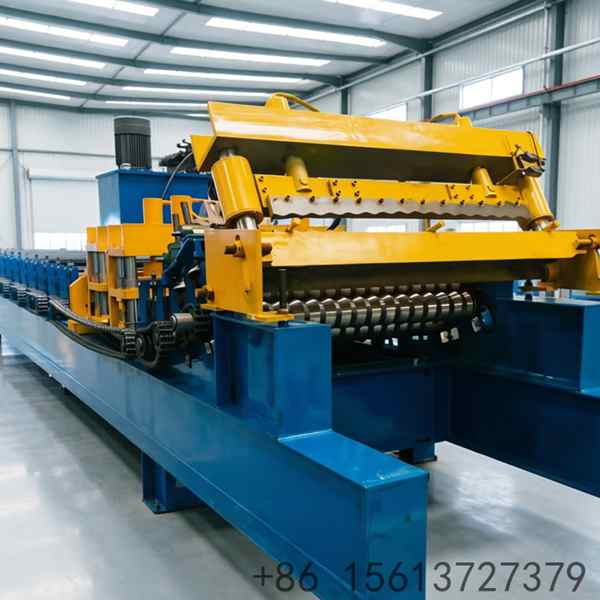

Proven Forming: 13 stations hold rib height and clean edges consistently.

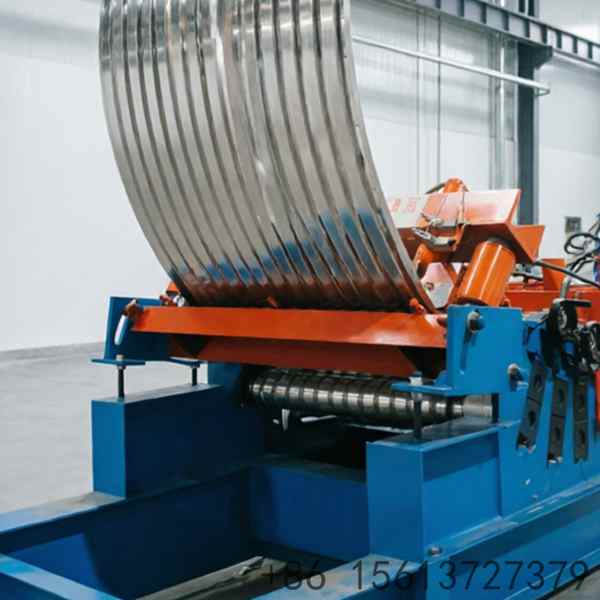

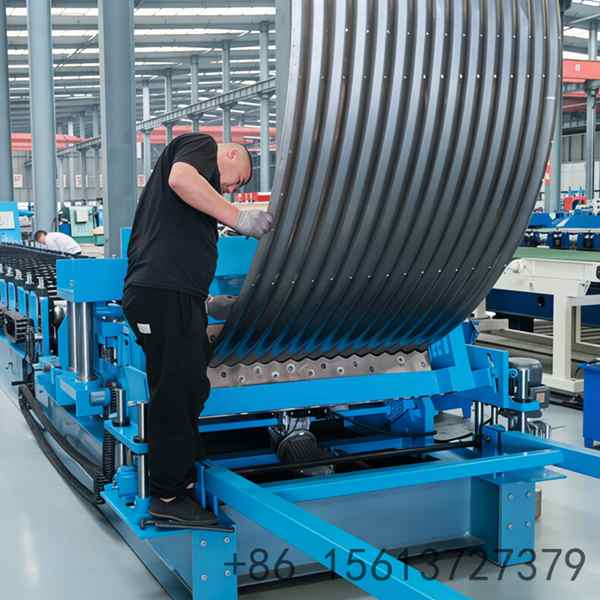

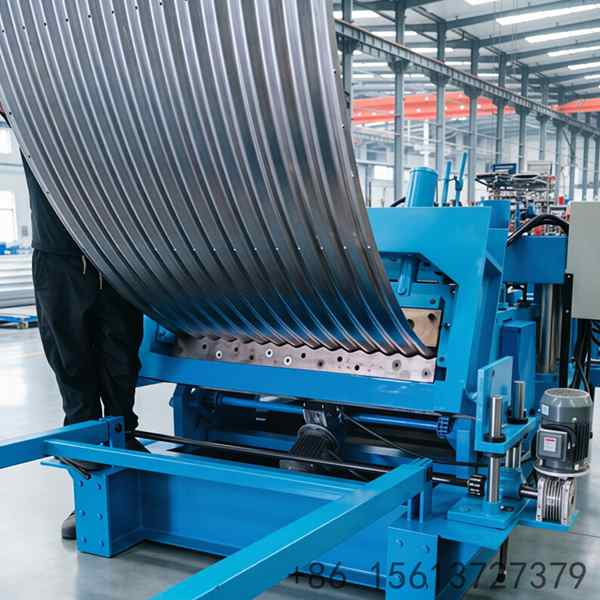

Silo Line Option: Curving unit available to bend panels for round silo walls.
Single Factory Supply: Cutting, PLC control, installation and training support.
| Component | Specification |
|---|---|
| Profile | 13-rib grain silo corrugated panel, 76mm pitch, 10mm rib height |
| Effective width | 912 mm |
| Feed width | 970-980 mm |
| Sheet thickness | Customizable per silo spec |
| Forming rows | 13 |
| Frame | 300H |
| Middle plate | 16 mm |
| Shafts | Φ80 mm, hardened |
| Main motor | 5.5 KW |
| Transmission | 1.2 inch chain drive |
| Coil types | Galvanized / aluminum-zinc coated steel |
| Optional | Hydraulic cutting with PLC control, curving unit for round silo walls |
Silo Matched Profile: 13 ribs at 76mm pitch designed for grain storage sheets.
Assembly Friendly: 912mm effective width suits standard silo wall splicing.
Outdoor Durability: Galvanized coil keeps silo panels rust resistant.
Stable Long Forming: 300H frame with 16mm middle plate for long silo sheets.
Consistent Ribs: 13 forming stations hold the 10mm rib height cleanly.

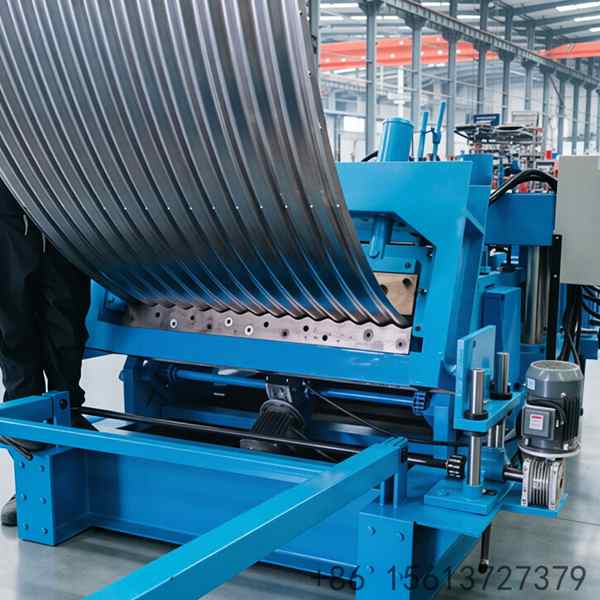

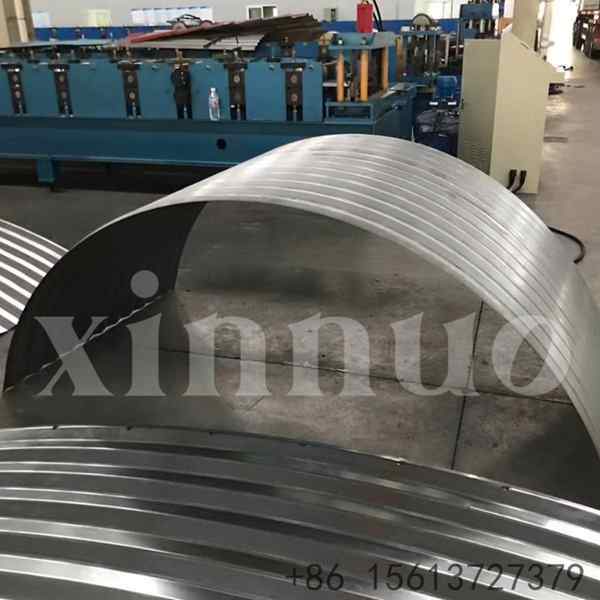

Round Silo Ready: Curving unit option bends sheets for circular silo walls.
Single Supplier: Machine, cutting, control and service from one factory.
