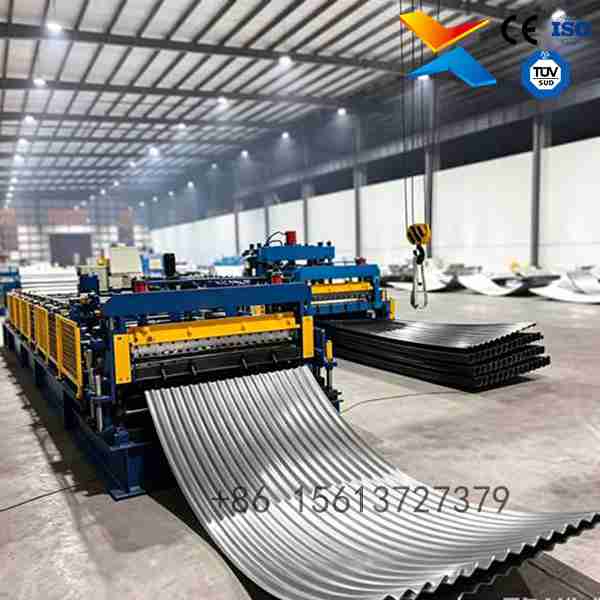

One Line, Two Markets: Serves livestock feed silos and circular water tanks from one machine.
Corrugated Stiffness: 13 waves at 76mm pitch give the wall panel its strength.

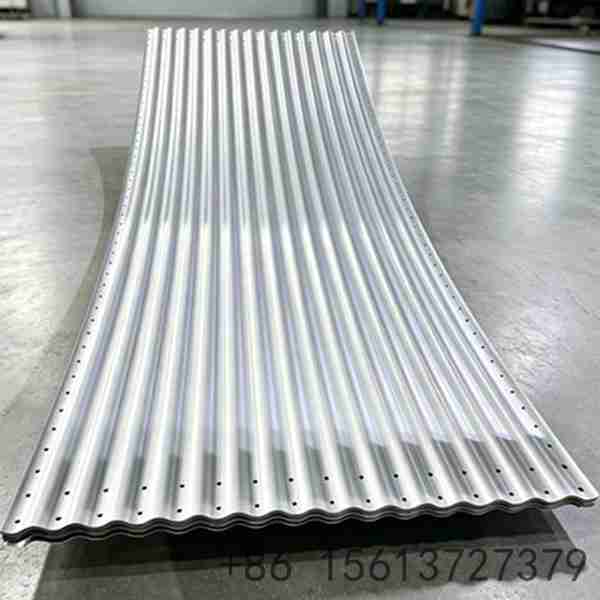

Bolted Assembly: Panels are punched so sheets lap and bolt together on site.

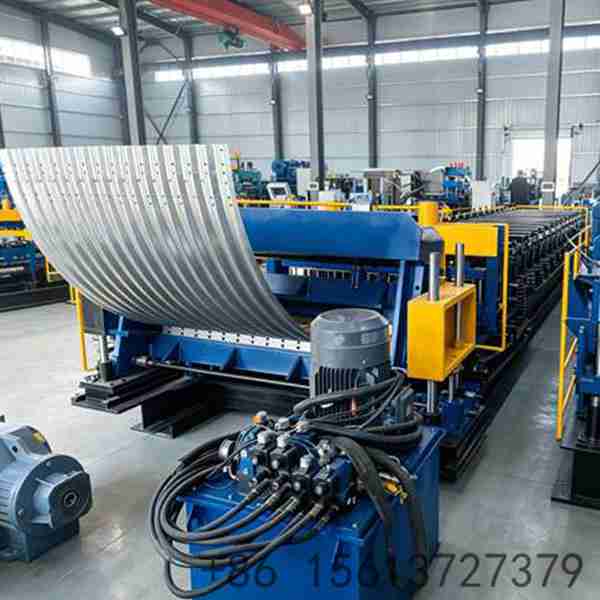

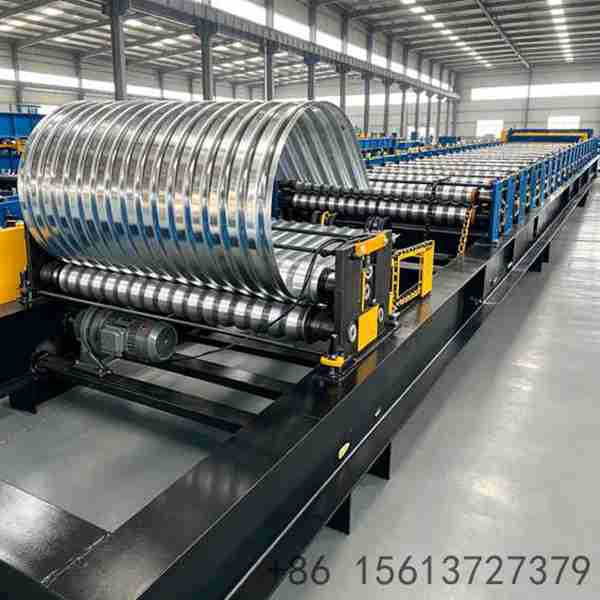

Curved To Radius: A curving unit bends sheets to the tank or silo diameter.
Silo Standard Width: 912mm effective width suits standard silo wall splicing.
Narrow Coil Input: 970-980mm feed width keeps offcut loss low.

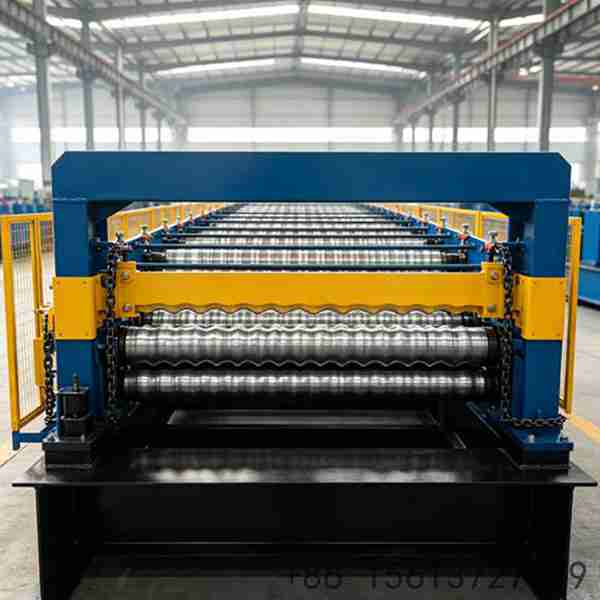

Heavy Forming Base: 300H frame with 16mm middle plate and 80mm shafts.
| Component | Specification |
|---|---|
| Working panel profile | 13 corrugated waves, 76mm pitch, 10mm rib height (HY10-76-912) |
| Effective width | 912 mm |
| Feed width | 970 - 980 mm |
| Forming rows | 13 |
| Middle plate | 16 mm |
| Frame | 300H |
| Shafts | 80 mm |
| Main motor | 5.5 KW |
| Transmission | 1.2 inch chain drive |
| Punching unit | [To be confirmed] |
| Curving unit | [To be confirmed] |
| Sheet thickness | [To be confirmed] |
| Cutting | [To be confirmed] |
| Control system | [To be confirmed] |

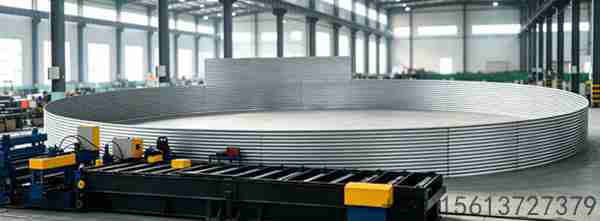

Two Markets Covered: Livestock silo walls and circular water tank walls from one line.
Corrugated Section: 13 waves at 76mm pitch and 10mm rib height carry the wall load.

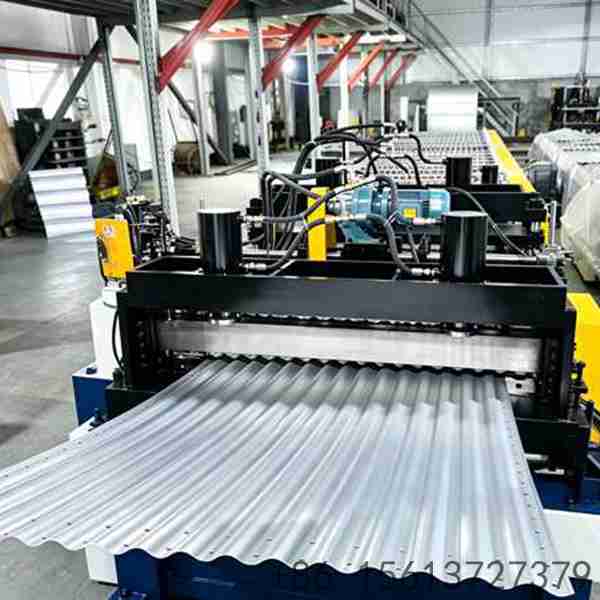

Punched Joints: Holes are punched along the panel for the bolted lap joint.

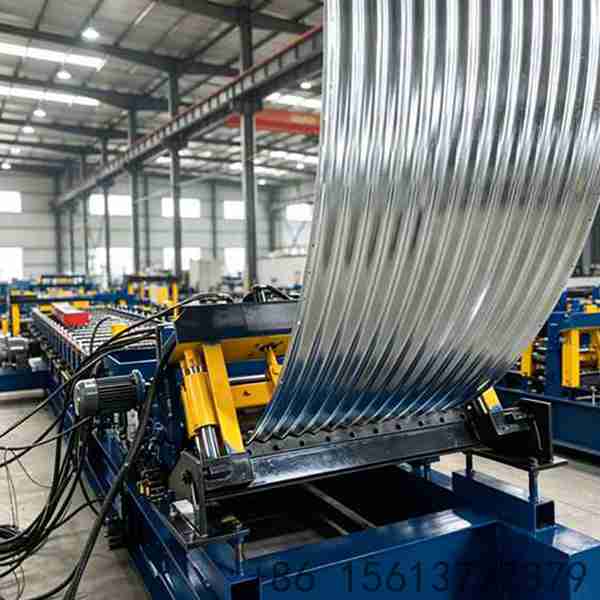

Radius On Demand: The curving unit sets the sheet to the tank or silo diameter.
Low Offcut: 970-980mm coil gives a 912mm cover, so waste stays small.

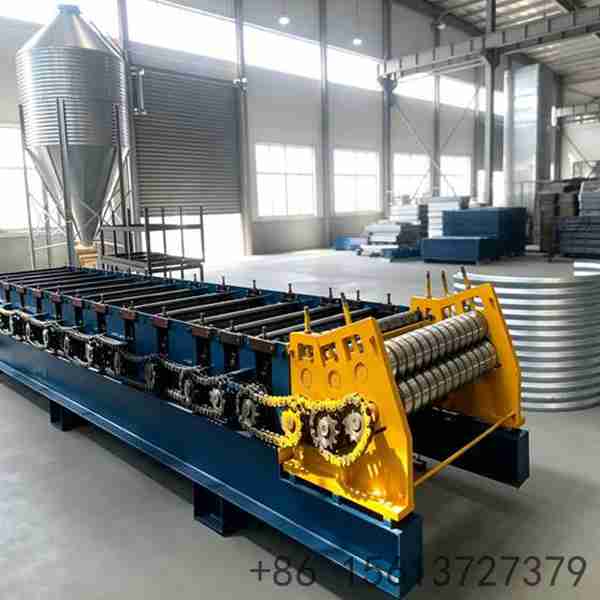

Stable Forming: 300H frame, 16mm middle plate and 80mm shafts hold the profile.

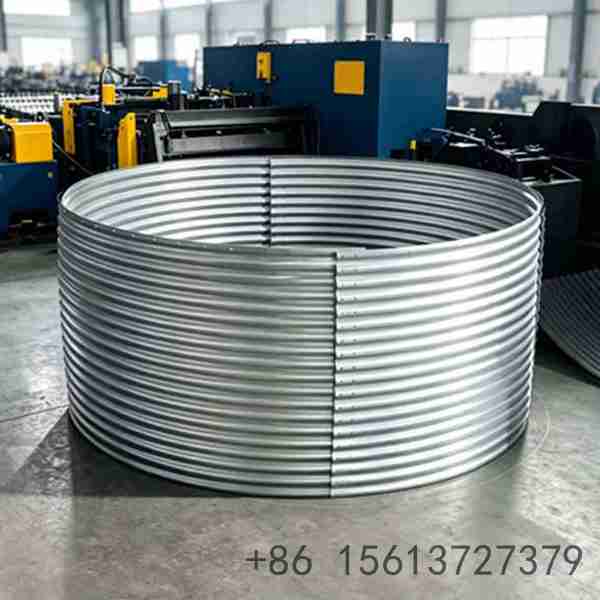

Site Friendly: Flat packed panels travel easily and bolt together where the tank or silo is built.
