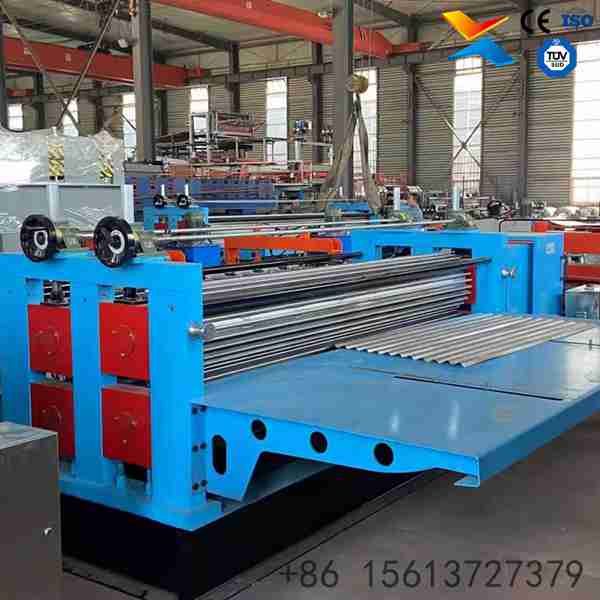

Product output: Corrugated / wave thin steel sheets
Applicable material: Color coated steel / galvanized steel (thin sheets)
Sheet thickness: Customizable (thin sheet range)
Effective width: Customizable
Profile length: Customizable
Roller adjustment: Manual handwheel + PLC control

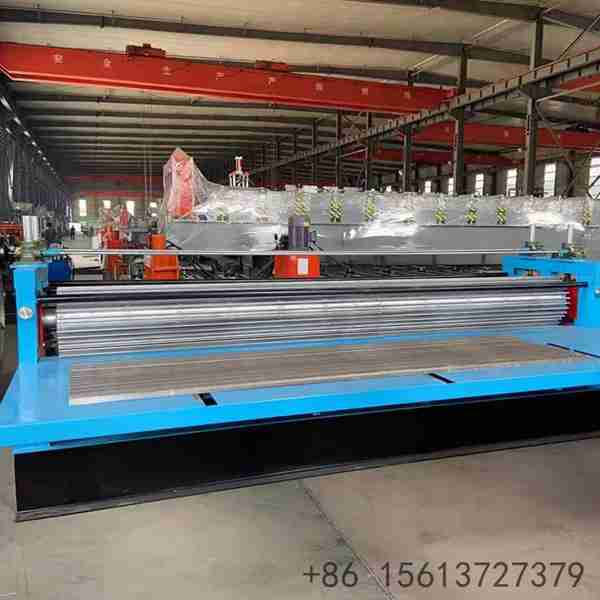

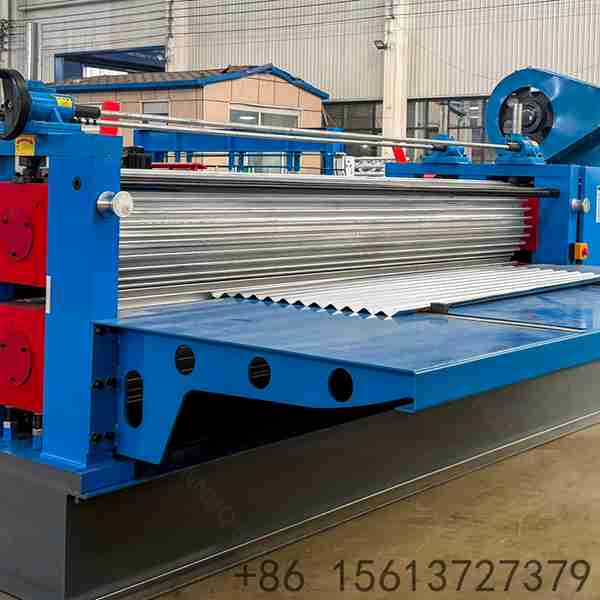

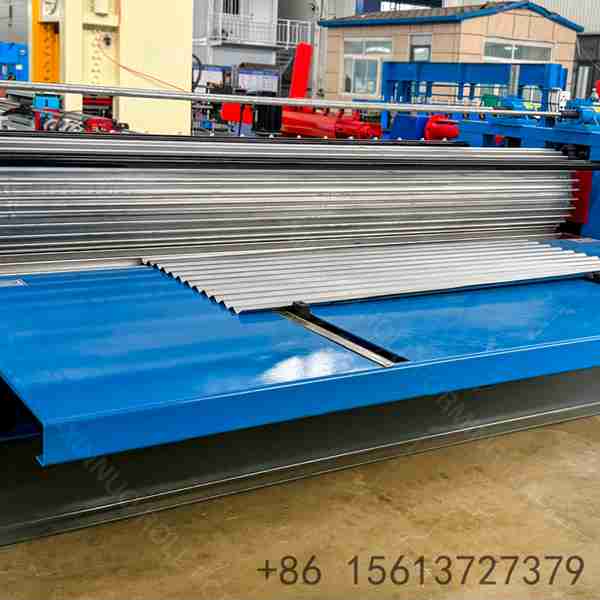

Multi Profile Forming: Produces corrugated and wave panels on one machine with adjustable rollers.

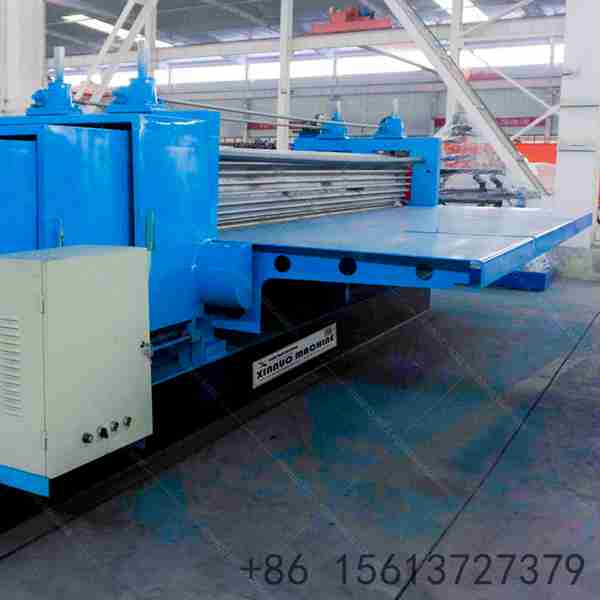

Handwheel Setting: Precise roller pressure and profile depth adjustment for different sheets.

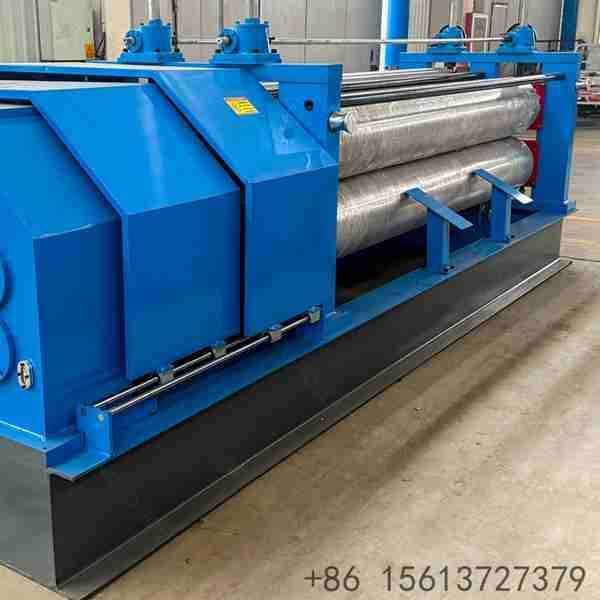

Surface Protection: Hard chromium rollers protect thin sheet coatings during forming.

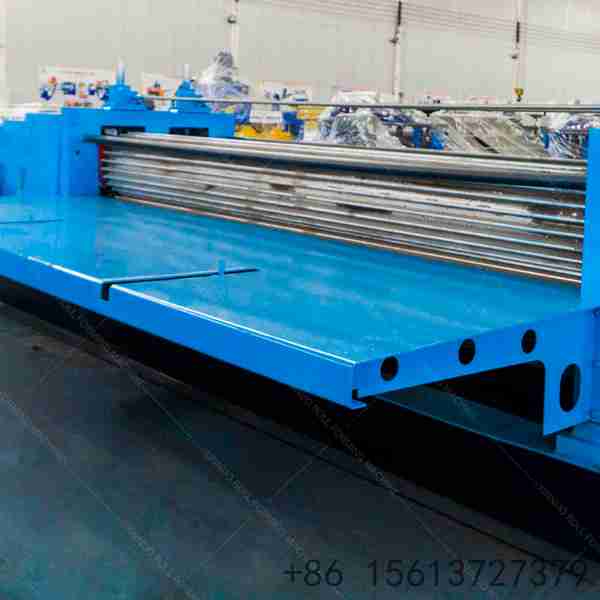

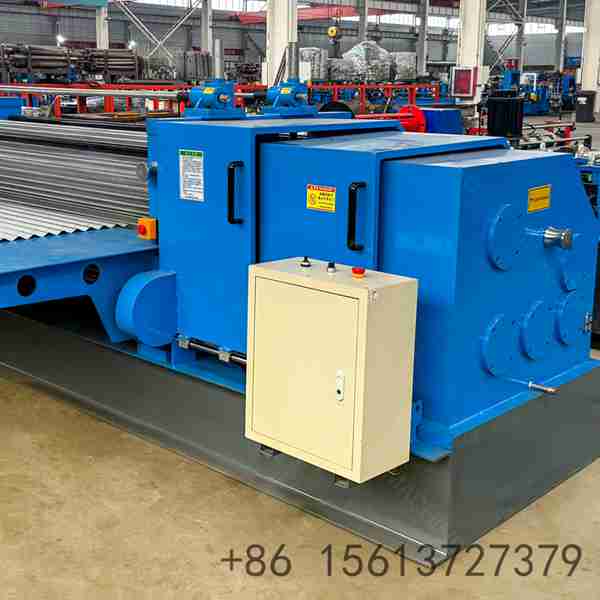

Automatic Cutting: PLC length control with Cr12 heat-treated blades.

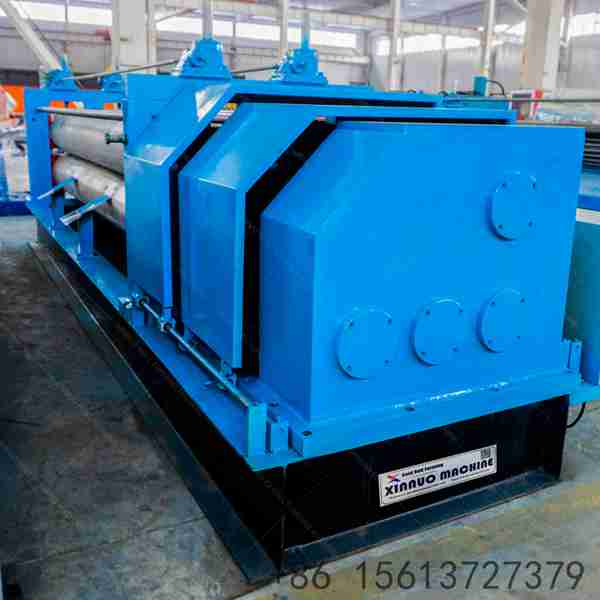

Stable Frame: Reinforced construction with 16 mm side plates.
Customizable Specs: Sheet thickness, width and length adjustable to line requirements.
| Component | Specification |
|---|---|
| Material of rollers | High grade 45# forged steel, surface hard chromium plating |
| Rows of rollers | Multi-station progressive forming |
| Material of shafts | High grade 45# forged steel |
| Diameter of shafts | 50 mm |
| Material of cutting blade | Cr12 Heat Treatment |
| Speed | 10-15 m/min |
| Side plate thickness | 16 mm |
| Roller adjustment | Manual handwheel adjustment |
| Control system | PLC length control |
| Sheet thickness | Customizable (thin sheet range) |
| Effective width | Customizable |
Long Service Rollers: 45# forged steel rollers with hard chromium plating resist wear in continuous thin sheet forming.
Coating Protection: Hard chromium surfaces reduce friction and protect pre-painted sheet finish.
Frame Rigidity: 16 mm side plates keep forming stations aligned for consistent panel dimensions.
Reliable Transmission: 50 mm solid shafts in 45# forged steel ensure stable roller operation.
Accurate Cutting: Cr12 heat-treated blades with PLC length control deliver precise panel lengths.
Steady Production: 10-15 m/min speed supports standard thin panel output volumes.
