Product output: Water ripple / wave corrugated thin steel sheets
Applicable material: Color coated steel / galvanized steel (thin sheets)
Sheet thickness: Customizable (thin sheet range)
Effective width: Customizable
Profile length: Customizable
Roller adjustment: Manual handwheel + PLC control

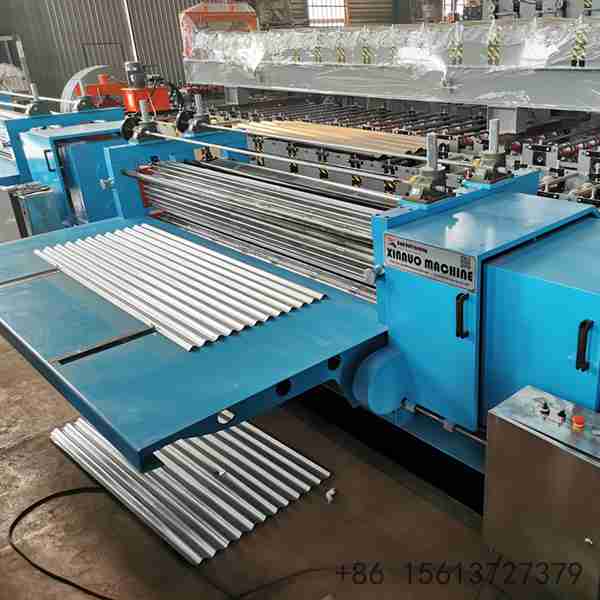

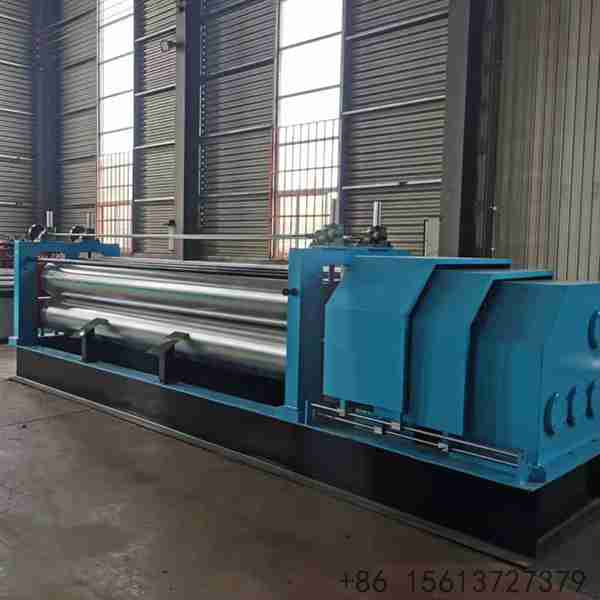

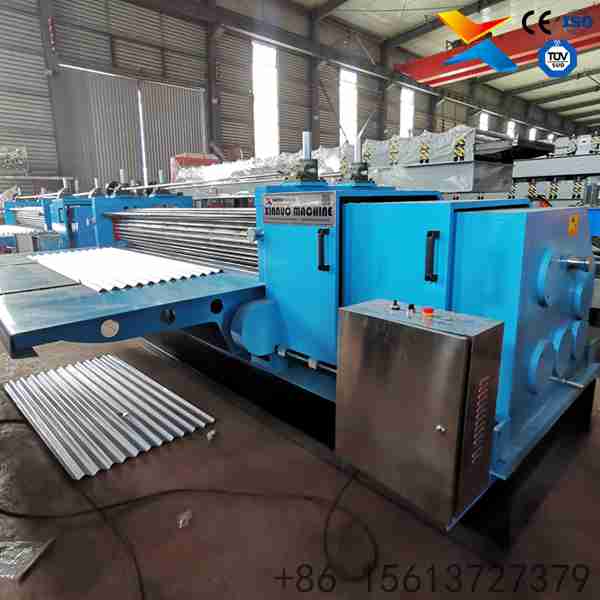

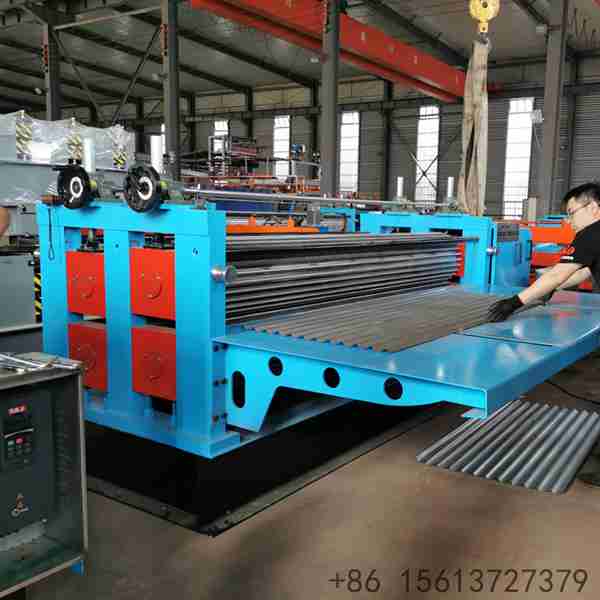

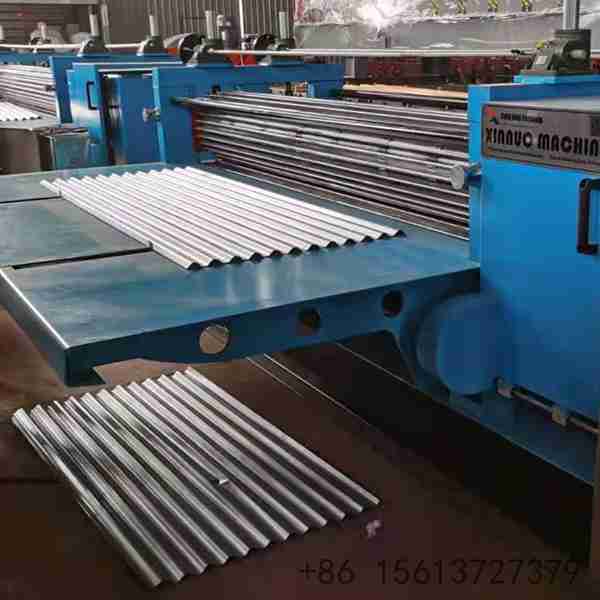

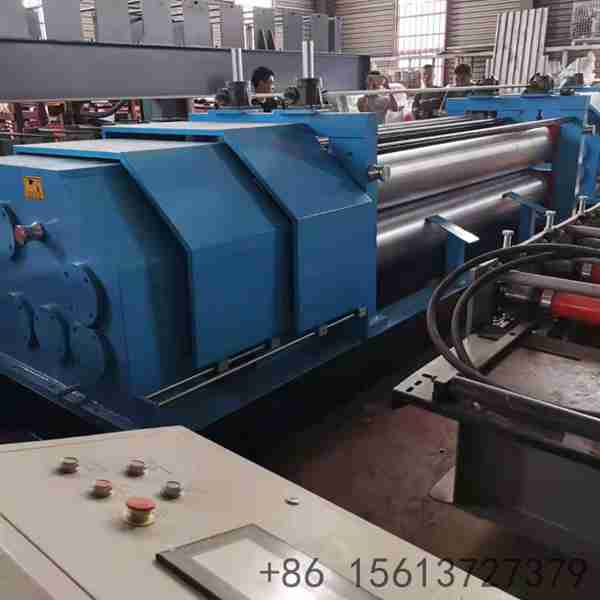

Wave Profile Forming: Produces continuous water ripple wave profiles on thin steel sheets.

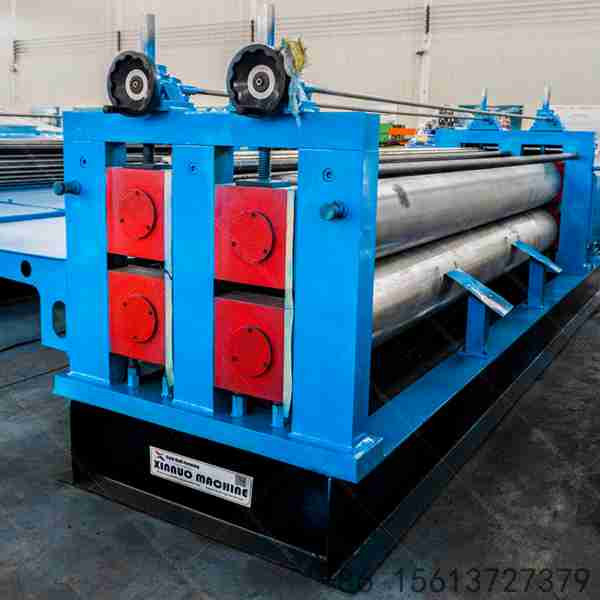

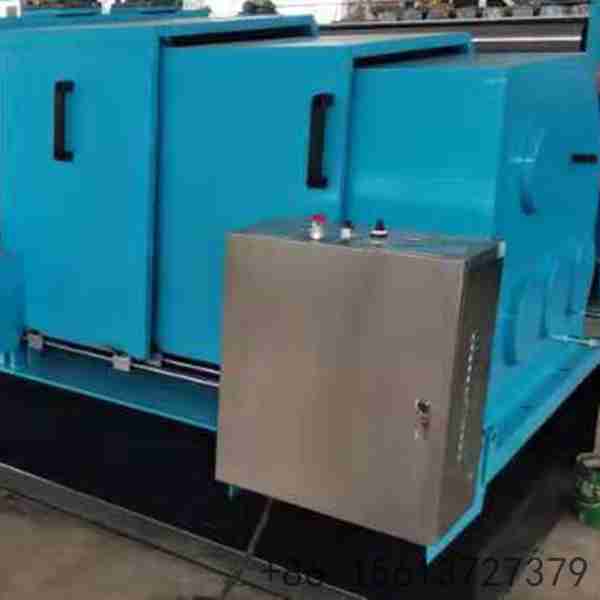

Precise Roller Setting: Handwheel adjustment allows fine control of roller pressure and profile depth.

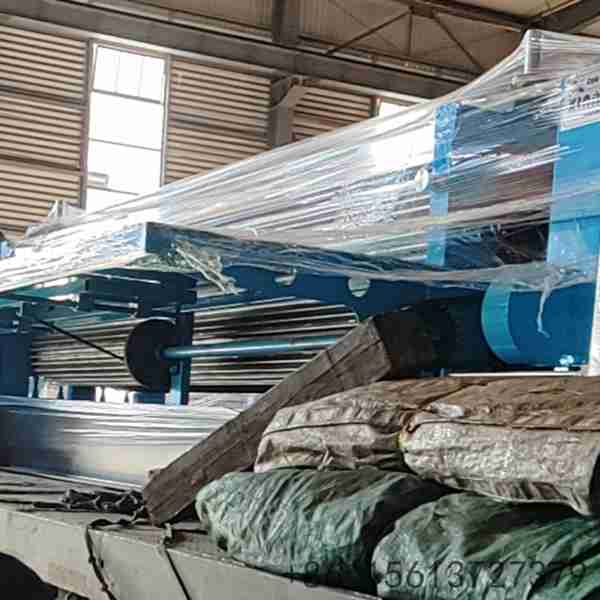

Surface Protection: Hard chromium plated rollers protect the coating of color steel sheets.
Thin Sheet Capability: Designed for thin color coated and galvanized steel panels.
Stable Frame: Reinforced construction with 16 mm side plates for consistent forming.
Flexible Length: Profile length customizable for different project requirements.
| Component | Specification |
|---|---|
| Material of rollers | High grade 45# forged steel, surface hard chromium plating |

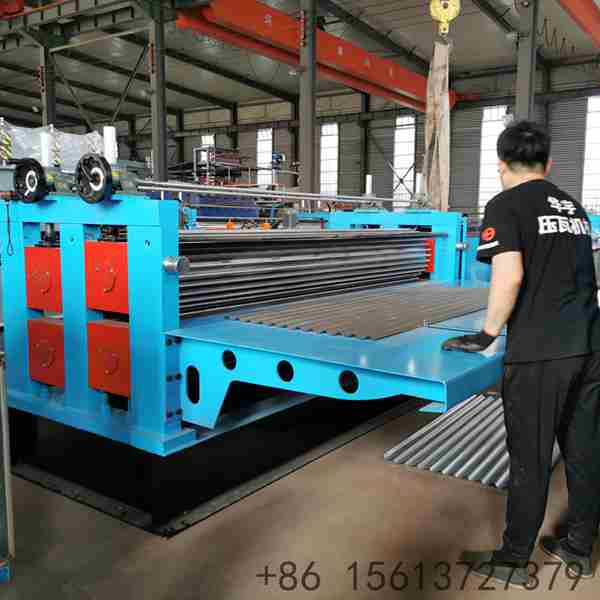

| Rows of rollers | Multi-station progressive forming |
| Material of shafts | High grade 45# forged steel |
| Diameter of shafts | 50 mm |
| Material of cutting blade | Cr12 Heat Treatment |
| Speed | 10-15 m/min |
| Side plate thickness | 16 mm |
| Roller adjustment | Manual handwheel adjustment |
| Control system | PLC control |
| Sheet thickness | Customizable (thin sheet range) |
| Effective width | Customizable |
Wear-Resistant Rollers: 45# forged steel rollers with hard chromium plating deliver long service life on thin sheet forming.
Coating Protection: Hard chromium surfaces preserve the finish of color coated steel during wave forming.
Profile Precision: Handwheel roller adjustment enables fine setting of wave depth and profile shape.
Frame Stability: 16 mm side plates keep the forming stations aligned for consistent panel quality.
Reliable Drive: 50 mm solid shafts in 45# forged steel support stable roller rotation.
Clean Cutting: Cr12 heat-treated blades provide accurate profile length cutting.
Steady Output: 10-15 m/min forming speed suits standard thin panel production.
