Product Introduction

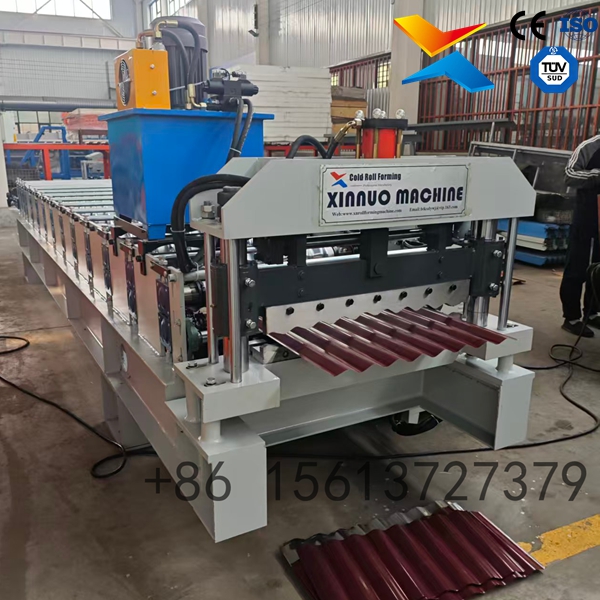

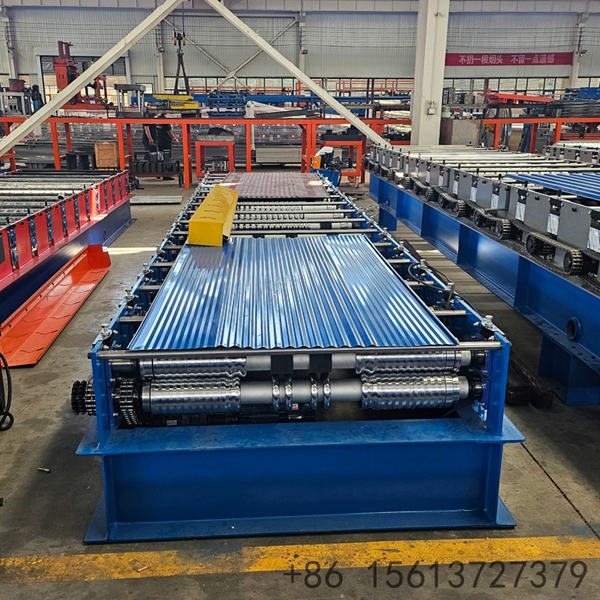

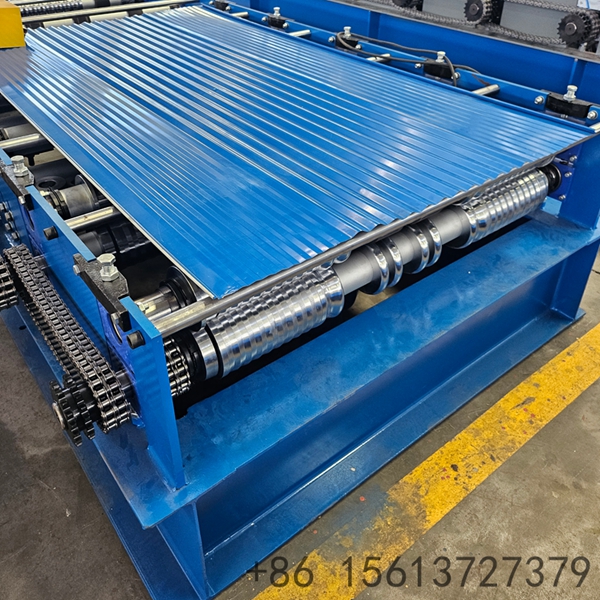

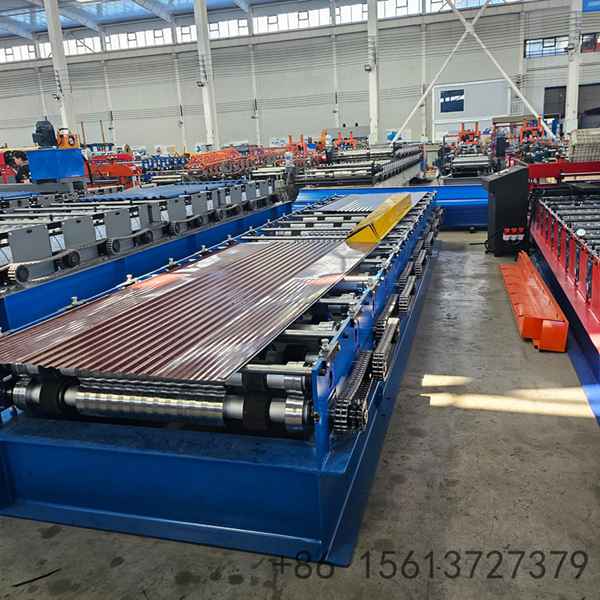

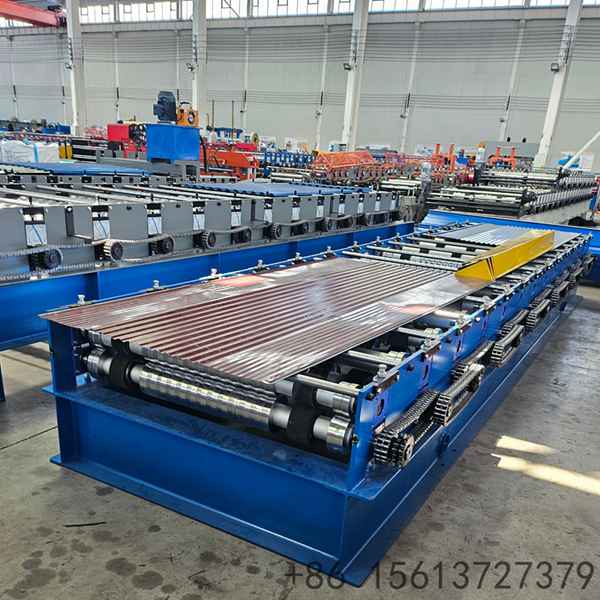

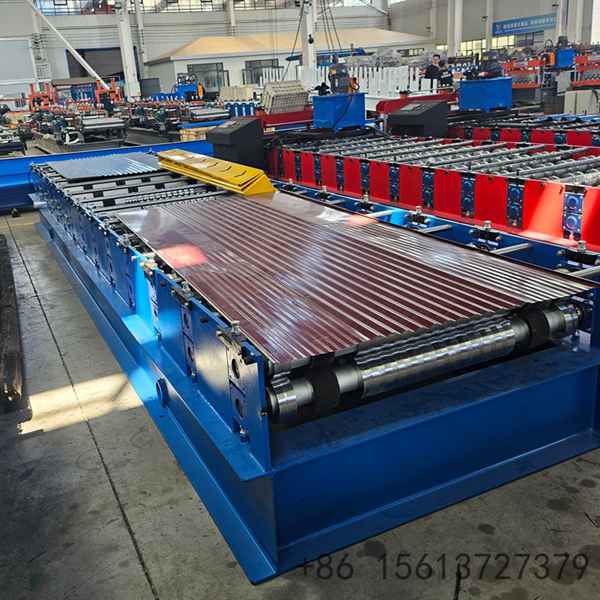

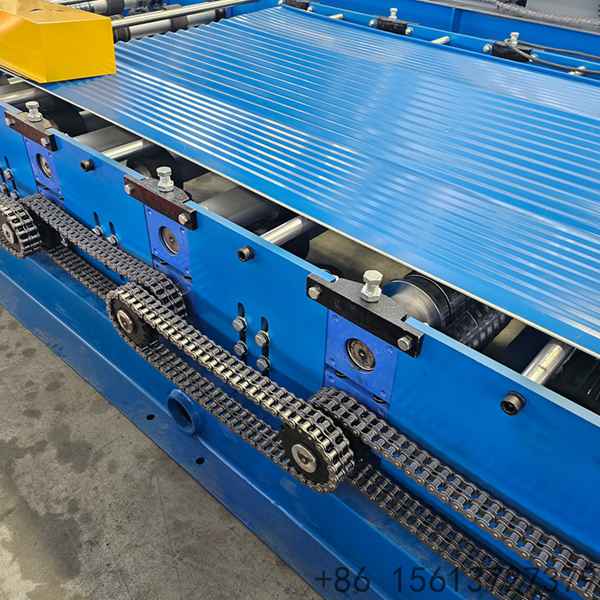

The Roof Tile Roll Forming Machine is a high-performance industrial solution designed to transform steel coils into metal roof tiles with a flawless finish. Whether for trapezoidal, corrugated, or traditional glazed tile profiles, this equipment guarantees high productivity and millimeter-level precision. Engineered to meet the demanding requirements of the construction industry, the machine offers continuous, stable, and user-friendly operation. It is the ideal investment for roofing and cladding manufacturers seeking superior quality and a rapid return on investment.
Technical Parameters
| Parameter | Technical Details |
|---|---|
| Compatible Raw Material | Color steel coil, galvanized steel, aluminum |
| Material Thickness Range | 0.3mm to 0.8mm (Adjustable) |
| Feeding Width | Up to 1250mm (Standard) |
| Profile Types | Trapezoidal, Corrugated, Glazed Tile (Customizable) |
| Roller Material | Forged 45# Steel (Heat-treated and hard chrome plated) |

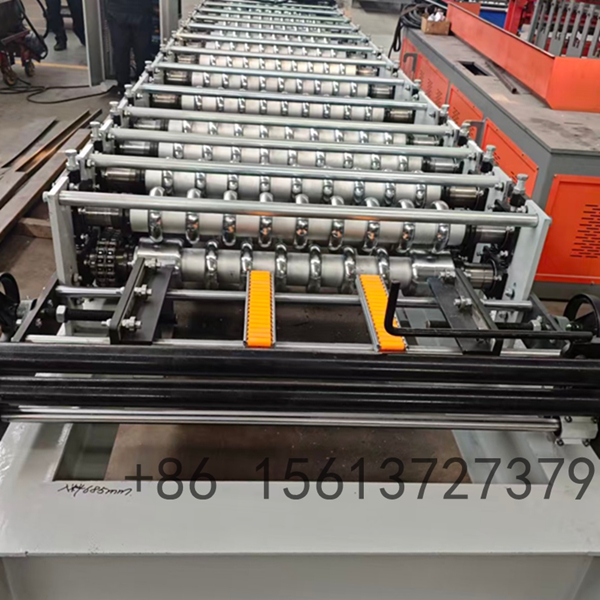

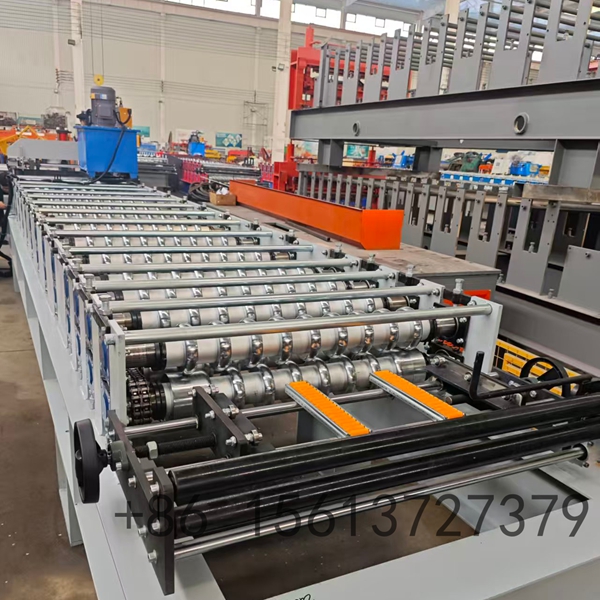

| Forming Stations | 12 to 18 stations (Depending on profile design) |
| Main Motor Power | 4KW - 5.5KW |
| Production Speed | 8 to 15 m/min (Frequency inverter control) |
| Control System | Programmable PLC + Touch Screen Interface |
| Voltage | 380V / 50Hz / 3-Phase (Adaptable to local standards) |
| Overall Dimensions | Approx. 6.5m (L) x 1.2m (W) x 1.5m (H) |
Key Features & Advantages

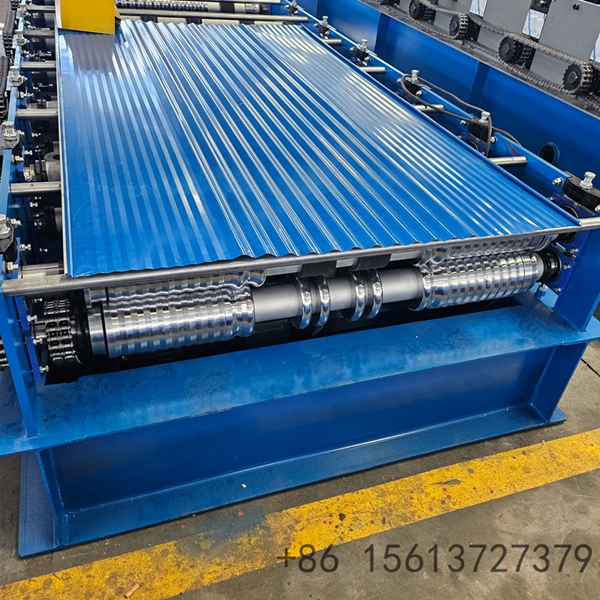

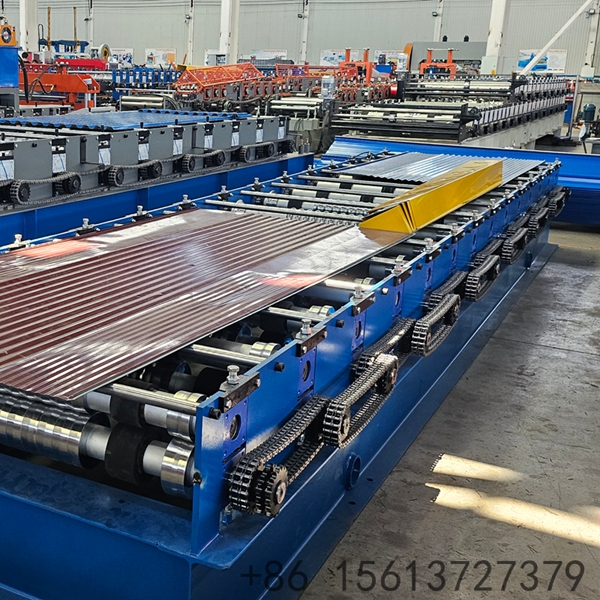

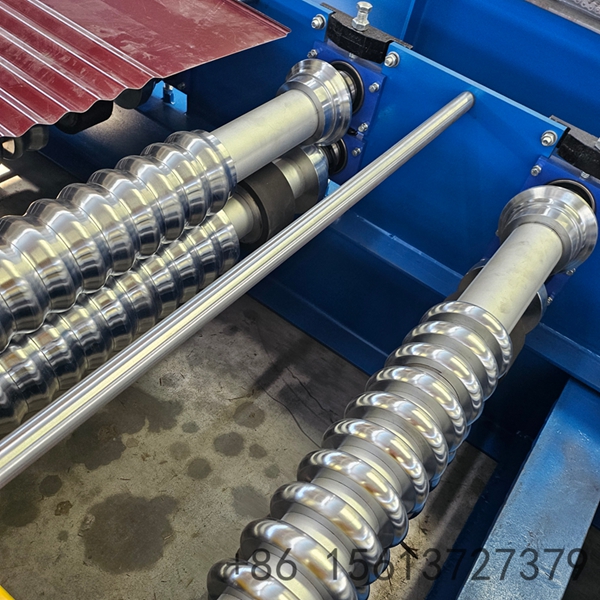

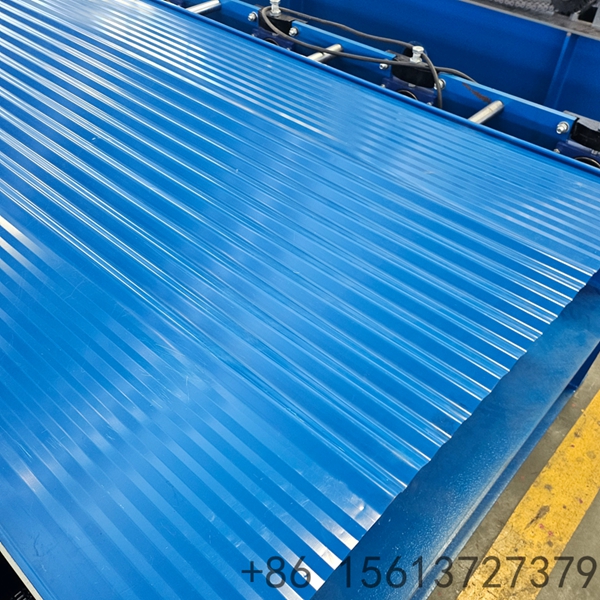

Impeccable Finish: Rollers machined with CNC technology and hard chrome plating ensure straight lines, scratch-free surfaces, and perfectly uniform dimensions.

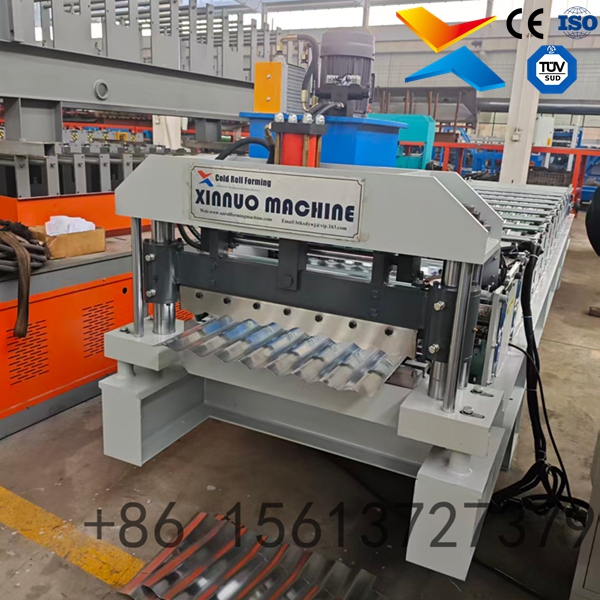

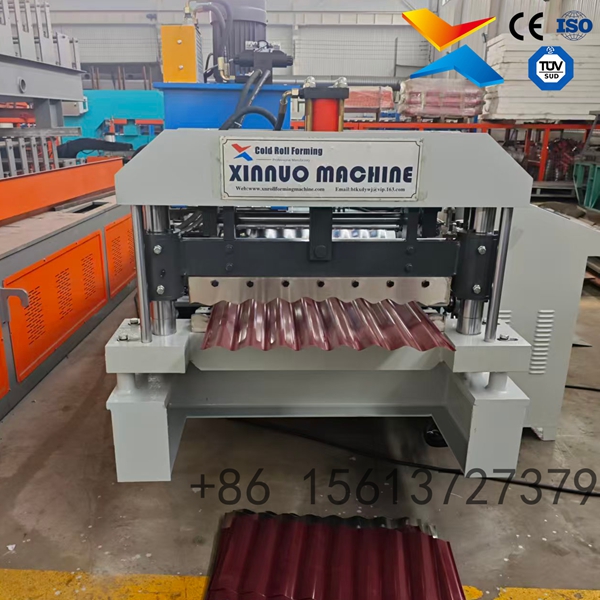

Precision Auto-Cutting: The integrated hydraulic system performs automatic cutting to the exact length without stopping the machine, maximizing production speed.
Production Flexibility: Designed for easy roller set replacement, allowing customers to produce multiple tile models with a single piece of equipment, significantly reducing investment costs.

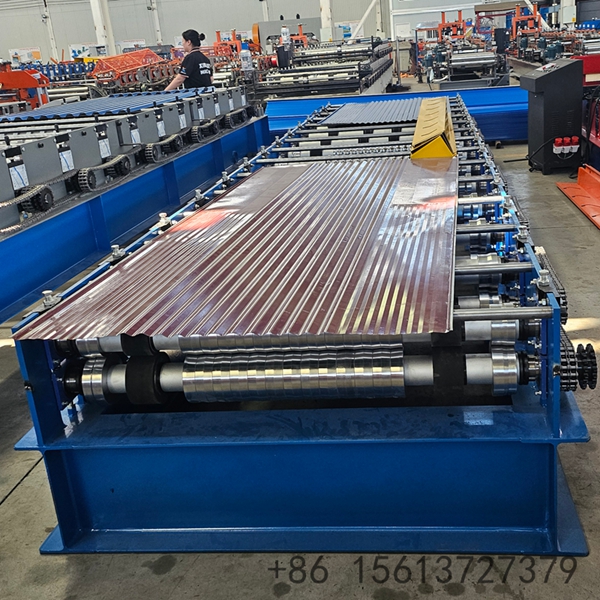

User-Friendly Interface: The PLC control panel enables any operator to quickly and intuitively set production parameters, piece quantities, and troubleshoot faults.
Robust Structure: The heavy-duty welded steel base undergoes stress-relief treatment, ensuring the machine remains completely deformation-free even after years of high-speed continuous operation.
Typical Applications
Commercial & Industrial Construction: Long-span roofing for factories, supermarkets, and distribution centers.
Residential Market: Roofing for affordable housing and high-end residential communities.
Modern Architecture: Ventilated facades and metal decorative elements.
Agricultural Infrastructure: Roofing for rural warehouses and livestock facilities.
