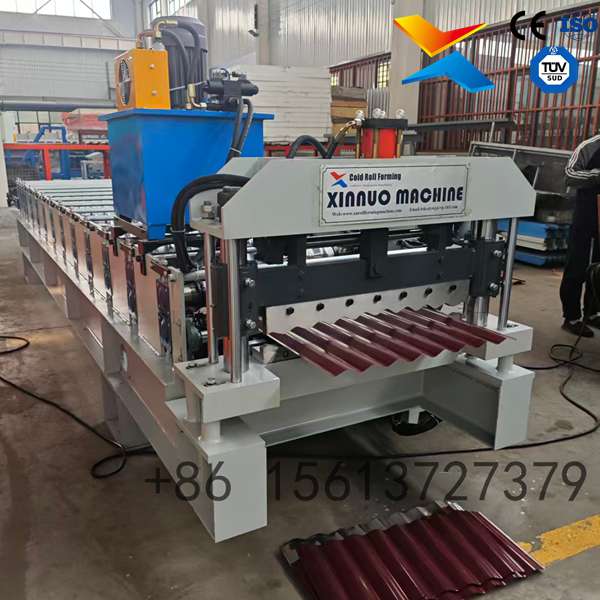

Corrugated Roof Sheet Roll Forming Machine

Corrugated Roof Sheet Roll Forming Machine

Product Attributes :

Application Production of trapezoidal metal roof sheets

Material Thickness 0.3 – 0.8 mm

Feeding Width 1000-1220 mm

Production Speed 8-15m/min

Note Custom sizes & profiles available

WhatsApp 15613727379

Product Description

Product Introduction:

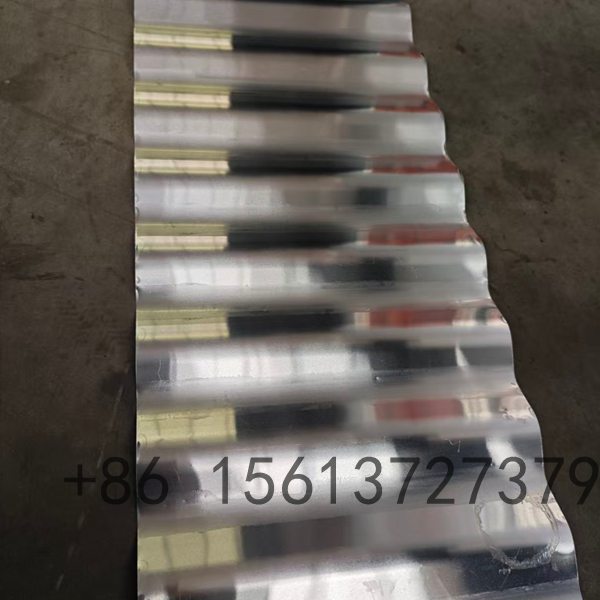

Classic Corrugated Profile Specialization: Specifically calibrated to produce the timeless corrugated wavy profile, offering excellent structural rigidity, aesthetic appeal, and reliable water shedding for a wide range of residential and commercial roofing applications.

High-Rigidity Machine Construction: Built on a reinforced industrial-grade steel frame with thickened side plates, designed to absorb continuous forming stresses and maintain tight dimensional tolerances during high-speed production.

Precision Roll Forming Technology: Utilizes precision-ground 45# forged steel rollers with hard chrome plating to shape the corrugated profile, guaranteeing a flawless surface finish and consistent panel geometry for perfect on-site installation.

Intelligent PLC Automation: Powered by an imported PLC (Siemens/Mitsubishi/Delta) with a user-friendly touch screen, enabling operators to easily program batch counts, panel lengths, and monitor real-time system diagnostics for efficient production.

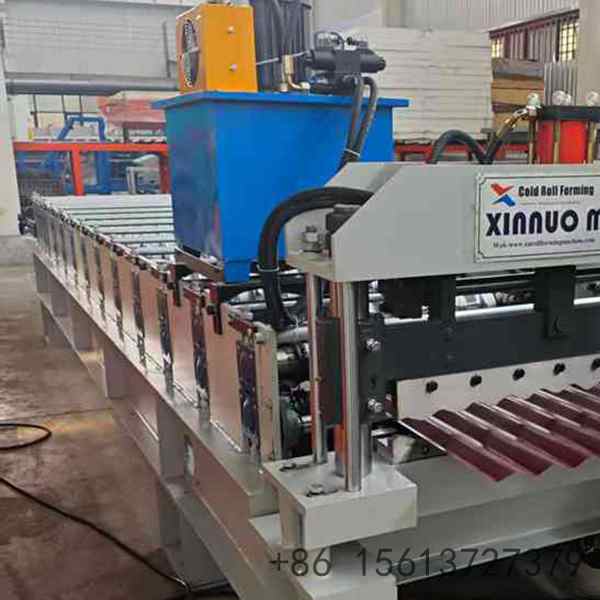

Burr-Free Hydraulic Cutting: Features a synchronized hydraulic post-cut system utilizing Cr12 mould steel blades (HRC 58-62) that accurately cuts corrugated roof sheets to exact lengths with a strict ±1-2mm tolerance and clean edges.

Product Description & Parameters:
The Corrugated Roof Sheet Roll Forming Machine is a highly versatile production solution tailored for manufacturers of premium steel roofing materials. The classic corrugated profile is one of the most widely specified roofing solutions globally, valued for its distinctive wavy appearance, excellent strength-to-weight ratio, and efficient water drainage. This equipment transforms raw color steel, galvanized, or aluzinc coils into finished roofing sheets through a highly synchronized process of decoiling, precision forming, and automated cutting.

The core advantage of this machine lies in its structural rigidity and forming precision. The reinforced base frame prevents deflection under load, while the precision-ground rollers guarantee that every corrugated roof sheet maintains consistent wave geometry and smooth surface finishes. The intelligent PLC control system streamlines operations, allowing for quick setup and accurate batch production. Meanwhile, the hydraulic cutting station tracks the line speed in real-time to execute exact cuts, minimizing material waste and ensuring that every sheet is ready for immediate assembly. This corrugated roof sheet roll forming machine is the reliable choice for suppliers demanding consistent quality and operational efficiency in the versatile metal roofing market.

Production Speed	8 – 15 m/min, stable operation with minimal error

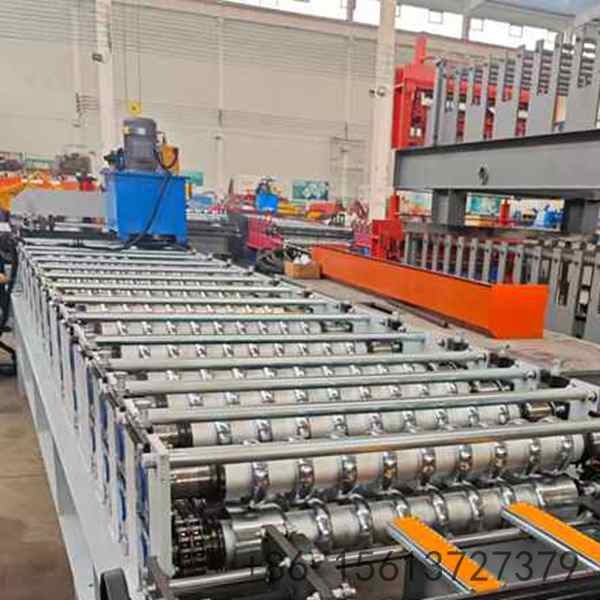

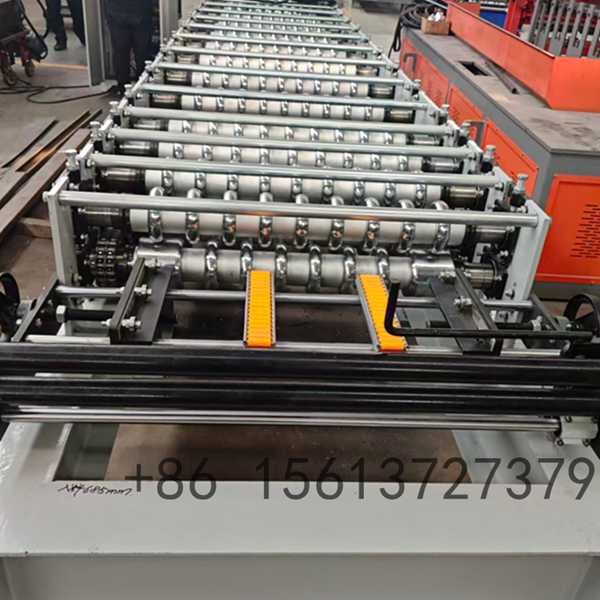

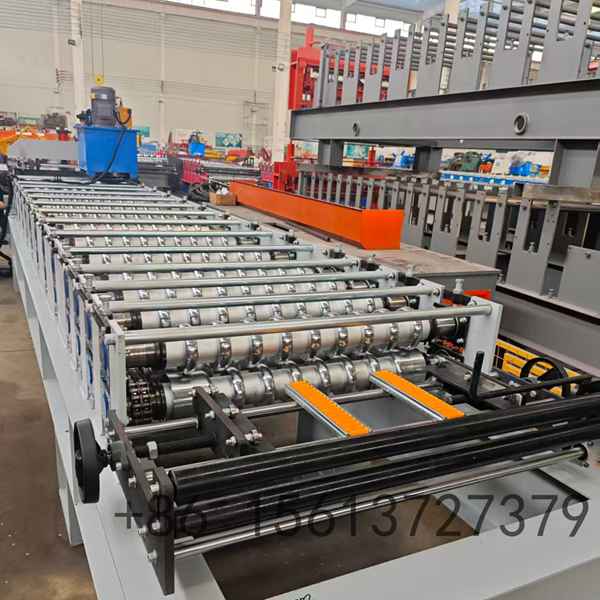

Roller Stations	14 – 18 stations depending on profile design
Roller Material	High-quality GCr15 steel with heat treatment & hard chrome plating
Shaft Diameter	75 mm solid steel shaft, precision machined

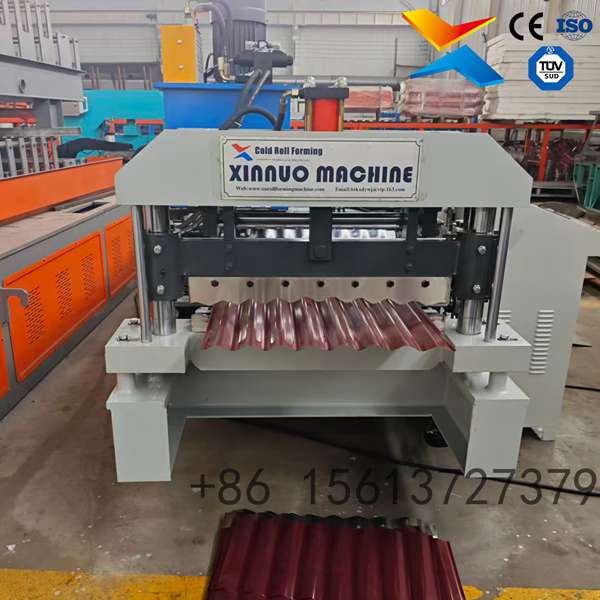

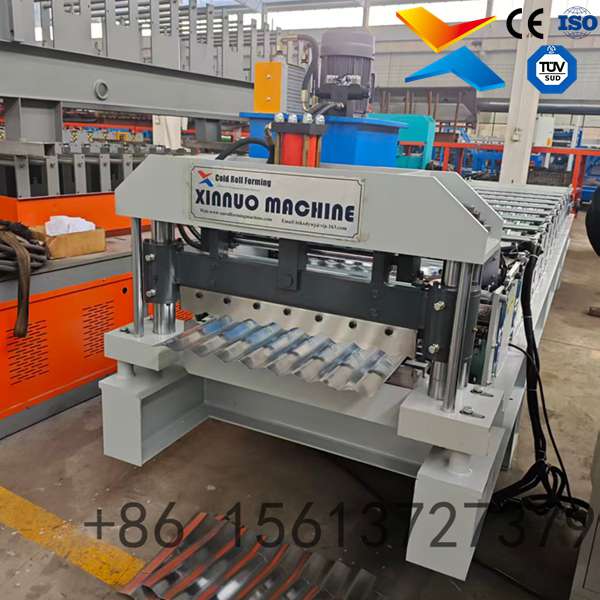

Cutting System	Hydraulic cutting with high-precision blades for smooth edges
Control System	PLC automatic control with touch screen (Siemens/Delta)
Main Motor Power	5.5 kW (customizable for higher production speed)
Hydraulic Station Power	4 kW with reliable pump for long-term performance
Dimension (L×W×H)	About 8.5 m × 1.5 m × 1.5 m
Weight	About 6 tons
