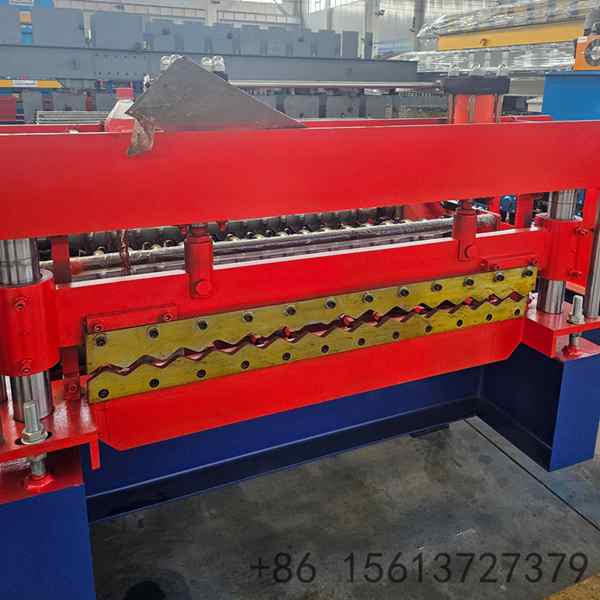

Arc Wave Section: A continuous eight wave roof sheet with a 37mm wave height and a 130mm wave pitch.

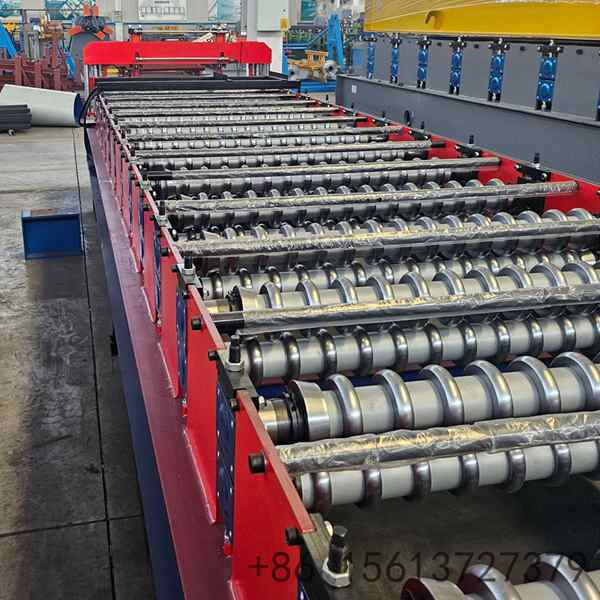

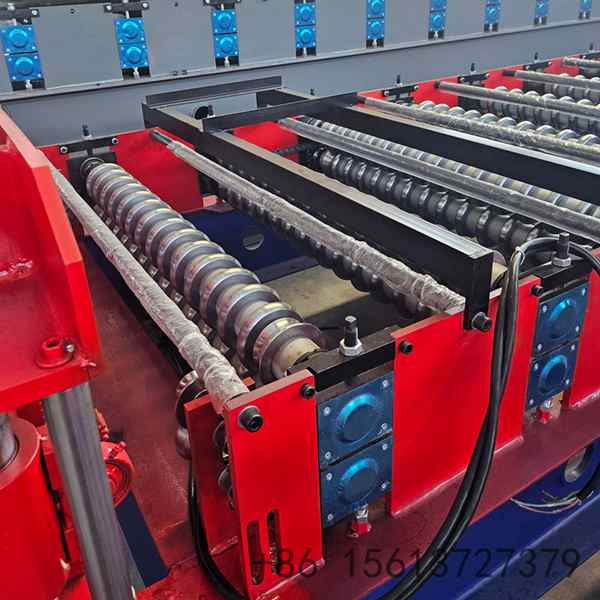

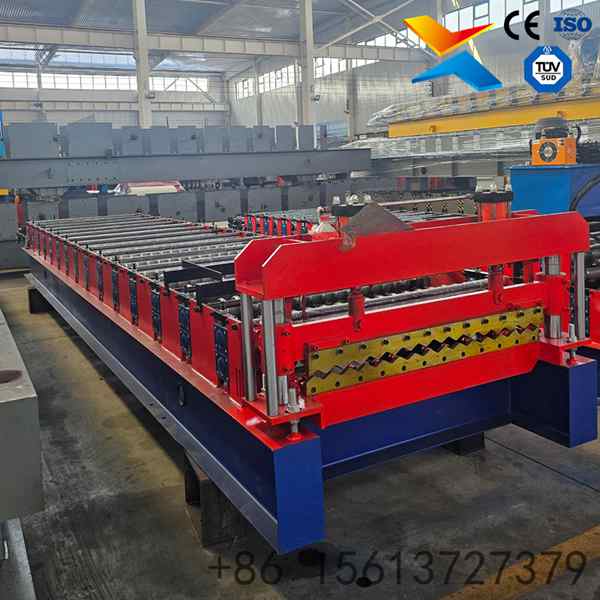

30 Forming Stations: The wave profile folds step by step, so the arcs stay even across the full width.
Heavy Build: A 450H frame and 85mm shafts carry the load of a wide eight wave section.
Matched Drive: A 15KW motor with a one inch double row chain drive carries the forming load.
Heavy Strip Class: Built for the heavier strip class used on arc roofing lines.
Set From Panel: Running length and batch count are set from the control panel.
Drawing Matched: Wave height, wave pitch and panel width follow your section drawing.
| Component | Specification |
|---|---|
| Machine type | Sine wave roof sheet roll forming machine |
| Profile | Continuous arc wave roof sheet |
| Model | HY37-130-1040 |
| Effective width | 1040 mm |
| Coil feed width | 1270 mm |
| Wave profile | 8 waves, 37 mm wave height, 130 mm wave pitch |
| Forming stations | 30 |
| Frame | 450H |
| Shafts | 85 mm |
| Main motor | 15 KW |
| Chain drive | One inch double row |
| Middle plate | [To be confirmed] |
| Sheet thickness | [To be confirmed] |
| Cutting | [To be confirmed] |
| Control system | [To be confirmed] |
| Running speed | [To be confirmed] |
| Line length | [To be confirmed] |

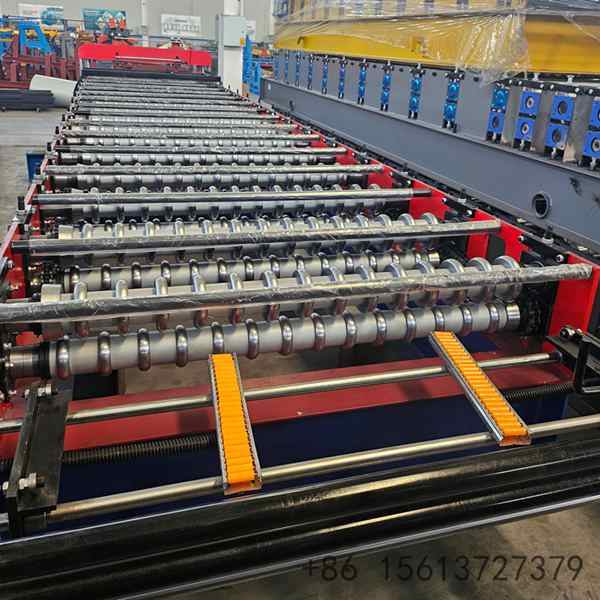

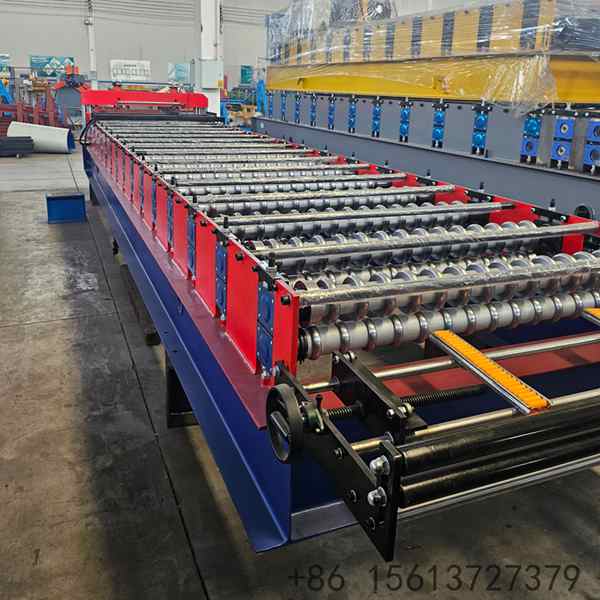

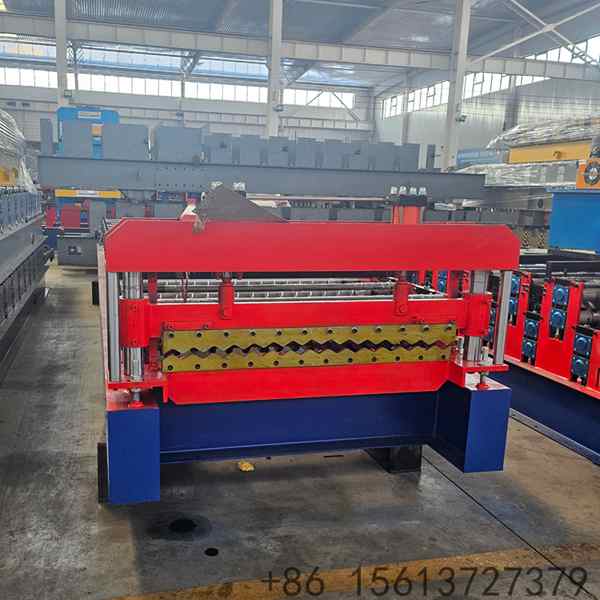

Eight Wave Arc Profile: A continuous sine wave sheet with a 37mm wave height and a 130mm wave pitch.

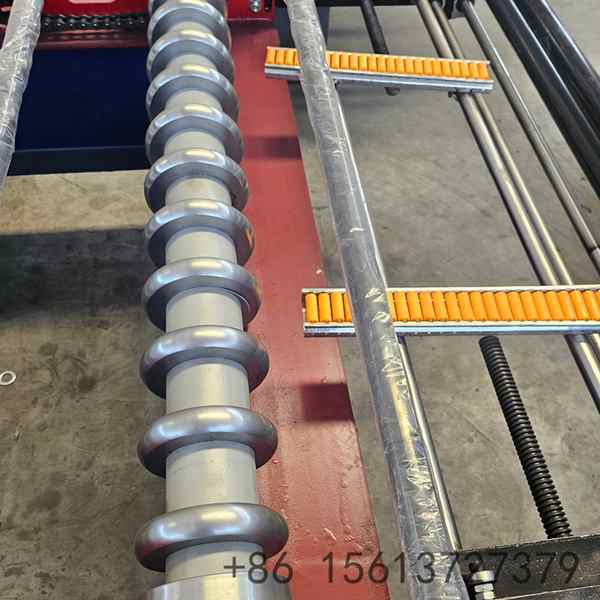

30 Stations: The wave folds in small steps, so the arcs stay even across the full 1040mm width.
450H Frame: The heaviest frame class in this arc series carries a wide eight wave section.

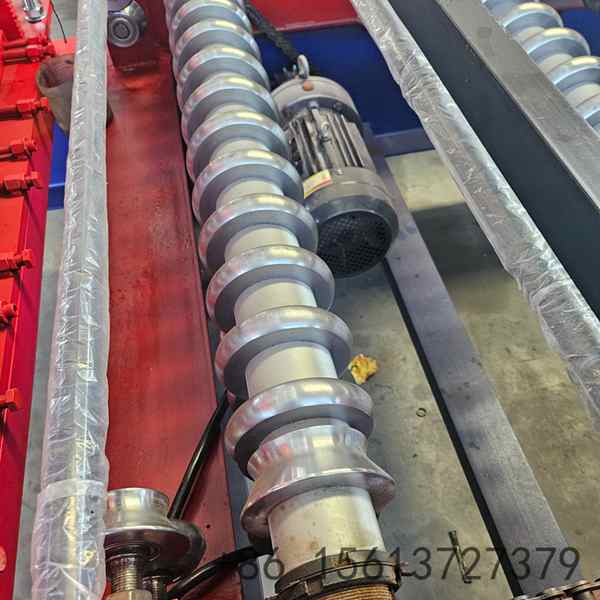

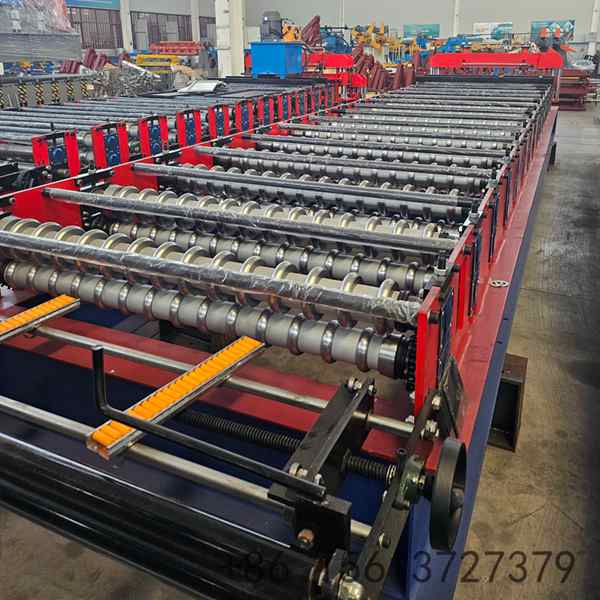

85mm Shafts: Thick shafts hold the roll set steady on long production runs.
15KW Motor: The matched drive carries the forming load of a 30 station wide arc line.
One Inch Double Row Chain: A heavy chain drive matched to the motor and the forming load.
Fewer Operations: Forming and cutting run as one line.
