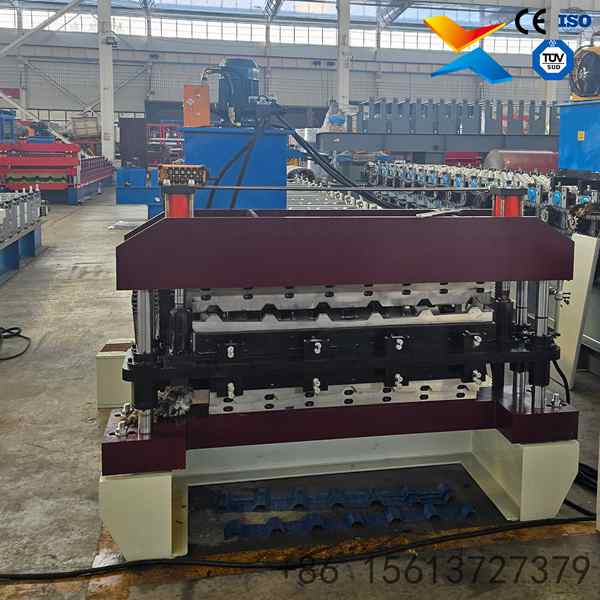

Compact Footprint: Two trapezoidal profiles on one frame instead of two separate machines.
Two Widths Only 10mm Apart: 900mm and 910mm profiles stay consistent from run to run.

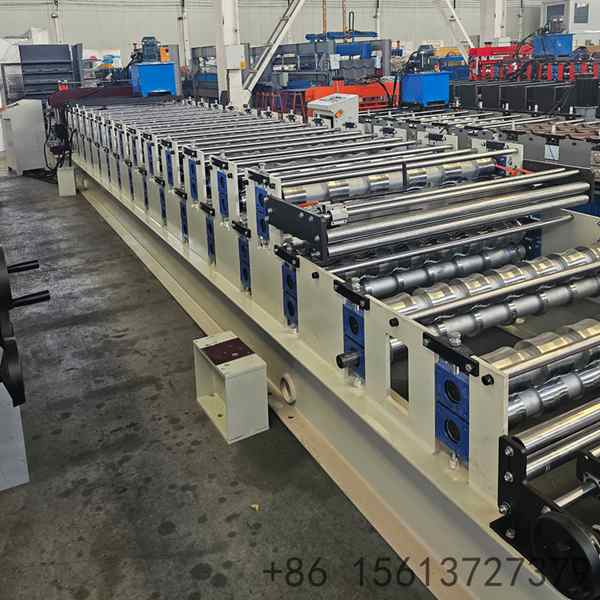

Matched Station Count: 9 stations on each layer keeps forming quality even across both profiles.

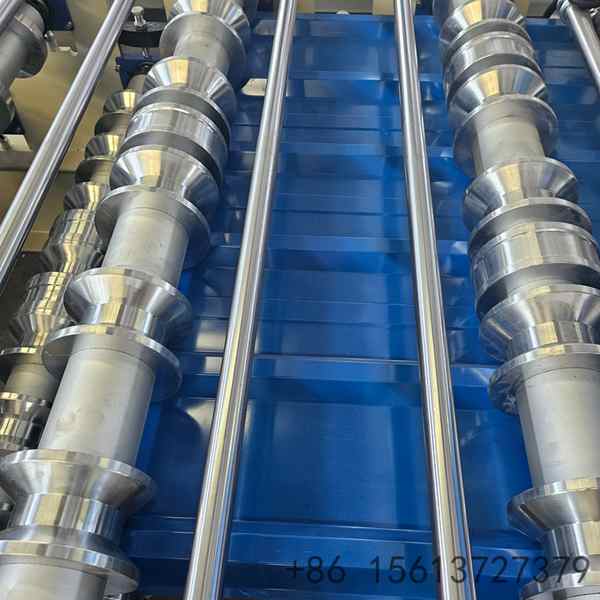

Pure Cold Forming: No pitch pressing stage, so there are fewer wear points to service.

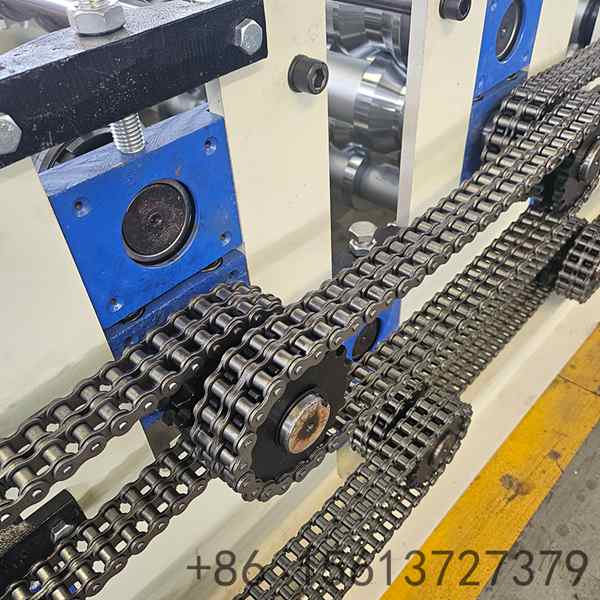

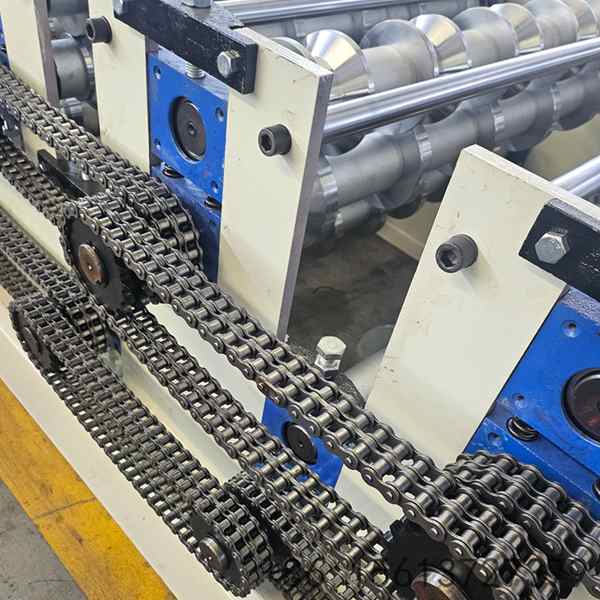

Simple Drive: A one inch single row chain drive is straightforward to inspect and adjust.
One Layer At A Time: Either profile runs on demand, with changeover taking a few minutes.
Set From Panel: Finished length and batch count are entered on the control panel.
Drawing Matched: Layer widths, rib height and rib pitch follow the profile drawings you supply.
| Component | Specification |
|---|---|
| Machine type | Two in one trapezoidal roll forming machine |
| Combination | Trapezoidal layer plus trapezoidal layer |
| Model | DB238 |
| Layer 1 profile | 9 stations, 5 ribs, 900 mm |
| Layer 2 profile | 9 stations, 8 ribs, 910 mm |
| Coil feed width | 1000 mm |
| Forming stations | 9 per layer |
| Frame | 350H |
| Shafts | 70 mm |
| Main motor | 4 KW |
| Chain drive | One inch single row |
| Middle plate | [To be confirmed] |
| Sheet thickness | [To be confirmed] |
| Cutting | [To be confirmed] |
| Control system | [To be confirmed] |
| Running speed | [To be confirmed] |
| Line length | [To be confirmed] |
Two Profiles One Frame: Covers both roof sheet widths without buying a second machine.
Consistent Section: Layer widths only 10mm apart, so the sheet looks the same across runs.
Matched Station Count: 9 stations on each layer keeps forming quality even across both profiles.

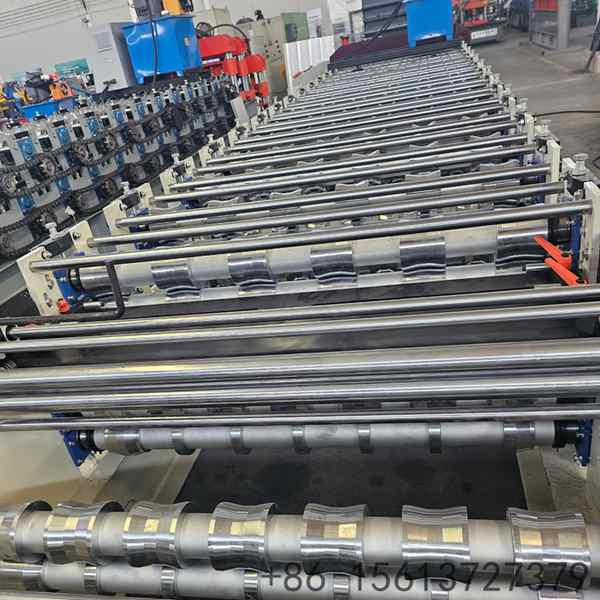

Compact Build: A 350H frame fits workshops with limited floor space.
Simple Maintenance: Pure cold forming with no pitch pressing stage and a single row chain to inspect.
Factory Direct Price Point: An economic configuration aimed at small and mid size producers.
Set From Panel: Finished length and batch count are entered on the control panel.
