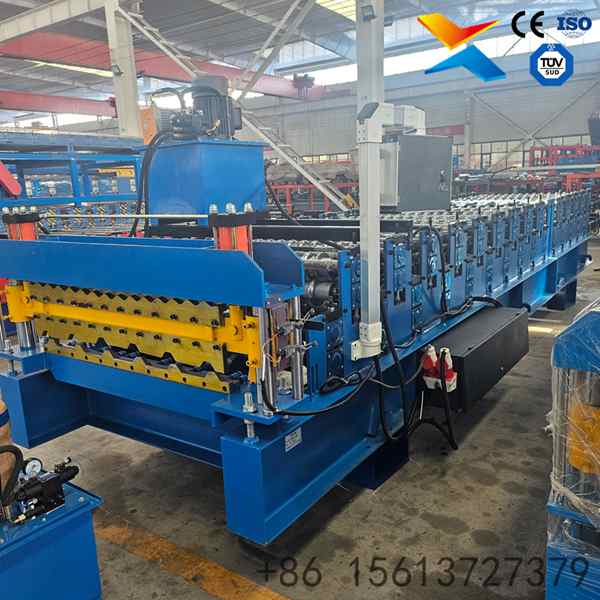

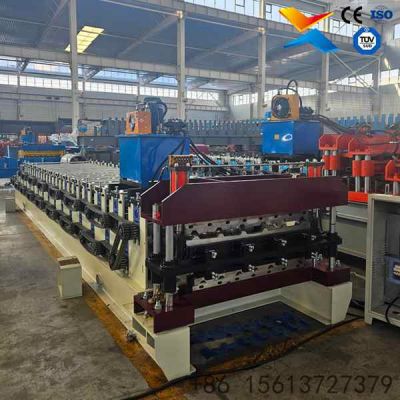

Two Profiles, One Body: Corrugated and trapezoidal sheets from a single compact frame.

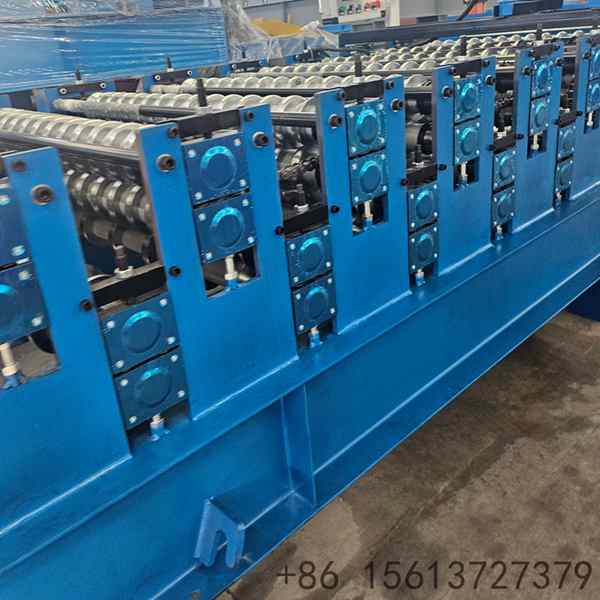

Balanced Stations: Each layer carries 9 stations, so the drive load stays even.
Small Footprint: A short body suits workshops with limited floor space.
Entry Level Cost: Aimed at first time buyers who need both profiles.
Simple Switch: Production moves between profiles by changing the material path.
Steady Drive: A 4KW motor with a double row chain suits light roofing coil.
Mainstream Widths: A 1000mm coil feeds both profiles.
| Component | Specification |
|---|---|
| Machine type | Economical double layer roll forming machine |
| Corrugated layer | 9 stations, covering 850 |
| Trapezoidal layer | 9 stations, 8 ribs, covering 910 |
| Feed width | 1000 mm |
| Row match | 9 / 9 |
| Frame | 300H |
| Shafts | 70 mm |
| Main motor | 4 KW |
| Chain drive | Double row chain |
| Middle plate | [To be confirmed] |
| Sheet thickness | [To be confirmed] |
| Cutting | [To be confirmed] |
| Line length | [To be confirmed] |
| Running speed | [To be confirmed] |
Two Products, One Machine: Both panel types are produced on the same body.
Even Load: Equal station counts on both layers keep the drive steady.
Short Body: The compact frame needs less floor space than two separate lines.
Easy Change: Production switches between profiles by the material path.
Low Entry Cost: Sized for buyers starting with two profiles on their list.
Simple Running: One operator covers forming and cutting.
Light Coil Ready: A 4KW drive suits the coil gauges used for light roofing.
