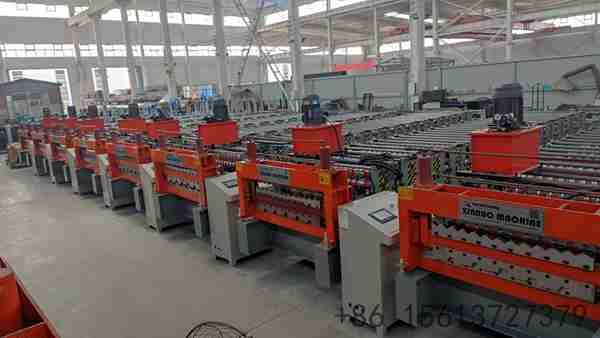

Layer 1 (upper): 836 corrugated panel, 12 waves, 16 forming stations
Layer 2 (lower): 840 trapezoidal panel with A stiffening rib, 14 forming stations
Feed width: 1000 mm
Sheet thickness: Customizable per roofing spec
Frame: 350H

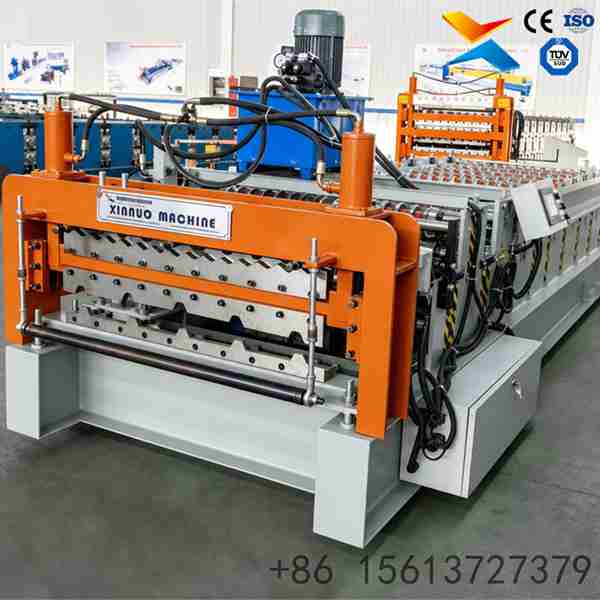

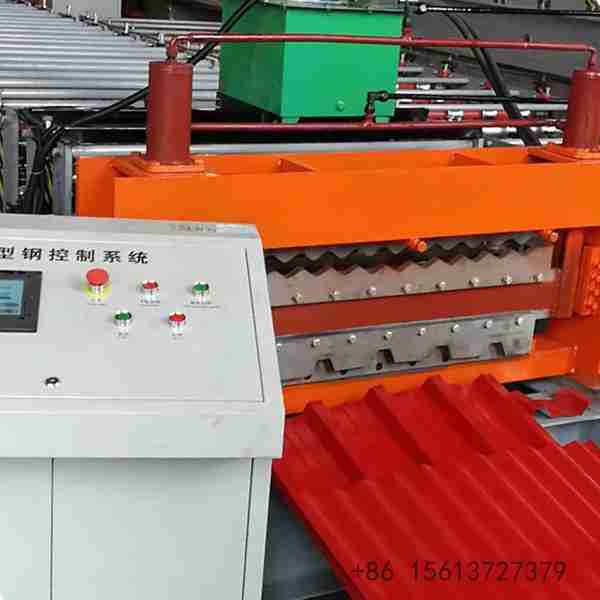

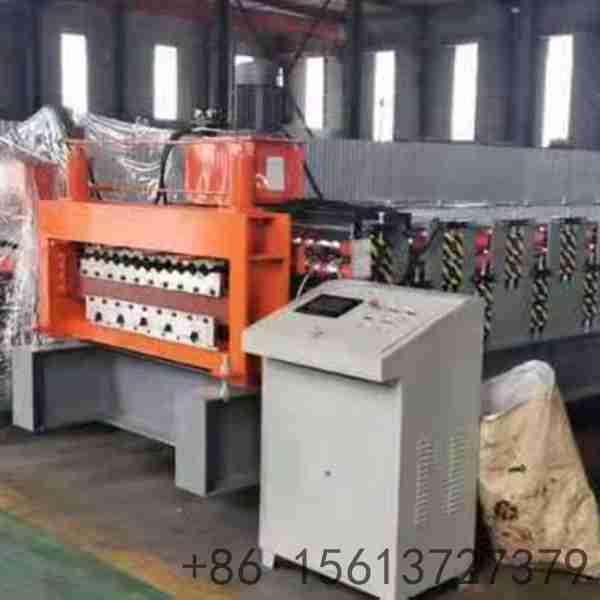

Two Profiles One Frame: 836 corrugated and 840 trapezoidal sheets from one machine.
Fast Switch: Material path switch in a few minutes, no roller change needed.
Space Saving: One machine body instead of two separate lines.

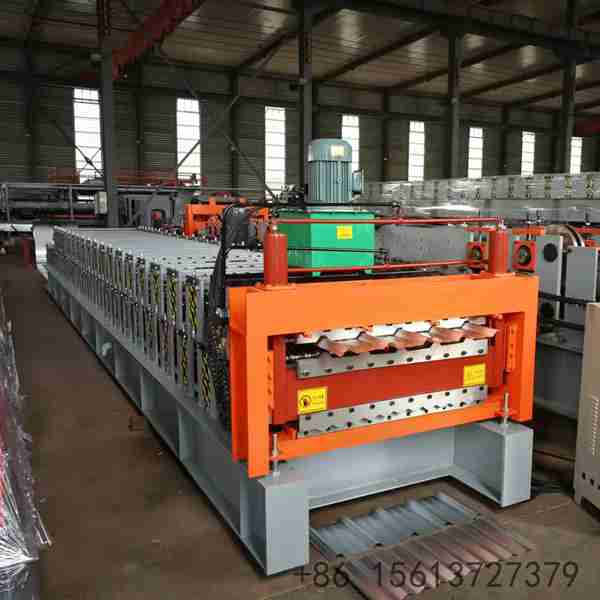

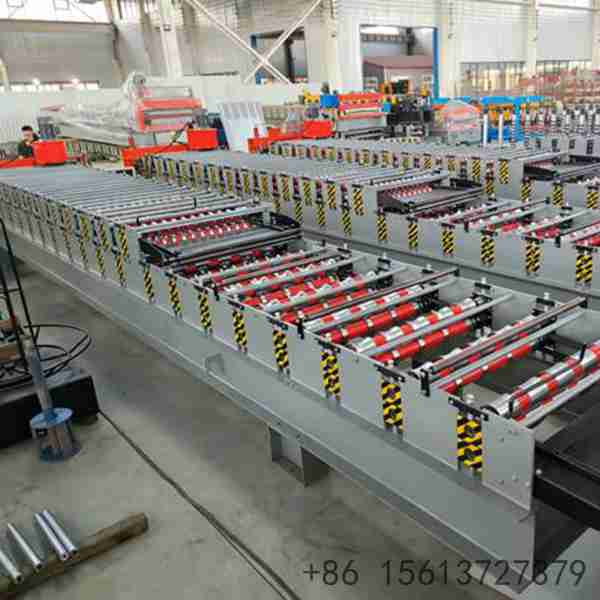

Upper Roller Set: 16 stations for the 836 corrugated profile, 12 waves.

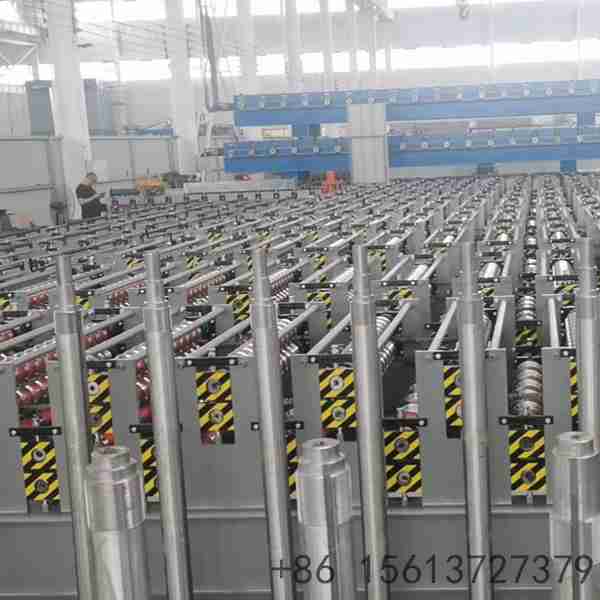

Lower Roller Set: 14 stations for the 840 trapezoidal profile with A rib.

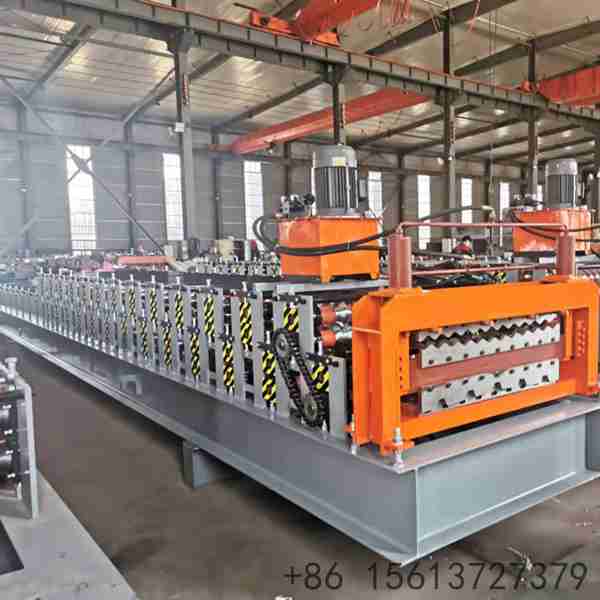

Shared Drive: Both sets run from one drive and one control system.
Established Build: The most common combination in this machine range.
| Component | Specification |
|---|---|
| Layer 1 (upper roller set) | 836 corrugated panel, 12 waves, 16 forming stations |
| Layer 2 (lower roller set) | 840 trapezoidal panel with A stiffening rib, 14 forming stations |
| Feed width | 1000 mm |
| Sheet thickness | Customizable per roofing spec |
| Frame | 350H |
| Shafts | 75 mm |
| Main motor | 4 KW |
| Transmission | Two strand double row chain drive |
| Coil types | Prepainted colored / galvanized steel coil |
| Profile switching | Material path switch, a few minutes, no roller change |
| Production mode | One layer runs at a time |
| Optional | Hydraulic cutting with PLC control, coil car, stacker |

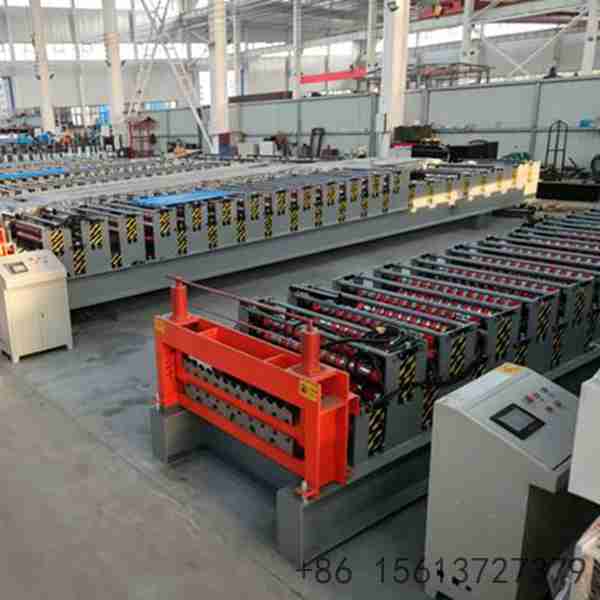

Two Profiles, One Machine: 836 corrugated and 840 trapezoidal from one frame.
Quick Changeover: Switch the material path in a few minutes without roller change.
Smaller Footprint: One machine body where two separate lines would stand.
Matched Row Count: 16 and 14 stations sit close enough for even feeding.
Rigid A Rib Profile: The trapezoidal layer forms a stiffening rib into the sheet.
One Shared Drive: Both roller sets run from a single motor and chain system.
Proven Combination: This pairing is the most established in the range.
