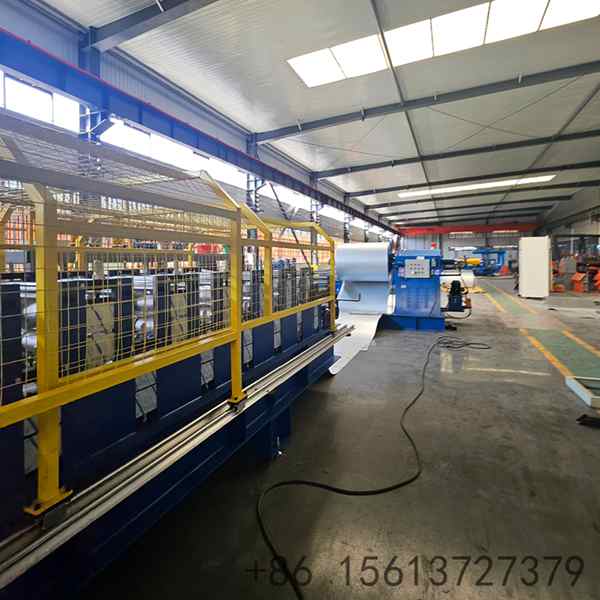

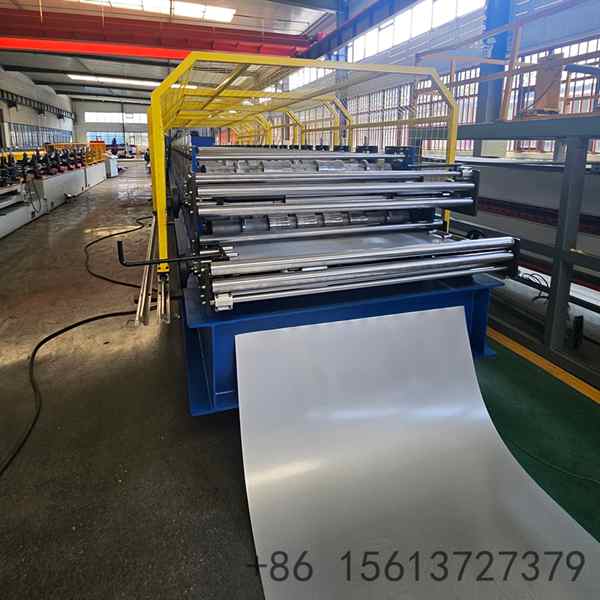

Two Profiles One Frame: A 900mm and an eight rib 910mm sheet come off the same line instead of two machines.

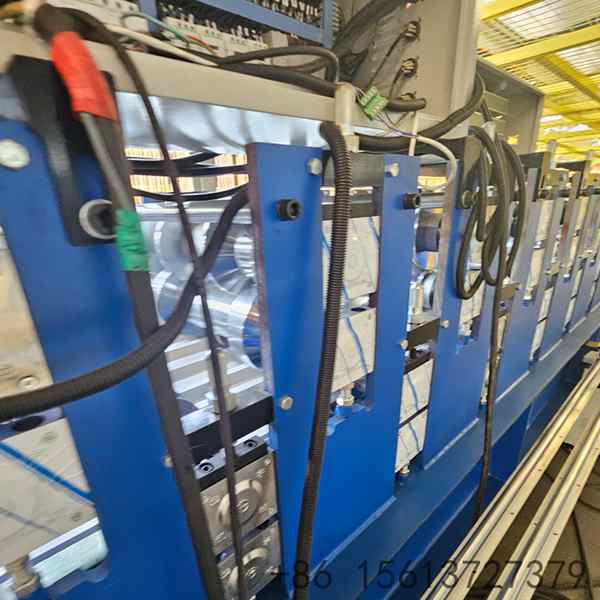

Matched Station Count: 14 stations on each layer keeps forming quality even across both profiles.
Heavy Build: A 400H frame, an 18mm middle plate and a 7.5KW motor hold the section on long runs.
Servo Length Control: A servo motor with an encoder meters strip travel, so the shear cuts to the set figure.
Pure Cold Forming: No pitch pressing stage, so there are fewer wear points to service.
One Layer At A Time: Either profile runs on demand, with changeover taking a few minutes.

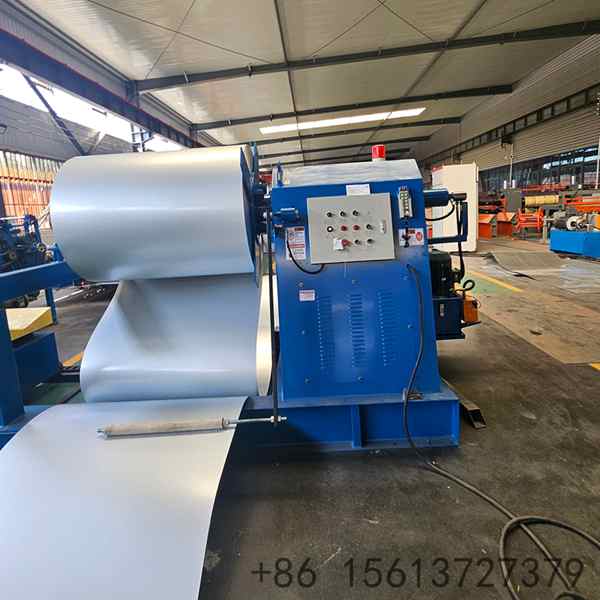

Simple Handling: Both layers run from the same drive side, so coil setting stays familiar.
Drawing Matched: Layer widths, rib height and rib pitch follow the profile drawings you supply.
| Component | Specification |
|---|---|
| Machine type | Double layer trapezoidal roll forming machine |
| Combination | Trapezoidal layer plus trapezoidal layer |
| Model | DB169 |
| Layer 1 profile | 14 stations, 900 mm |
| Layer 2 profile | 14 stations, 8 ribs, 910 mm |
| Forming stations | 14 per layer |
| Frame | 400H |
| Middle plate | 18 mm |
| Main motor | 7.5 KW |
| Drive | Servo motor with encoder length control |
| Chain drive | Six point double row |
| Coil feed width | [To be confirmed] |
| Shafts | [To be confirmed] |
| Sheet thickness | [To be confirmed] |
| Cutting | [To be confirmed] |
| Control system | [To be confirmed] |
| Running speed | [To be confirmed] |
| Line length | [To be confirmed] |
Two Profiles One Frame: Covers both roof sheet widths without buying or housing a second machine.
Even Forming: 14 stations on each layer keeps the section consistent across both profiles.
Heavy Frame: A 400H frame and an 18mm middle plate hold the section on long production runs.
Servo Length Control: Strip travel is metered, so cut length follows the figure you enter.
Fewer Operations: Forming, final sizing and cutting run as one line.
Simple Design: Pure cold forming with no pitch pressing stage means fewer wear points.
Set From Panel: Finished length and batch count are entered on the control panel.
