Product Briefing
High-Throughput Speed Logic: Engineered to achieve production speeds of up to 25 meters per minute without compromising profile accuracy.
Smart Automation Integration: Features a fully digital PLC interface with cloud-ready diagnostics and batch task management.

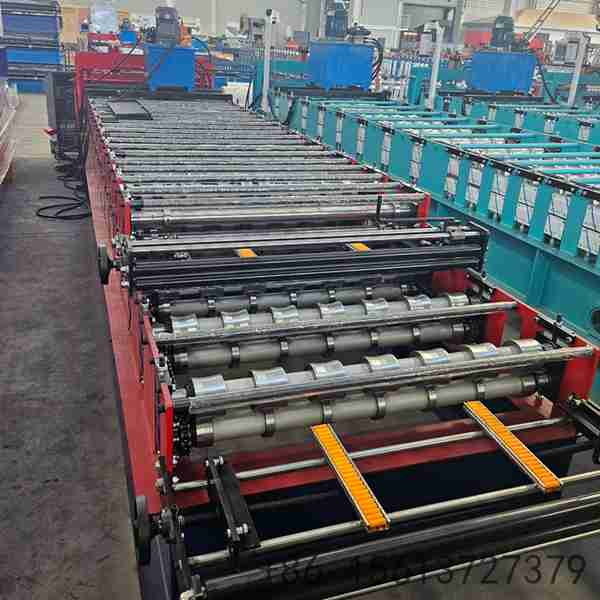

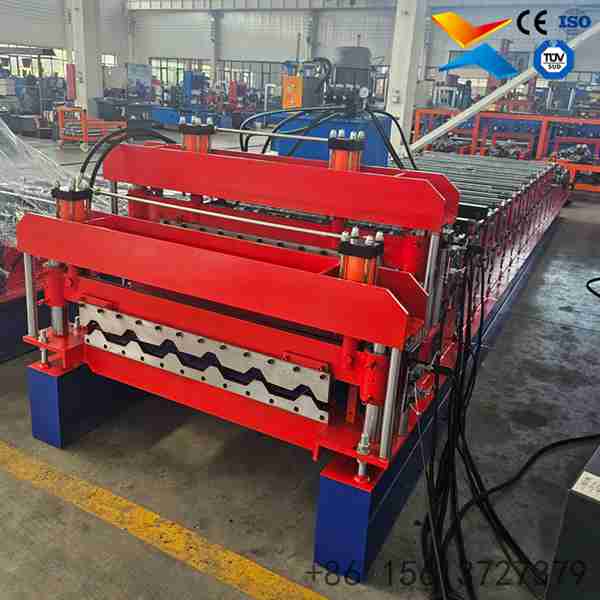

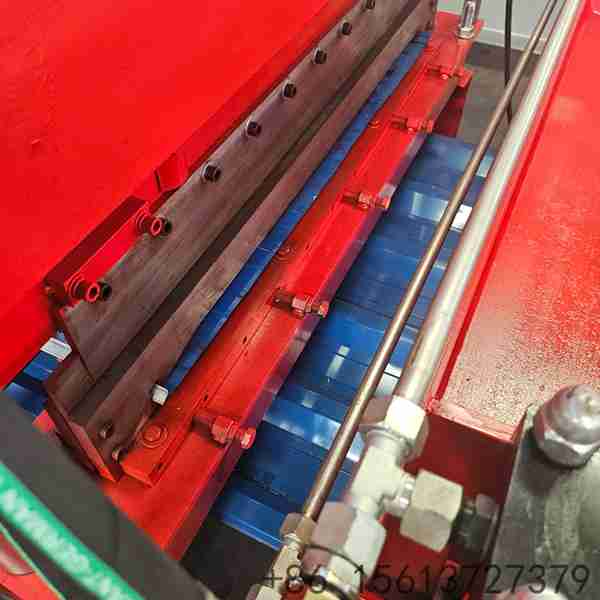

Rapid-Action Hydraulic Cutoff: Utilizes a specialized high-speed hydraulic station to minimize cutting dwell time and maximize hourly output.
Dynamic Encoder Calibration: Real-time length monitoring ensures that panels remain perfectly accurate even at maximum production speeds.
Automated Safety Infrastructure: Includes light-curtain sensors and emergency stop circuits to protect operators during high-speed industrial cycles.
Detailed Description
Technical Parameters
| Component | Performance Specification |
|---|---|
| Max Production Speed | 20 - 25 Meters Per Minute (Excluding Cutting) |
| Automation Level | Fully Automatic PLC Controlled / Smart HMI |
| Drive Technology | High-Torque Inverter Drive with Double-Row Chain |
| Cutting Accuracy | ±1.0mm at Max Speed |
| Shaft Specification | Φ80mm - Φ85mm High-Frequency Quenched Steel |
| Power Supply | 380V / 415V / 440V (Customized for Global Power) |
| Operating Modes | Manual / Semi-Auto / Fully Automatic Batch |
Unique Technical Advantages
Inverter-Controlled Speed Profiling: The machine utilizes frequency inverters to smoothly accelerate and decelerate, preventing material slippage at high speeds.
High-Speed Servo Integration Ready: Optional servo-motor upgrades are available for manufacturers requiring ultra-fast length positioning and cutting.

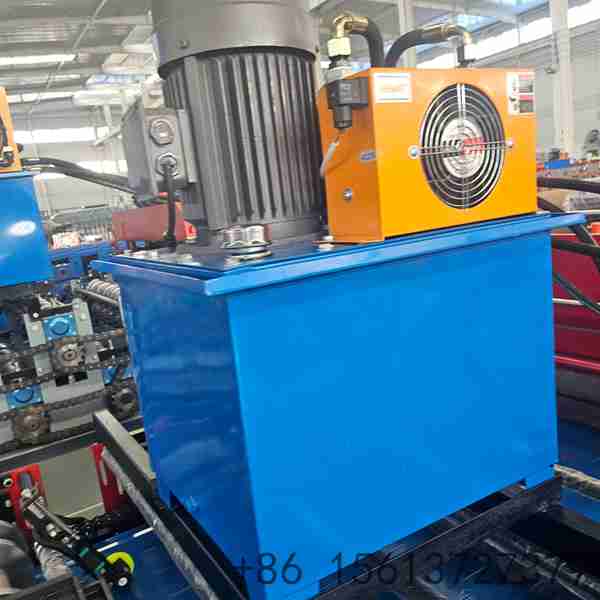

Real-Time Thermal Monitoring: The hydraulic station and main motors are equipped with temperature sensors to prevent overheating during high-volume production.
Digital Batch Scheduling: The HMI allows for the pre-programming of multiple orders, automatically transitioning between batches for continuous operation.
