Product Description
Product Introduction
Product Description & Parameters

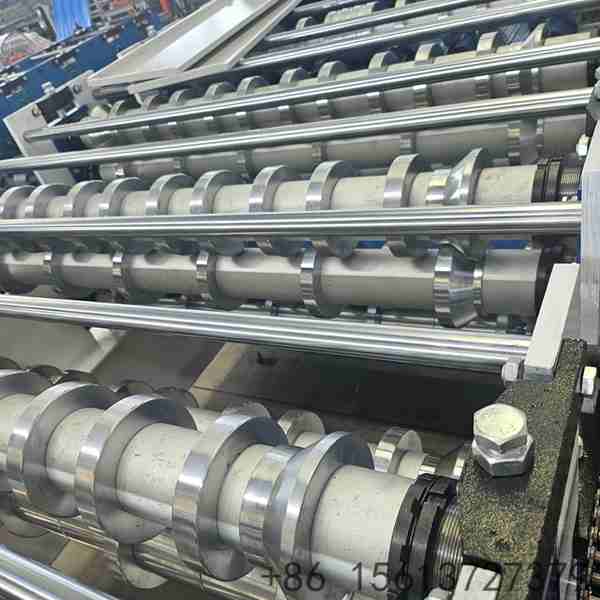

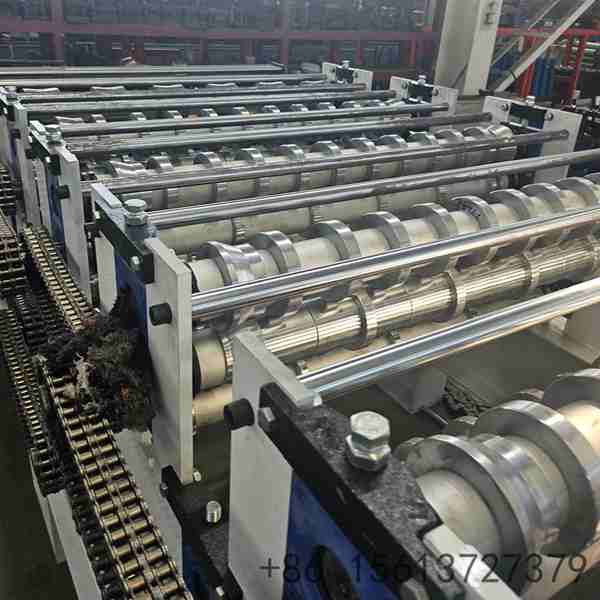

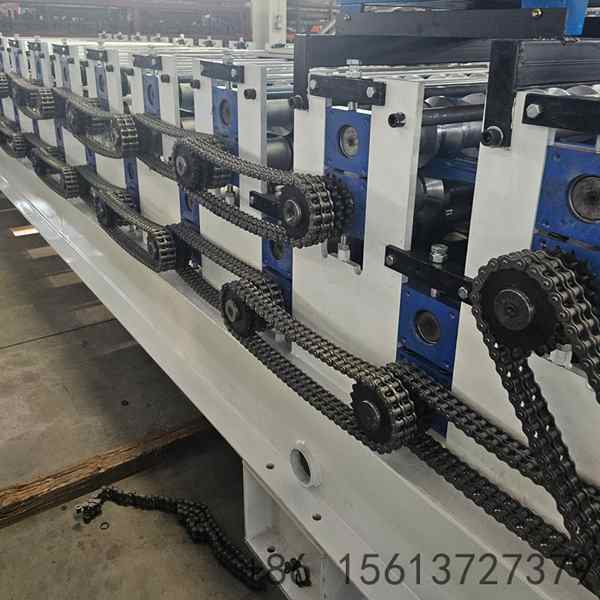

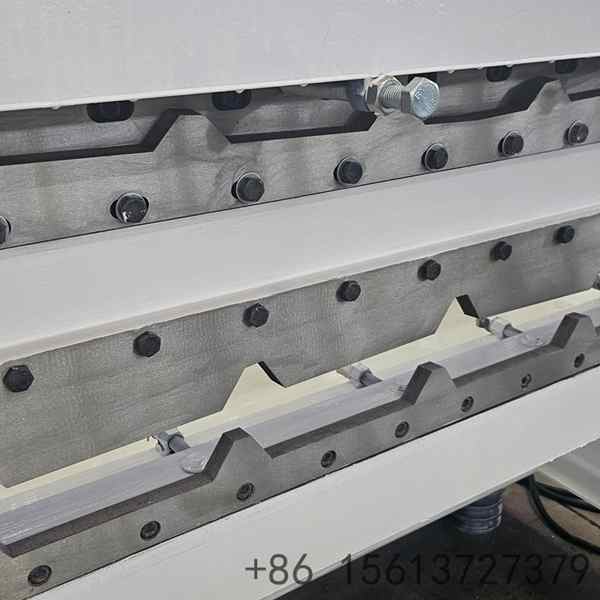

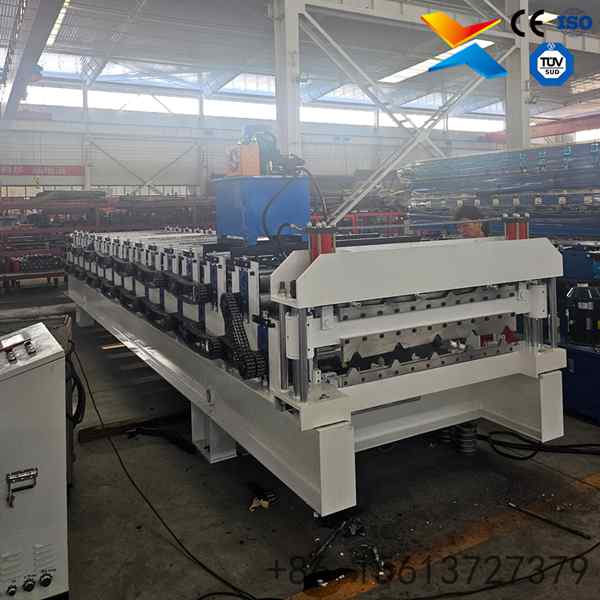

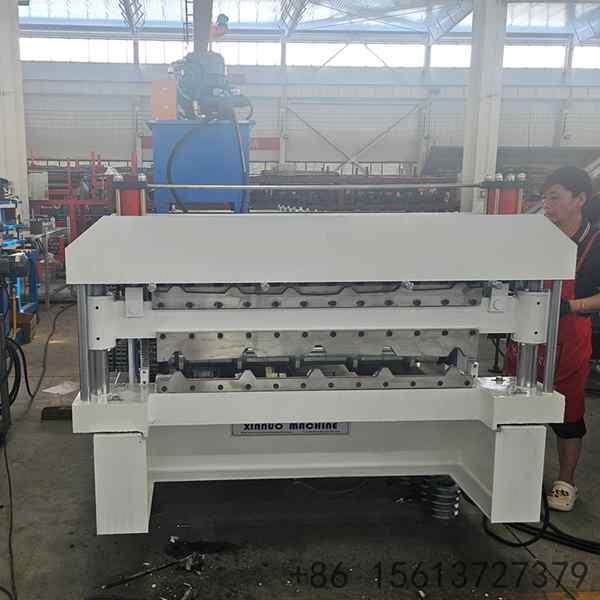

The Automatic Double Deck Metal Roof Tile Making Machine is an innovative cold roll forming equipment that combines two different roofing tile profiles into a single production line. This space-saving design is perfect for manufacturers with limited workshop space who need to produce multiple roofing styles. The machine processes color-coated galvanized or galvalume coils into durable metal roofing panels that provide excellent weather protection and aesthetic appeal. Each layer features independent roll forming and cutting systems controlled by a unified PLC system. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and consistent forming quality for both profiles.
The Automatic Double Deck Metal Roof Tile Making Machine is an innovative cold roll forming equipment that combines two different roofing tile profiles into a single production line. This space-saving design is perfect for manufacturers with limited workshop space who need to produce multiple roofing styles. The machine processes color-coated galvanized or galvalume coils into durable metal roofing panels that provide excellent weather protection and aesthetic appeal. Each layer features independent roll forming and cutting systems controlled by a unified PLC system. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and consistent forming quality for both profiles.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Color-coated galvanized steel / PPGI / Galvalume coil |
| 2 | Material Thickness Range | 0.3 - 0.8 mm |
| 3 | Material Yield Strength | 235 - 550 MPa |
| 4 | Forming Speed | 8 - 12 m/min per layer (adjustable via frequency converter) |
| 5 | Number of Roller Stations | 10 - 18 stations per layer (depending on profile design) |
| 6 | Main Motor Power | 4 kW + 4 kW (dual motors for each layer) |
| 7 | Hydraulic Station Power | 4 - 5.5 kW |
| 8 | Roller Material | 45# forged steel, polished and coated with 0.05mm hard chrome |
| 9 | Shaft Material | High-grade 45# steel, diameter 70-80mm, tempered and polished |

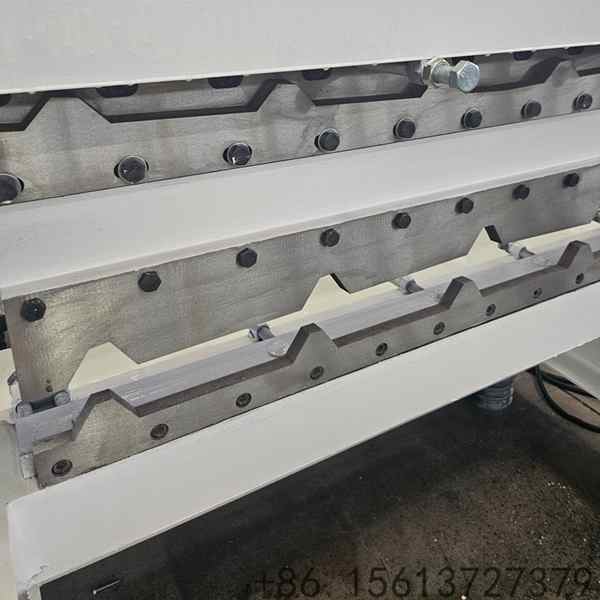

| 10 | Cutting Blade Material | Cr12 mould steel with quenching treatment (HRC 58-62) |

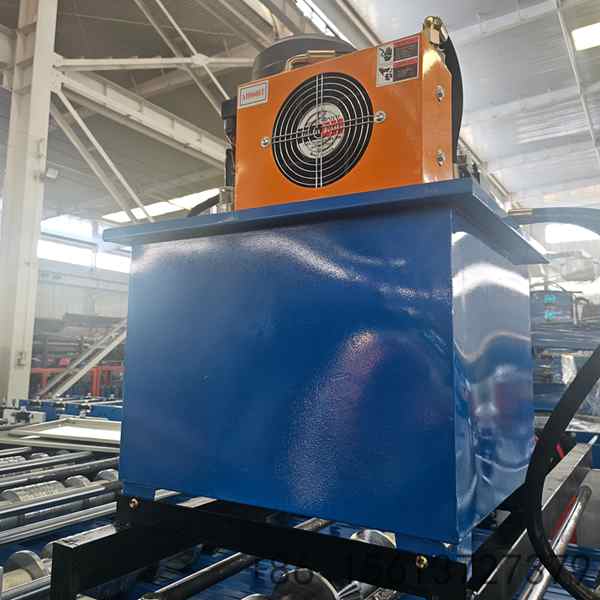

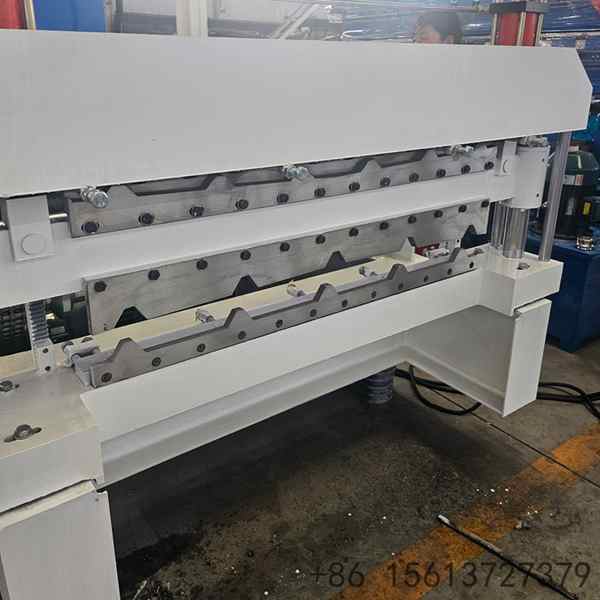

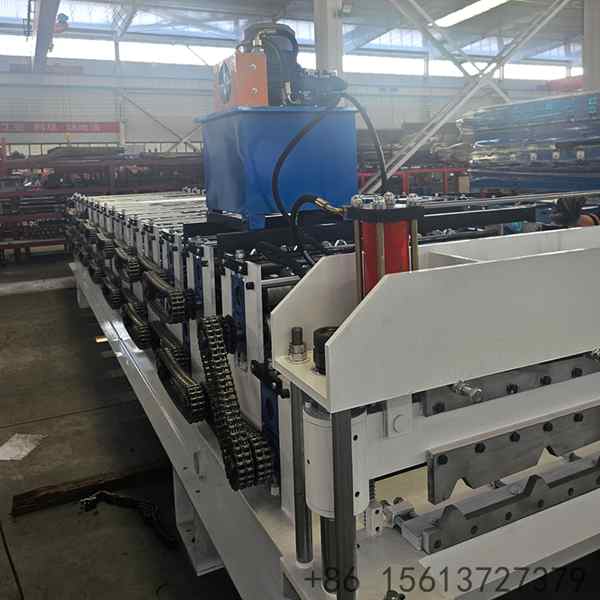

| 11 | Cutting Method | Hydraulic post-cut, automatic pause and cut |
| 12 | Control System | PLC control with touch screen (Mitsubishi / Delta / Siemens) |
| 13 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 14 | Machine Dimensions | Approx. 7m - 10m × 1.5m - 1.8m × 1.3m - 1.6m |
| 15 | Machine Weight | Approx. 4.5 - 7 Tons |
| 16 | Length Tolerance | ±1 - 2 mm |
| 17 | Uncoiler Capacity | Up to 3 - 5 tons (manual or hydraulic) |
| 18 | Driving Mode | Chain transmission |
| 19 | Warranty | 12-24 months free warranty + lifelong technical support |
