Two Layer Widths 30mm Apart: Layer widths of 1020mm and 1050mm keep coil setting and changeover close.

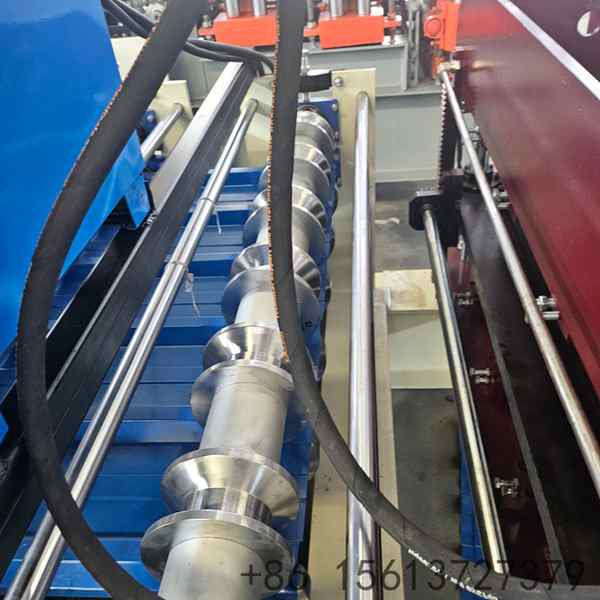

18 Stations Per Layer: Trapezoidal ribs build progressively, holding the sheet flat along the run.
400H Frame: A heavy frame suits factories running wide trapezoidal sheets day after day.
Pure Cold Forming: No pitch pressing stage, so there are fewer wear points to service.

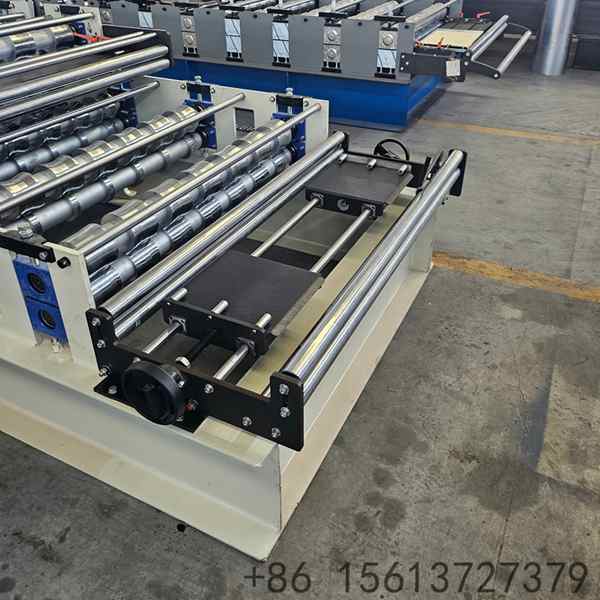

Twin Coil Widths: 1220mm and 1250mm strip are both covered by the same line.
One Layer At A Time: Either profile runs on demand, with changeover taking a few minutes.
Set From Panel: Finished length and batch count are entered on the control panel.
Drawing Matched: Layer widths, rib height and rib pitch follow the profile drawings you supply.
| Component | Specification |
|---|---|

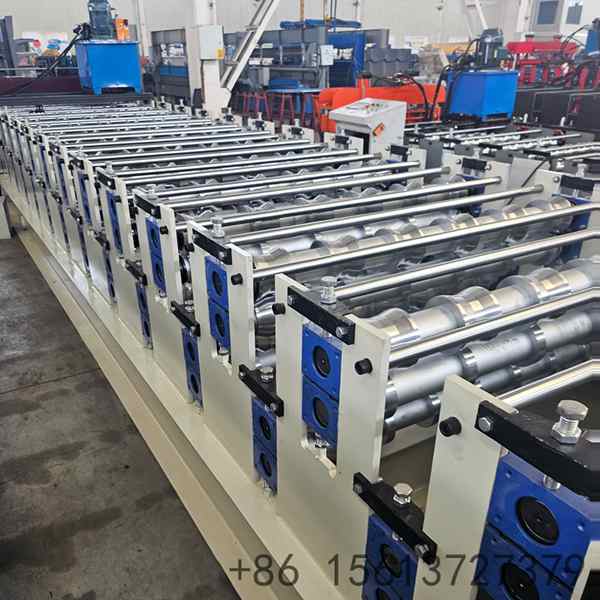

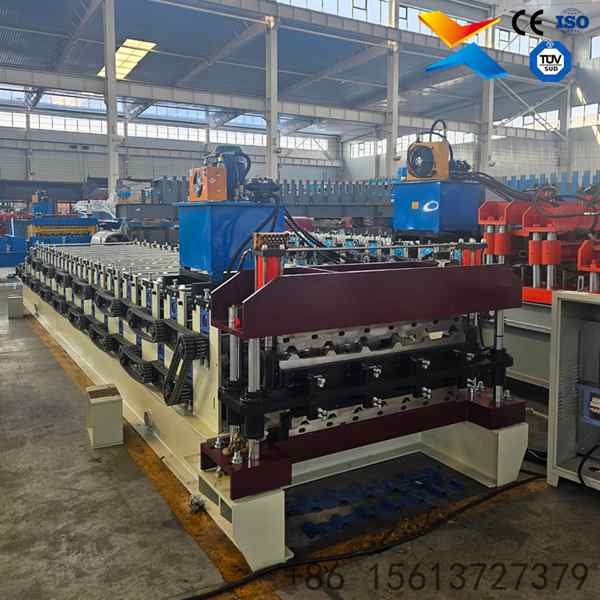

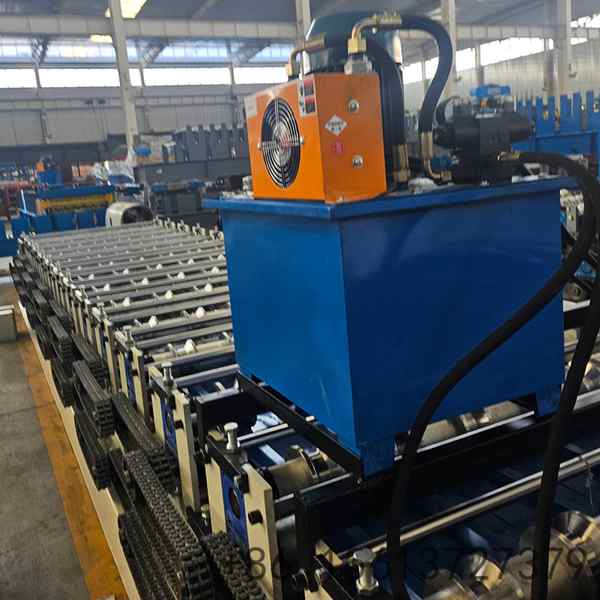

| Machine type | Double layer trapezoidal roll forming machine |
| Combination | Trapezoidal layer plus trapezoidal layer |
| Model | DB077 |

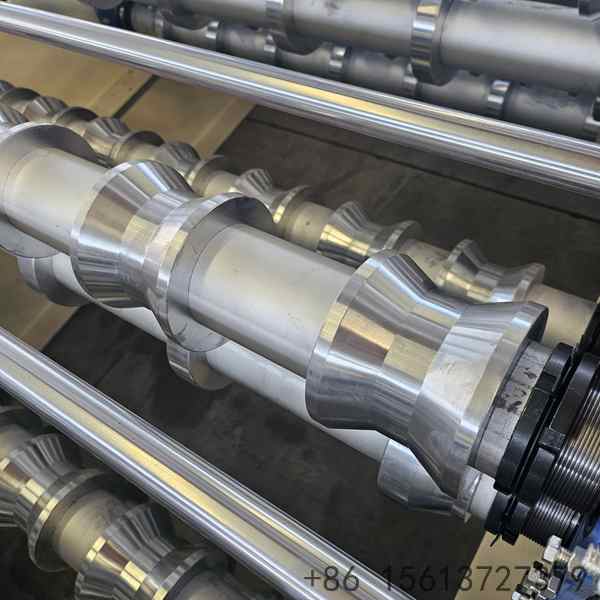

| Layer 1 profile | 18 stations, 6 ribs, 1020 mm |

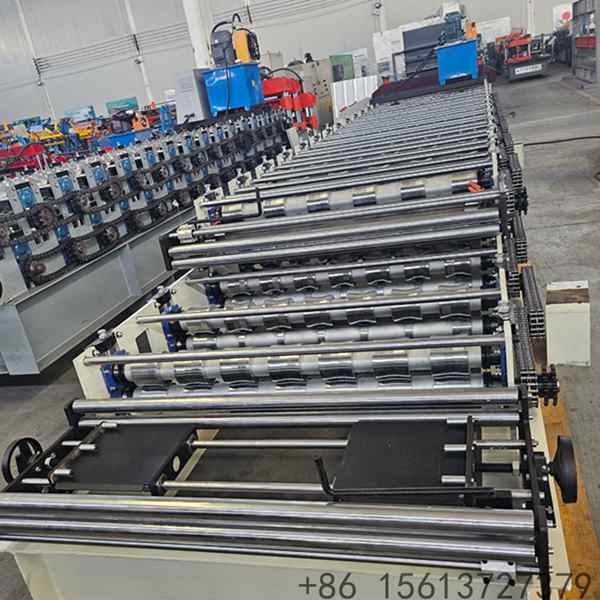

| Layer 2 profile | 18 stations, 6 ribs, 1050 mm |
| Coil feed width | 1220 mm and 1250 mm |
| Forming stations | 18 per layer |
| Frame | 400H |
| Shafts | 75 mm |
| Main motor | 5.5 KW |

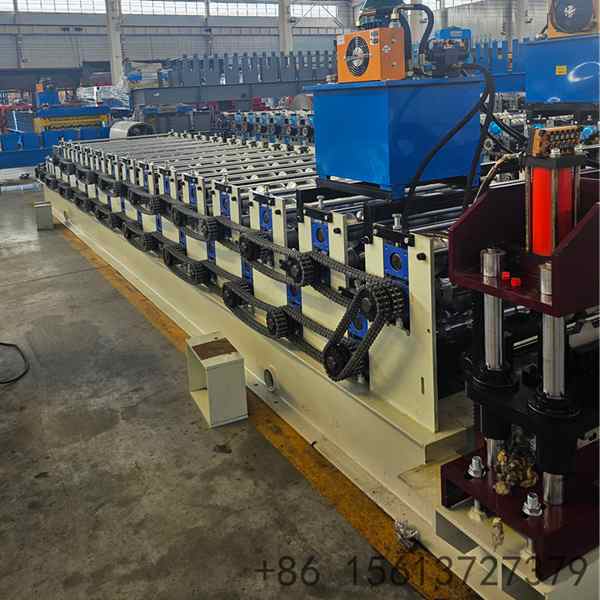

| Chain drive | Six point double row |
| Middle plate | [To be confirmed] |
| Sheet thickness | [To be confirmed] |

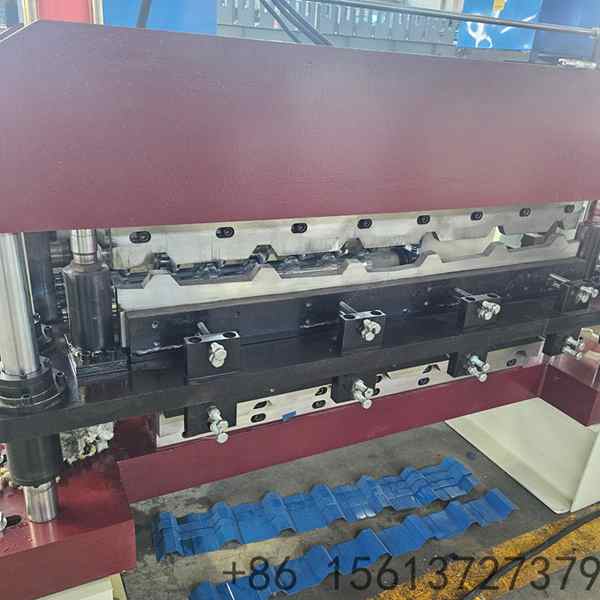

| Cutting | [To be confirmed] |
| Control system | [To be confirmed] |
| Running speed | [To be confirmed] |
| Line length | [To be confirmed] |
Close Layer Widths: Only 30mm between the two profiles, so the coil setting barely changes between runs.
Matched Station Count: 18 stations on each layer keeps forming quality even across both profiles.
Heavy Frame: A 400H frame and 75mm shafts hold the section on long production runs.
Simple Design: Pure cold forming with no pitch pressing stage means fewer wear points.
Fewer Operations: Forming, sizing and cutting run as one line.
Twin Widths Covered: 1220mm and 1250mm strip both run on the same machine.
Low Waste: Offcut stays modest across both layer widths.
