Product Briefing

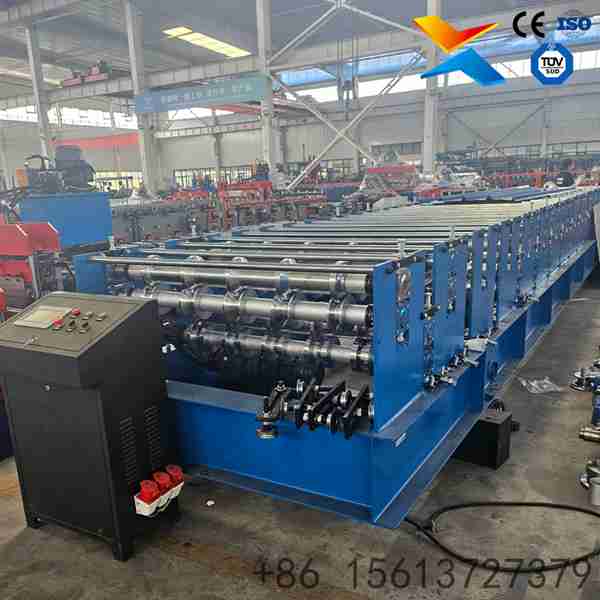

Specialized Forming Core: A dedicated double-layer forming machine designed for users with external cutting or punching requirements.

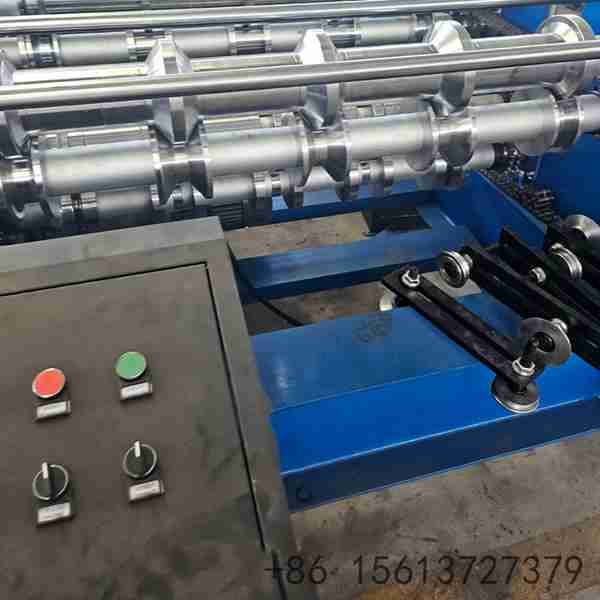

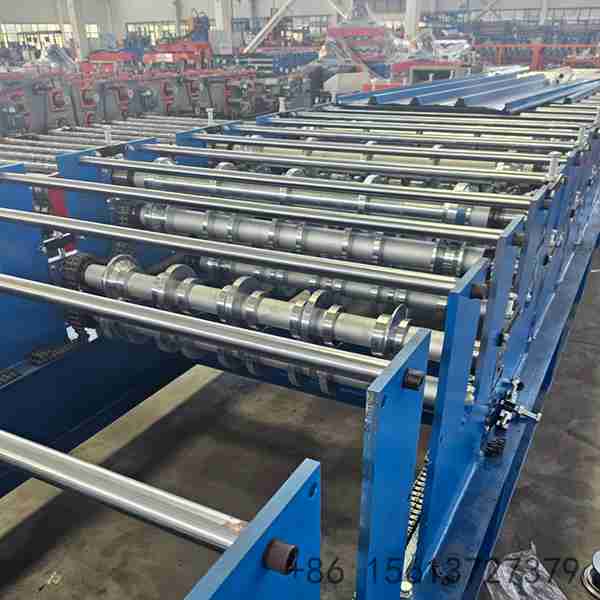

Space-Efficient Dual Design: Vertically stacked forming layers allow for two distinct metal profiles on a single heavy-duty machine frame.

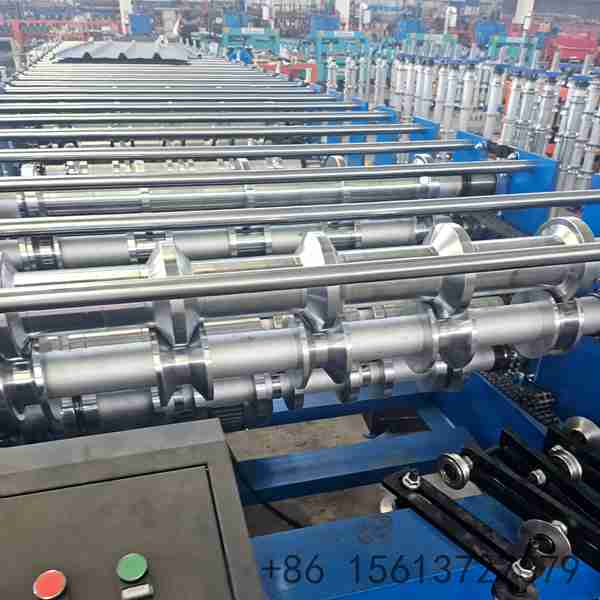

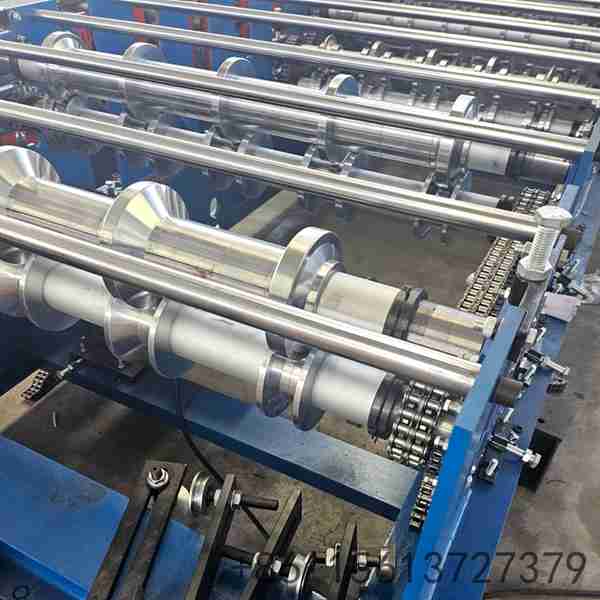

Precision Roll Forming Technology: CNC-machined rollers with industrial hard chrome plating for superior finish and scratch-free production.

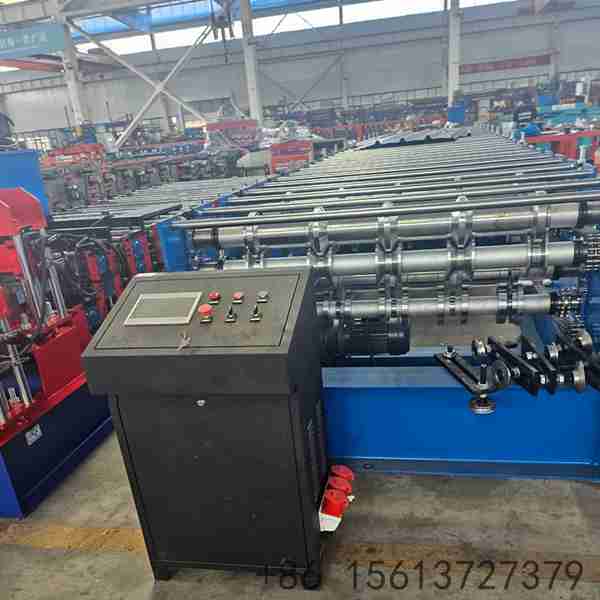

Automation-Ready Interface: Integrated PLC controls allow for easy synchronization with external decoilers, feeders, and shears.

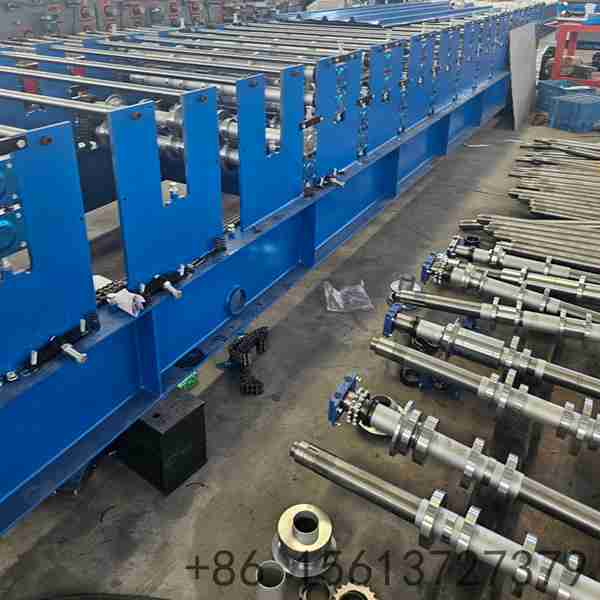

Robust Drive Architecture: Utilizes induction-hardened solid shafts and high-torque transmission for decades of reliable industrial service.
Detailed Description
Technical Parameters
| Feature | Technical Specification |
|---|---|
| Model Type | Integrated Forming Section (No Cutting Head) |
| Material Thickness | 0.3mm - 0.7mm (Standard) / Up to 1.0mm (Custom) |
| Feed Width Capability | 1000mm / 1200mm / 1220mm / 1250mm |
| Forming Steps | 16 - 22 Rows (Shared between two layers) |
| Drive Technology | Double-Row Chain Drive / Gearbox Transmission |
| Roller Material | High-grade 45# Steel with 0.05mm Hard Chrome |

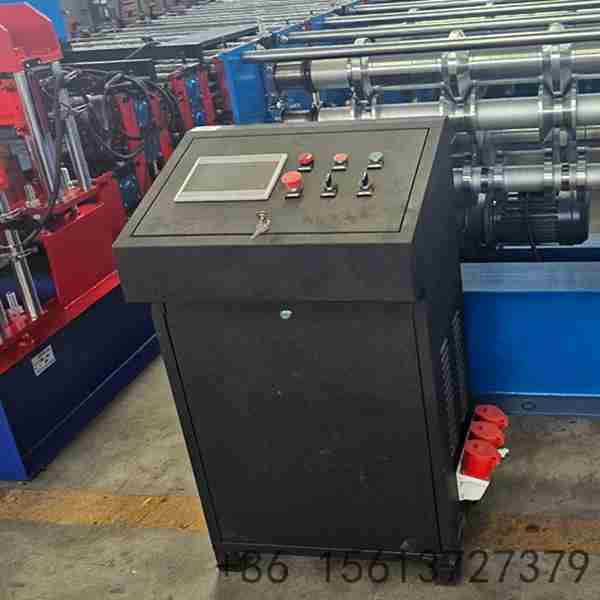

| Control System | Industrial PLC with Encoder Interface |
Unique Technical Advantages
Tailored Integration Logic: Specifically designed to be the "forming heart" of a larger system, allowing for flexible downstream configurations such as flying shears or inline embossing.
Superior Rib Consistency: The multi-stage forming sequence is optimized to eliminate material tension, preventing common defects like "oil canning" or edge waves.
Enhanced Operational Life: By removing the high-maintenance hydraulic cutting head, this machine offers a simplified, longer-lasting mechanical structure with fewer failure points.
Smart Inverter Drive: Features variable speed control through an industrial frequency inverter, allowing the machine to perfectly match the speed of external production equipment.
