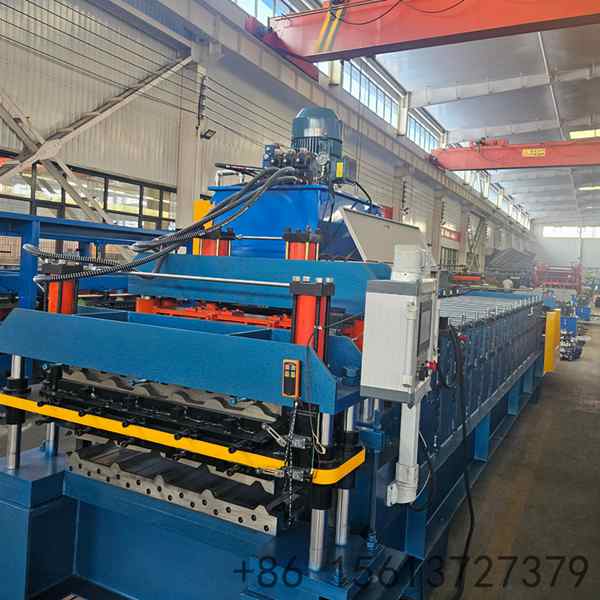

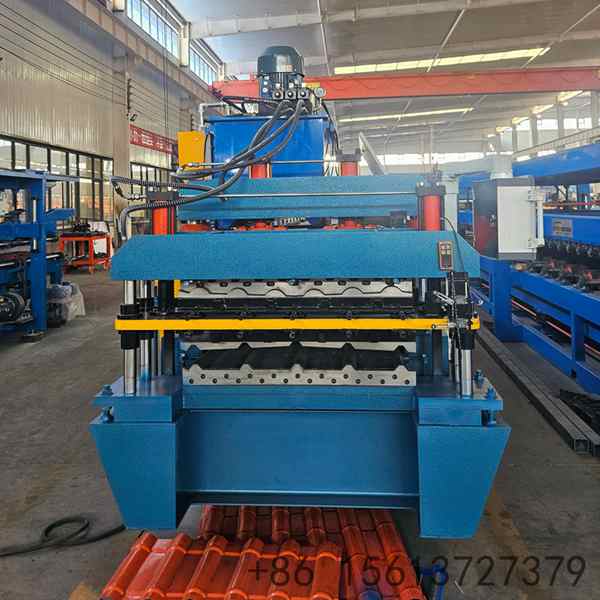

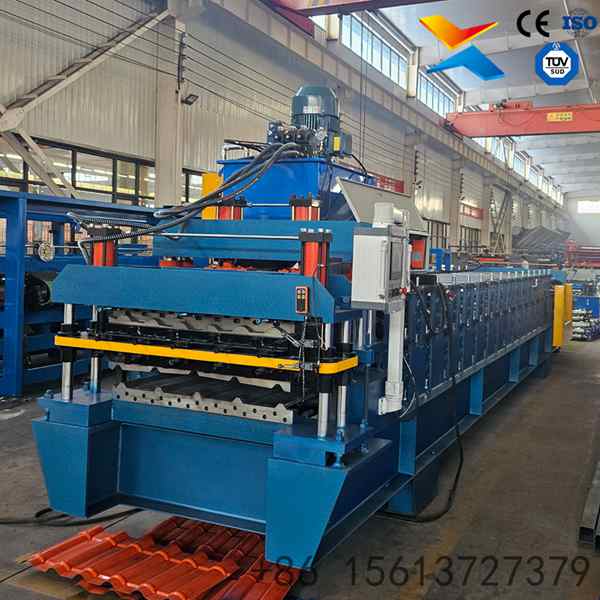

Dual-profile production: One machine produces both trapezoidal roof sheets and glazed/step tiles, saving floor space and reducing the cost of buying two separate machines.

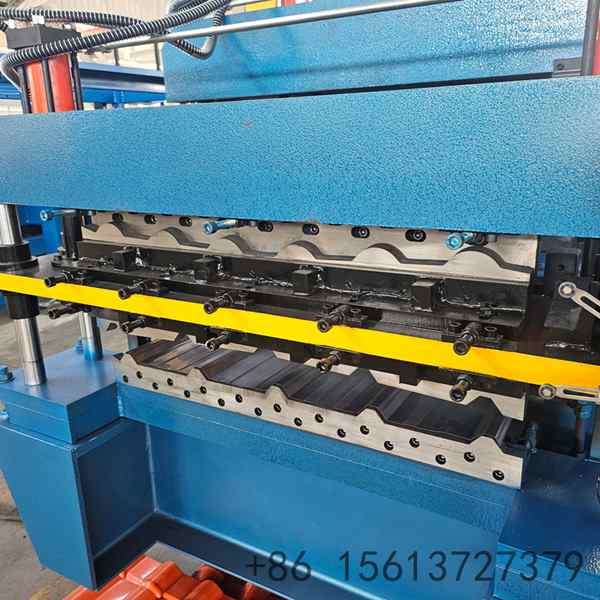

Independent forming lines: The glazed tile layer and trapezoidal layer run independently, so operators can switch profiles more easily and avoid frequent mold replacement.

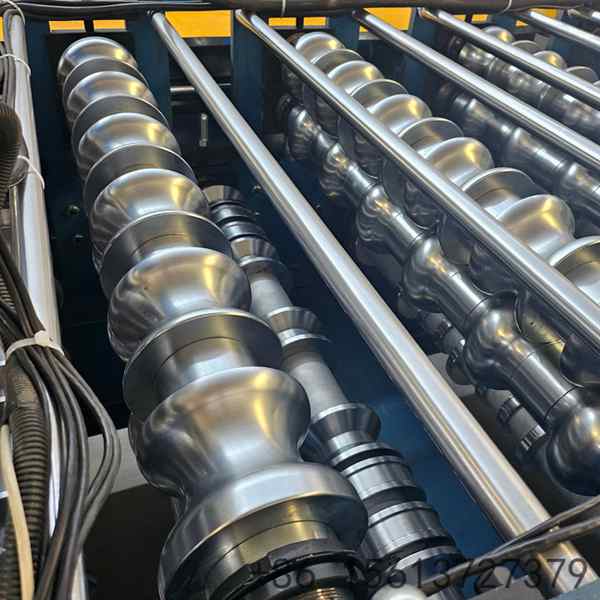

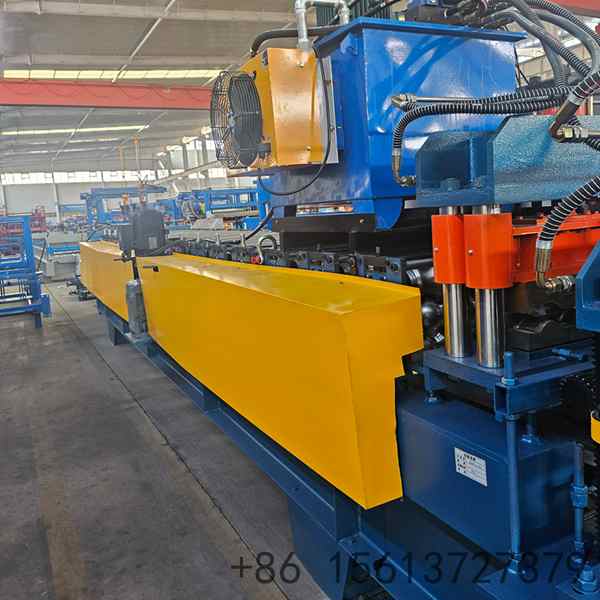

Glazed/step tile forming: The glazed tile layer adopts multi-station rollers and hydraulic punching/cutting to form clear tile patterns and regular wave shapes.

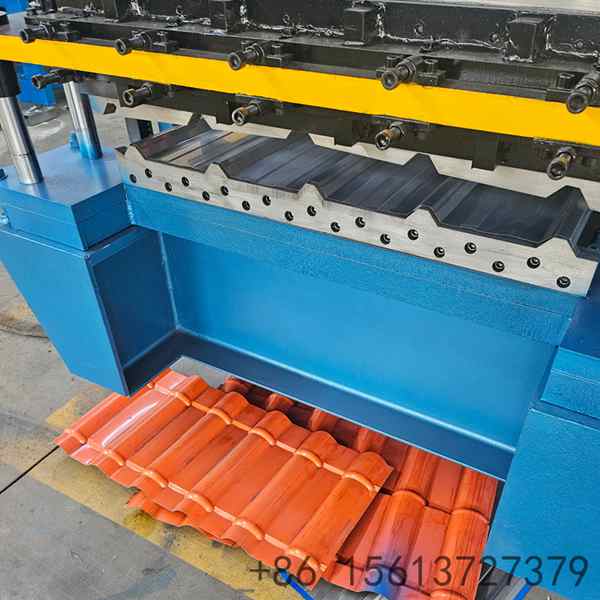

Trapezoidal roof sheet forming: The trapezoidal layer produces standard trapezoidal profiles suitable for industrial roofing, wall cladding and steel structure buildings.

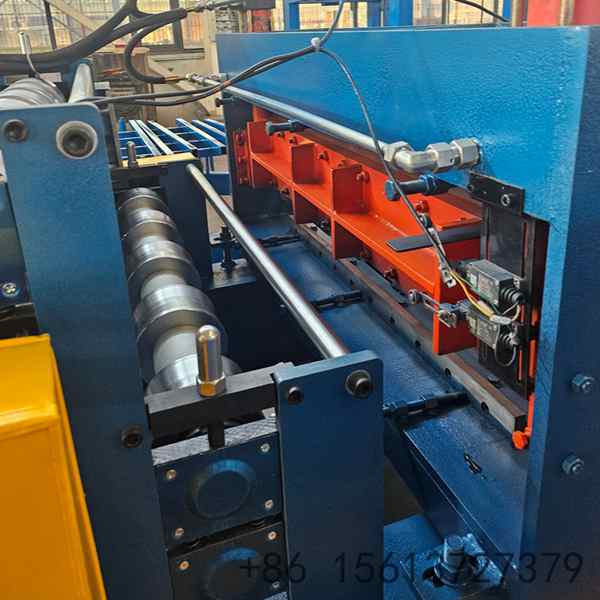

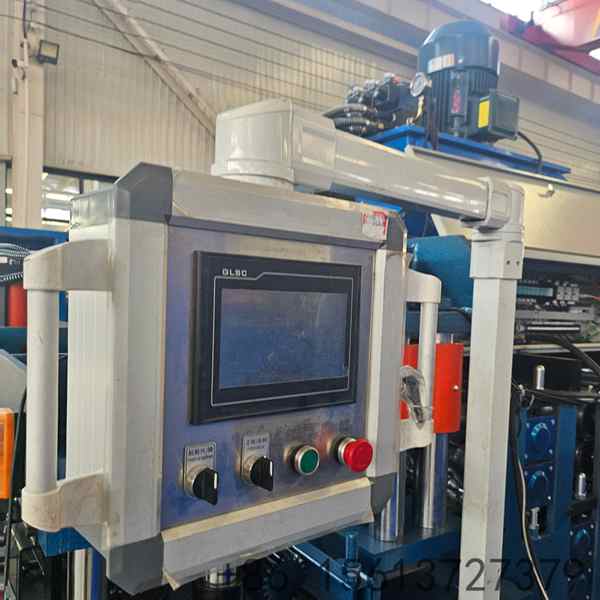

PLC automatic control: Supports length setting, automatic counting, hydraulic cutting and stable speed control, making operation simpler for export customers.

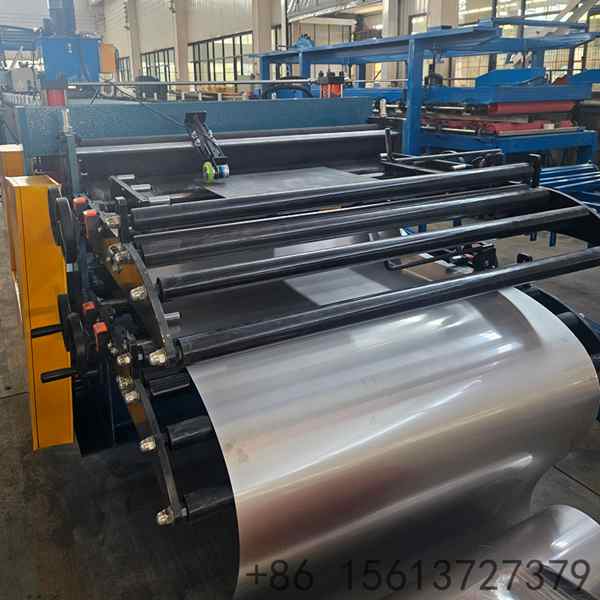

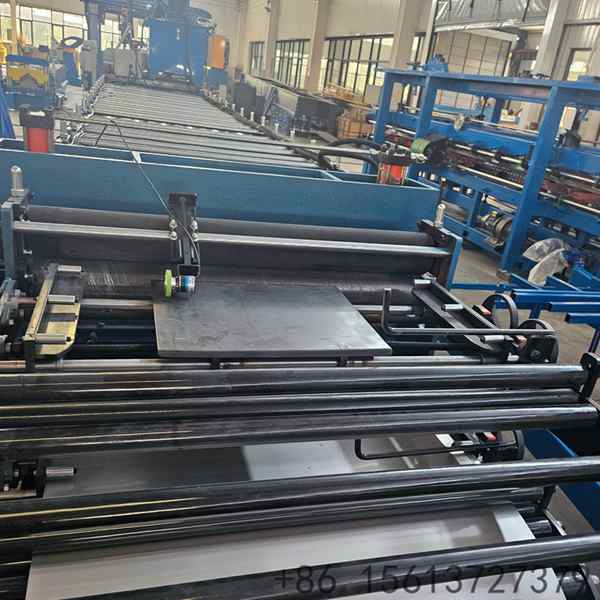

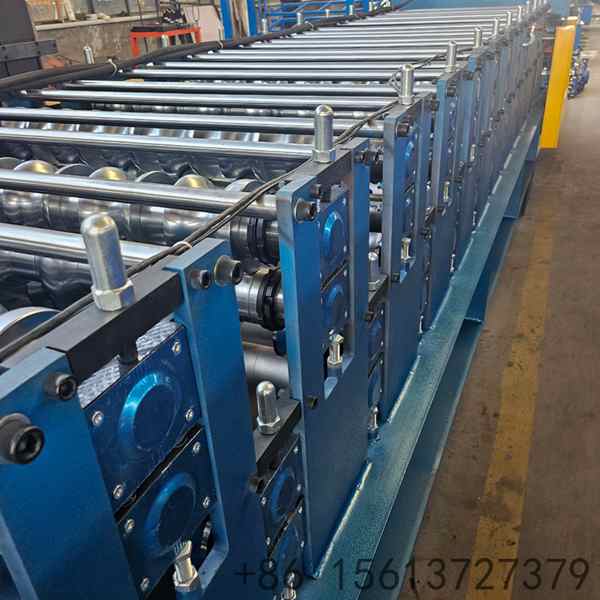

| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Color Steel Coil / Galvanized Steel Coil |
| 2 | Material Thickness | 0.3 – 0.8 mm |
| 3 | Feeding Width | 1000 mm, Customizable |
| 4 | Upper Layer Profile | Glazed Tile / Step Tile |
| 5 | Lower Layer Profile | Trapezoidal Roof Sheet |
| 6 | Forming Speed | Glazed Tile: 2 – 4 m/min; Trapezoidal: 8 – 12 m/min |
| 7 | Roller Material | 45# Steel, Chrome Plated |
| 8 | Shaft Diameter | φ70 – 76 mm |

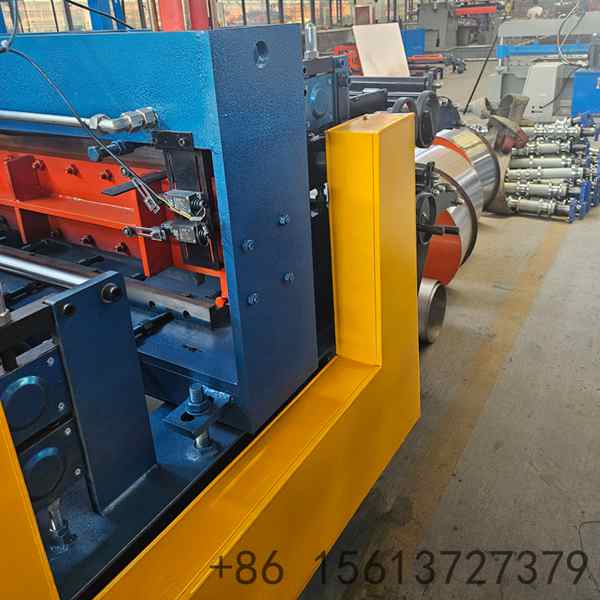

| 9 | Cutting System | Hydraulic Cutting |
| 10 | Blade Material | Cr12 Quenched Steel |
| 11 | Control System | PLC + Touch Screen / Button Panel |
| 12 | Main Motor Power | 5.5 – 11 kW, Depends on Configuration |
| 13 | Voltage | 380V / 50Hz / 3 Phase, Customizable |
| 14 | Machine Weight | Approx. 5.5 – 10 Tons |
| 15 | Application | Villa, Residential Roof, Steel Structure Building, Warehouse |
