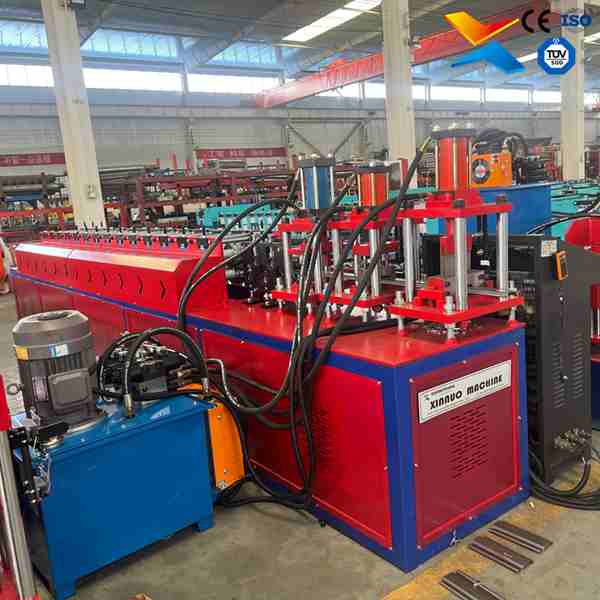

Rolling Shutter Door Roll Forming Machine

Rolling Shutter Door Roll Forming Machine

Product Attributes :

Type: Roll Forming Machine
Tile Type: Galvanized Steel
Rolling Thickness: 0.6-1.2 mm
Feeding Width: 100-300 mm
Weight: 4800 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate

Product Description

Product Introduction:

High-Precision Profile Forming: Advanced roller design and precision machining ensure consistent rolling shutter panel dimensions with tight tolerances for smooth rolling operation and perfect interlocking.
Automatic Hydraulic Cutting: Equipped with Cr12 mould steel cutting blades that are quenched for hardness, providing precise length-set cutting with minimal tolerance (±1mm).
PLC Intelligent Control: Utilizes imported brand PLC and touch screen interface for easy operation, accurate length measurement, batch counting, and reliable automatic production.
Durable Machine Construction: Built with heavy-duty steel frame and high-strength shafts to ensure stable, vibration-free operation during continuous production.
Versatile Material Compatibility: Engineered to process galvanized steel, pre-painted galvanized steel (PPGI), aluzinc, and aluminum coils with varying yield strengths.

Product Description & Parameters:
The Rolling Shutter Door Roll Forming Machine is a specialized cold roll forming equipment designed for manufacturing high-quality rolling shutter door panels widely used in commercial shops, garages, warehouses, industrial facilities, and fire partitions. The shutter panels produced by this machine feature smooth operation, high security, excellent weather resistance, and are three times stronger than standard aluminum alloy doors. The machine integrates decoiling, guiding, roll forming, length measuring, and automatic hydraulic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel or GCr15 bearing steel with hard chrome plating (0.05mm) and heat treatment, ensuring long service life and smooth panel surfaces.

No.	Main Parameter / Feature	Details
1	Applicable Material	Galvanized steel coil / PPGI / Aluzinc / Aluminium coil
2	Material Thickness Range	0.3 - 0.8 mm
3	Material Yield Strength	235 - 550 MPa
4	Forming Speed	8 - 15 m/min (adjustable via transducer)
5	Number of Roller Stations	12 - 16 stations (depending on profile design)
6	Main Motor Power	4 - 5.5 kW
7	Hydraulic Station Power	3 - 4 kW
8	Roller Material	High-grade 45# forged steel / GCr15 with hard chrome plating (0.05mm)
9	Shaft Material	45# / 40Cr steel, diameter 70-80mm, tempered and polished
10	Cutting Blade Material	Cr12 mould steel with quenching treatment (HRC 58-62)
11	Cutting Method	Hydraulic post-cut, automatic pause and cut
12	Control System	PLC control with touch screen (Mitsubishi / Delta / Siemens)
13	Voltage	380V / 50Hz / 3 Phase (customizable)
14	Machine Dimensions	Approx. 7m - 9m × 1.3m - 1.65m × 1.1m - 1.5m
15	Machine Weight	Approx. 3.5 - 6 Tons
16	Length Tolerance	±1 - 2 mm
17	Uncoiler Capacity	Up to 3 - 5 tons (manual or hydraulic)
18	Driving Mode	Chain transmission
19	Warranty	12-24 months free warranty + lifelong technical support

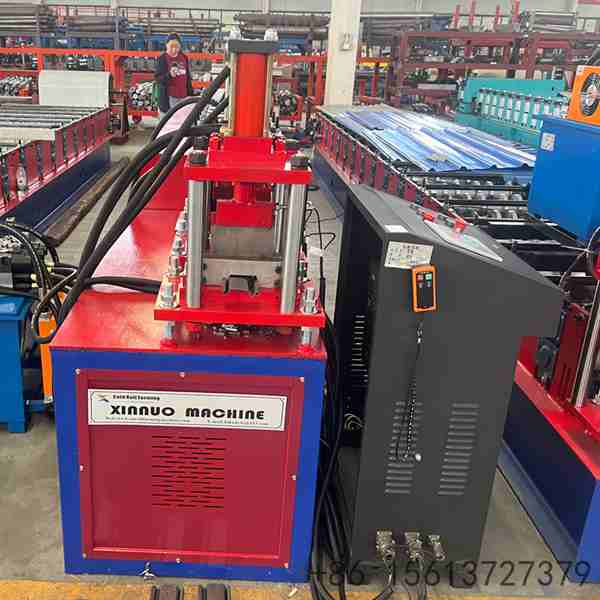

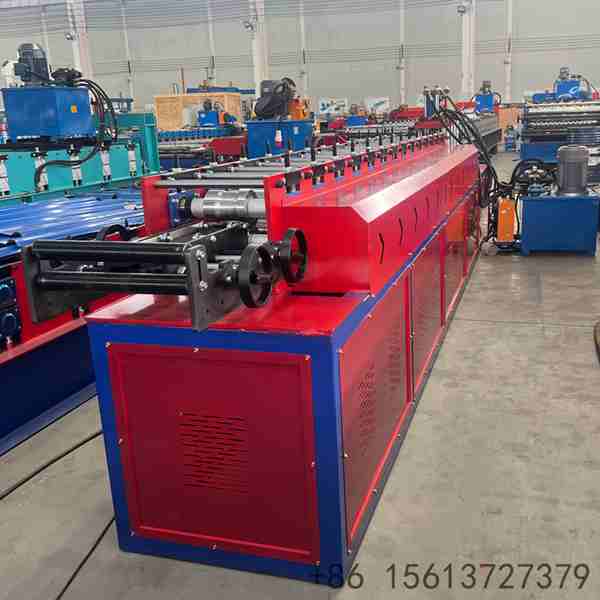

Automatic rolling shutter door roll forming machine designed for continuous production of metal shutter door panels

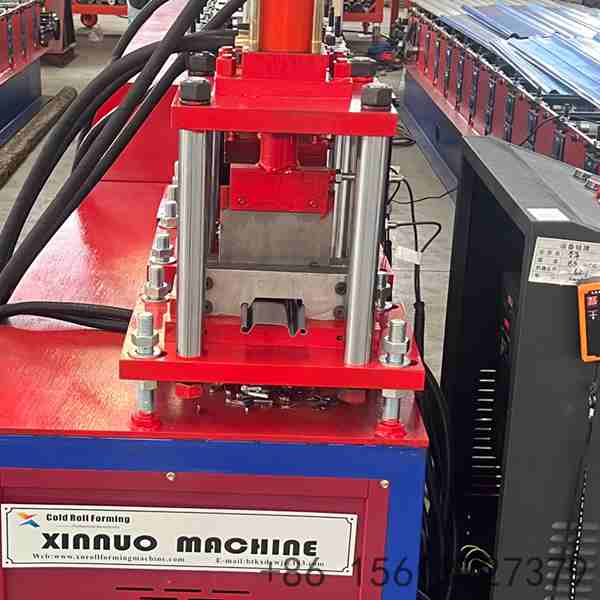

Precision roll forming station with multiple roller stations ensuring accurate shutter door profile shaping

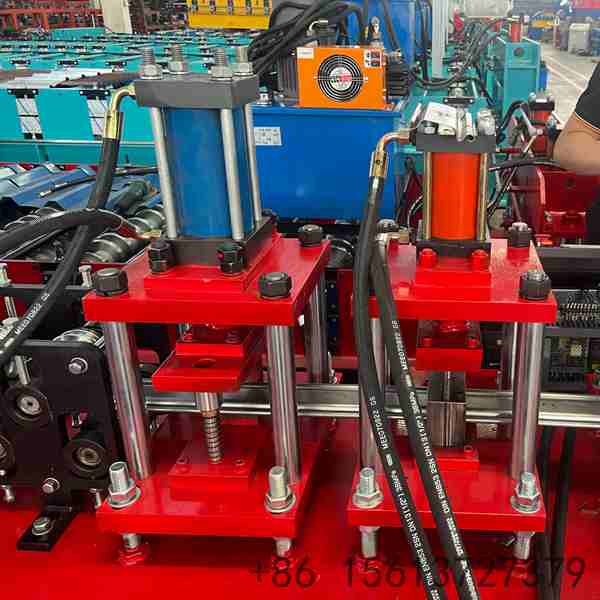

Hydraulic automatic cutting system integrated into the rolling shutter machine for exact length cutting

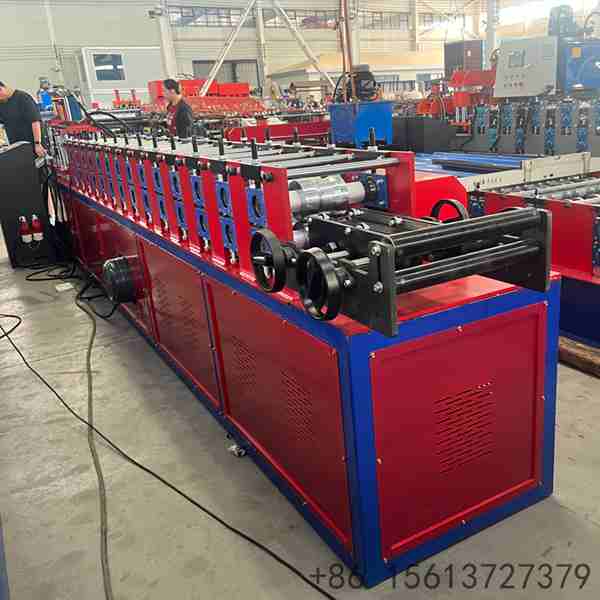

Finished galvanized rolling shutter door panels produced by the high-precision roll forming equipment

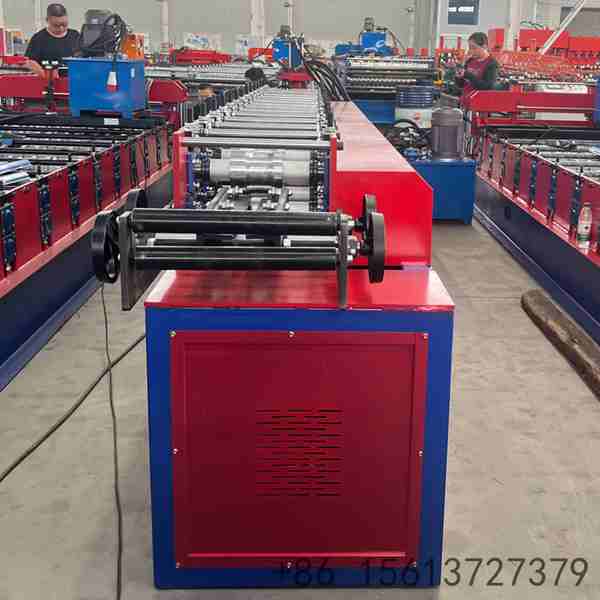

Heavy-duty welded steel frame structure of the shutter door machine ensuring maximum stability during high-speed operation
