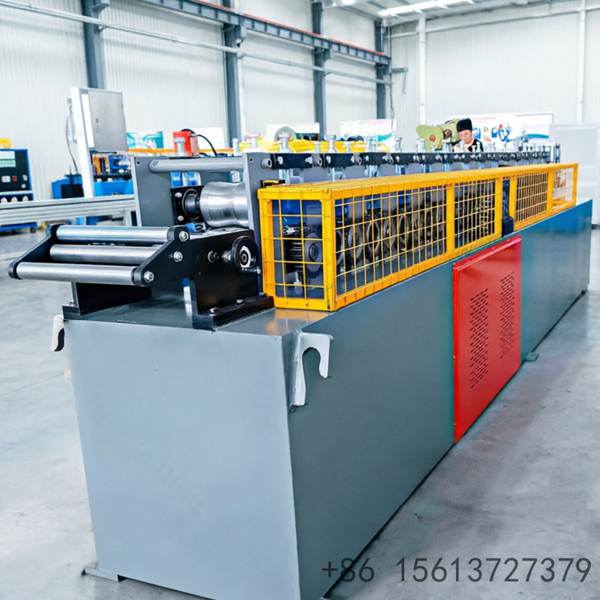

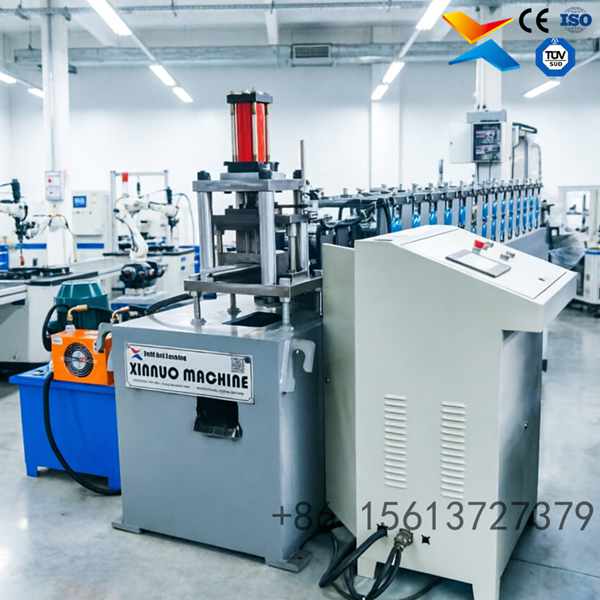

Automatic Shutter Door Forming Machine

Product Attributes :

Type	Roll Forming Machine
Tile Type	galvanized steel
Rolling thinckness	0.6-1.2 mm
Feeding width	100-300mm
Weight	4800kg
Warranty	1 Year
Key Selling Points	Easy to Operate

Product Description

Product Introduction

High-Precision Profile Forming: Advanced roller design and precision machining ensure consistent shutter door panel dimensions with tight tolerances for smooth rolling operation.

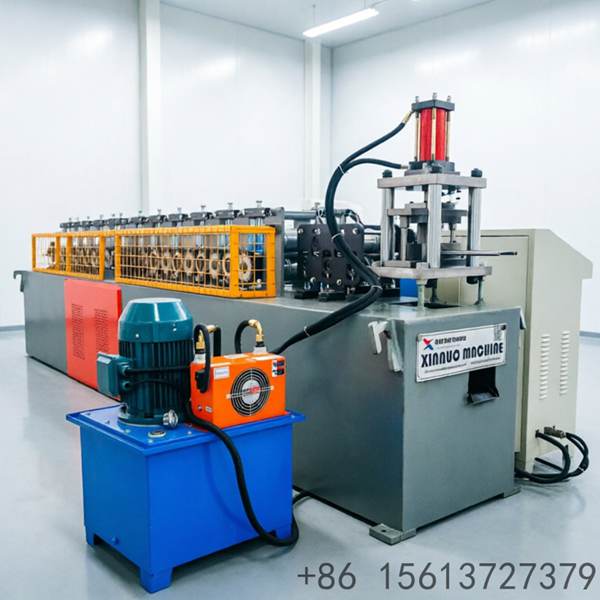

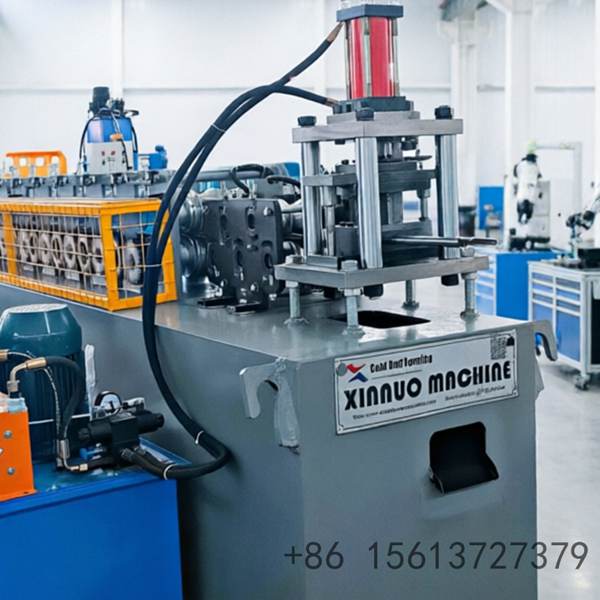

Automatic Hydraulic Cutting: Equipped with Cr12 mould steel cutting blades that are quenched for hardness, providing precise length-set cutting with minimal tolerance (±1mm).

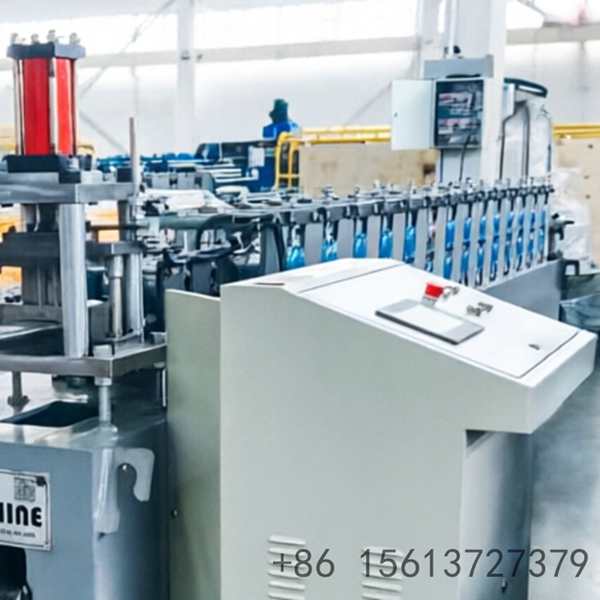

PLC Intelligent Control: Utilizes imported brand PLC and touch screen interface for easy operation, accurate length measurement, and reliable automatic production.
Durable Machine Construction: Built with heavy-duty steel frame and high-strength shafts to ensure stable, vibration-free operation during continuous production.
Versatile Material Compatibility: Engineered to process galvanized steel, pre-painted galvanized steel (PPGI), aluzinc, and aluminum coils with varying yield strengths.

Product Description & Parameters

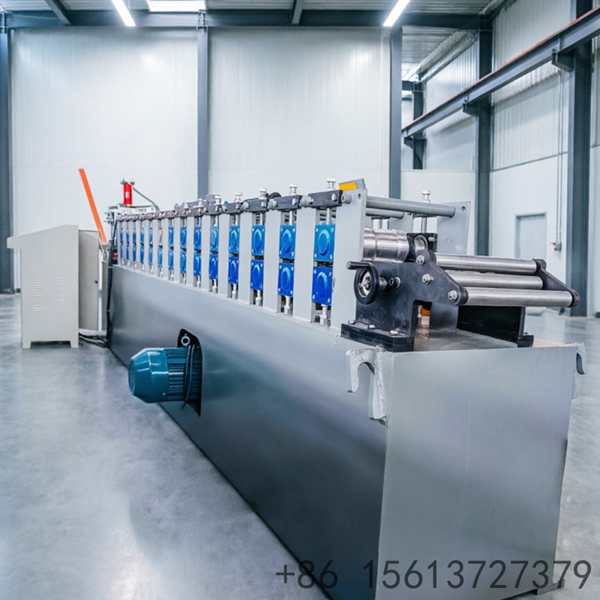

The Automatic Shutter Door Forming Machine is a specialized cold roll forming equipment designed for manufacturing high-quality rolling shutter panels widely used in commercial shops, garages, warehouses, and industrial facilities. The shutter panels produced by this machine feature smooth operation, high security, and excellent weather resistance. The machine integrates decoiling, guiding, roll forming, length measuring, and automatic hydraulic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth panel surfaces.

No.	Main Parameter / Feature	Details
1	Applicable Material	Galvanized steel coil / PPGI / Aluzinc / Aluminium coil
2	Material Thickness Range	0.3 - 0.8 mm
3	Material Yield Strength	235 - 550 MPa
4	Forming Speed	10 - 18 m/min (adjustable via transducer)
5	Number of Roller Stations	12 - 16 stations (depending on profile design)
6	Main Motor Power	4 - 5.5 kW
7	Hydraulic Station Power	3 - 4 kW

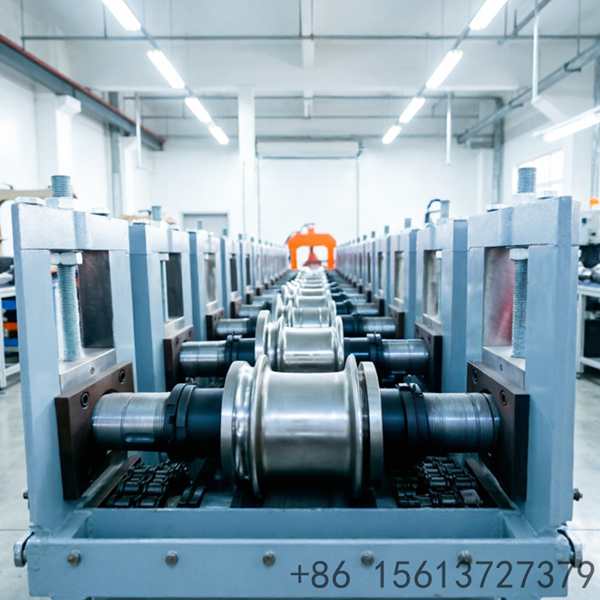

8	Roller Material	High-grade 45# forged steel with hard chrome plating (0.05mm)
9	Shaft Material	45# steel, diameter 70-80mm, tempered and polished
10	Cutting Blade Material	Cr12 mould steel with quenching treatment (HRC 58-62)

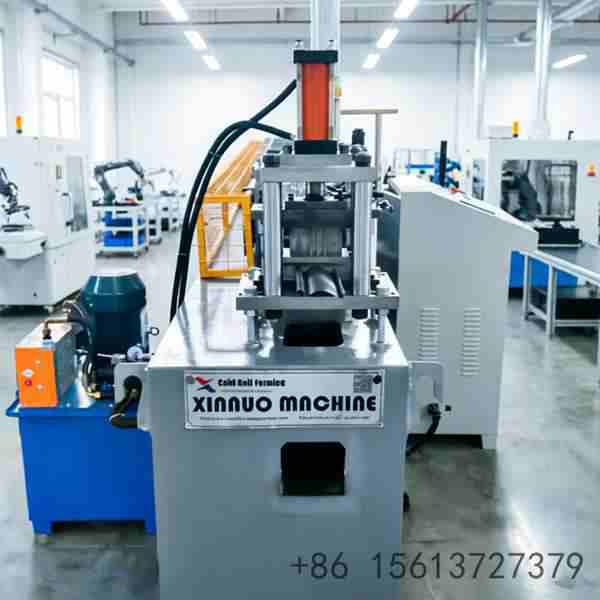

11	Cutting Method	Hydraulic post-cut, automatic pause and cut
12	Control System	PLC control with touch screen (Mitsubishi / Delta / Siemens)
13	Voltage	380V / 50Hz / 3 Phase (customizable)
14	Machine Dimensions	Approx. 7m - 9m × 1.3m - 1.65m × 1.1m - 1.5m
15	Machine Weight	Approx. 4 - 6 Tons
16	Length Tolerance	±1 - 2 mm
17	Uncoiler Capacity	Up to 3 - 5 tons (manual or hydraulic)
18	Driving Mode	Chain transmission
19	Warranty	1-2 years free warranty + lifelong technical support
