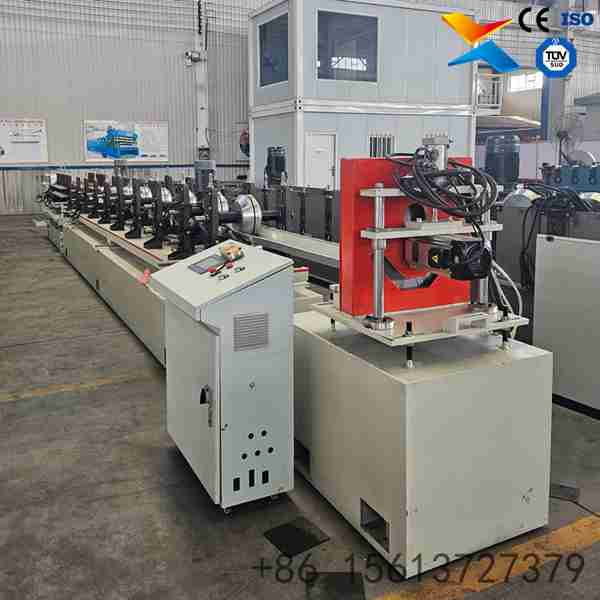

Automatic Rolling Shutter Hood Forming Machine
Product output: Rolling shutter hood / housing components
Applicable material: Galvanized steel / Pre-painted steel / Customizable
Feeding width: Customizable
Sheet thickness: Customizable
Profile length: Customizable
Operation mode: Customizable
Product Briefing

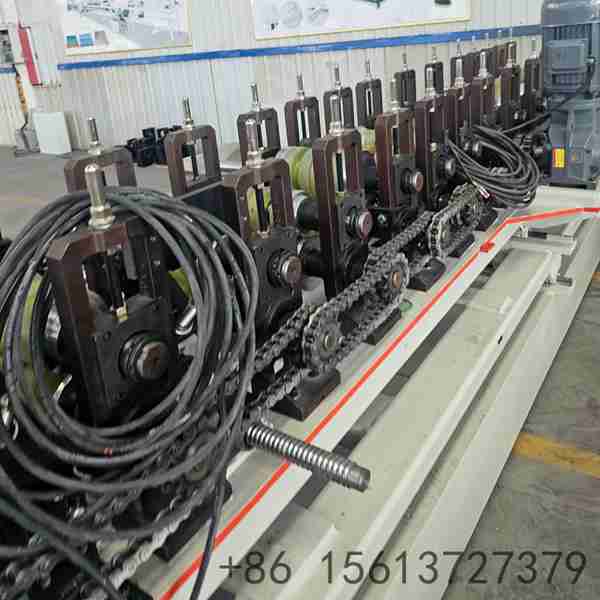

High-Capacity Output: 10-15 m/min production speed designed for scale-up manufacturing demands.

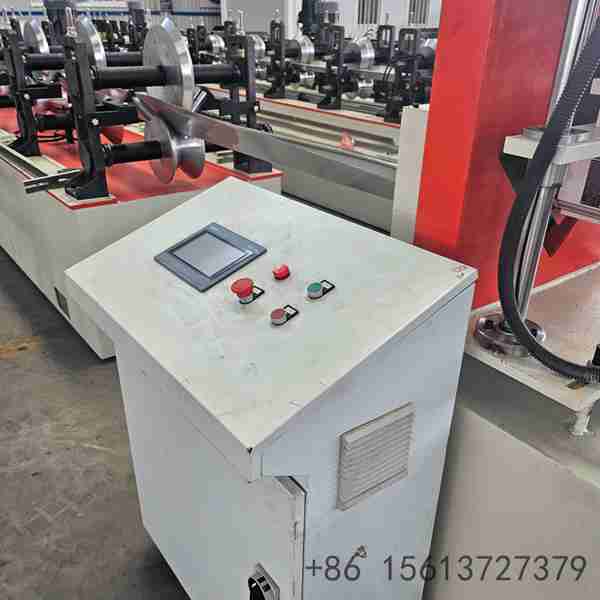

Automated Workflow: PLC-controlled batch production with digital length adjustment for rapid changeovers.
Durable Component Build: 45# forged steel rollers with hard chrome plating for extended service life.

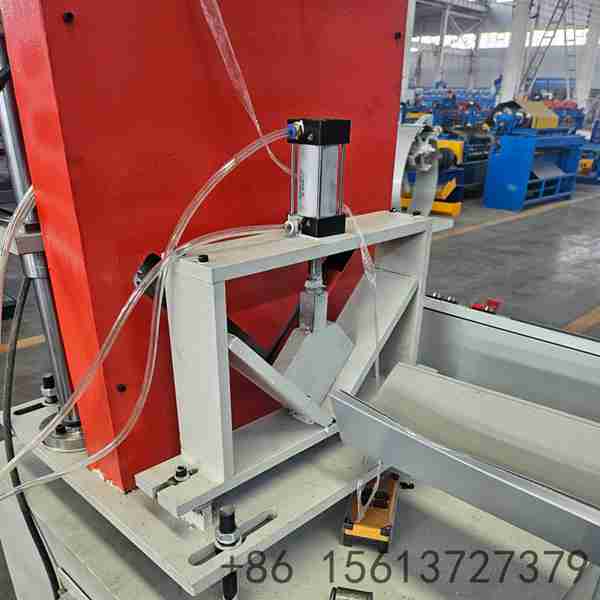

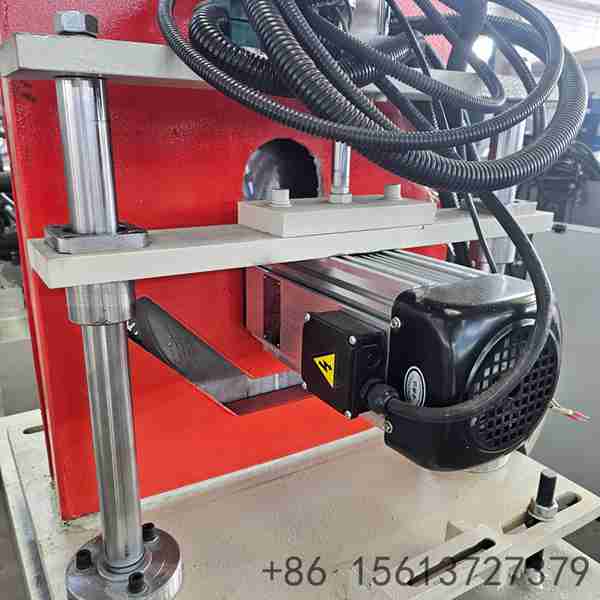

Precision Cutting System: Cr12 heat-treated blade for clean, accurate cuts on every profile.
Stable Machine Frame: 16mm side plate construction eliminates vibration during continuous operation.
Detailed Description
Technical Parameters
| Component | Technical Specification |
|---|---|
| Material of Rollers | High grade 45# forged steel, surface hard chromium plating |

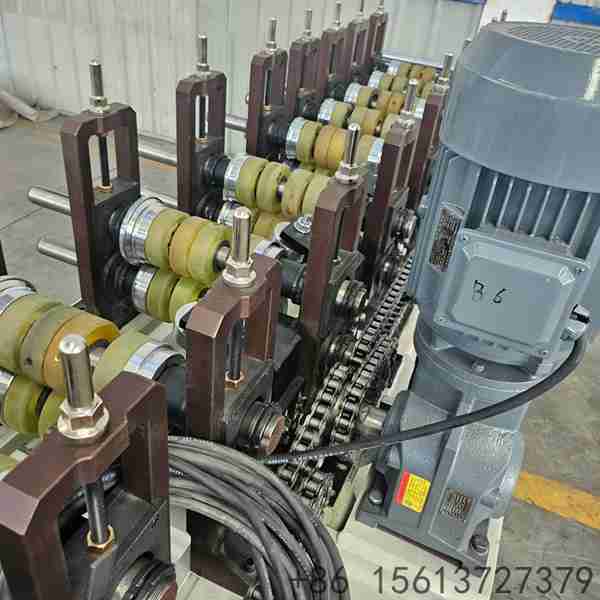

| Rows of Rollers | 14 stations |
| Material of Shafts | High grade 45# forged steel |
| Diameter of Shafts | 50 mm |
| Material of Cutting Blade | Cr12 Heat Treatment |
| Speed | 10-15 m/min |
| Side Plate Thickness | 16 mm |
Technical Advantages (Based on Specifications)
Wear Resistance: The hard chromium plating on 45# forged steel rollers provides a long-lasting working surface for high-volume production.
Coating Protection: The chrome surface helps minimize damage to pre-painted and galvanized sheet coatings during roll forming.

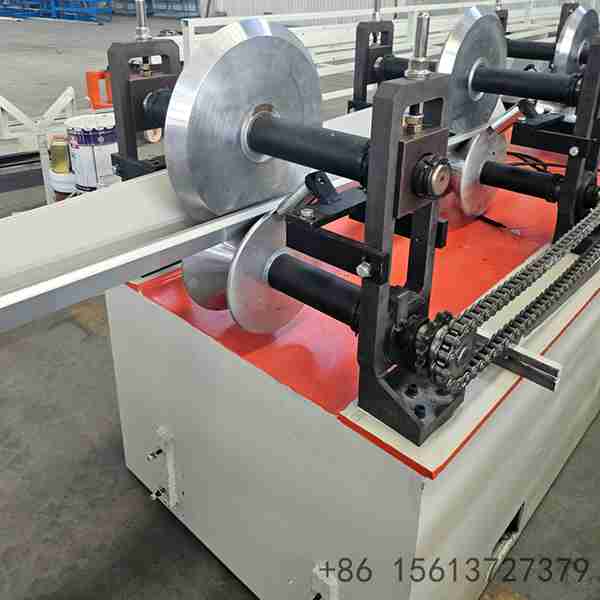

Frame Rigidity: 16mm side plates provide a stable machine structure, supporting consistent profile accuracy.
Reliable Shafting: 50mm solid 45# forged steel shafts ensure dependable roller support under continuous operation.
Efficient Cutting: The Cr12 heat-treated blade maintains a sharp edge for consistent cutting performance.
Steady Throughput: A production speed of 10-15 m/min supports standard industrial output requirements.
