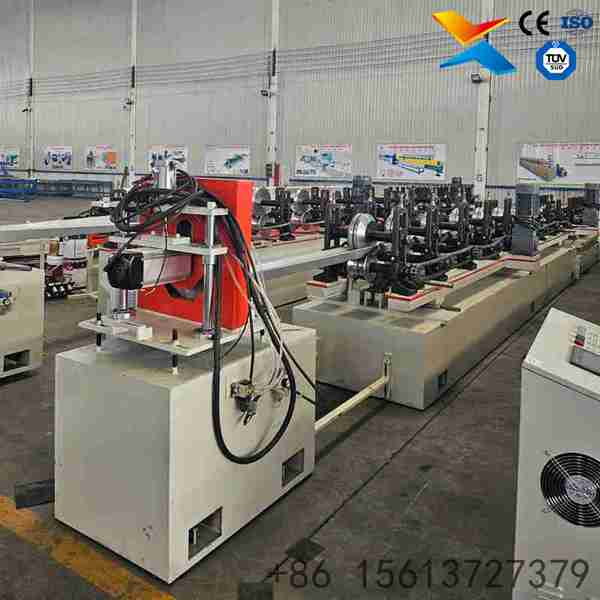

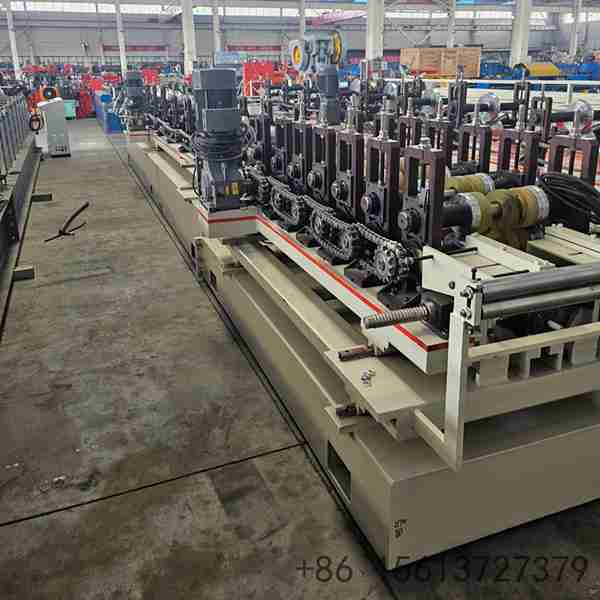

High Precision Rolling Shutter Hood Roll Forming Machine
Product output: Rolling shutter hood / housing components
Applicable material: Galvanized steel / Pre-painted steel / Customizable
Feeding width: Customizable
Sheet thickness: Customizable
Profile length: Customizable
Operation mode: Customizable
Product Briefing
Precision Profile Forming: 45# forged steel rollers with hard chrome plating ensure exact housing profile dimensions.
Reinforced Machine Frame: 16mm side plates provide mechanical stability and long-term alignment.

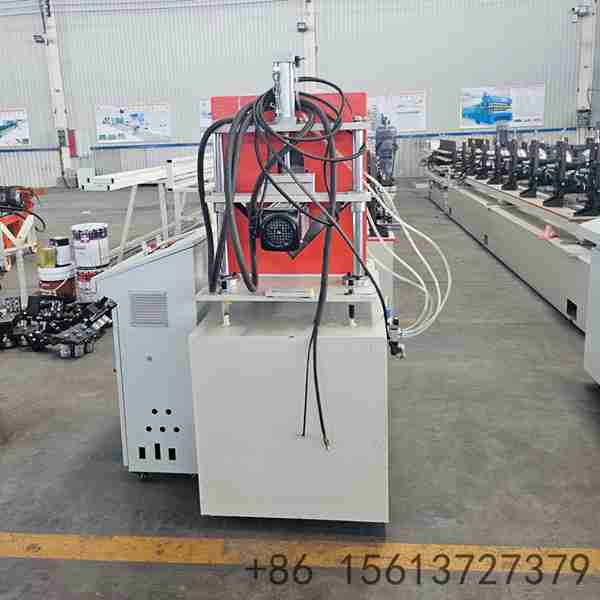

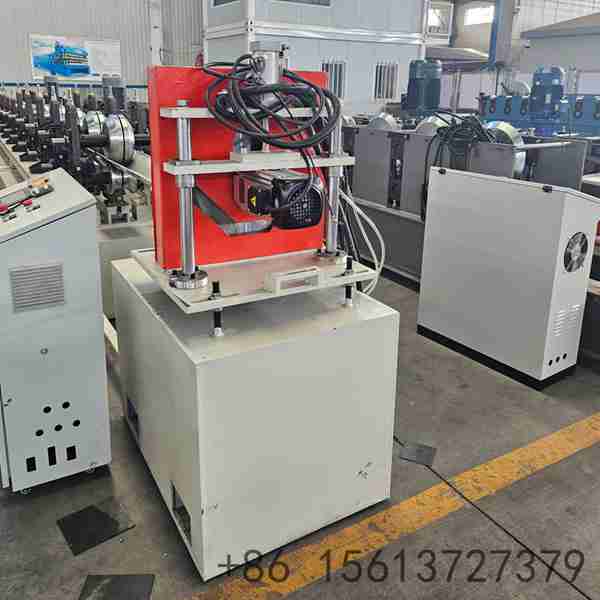

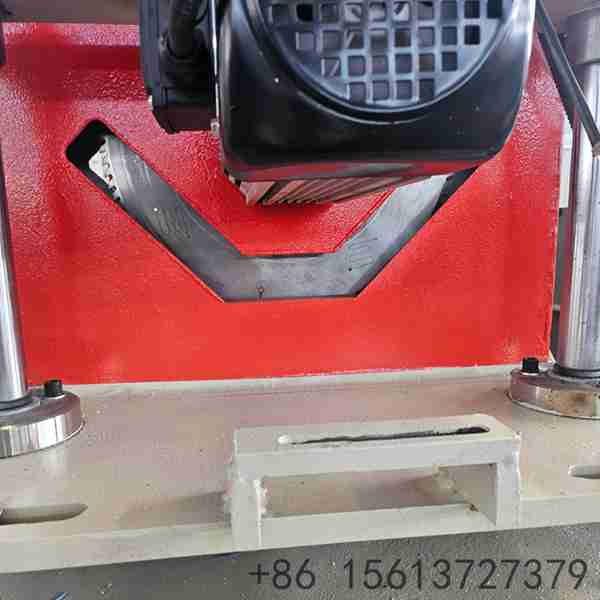

Precision Cutting: Cr12 heat-treated blade delivers clean, burr-free cuts on every profile.

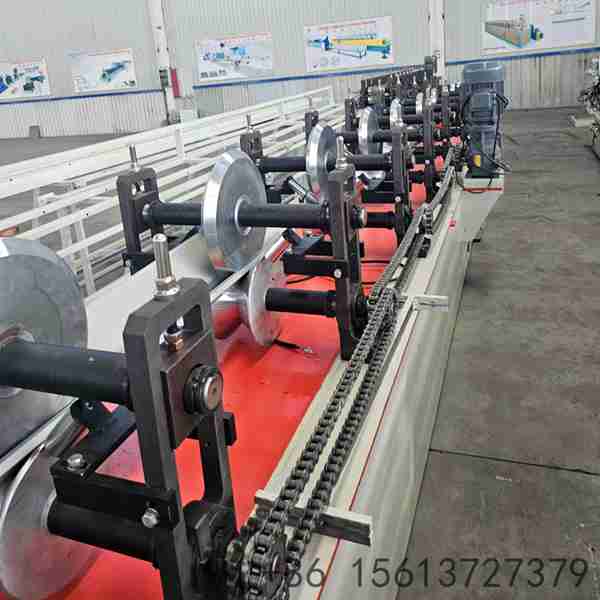

PLC Automation: Centralized control for batch production and rapid length adjustment.
High Productivity: 10-15 m/min operating speed for scale-up production demands.
5. Detailed Description
Technical Parameters
| Component | Technical Specification |
|---|---|
| Material of Rollers | High grade 45# forged steel, surface hard chromium plating |
| Rows of Rollers | 14 stations |
| Material of Shafts | High grade 45# forged steel |
| Diameter of Shafts | 50 mm |
| Material of Cutting Blade | Cr12 Heat Treatment |
| Speed | 10-15 m/min |
| Side Plate Thickness | 16 mm |
Technical Advantages (Based on Specifications)

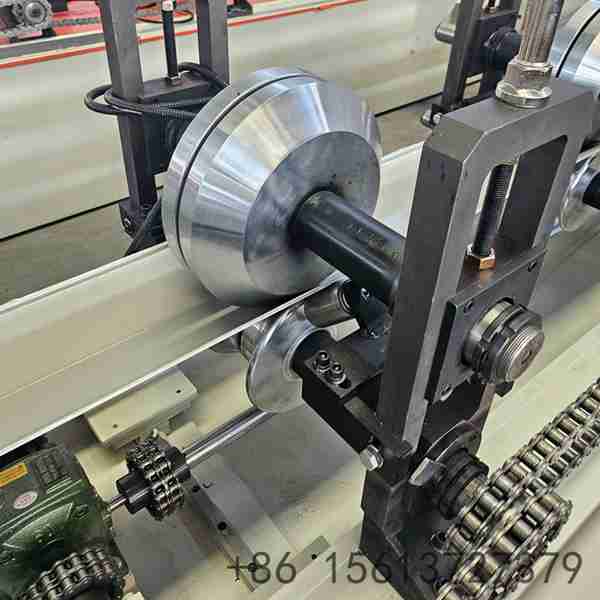

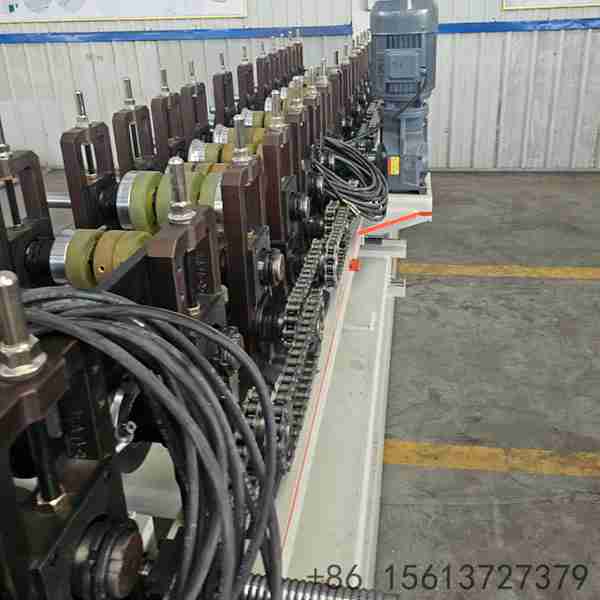

Wear Resistance: 45# forged steel rollers with hard chromium plating provide a wear-resistant working surface for continuous production.
Surface Protection: The hard chrome layer helps preserve the coating of pre-painted and galvanized sheets during forming.

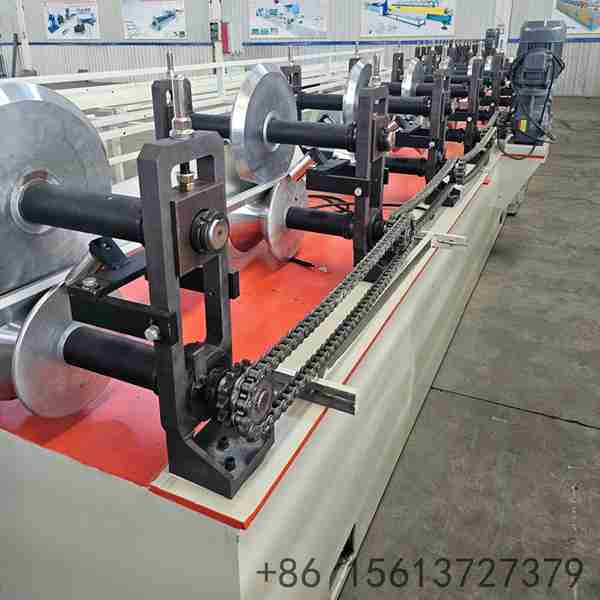

Structural Stability: 16mm side plates give the machine frame rigidity, contributing to dimensional accuracy during continuous operation.
Robust Transmission: 50mm solid shafts in 45# forged steel offer stable support for the forming rollers.
Durable Cutting: The Cr12 heat-treated blade offers higher hardness and longer edge life compared to standard steel.
Reliable Productivity: The 10-15 m/min speed suits standard industrial production of shutter components.
