One Pass, Coil To Arch: Forming and curving are done on the same line.
No Tile Machine Needed: Start arch panel production straight from steel coil.
Six Rib Section: A 1000mm cover with 6 ribs at 25mm height.
Hydraulic Curving: A 5.5KW hydraulic motor drives the curving section.
Gear Drive: Torque is carried through a gear drive for heavy curving work.
Vertical Layout: A compact standing frame for a small workshop.

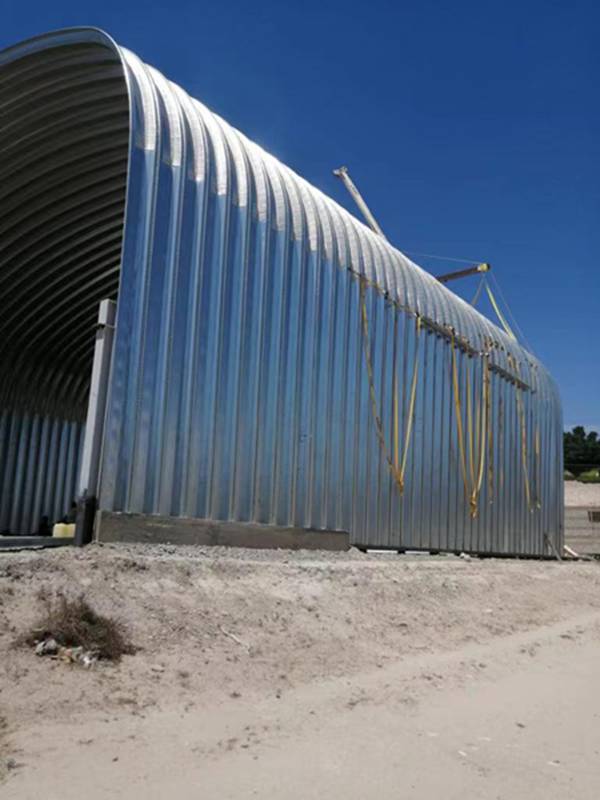

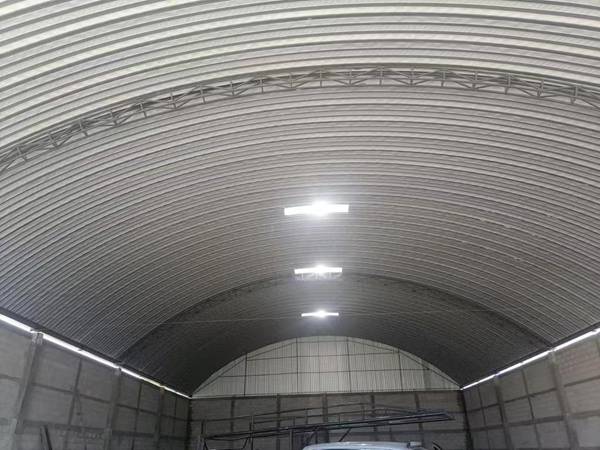

Beamless Buildings: Panels suit arch roofs that need no beams or trusses.
| Component | Specification |
|---|---|
| Profile | HY25-200-1000, arch roof panel, 6 ribs |
| Effective width | 1000 mm |
| Feed width | 1200 mm |
| Rib height | 25 mm |
| Peaks | 6 |
| Curving roller rows | 3 |
| Shafts | 70 mm |
| Drive | 5.5 KW hydraulic motor |
| Transmission | Gear drive |
| Layout | Vertical |
| Build grade | Heavy duty |
| Sheet thickness | [To be confirmed] |
| Cutting | [To be confirmed] |
| Control | [To be confirmed] |
| Panel length | Set from the control panel |
One Machine, Two Jobs: Ribs are formed and the panel is curved on one line.
Straight From Coil: No separate forming step, so handling between machines is removed.

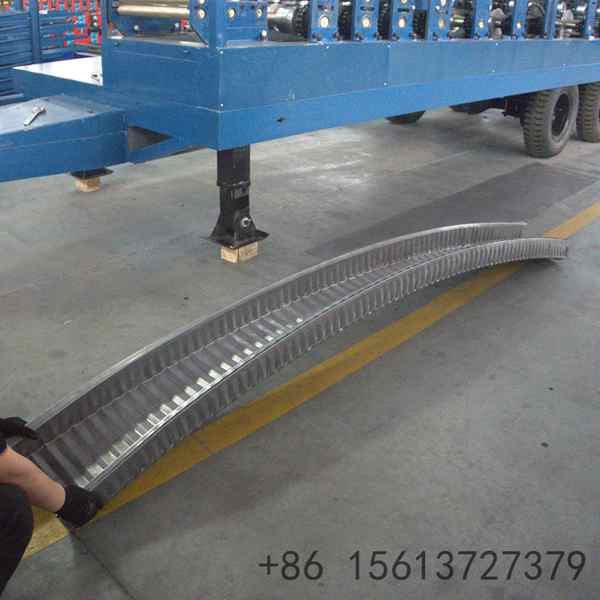

Even Curve: Three curving roller rows work the panel through in stages.
Rib Stiffness: 6 ribs at 25mm height give the arch its section depth.
Heavy Duty Drive: A 5.5KW hydraulic motor on a gear drive for tight radii.
Compact Floor Space: The vertical layout keeps the footprint small.
Length On Demand: Panels are cut to the length the roof needs.
