Premium Stainless Steel Compatibility: Specifically engineered to handle stainless steel coils, producing gutters with superior corrosion resistance and a lifespan exceeding 50 years for premium roof drainage applications.

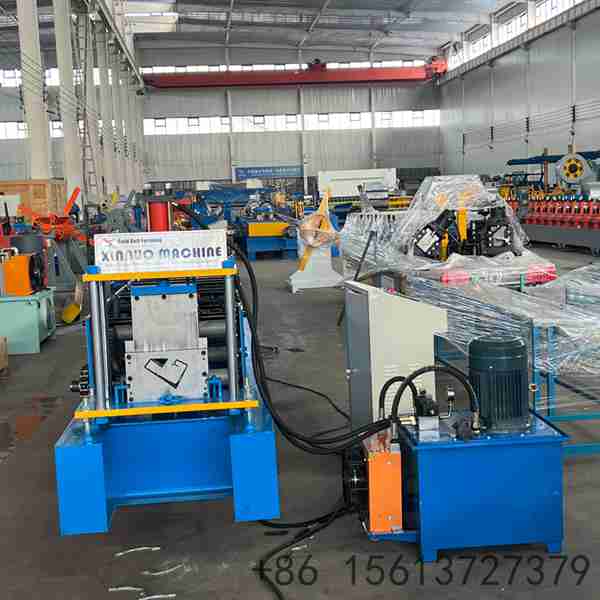

Robust Industrial Construction: Built on a reinforced steel base with thick side plates, designed to absorb continuous forming stresses and maintain strict dimensional tolerances even during high-speed stainless steel production runs.

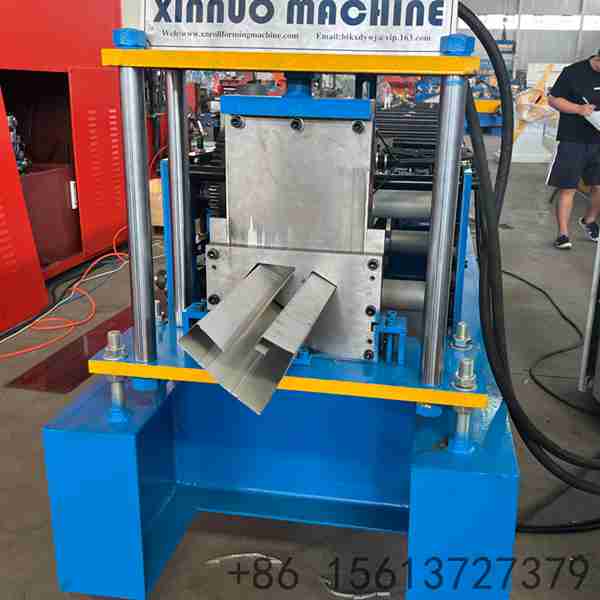

Advanced Forming Technology: Utilizes precision-ground 45# forged steel rollers with hard chrome plating to mold the gutter profile, ensuring an impeccable surface finish and consistent geometry across every production cycle.
Intelligent PLC Automation: Powered by an advanced PLC (Siemens/Mitsubishi/Delta) with touch screen interface, allowing operators to easily program batch counts, gutter lengths, and monitor real-time diagnostics for optimal production control.
Synchronized Hydraulic Cutting: Features a hydraulic cutting system with Cr12 mold steel blades (HRC 58-62) that tracks line speed to execute exact cuts with strict ±1-2mm tolerance and clean, burr-free edges for immediate installation.

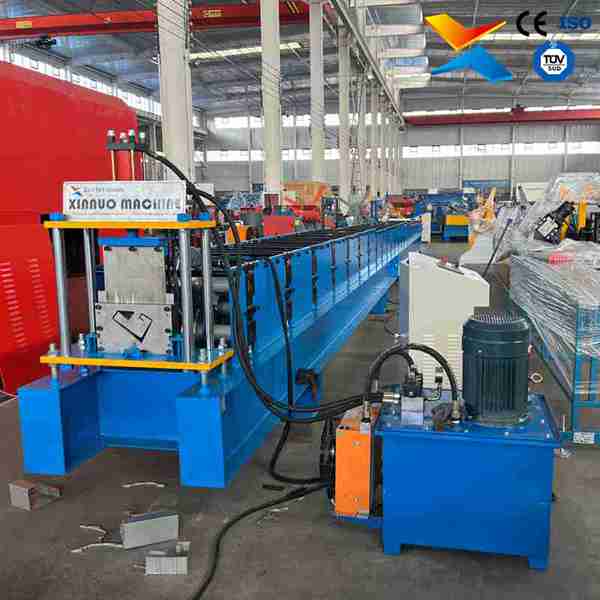

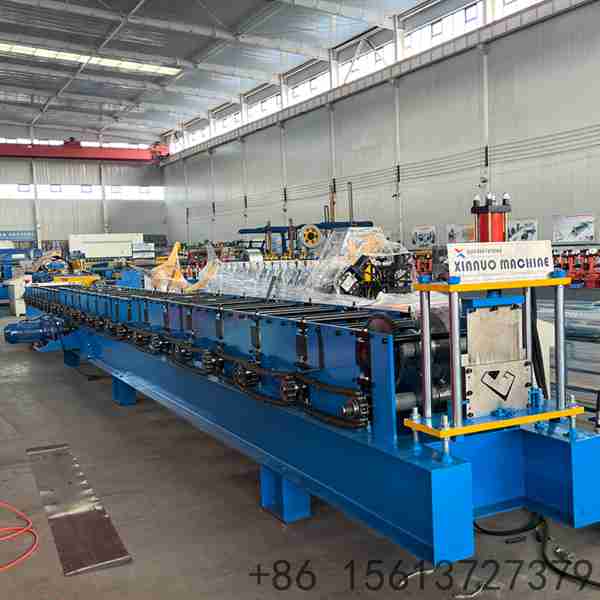

The Stainless Steel Gutter Roll Forming Machine is a high-performance production solution designed for manufacturers of premium metal roof drainage systems. This equipment transforms stainless steel coils into finished gutters through a highly synchronized process of decoiling, precision forming, and automated cutting.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Stainless Steel Coil (304/316 Grade) |
| 2 | Material Thickness Range | 0.4 - 0.8 mm |
| 3 | Material Yield Strength | 205 - 310 MPa |
| 4 | Coil Width Range | 333 - 500 mm (customizable) |
| 5 | Profile Type | Stainless Steel Gutter (K-Style/Half-Round) |
| 6 | Forming Speed | 8 - 15 m/min (adjustable via VFD) |
| 7 | Number of Forming Stations | 14 - 18 rows |
| 8 | Main Motor Power | 4 - 7.5 kW |
| 9 | Hydraulic Station Power | 3 - 4 kW |
| 10 | Roller Material | 45# Forged Steel with Hard Chrome Plating (0.05mm) |
| 11 | Shaft Material | 45# Steel, Diameter 65-70mm, Quenched & Polished |
| 12 | Cutting Blade Material | Cr12 Mold Steel with Quenching Treatment (HRC 58-62) |
| 13 | Cutting Method | Hydraulic Post-Cutting, Automatic Stop-and-Cut |
| 14 | Control System | PLC with Touch Screen (Siemens / Mitsubishi / Delta) |
| 15 | Voltage | 380V / 50Hz / 3 Phases (customizable) |
| 16 | Machine Dimensions | Approx. 7.0m - 8.0m × 1.3m - 1.5m × 1.5m - 1.6m |
| 17 | Machine Weight | Approx. 3.5 - 5 Tons |
| 18 | Length Tolerance | ±1 - 2 mm |
| 19 | Decoiler Capacity | Up to 5 Tons (Manual or Hydraulic) |
| 20 | Drive Mode | Chain Transmission |
| 21 | Warranty | 12-24 Months Free Warranty + Lifetime Technical Support |
