Product output: Stacked bundles of finished profiled sheets
Max sheet length: 6 meters

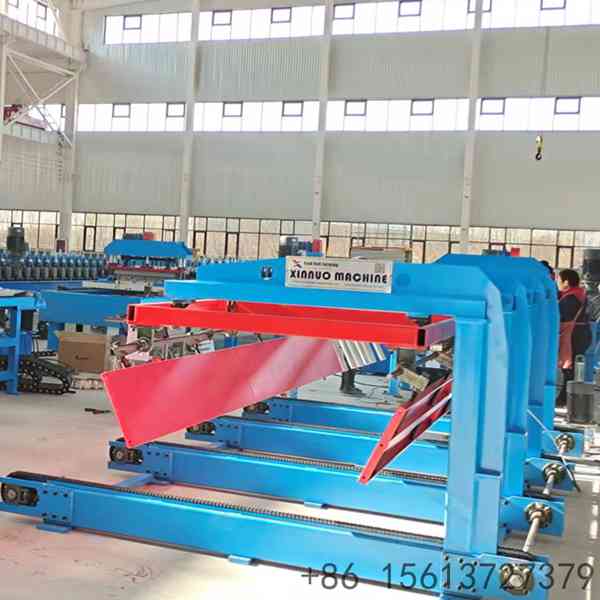

Infeed: Motorized roller table

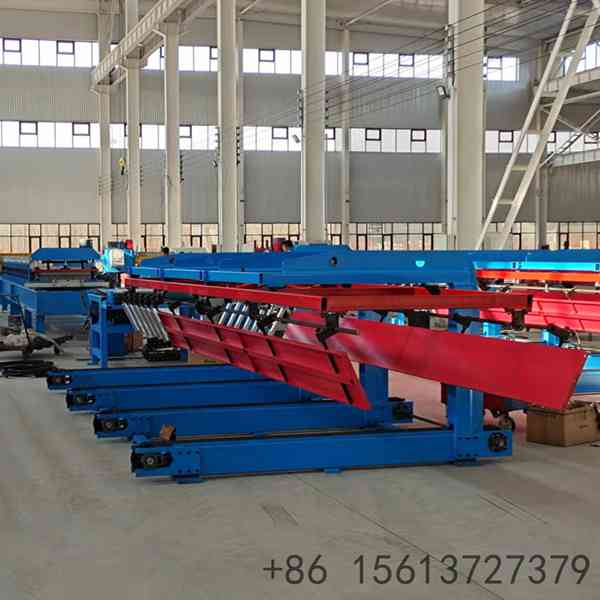

Stacking method: Hydraulic lifting table + PLC counting
Edge alignment: Side pushers (straight bundle)
Discharge: Automatic, for forklift pickup
Position in line: After cutting, before strapping/packing
Up to 6 m Sheets: Sized for long profiled roofing and wall panels.
Fully Automatic: PLC counts sheets and manages lifting and discharge.

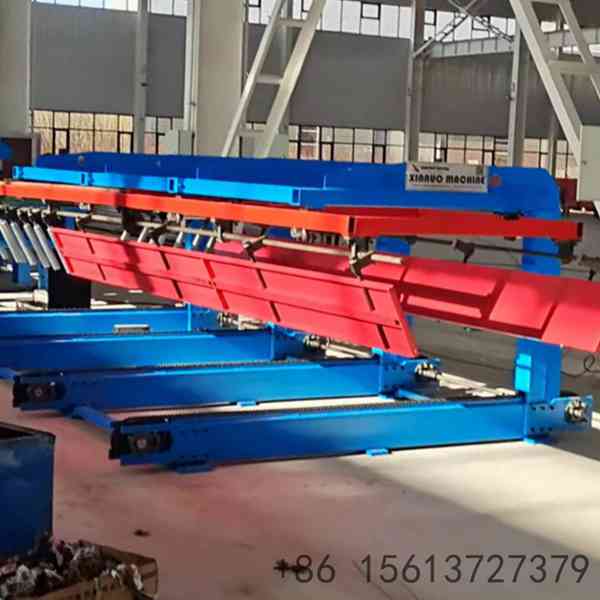

Neat Bundles: Side pushers align edges for straight, stable stacks.
Labor Saving: No manual panel catching at the machine outlet.
Surface Safe: Automatic handling protects the painted sheet surface.
Line Ready: Fits new roll forming lines or upgrades manual output tables.
| Component | Specification |
|---|---|
| Max sheet length | 6 m |
| Infeed | Motorized roller table |
| Lifting system | Hydraulic (scissor or cylinder type) |
| Control | PLC with sensors (counting, lifting, discharge) |
| Edge alignment | Side pushers |
| Discharge | Automatic, forklift accessible |
| Frame | Heavy duty welded steel frame |
| Sheet width / stack height | Customizable |
| Typical products | Corrugated roofing sheets, wall panels, floor decking |
Removes Manual Catching: Sheets stack automatically after cutting, cutting labor cost.
Level Stacks: Table lowers step by step as the PLC counts every sheet.
Straight Bundles: Side pushers align edges for stable, strappable stacks.
Surface Protection: Automatic handling avoids scratches from hand catching.
6 Meter Capacity: Handles long profiled sheets common in roof panel lines.
Easy Discharge: Forklift-ready stack position speeds up removal.
Customizable Setup: Sheet width, stack height and controls match your line.
