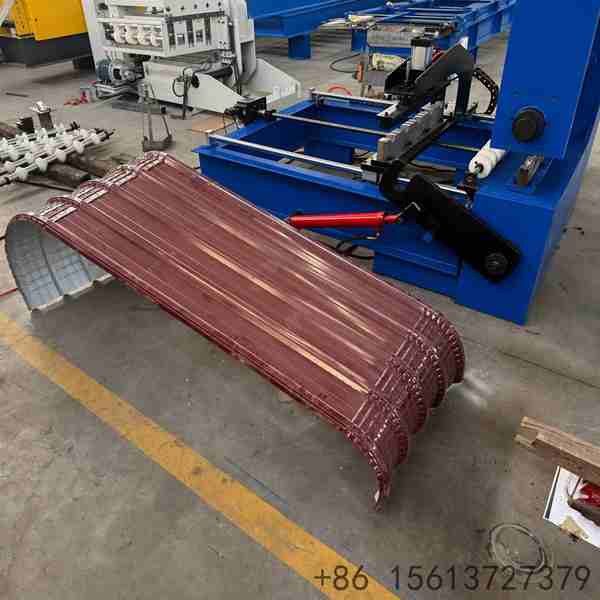

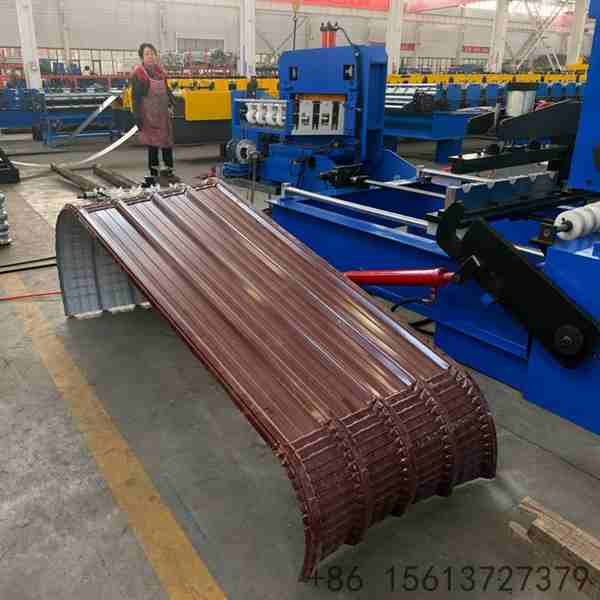

Advanced Servo Drive Technology: Replaces traditional hydraulic or mechanical systems with high-precision servo motors, delivering exceptional positioning accuracy, smooth motion control, and significant energy savings during the arching process.
Variable Radius Flexibility: Engineered to produce arches with varying radii on the fly. Operators can simply input the desired curvature parameters into the PLC, eliminating the need for time-consuming mechanical roller adjustments or tooling changes.
Scratch-Free Surface Protection: Utilizes premium polished rollers and precision-guided feeding mechanisms to ensure the coated or painted surface of the metal panel remains completely unmarred during the arching process.

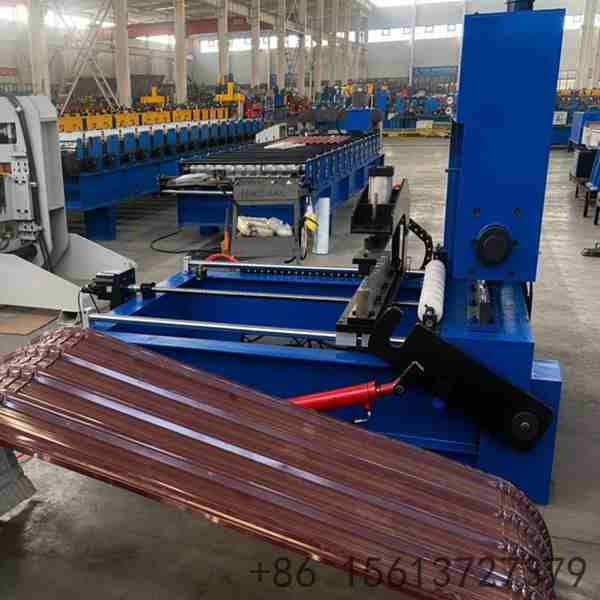

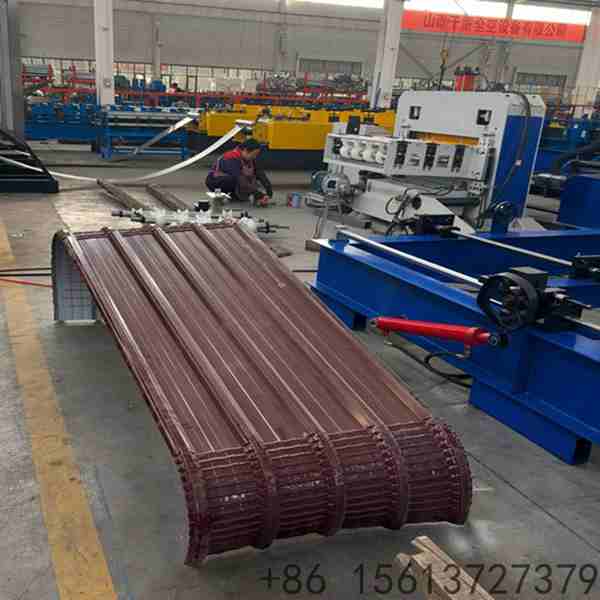

Intelligent CNC Programming: Features an intuitive touch screen interface that allows operators to store multiple arching profiles, set precise curvature dimensions, and monitor production status in real-time for streamlined operations.
Energy-Efficient Operation: The servo-driven architecture consumes power only during the active arching cycle, drastically reducing energy consumption compared to continuously running hydraulic systems, making it an environmentally conscious manufacturing solution.

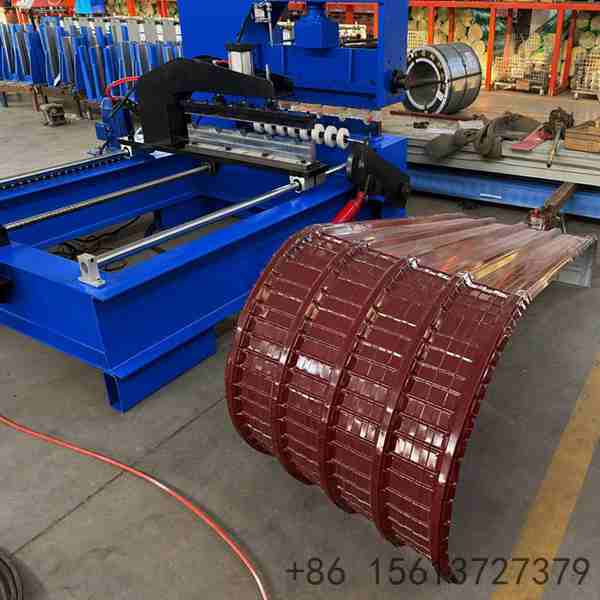

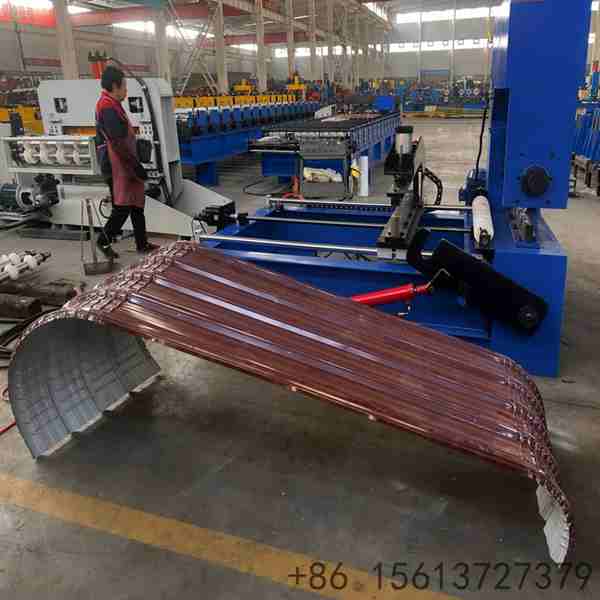

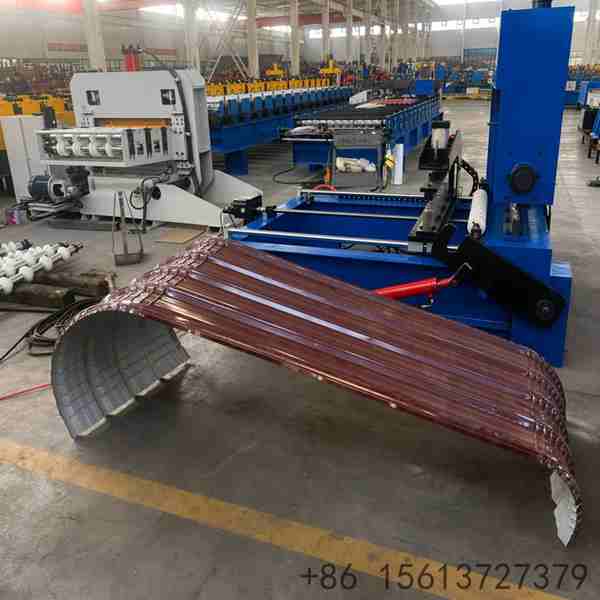

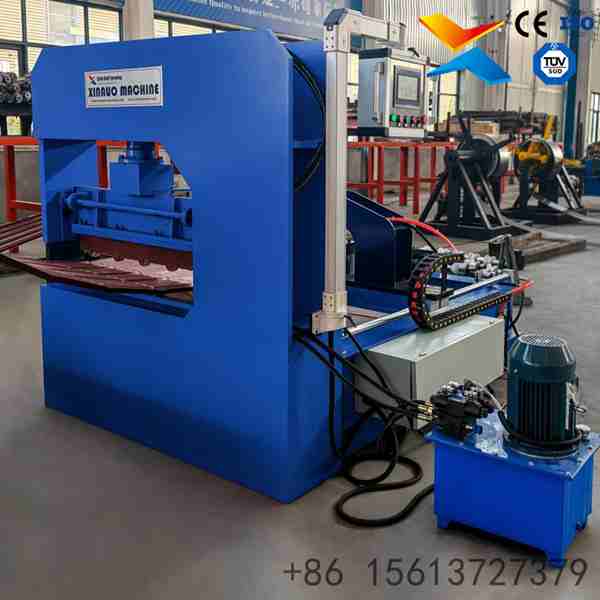

The Servo Arching Machine represents a significant technological leap in metal panel forming, specifically designed for manufacturers requiring high-precision curving for architectural roofing, cladding, and decorative applications. Unlike conventional arching machines that rely on fixed mechanical setups or less precise hydraulic systems, this equipment leverages advanced servo motor technology to deliver unmatched accuracy and flexibility.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Color steel / Galvanized steel / Aluminum coil |
| 2 | Material Thickness Range | 0.3 - 0.8 mm |
| 3 | Max Coil Width | 1000 / 1200 / 1250 mm (customizable) |
| 4 | Arching Radius Range | 3m - 100m (Variable, programmable) |
| 5 | Arching Speed | 5 - 15 m/min (Servo controlled, adjustable) |
| 6 | Drive System | AC Servo Motors (High-precision, energy-efficient) |
| 7 | Control System | CNC PLC with Touch Screen (Siemens / Mitsubishi) |

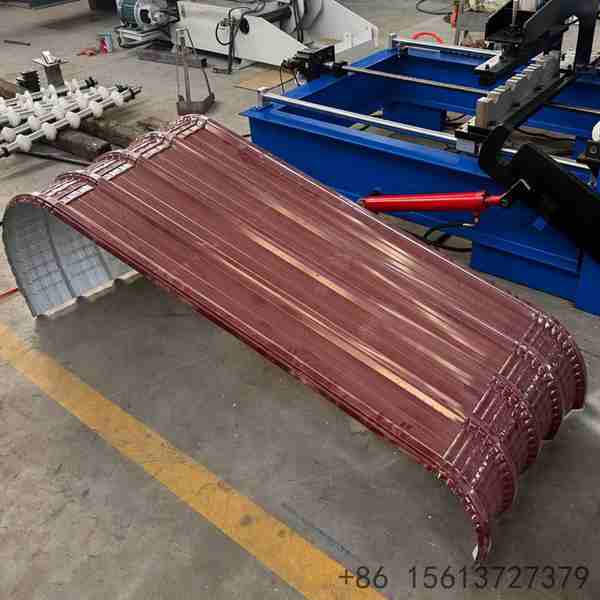

| 8 | Number of Forming Stations | 12 - 18 rows (Precision polished rollers) |
| 9 | Roller Material | GCr15 Bearing Steel, Hardened & Polished |
| 10 | Shaft Material | 40Cr Steel, Tempered & Precision Ground |
| 11 | Main Motor Power | 3 - 5.5 kW (Servo Motor) |
| 12 | Positioning Accuracy | ±0.5 mm (Radius and Length) |
| 13 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 14 | Machine Dimensions | Approx. 4m - 6m × 1.2m - 1.5m × 1.2m - 1.5m |
| 15 | Machine Weight | Approx. 2.5 - 4.5 Tons |
| 16 | Energy Consumption | Up to 60% less than hydraulic equivalents |
| 17 | Noise Level | < 70 dB (Low noise operation) |
| 18 | Warranty | 12-24 months free warranty + lifelong technical support |
