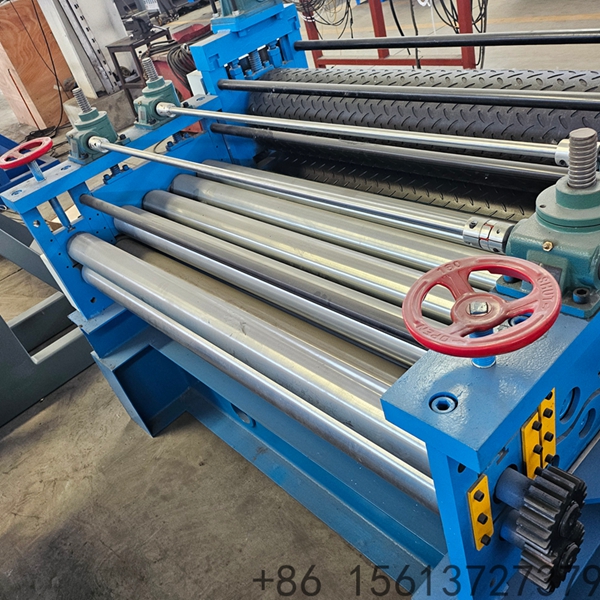

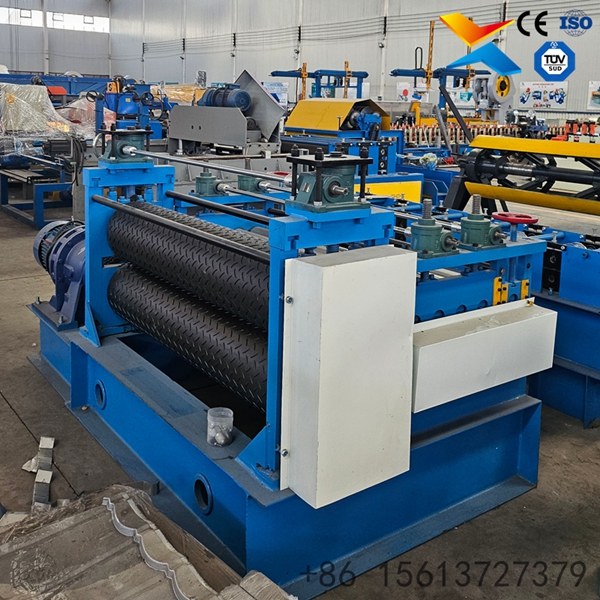

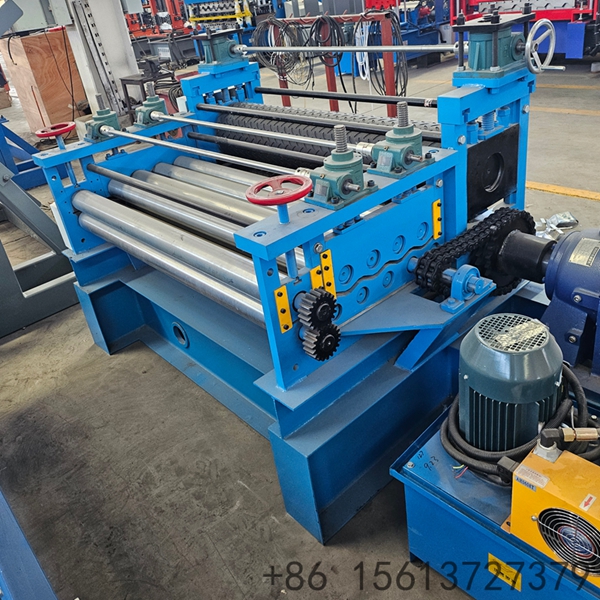

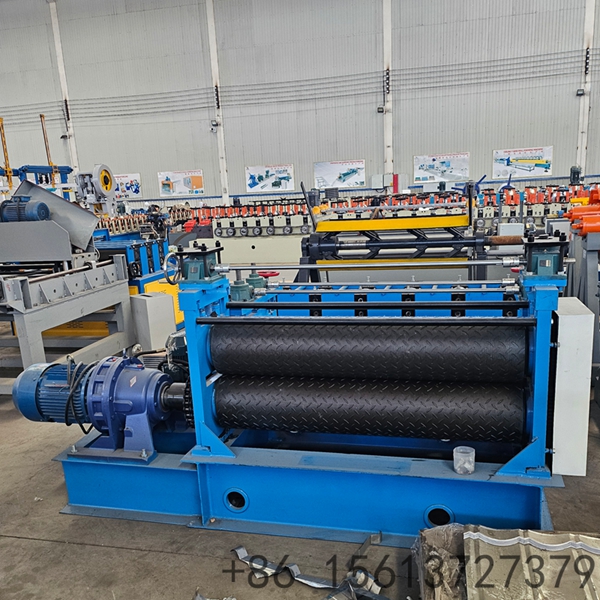

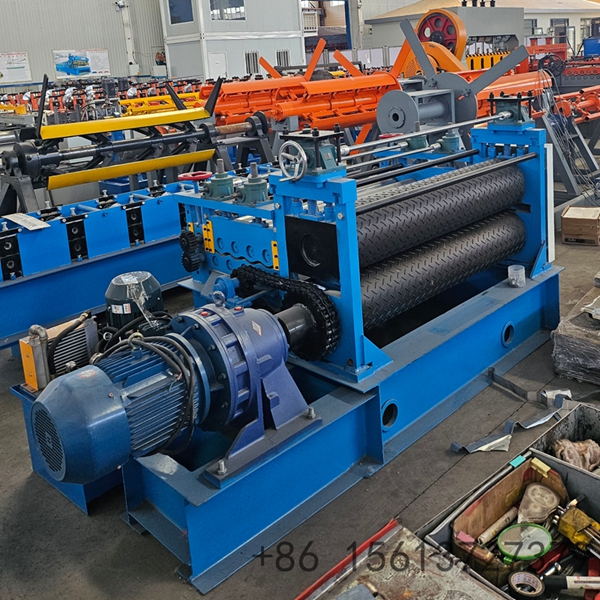

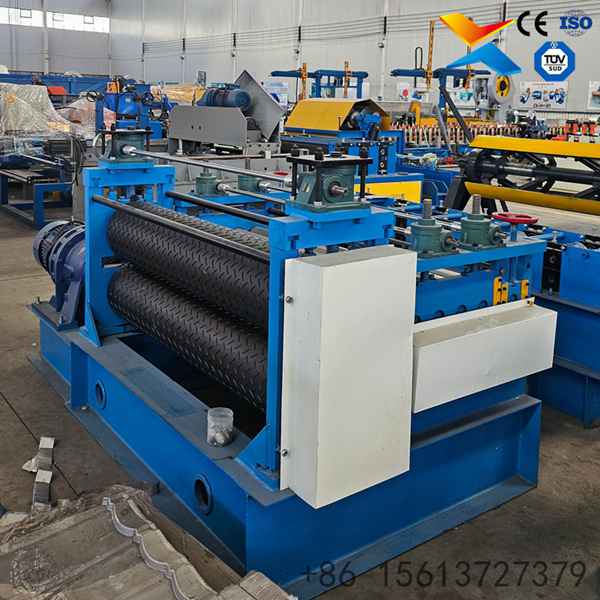

Metal Embossing Machine

Product Attributes :

Machine Type

Metal Embossing Machine / Embossing Roll Forming Line

Core Function

Presses patterns (wood grain, tile, logos) onto metal coils, leather, or paper

Typical Applications

Decorative roofing sheets, wall panels, interior design materials

Key Advantage

Advanced hydraulic system & precision rollers for clear patterns and high efficien

Product Description

Exquisite Pattern & High Precision: Adopting CNC machining for roller molds, the embossed patterns are clear, uniform, and have strong 3D stereoscopic effects without damaging the surface coating.
Enhanced Rigidity: The embossing process effectively increases the bending strength and flatness of the metal sheet, making it an excellent base material for sandwich panels.

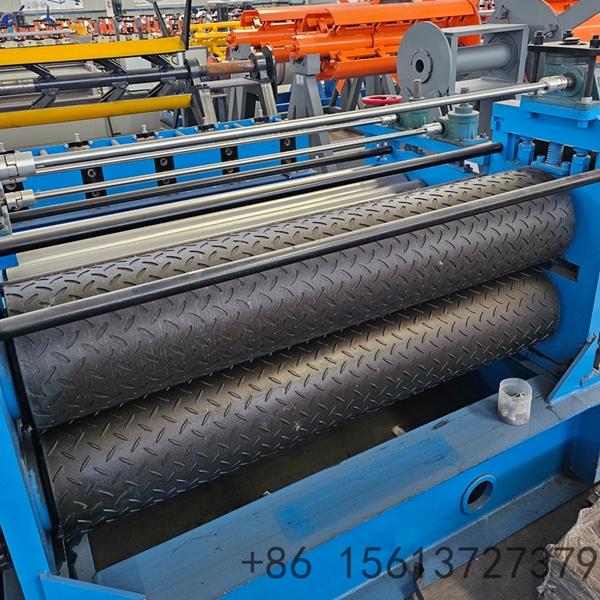

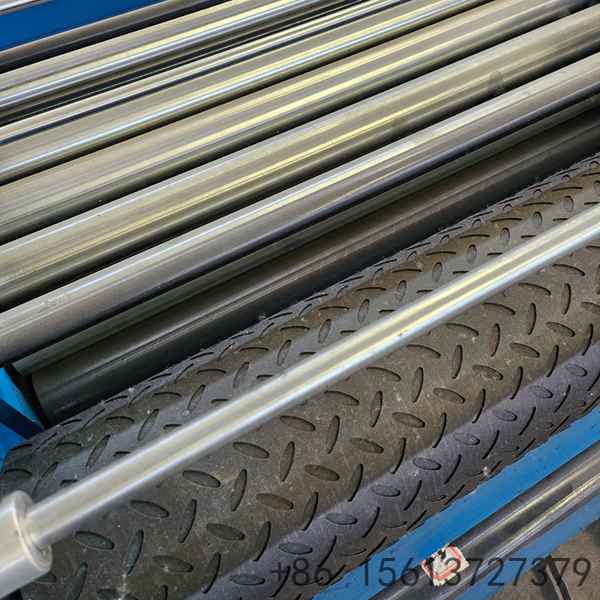

Durable & Wear-Resistant Rollers: Rollers are made of high-quality bearing steel, quenched, and chrome-plated, ensuring long service life and smooth operation.
Smart & Easy Operation: Equipped with an advanced PLC control system and frequency converter, allowing for stepless speed adjustment, precise length cutting, and automated counting.
Versatile Customization: We support OEM/ODM services. Different embossing patterns can be achieved by changing the roller sets, maximizing your product variety.
Cost-Effective: Continuous automatic production greatly reduces labor costs and improves production efficiency.
Technical Parameters

Parameter	Specification
Applicable Material	Color steel, galvanized steel, aluminum coil, stainless steel
Material Thickness	0.3mm - 0.8mm (Customizable)
Feeding Width	Up to 1250mm (Standard)
Embossing Pattern	Brick, Wood Grain, Stone, Water Ripple, or Customized
Roller Material	High-grade GCr15 bearing steel (Quenched and polished)
Roller Stations	12 - 18 stations (Depending on pattern complexity)

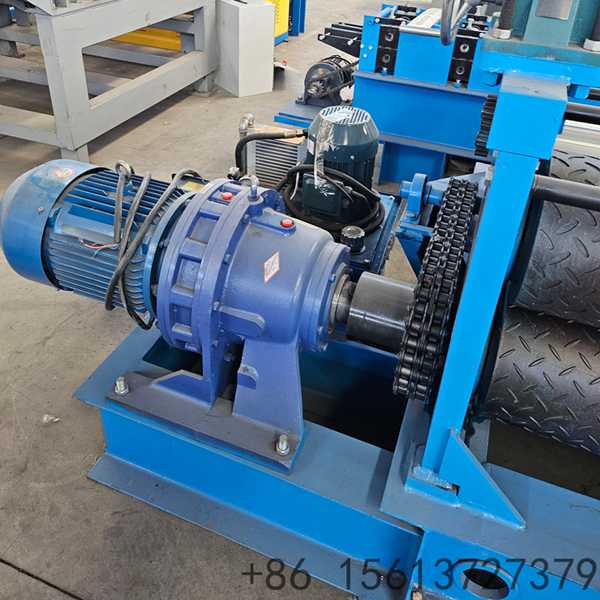

Main Motor Power	4KW - 5.5KW
Forming Speed	8 - 15 m/min (Frequency conversion adjustable)
Control System	PLC + Touch Screen (e.g., Delta/Mitsubishi)
Voltage	380V/50Hz/3Phase (Customizable to local standard)
Machine Dimension	Approx. 6.5m (L) x 1.2m (W) x 1.5m (H)
