Automatic Panel Stacking Machine

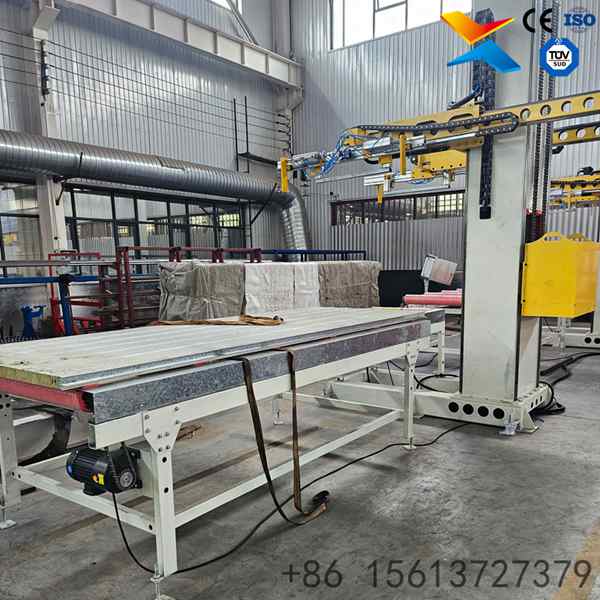

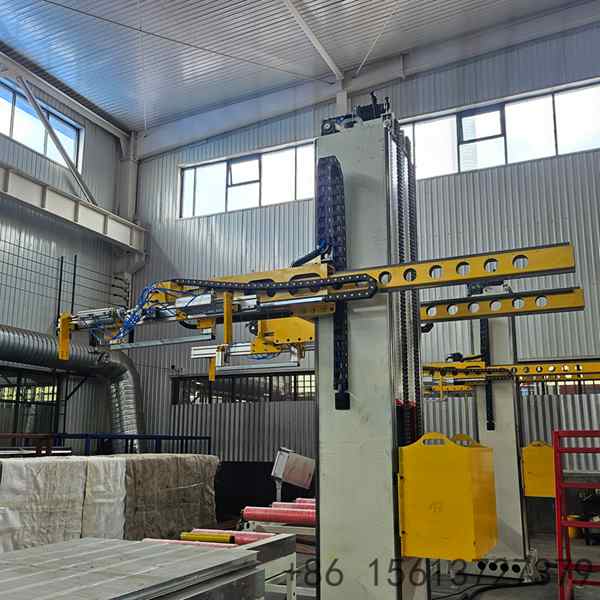

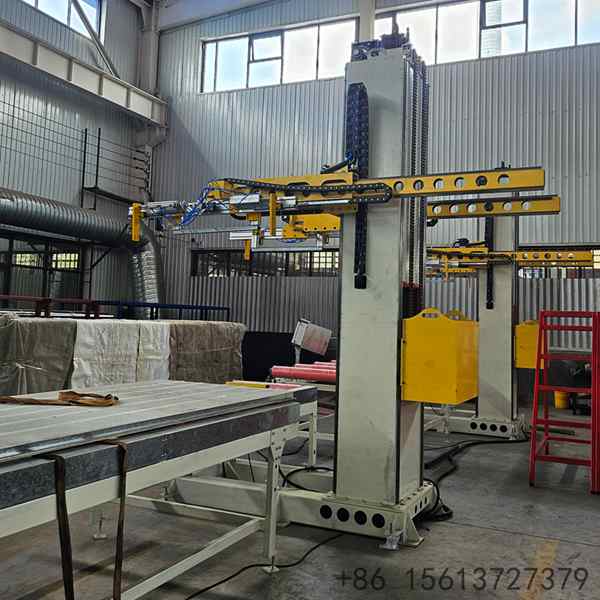

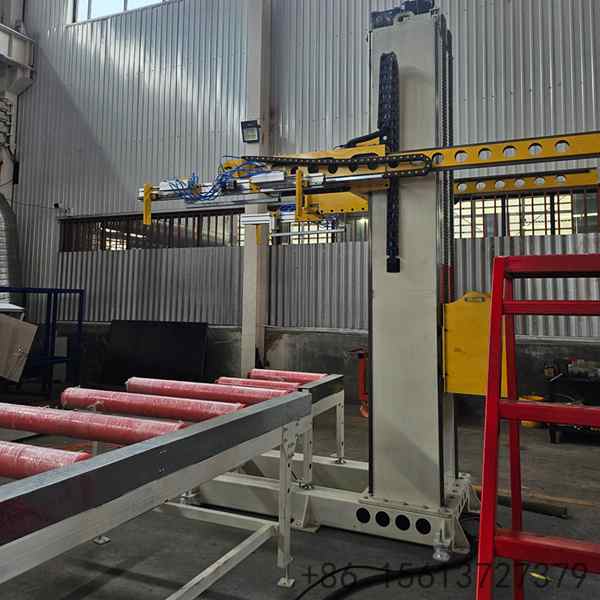

The Automatic Panel Stacking Machine seamlessly integrates with roll forming lines to automatically count, align, and stack metal panels into neat bundles. Driven by PLC and servo systems, it significantly reduces manual labor while ensuring safe, high-speed, and precise packaging.
Fully Automated Operation: Seamlessly integrates with roll forming lines to automatically count, align, and stack finished panels, significantly reducing manual labor and packaging time.

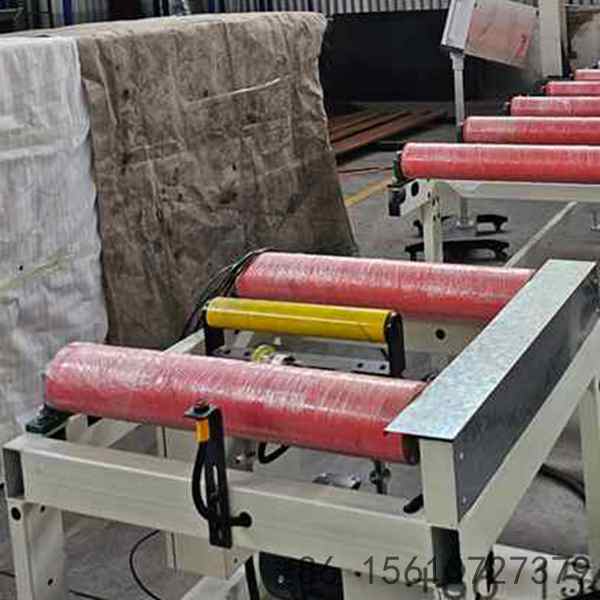

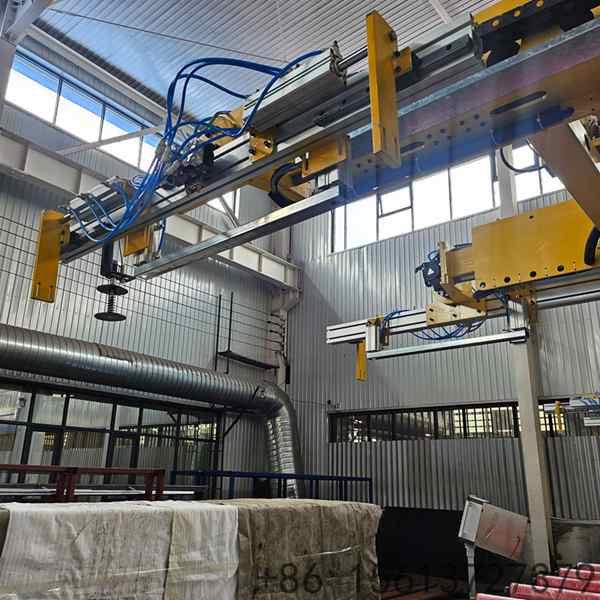

High-Precision Servo Control: Utilizes advanced servo motors and PLC systems to ensure accurate panel alignment, consistent stacking height, and neat bundle formation.

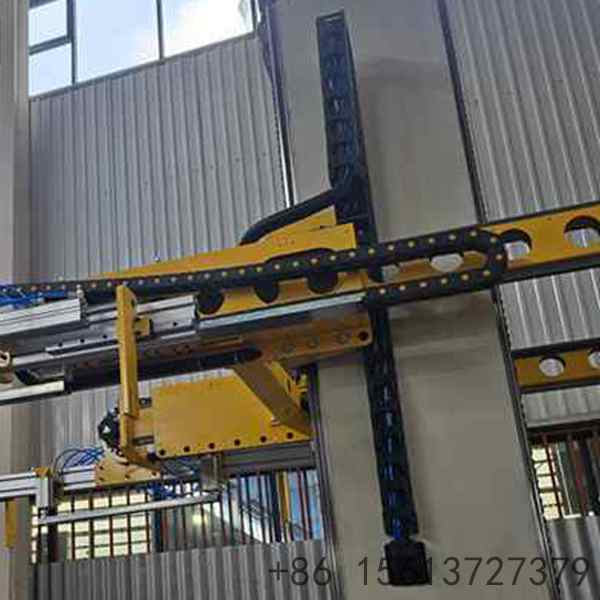

Adjustable & Versatile: Features adjustable stacking width, height, and speed settings, making it compatible with various metal roof, wall, and floor deck profiles.

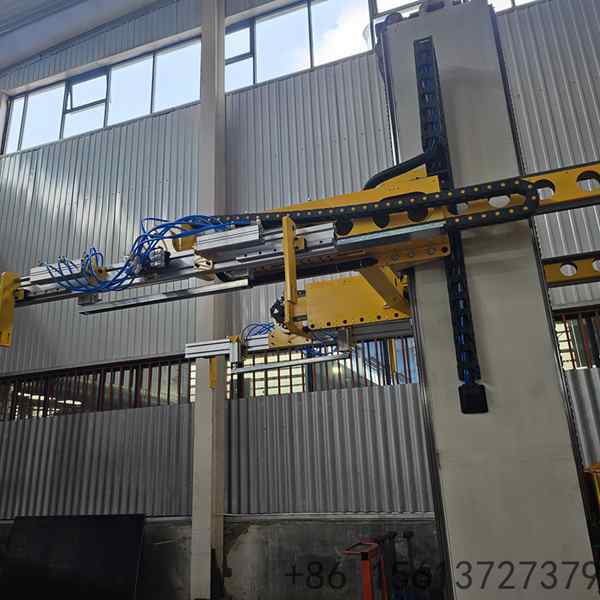

Safe & Reliable Design: Equipped with safety light curtains, emergency stop buttons, and protective guards to ensure operator safety during high-speed continuous operation.

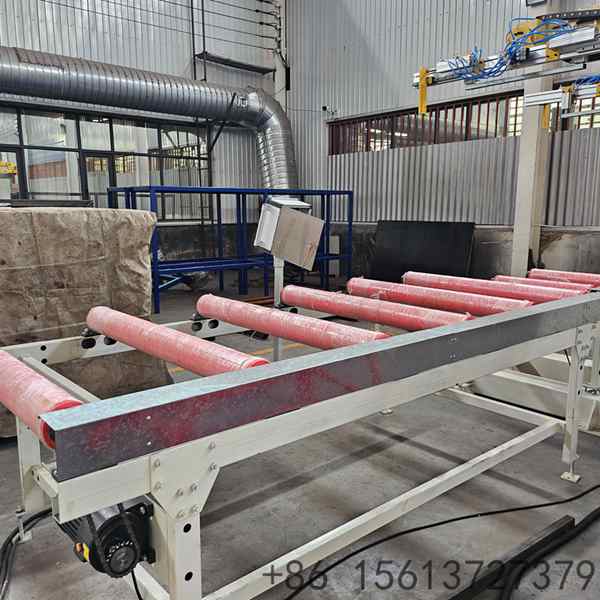

Integrated Strapping System: Optional automatic strapping and binding modules allow for immediate bundling of stacked panels, streamlining the entire packaging and loading process.

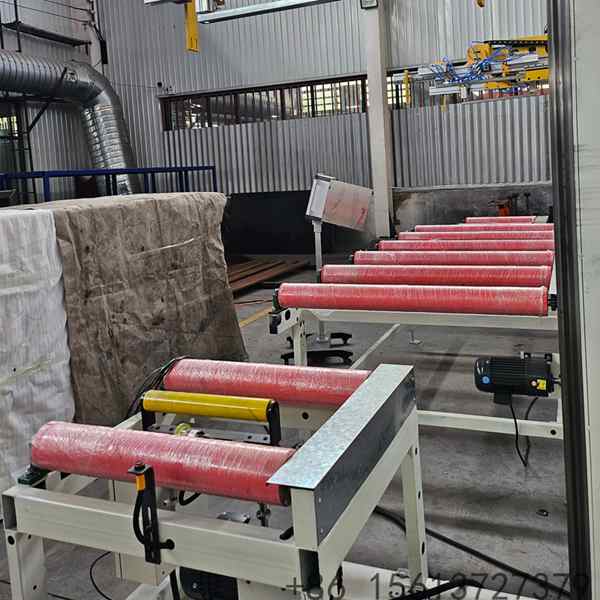

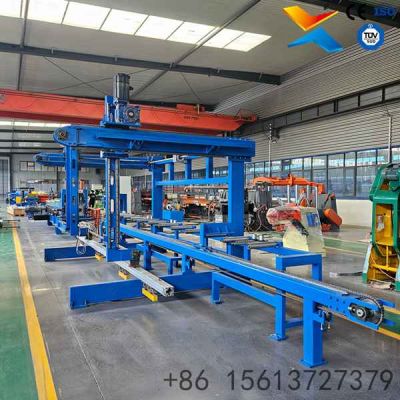

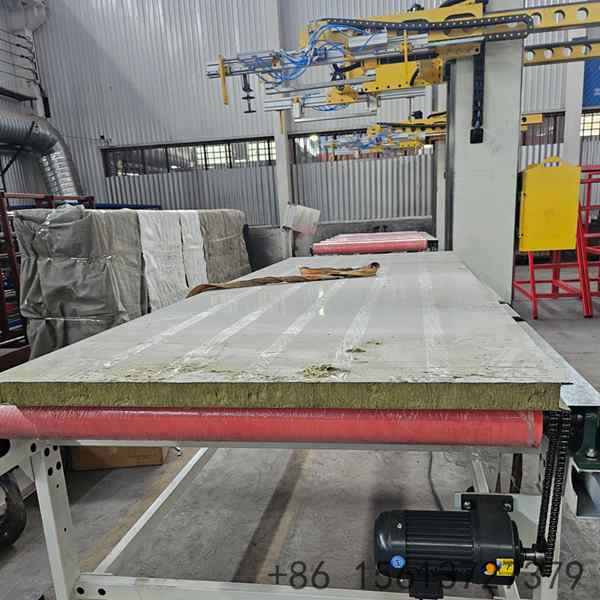

The Automatic Panel Stacking Machine is an essential auxiliary equipment designed to work in tandem with roll forming machines, automating the final packaging stage of metal panel production. This high-efficiency stacker receives formed panels from the run-out table, automatically counts them to the preset quantity, aligns them perfectly using side pushers, and stacks them into neat, secure bundles. By replacing manual stacking, this machine not only prevents surface scratches and panel deformation but also drastically increases overall production efficiency. The system is driven by precision servo motors and controlled by an advanced PLC, ensuring smooth, stable, and highly accurate operation.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Products | Metal roof panels, wall panels, floor decks, sandwich panels |
| 2 | Stacking Speed | Up to 30-40 meters/min (matches roll forming speed) |
| 3 | Max Stacking Height | 1000 - 1500 mm (customizable based on requirements) |
| 4 | Max Stacking Width | 1500 - 2000 mm (adjustable) |
| 5 | Control System | PLC + Touch Screen (Mitsubishi / Delta / Siemens) |
| 6 | Driving Mode | Servo motor driven for precise alignment and lifting |
| 7 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 8 | Hydraulic Station Power | 3 - 5.5 kW (for pressing and lifting mechanisms) |
| 9 | Machine Dimensions | Approx. 6m - 10m × 2.5m - 3.5m × 2.5m |
| 10 | Machine Weight | Approx. 3 - 6 Tons |
| 11 | Safety Features | Safety light curtains, E-stop, protective fencing |
| 12 | Counting System | Automatic electronic counting with preset batch quantity |
| 13 | Strapping Option | Automatic strapping and binding system (optional) |
| 14 | Panel Alignment | Pneumatic side pushers for perfect edge alignment |
| 15 | Warranty | 1-2 years free warranty + lifelong technical support |
