Product Description
Product Introduction:
Product Description & Parameters:

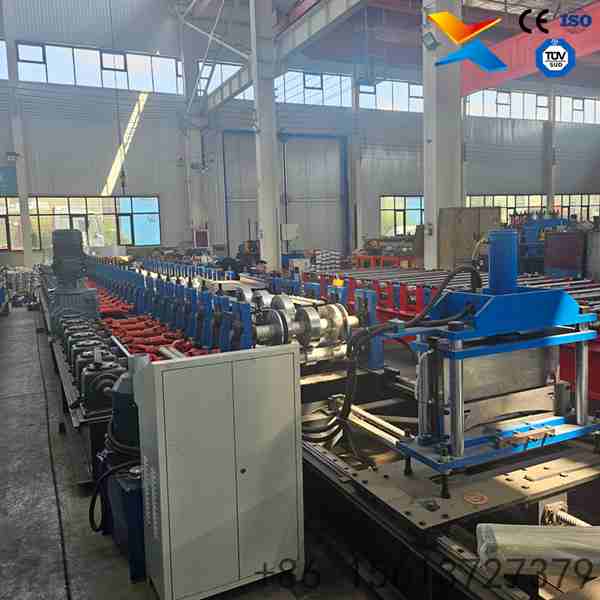

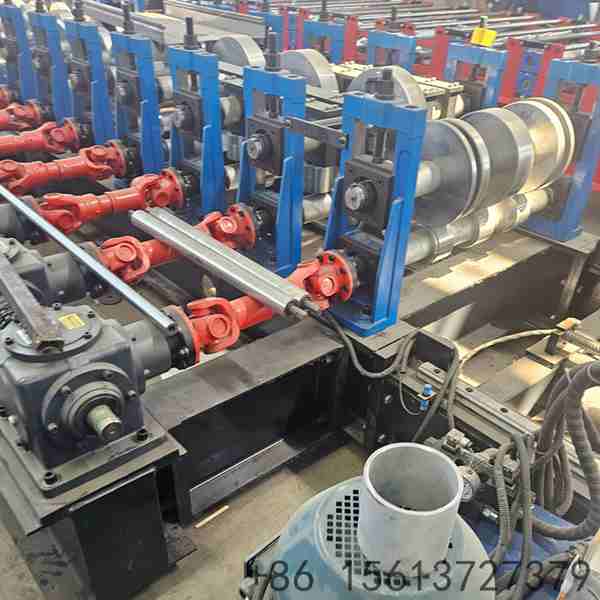

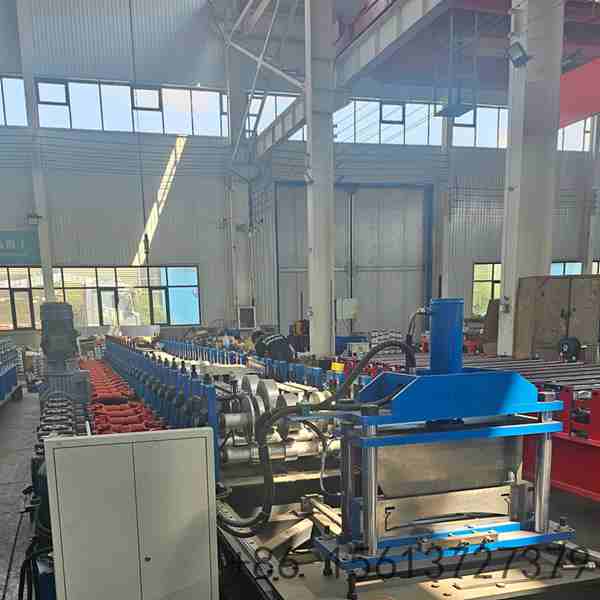

The Custom Standing Seam Roll Forming Machine is a specialized cold roll forming equipment tailored to manufacture bespoke standing seam metal roofing panels for unique architectural and industrial projects. Whether requiring specific seam heights, custom rib spacing, or unique panel widths, this machine is engineered to exact specifications. The standing seam panels feature vertical raised seams that interlock, eliminating exposed fasteners and providing excellent weather protection. The machine integrates decoiling, guiding, roll forming, length measuring, and automatic hydraulic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth panel surfaces.
The Custom Standing Seam Roll Forming Machine is a specialized cold roll forming equipment tailored to manufacture bespoke standing seam metal roofing panels for unique architectural and industrial projects. Whether requiring specific seam heights, custom rib spacing, or unique panel widths, this machine is engineered to exact specifications. The standing seam panels feature vertical raised seams that interlock, eliminating exposed fasteners and providing excellent weather protection. The machine integrates decoiling, guiding, roll forming, length measuring, and automatic hydraulic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth panel surfaces.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Galvanized steel coil / PPGI / Aluzinc / Aluminium coil |
| 2 | Material Thickness Range | 0.4 - 1.2 mm (customizable) |
| 3 | Material Yield Strength | 235 - 550 MPa |
| 4 | Forming Speed | 10 - 20 m/min (adjustable via transducer) |

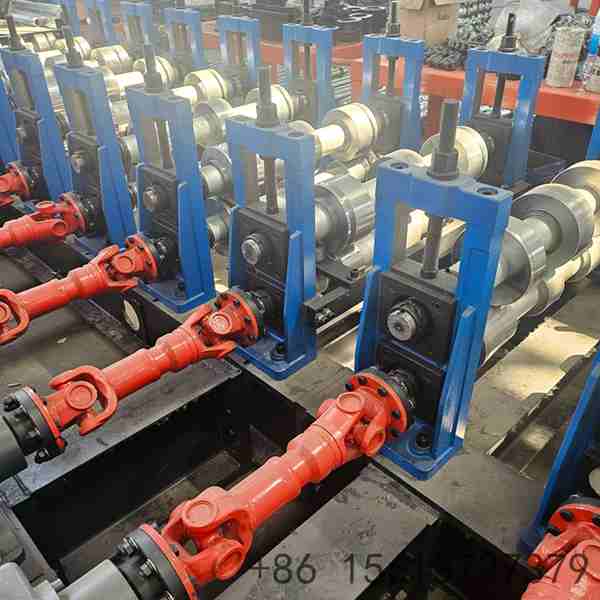

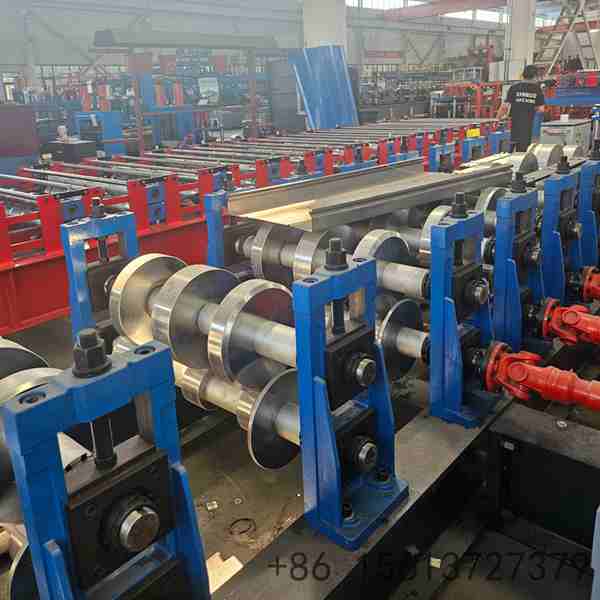

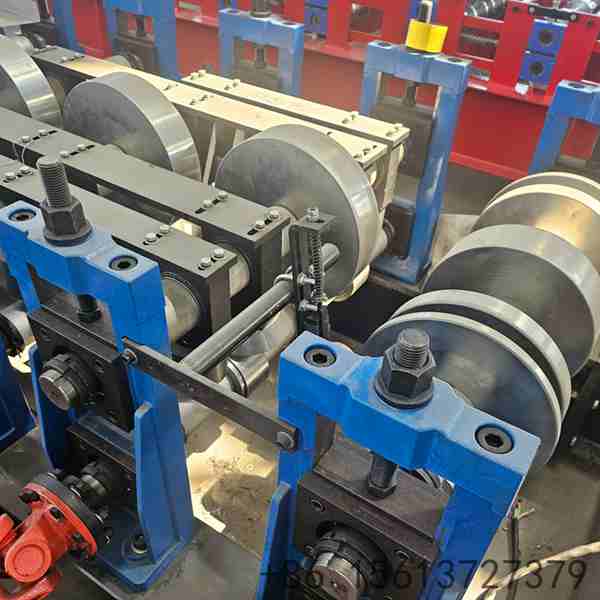

| 5 | Number of Roller Stations | 14 - 22 stations (based on custom profile) |
| 6 | Main Motor Power | 5.5 - 11 kW |
| 7 | Hydraulic Station Power | 4 - 5.5 kW |
| 8 | Roller Material | High-grade 45# forged steel with hard chrome plating (0.05mm) |
| 9 | Shaft Material | 45# steel, diameter 70-85mm, tempered and polished |
| 10 | Cutting Blade Material | Cr12 mould steel with quenching treatment (HRC 58-62) |

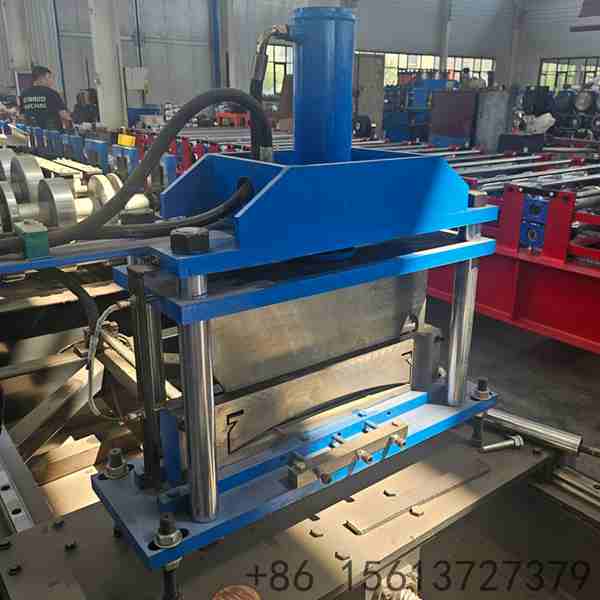

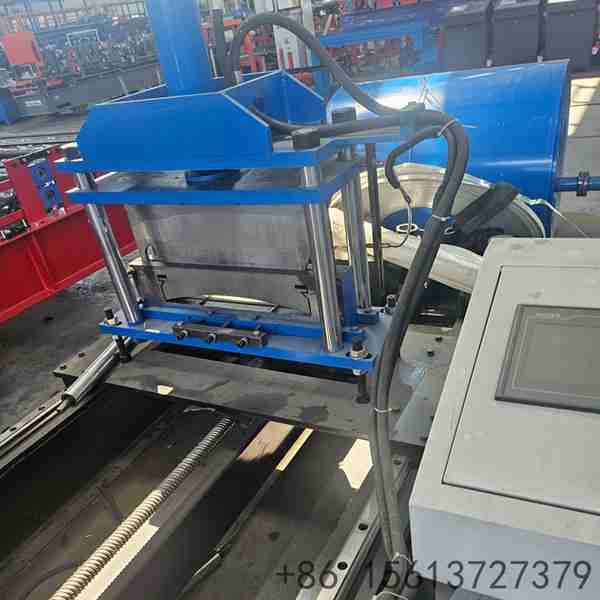

| 11 | Cutting Method | Hydraulic post-cut, automatic pause and cut |

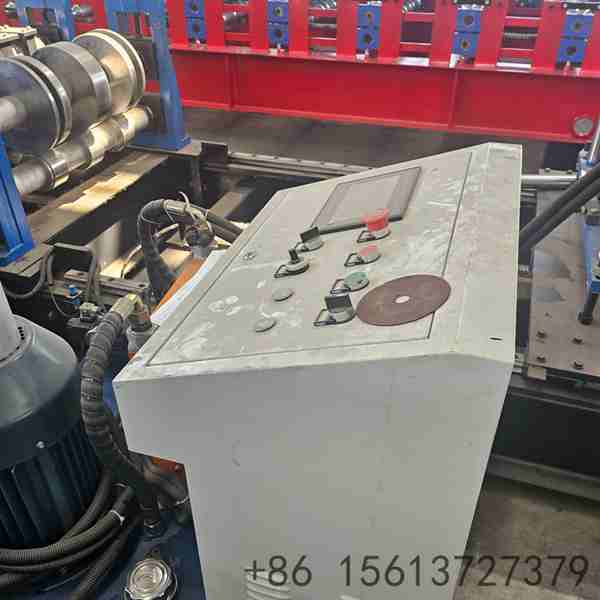

| 12 | Control System | PLC control with touch screen (Mitsubishi / Delta / Siemens) |
| 13 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 14 | Machine Dimensions | Approx. 8m - 12m × 1.5m - 1.8m × 1.4m - 1.7m |
| 15 | Machine Weight | Approx. 5 - 10 Tons |
| 16 | Length Tolerance | ±1 - 2 mm |
| 17 | Uncoiler Capacity | Up to 5 - 8 tons (manual or hydraulic) |

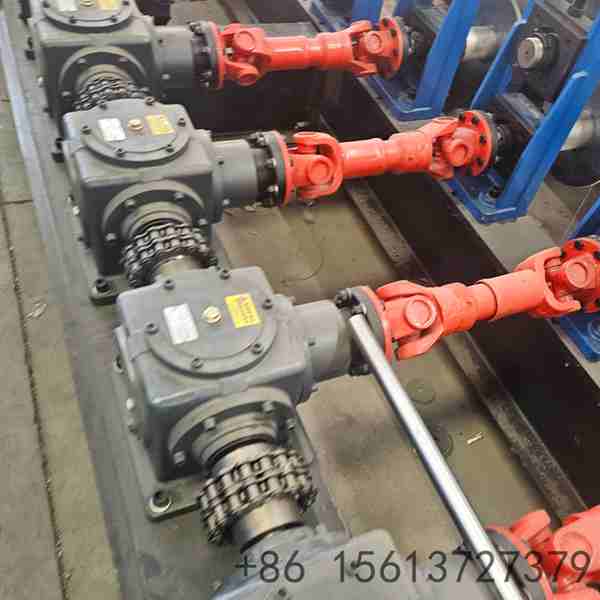

| 18 | Driving Mode | Chain transmission |
| 19 | Warranty | 12-24 months free warranty + lifelong technical support |
