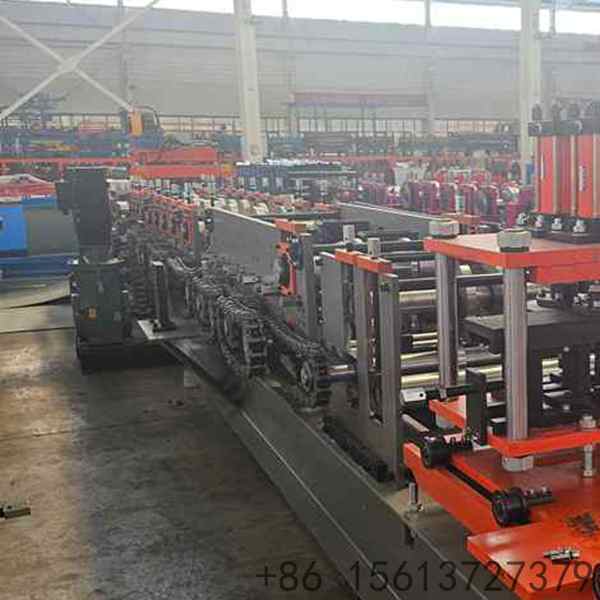

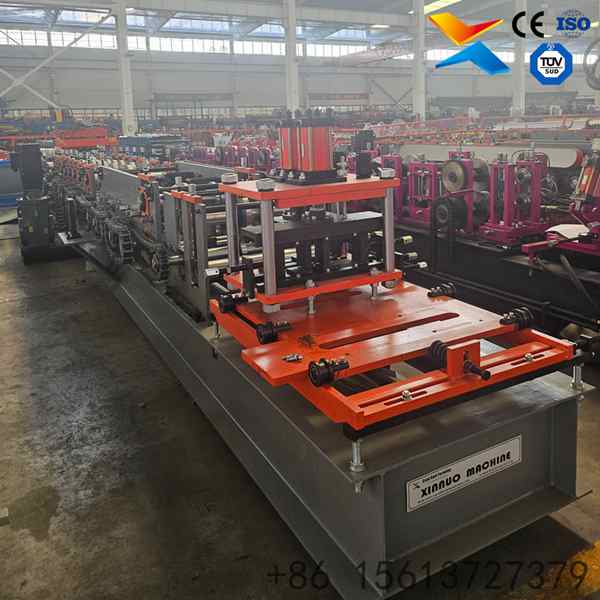

Hydraulic Purlin Roll Forming Machine with Flying Shear
Product Attributes :
1.Voltage: 380V/50Hz (customizable for 220V/60Hz)
2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)
3.Weight：3000-5000kg (depending on configuration)
4.Raw Material：Galvanized steel coil
5.Model: c purlin
6.2 years for machinery warranty
7.WhatsApp：+8615613727379
Product Description
After-sales Services
- Warranty: 24-month free warranty, lifelong technical support.
- Delivery Time: 25–45 days after receiving deposit.
- Installation & Training: Free on-site training for installation, operation and maintenance if you visit our factory.
Product Introduction:
Product Description & Parameters:

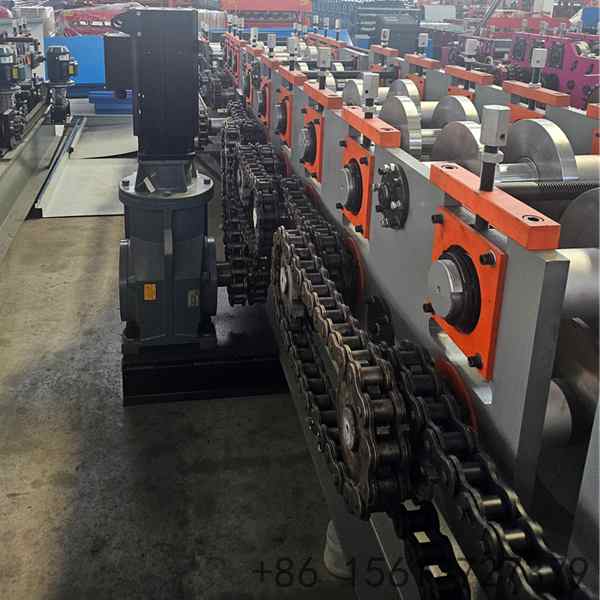

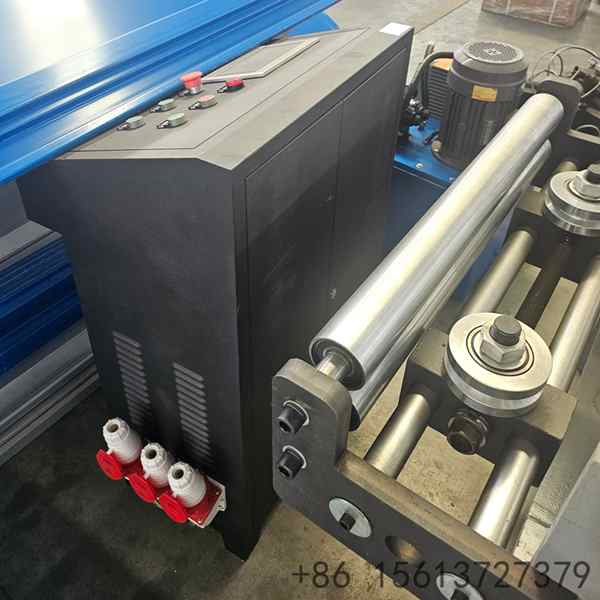

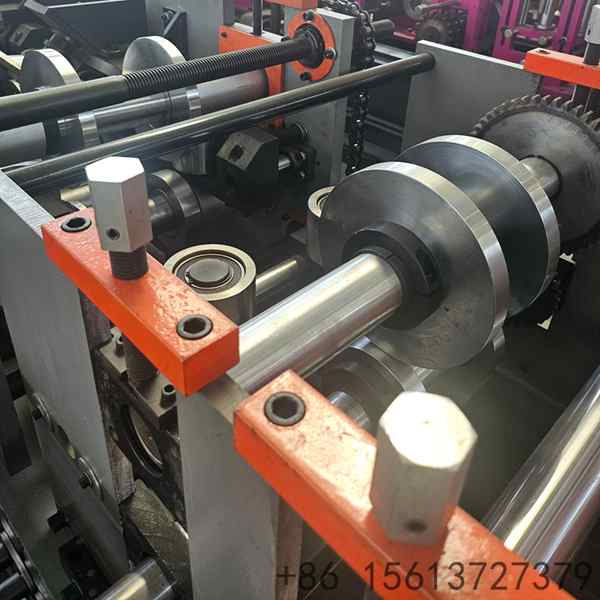

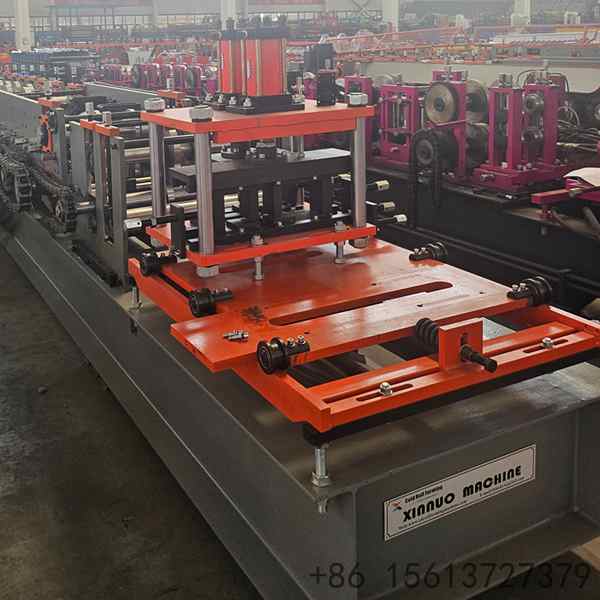

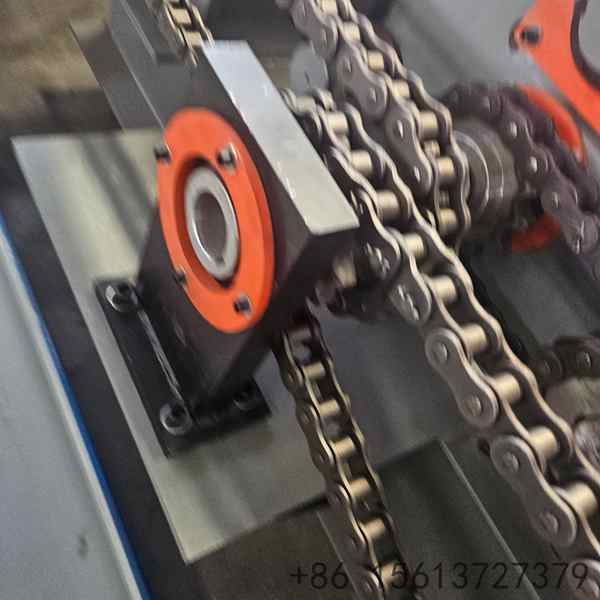

The Hydraulic Purlin Roll Forming Machine with Flying Shear is a high-efficiency cold roll forming equipment designed for manufacturing C and Z purlins widely used in steel structure buildings, warehouses, and industrial facilities. The flying shear system is the key advantage, allowing continuous production at high speeds while maintaining precise cut lengths. The machine integrates hydraulic uncoiling, guiding, roll forming, hydraulic punching (optional), and flying shear cutting into a seamless production line. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth panel surfaces.
The Hydraulic Purlin Roll Forming Machine with Flying Shear is a high-efficiency cold roll forming equipment designed for manufacturing C and Z purlins widely used in steel structure buildings, warehouses, and industrial facilities. The flying shear system is the key advantage, allowing continuous production at high speeds while maintaining precise cut lengths. The machine integrates hydraulic uncoiling, guiding, roll forming, hydraulic punching (optional), and flying shear cutting into a seamless production line. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth panel surfaces.

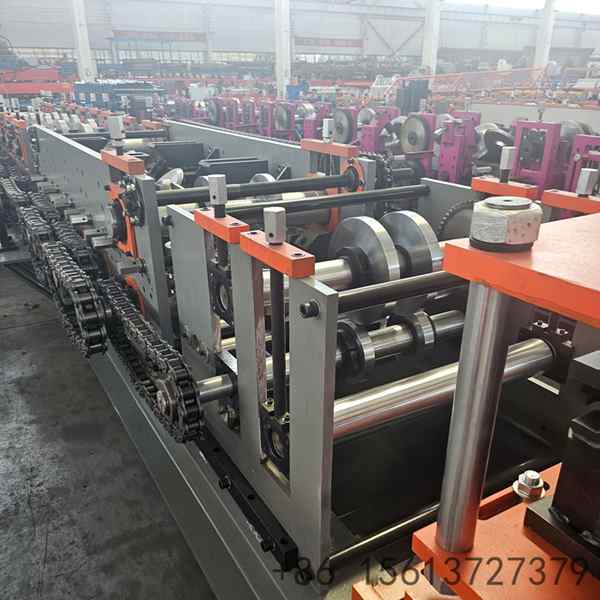

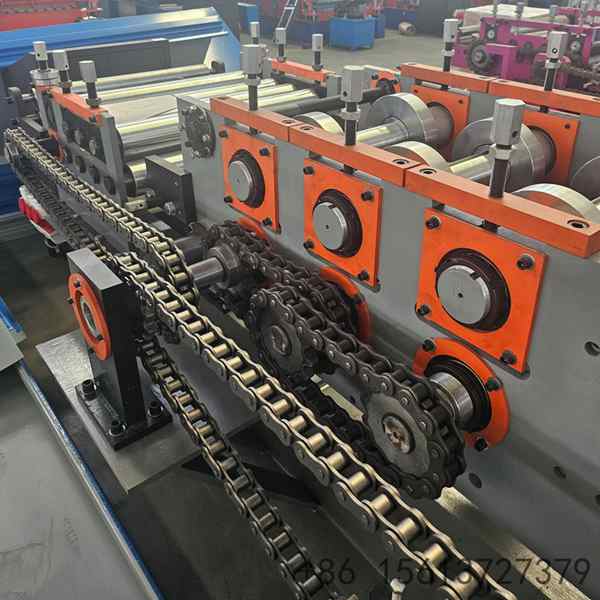

| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Galvanized steel coil / PPGI / Aluzinc coil |
| 2 | Material Thickness Range | 1.5 - 3.0 mm |
| 3 | Profile Types | C purlin and Z purlin (interchangeable) |
| 4 | Forming Speed | 15 - 30 m/min (adjustable via frequency converter) |
| 5 | Number of Roller Stations | 16 - 22 stations (depending on profile design) |
| 6 | Main Motor Power | 11 kW × 2 |
| 7 | Hydraulic Station Power | 5.5 - 7.5 kW |
| 8 | Roller Material | 45# forged steel, polished and coated with 0.05mm hard chrome |
| 9 | Shaft Material | High-grade 45# steel, diameter 75-85mm, tempered and polished |

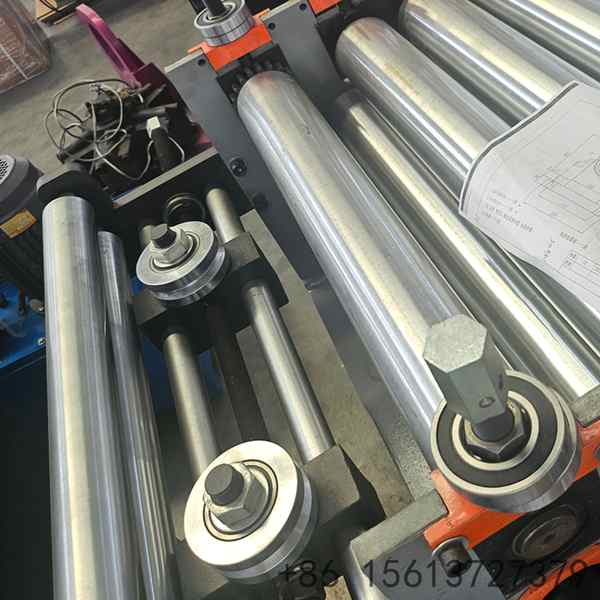

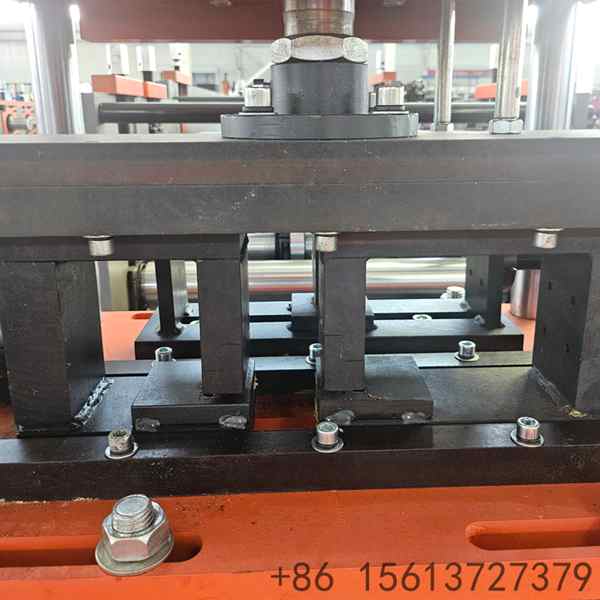

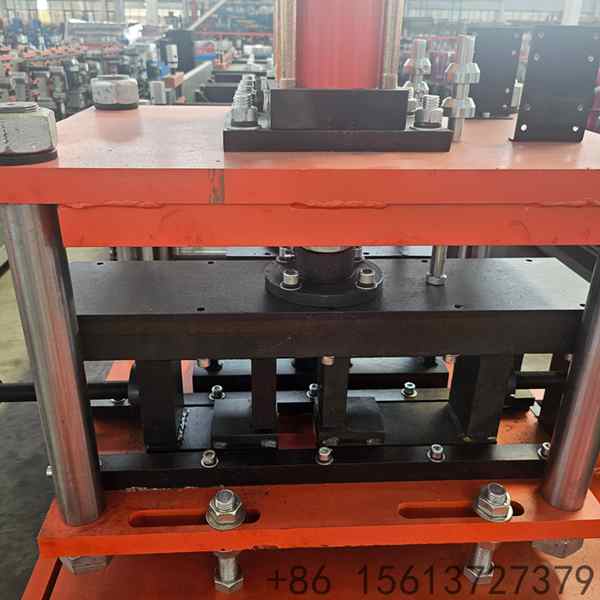

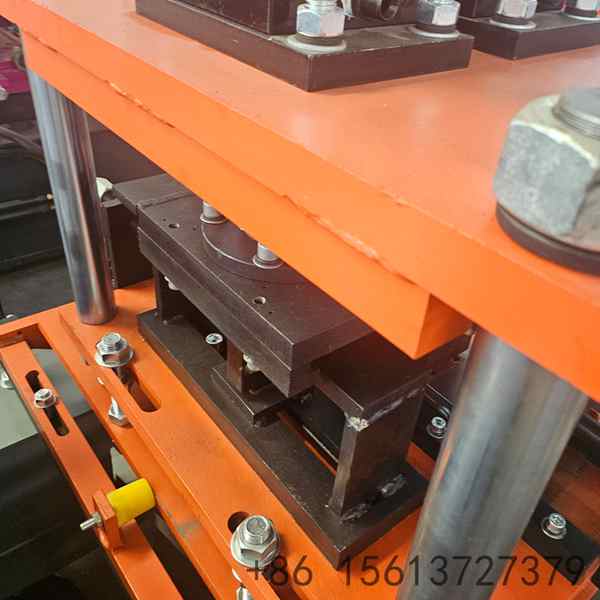

| 10 | Cutting Blade Material | Cr12 mould steel with quenching treatment (HRC 58-62) |
| 11 | Cutting Method | Hydraulic flying shear, automatic synchronous cutting |
| 12 | Control System | PLC control with touch screen (Mitsubishi / Delta / Siemens) |
| 13 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 14 | Machine Dimensions | Approx. 15m - 20m × 1.8m - 2.2m × 1.6m - 2.0m |
| 15 | Machine Weight | Approx. 10 - 15 Tons |
| 16 | Length Tolerance | ±1 - 2 mm |
| 17 | Uncoiler Capacity | Up to 5 - 8 tons (hydraulic) |
