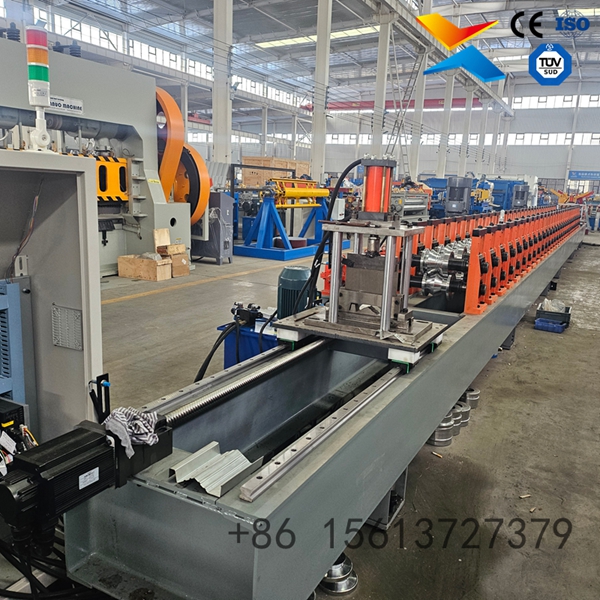

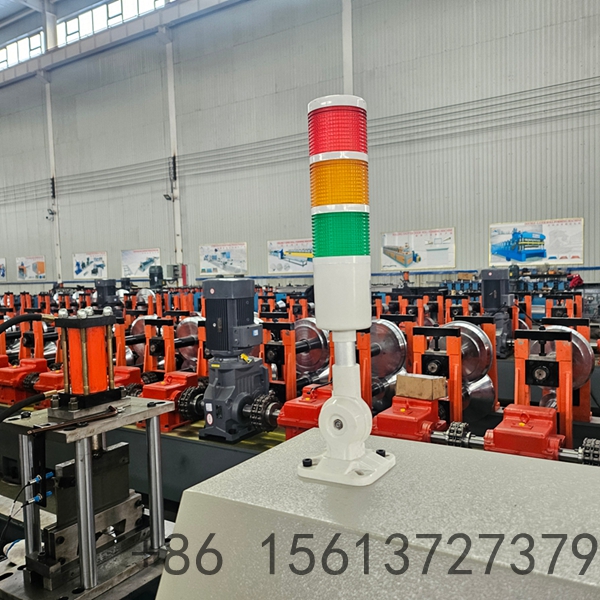

Special Shaped Sheet Roll Forming Machine
Product Attributes :
1.Voltage: 380V/50Hz (customizable for 220V/60Hz)
2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)
3.Weight：3000-5000kg (depending on configuration)
4.Raw Material：Galvanized steel coil
5.Model: Special Shaped Sheet Roll Forming Machine
6.2 years for machinery warranty
7.WhatsApp：+8615613727379
Product Description
Product Introduction:
Product Description & Parameters:

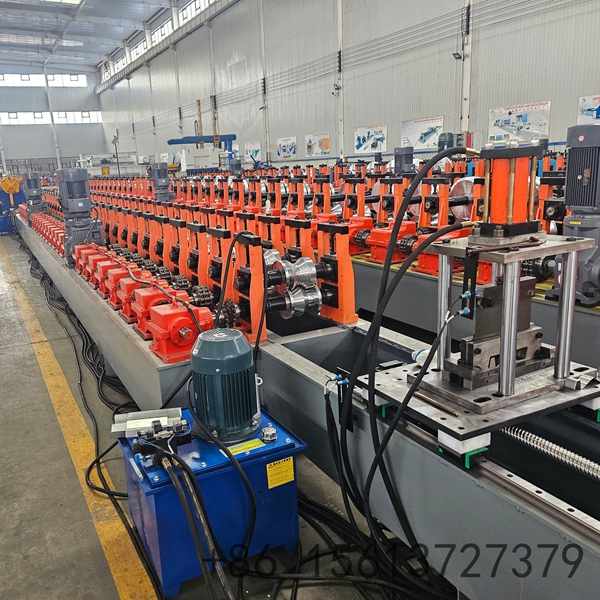

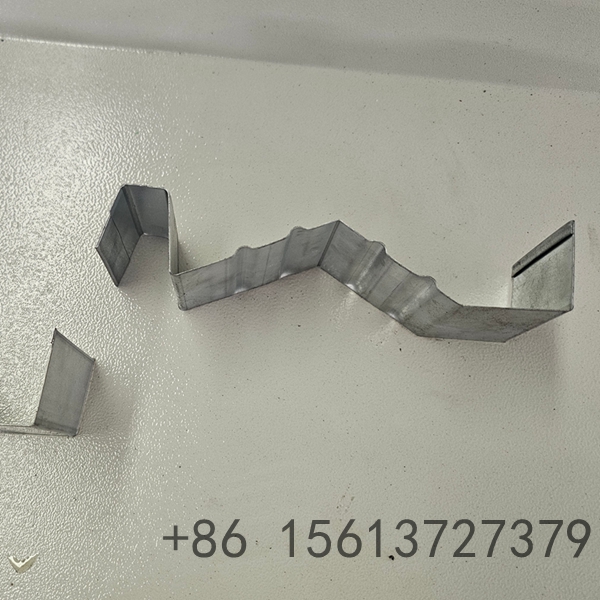

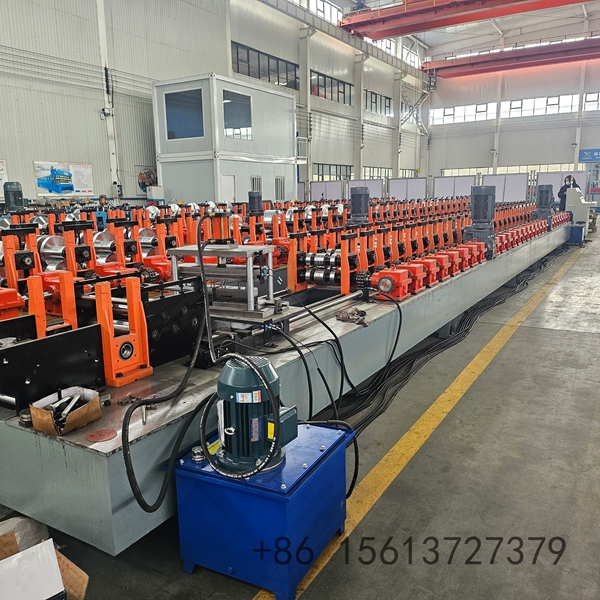

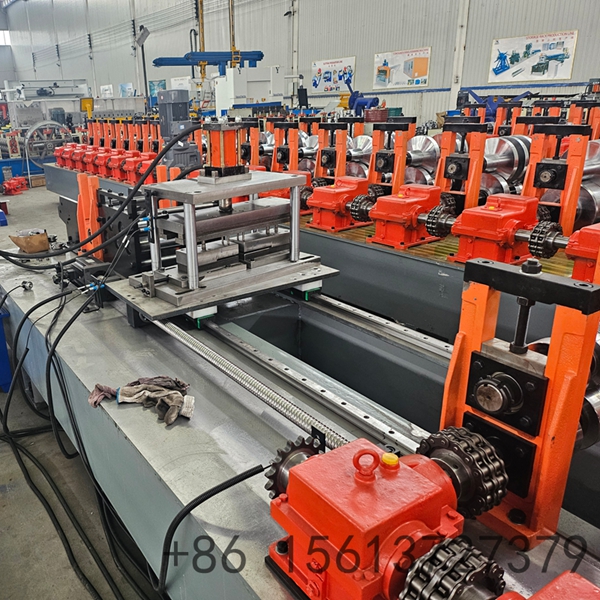

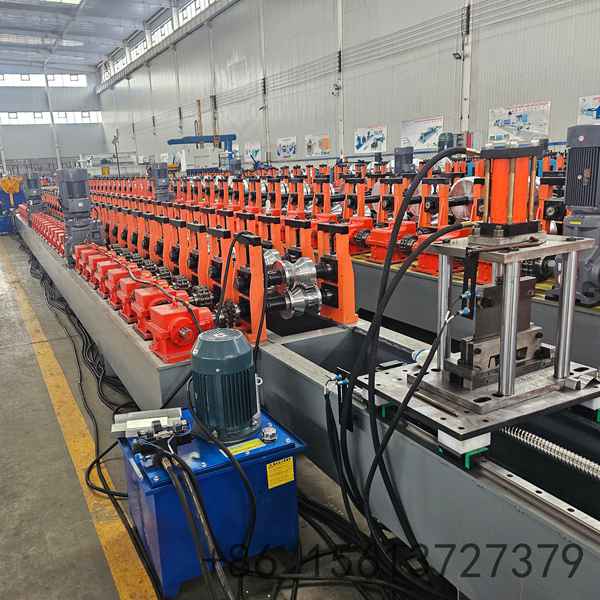

The Special Shaped Sheet Roll Forming Machine is a highly versatile cold roll forming equipment tailored to manufacture custom, irregular, and complex metal profiles for specialized architectural, industrial, and construction applications. Whether requiring unique cross-sections, non-standard dimensions, or specific functional shapes, this machine is engineered to exact specifications. The machine integrates decoiling, guiding, roll forming, length measuring, and automatic hydraulic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating (0.05mm) and heat treatment, ensuring long service life and smooth panel surfaces.
The Special Shaped Sheet Roll Forming Machine is a highly versatile cold roll forming equipment tailored to manufacture custom, irregular, and complex metal profiles for specialized architectural, industrial, and construction applications. Whether requiring unique cross-sections, non-standard dimensions, or specific functional shapes, this machine is engineered to exact specifications. The machine integrates decoiling, guiding, roll forming, length measuring, and automatic hydraulic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating (0.05mm) and heat treatment, ensuring long service life and smooth panel surfaces.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Galvanized steel coil / PPGI / Aluzinc / Aluminium coil |
| 2 | Material Thickness Range | 0.3 - 1.5 mm (customizable) |
| 3 | Material Yield Strength | 235 - 550 MPa |
| 4 | Forming Speed | 8 - 15 m/min (adjustable via transducer) |
| 5 | Number of Roller Stations | 15 - 30 stations (based on custom profile complexity) |

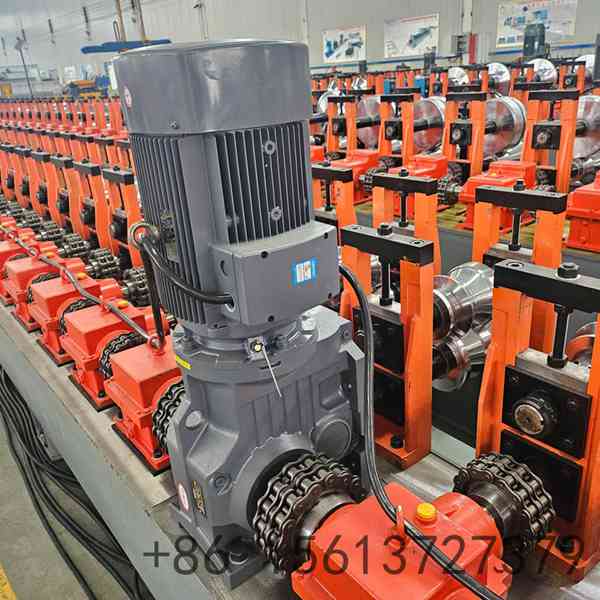

| 6 | Main Motor Power | 5.5 - 11 kW |
| 7 | Hydraulic Station Power | 3 - 5.5 kW |

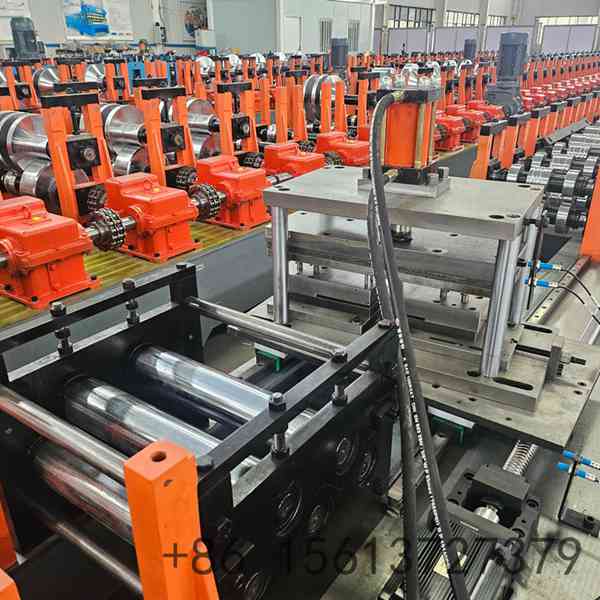

| 8 | Roller Material | High-grade 45# forged steel with hard chrome plating (0.05mm) |
| 9 | Shaft Material | 45# steel, diameter 70-85mm, tempered and polished |
| 10 | Cutting Blade Material | Cr12 mould steel with quenching treatment (HRC 58-62) |

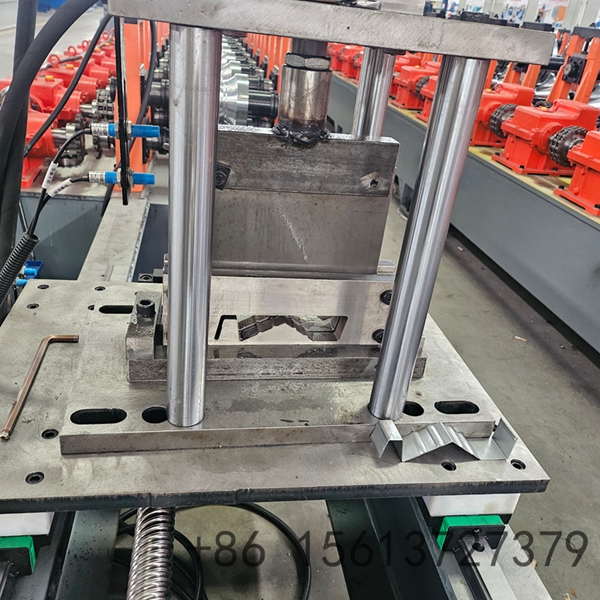

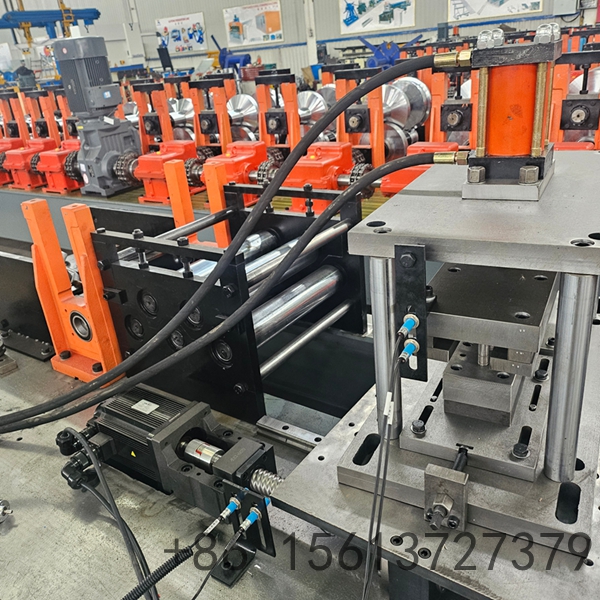

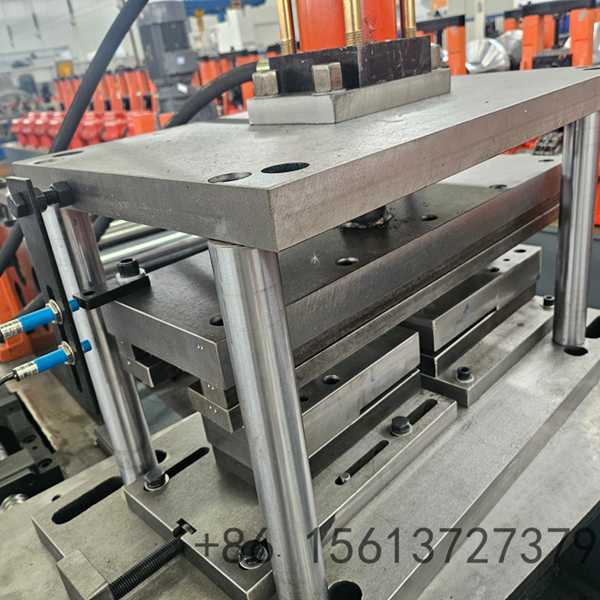

| 11 | Cutting Method | Hydraulic post-cut, automatic pause and cut |

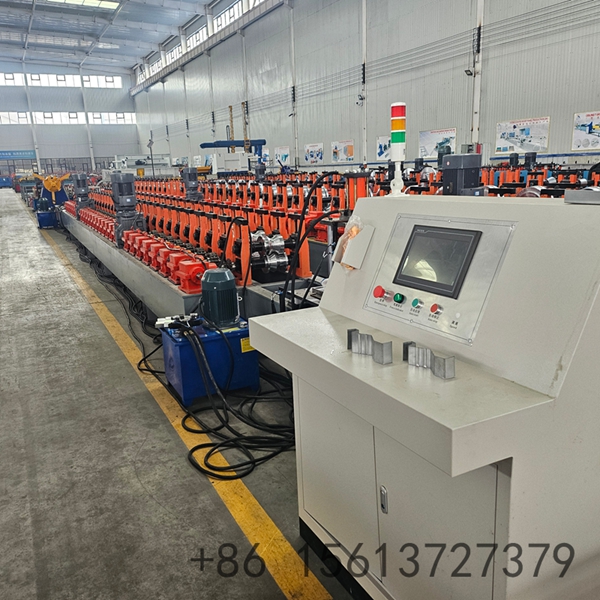

| 12 | Control System | PLC control with touch screen (Mitsubishi / Delta / Siemens) |
| 13 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 14 | Machine Dimensions | Approx. 8m - 14m × 1.5m - 2.0m × 1.3m - 1.8m |
| 15 | Machine Weight | Approx. 6 - 12 Tons |
| 16 | Length Tolerance | ±1 - 2 mm |
| 17 | Uncoiler Capacity | Up to 3 - 5 tons (manual or hydraulic) |

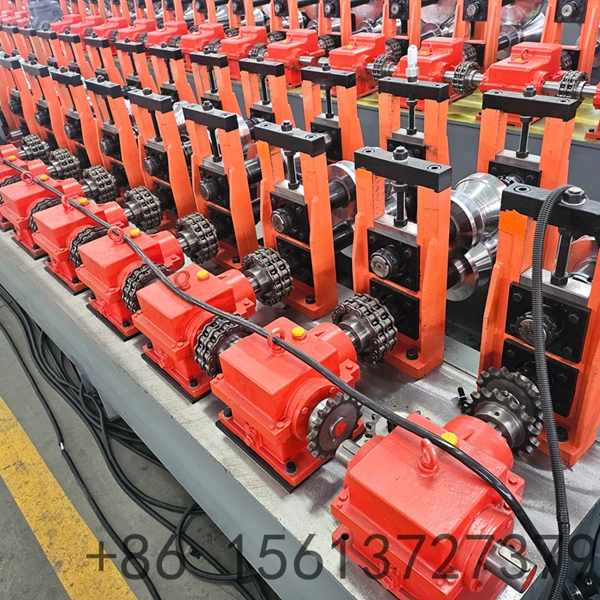

| 18 | Driving Mode | Chain transmission |
| 19 | Warranty | 12-24 months free warranty + lifelong technical support |
