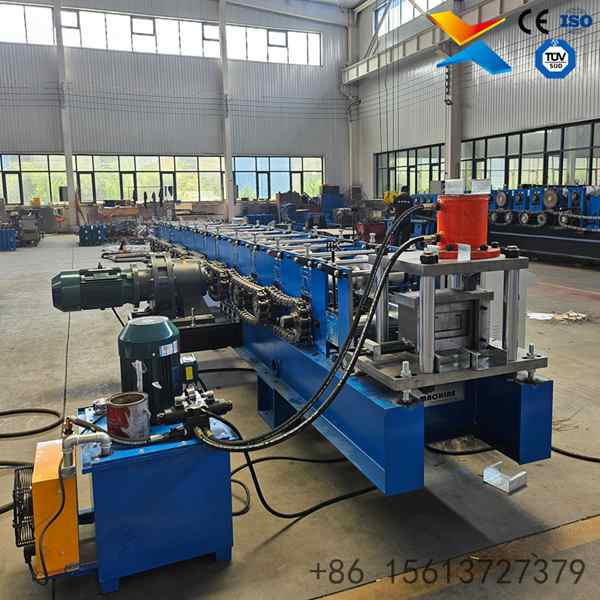

C U Purlin Roll Forming Machine
1.Voltage: 380V/50Hz (customizable for 220V/60Hz)
2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)
3.Weight：3000-5000kg (depending on configuration)
4.Raw Material：Galvanized steel coil
5.Model: c purlin
6.2 years for machinery warranty
7.WhatsApp：+8615613727379
Versatile Profile Production: Capable of producing both C and U purlin profiles with interchangeable tooling, maximizing equipment utilization and production flexibility.
High-Precision Forming: Advanced roller design and precision machining ensure consistent profile dimensions with tight tolerances for reliable structural performance.

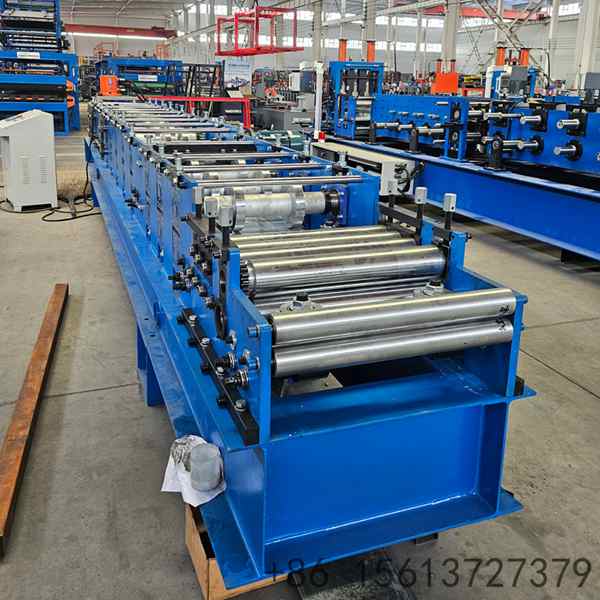

Automatic Punching System: Integrated hydraulic punching unit provides accurate hole positioning for easy installation and connection in construction projects.

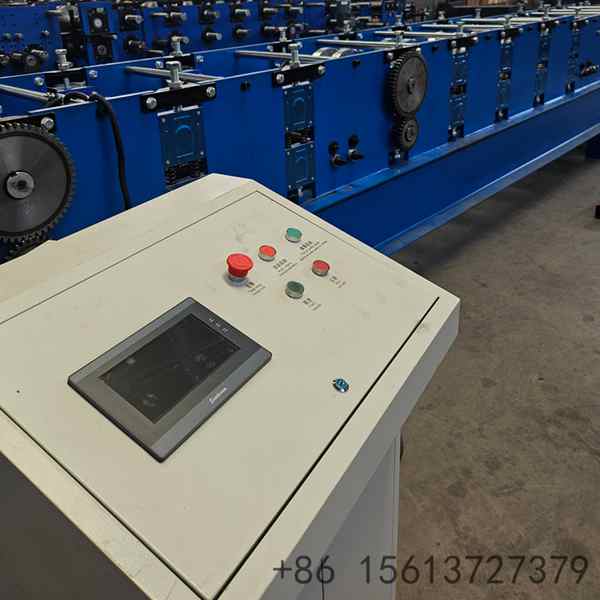

PLC Intelligent Control: Equipped with Delta PLC and touch screen interface for easy operation, parameter adjustment, and real-time production monitoring.

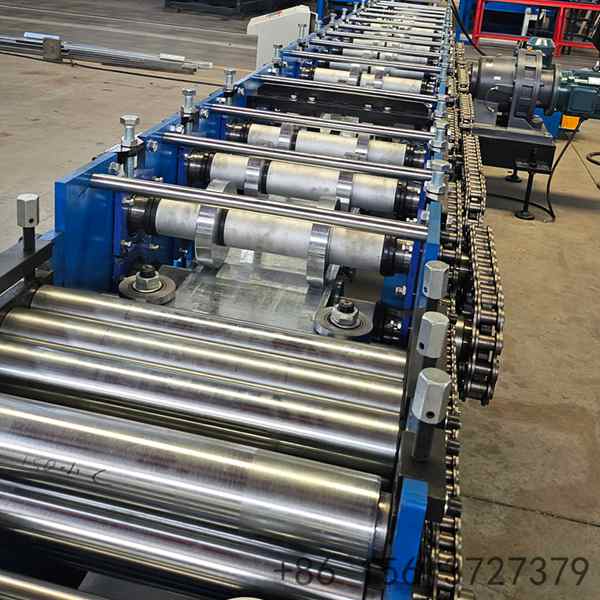

Durable Construction: Heavy-duty welded steel frame with heat-treated components ensures long-term stability and resistance to vibration during continuous operation.

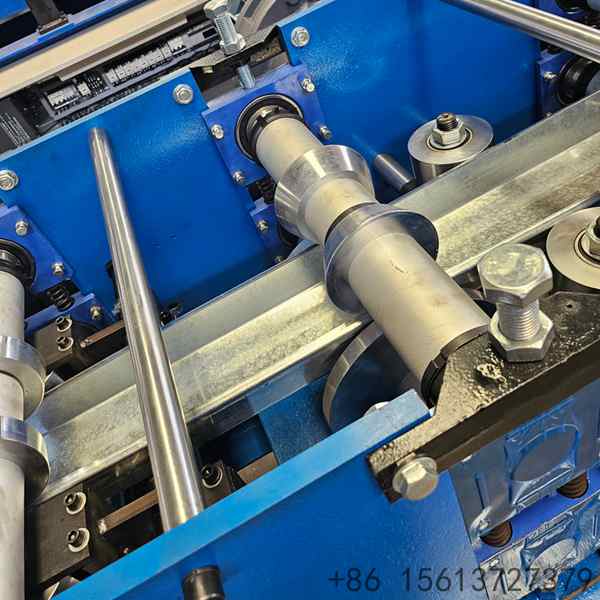

The C U Purlin Roll Forming Machine is a specialized cold roll forming equipment designed for manufacturing high-quality steel purlins widely used in steel structure buildings, warehouses, and industrial facilities. The machine features a modular design with interchangeable roller sets that allow quick switching between C-type and U-type profiles, significantly reducing downtime and increasing production efficiency. The integrated hydraulic punching system can create multiple hole patterns according to customer specifications, while the precision leveling system ensures flat and straight material feeding for optimal forming results.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Galvanized steel coil / Cold-rolled steel |
| 2 | Material Thickness Range | 1.5 - 3.0 mm |
| 3 | Profile Types | C purlin and U channel (interchangeable) |
| 4 | Forming Speed | 10 - 15 m/min (adjustable) |

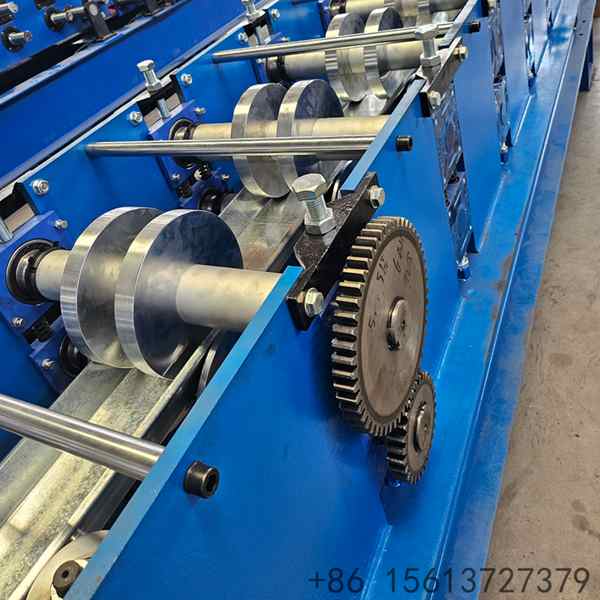

| 5 | Number of Roller Stations | 16 - 20 stations (depending on profile) |
| 6 | Main Motor Power | 11 kW × 2 |

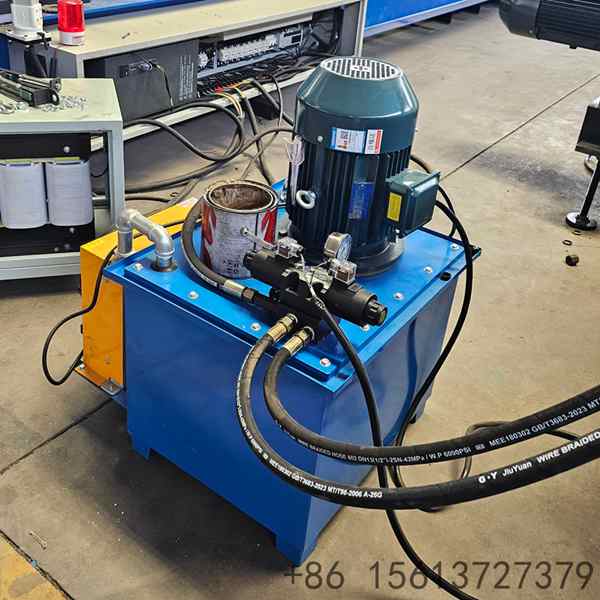

| 7 | Hydraulic Station Power | 5.5 kW |
| 8 | Roller Material | GCr15 bearing steel with quenching treatment |
| 9 | Cutting Blade Material | Cr12Mov, HRC 58-60 |

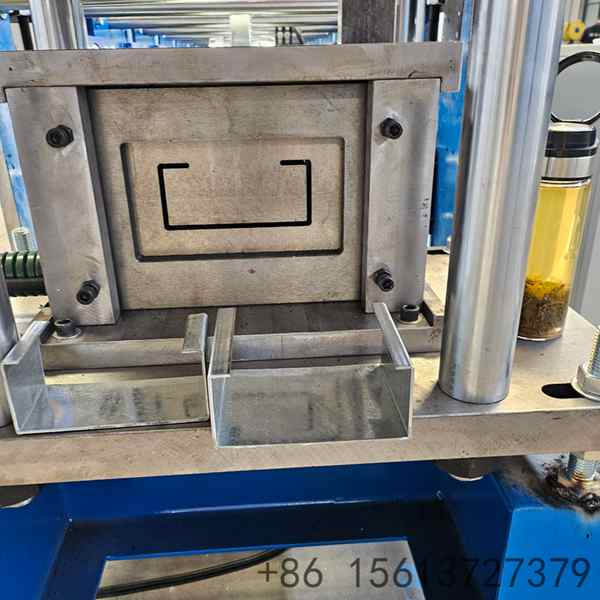

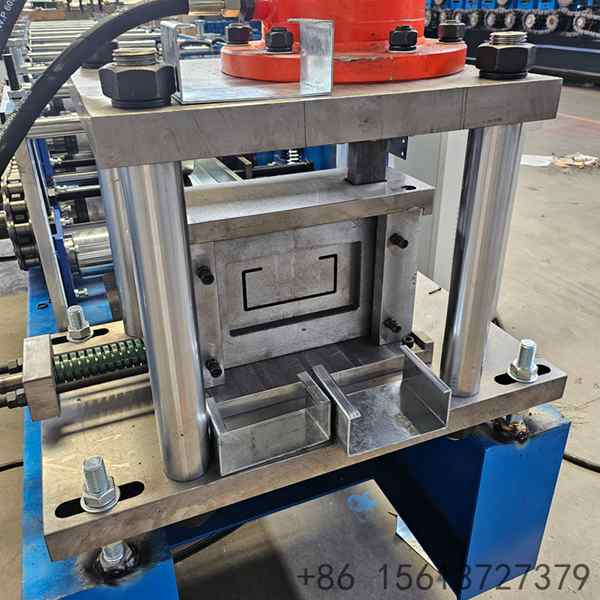

| 10 | Cutting Method | Hydraulic stop-and-go cutting |
| 11 | Control System | Delta PLC + Touch Screen |
| 12 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 13 | Machine Dimensions | Approx. 12m × 1.5m × 1.5m |
| 14 | Machine Weight | Approx. 8 - 10 Tons |
| 15 | Length Tolerance | ±2 mm |
| 16 | Punching System | Hydraulic automatic punching (optional) |
| 17 | Leveling System | 4-roller precision leveling unit |
| 18 | Warranty | 24 months free warranty + lifelong technical support |
