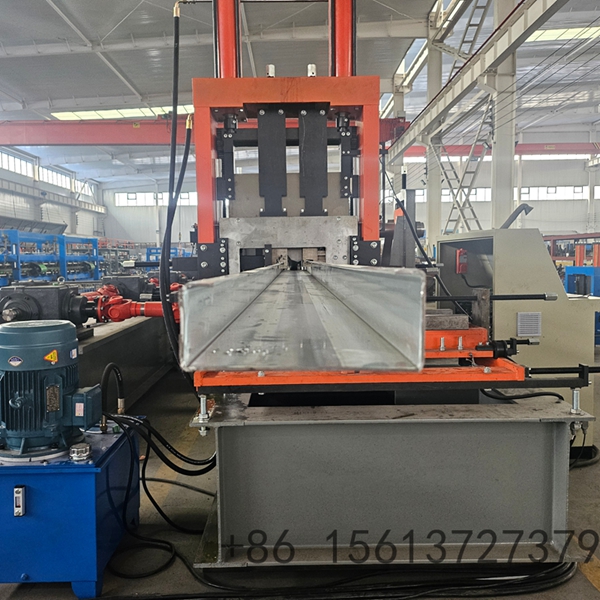

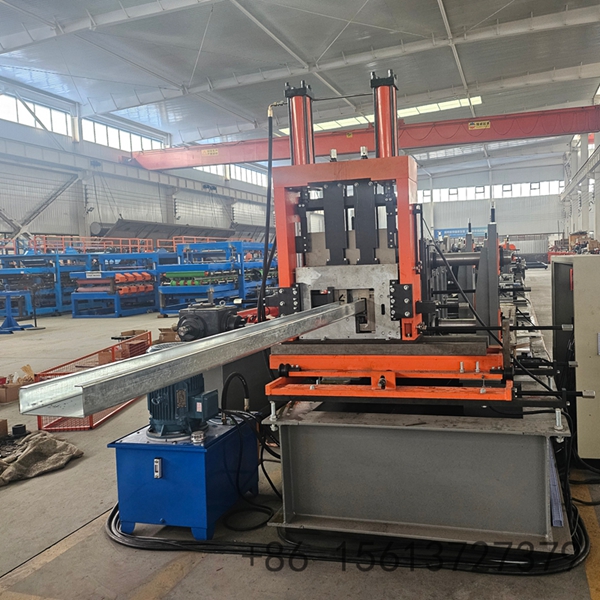

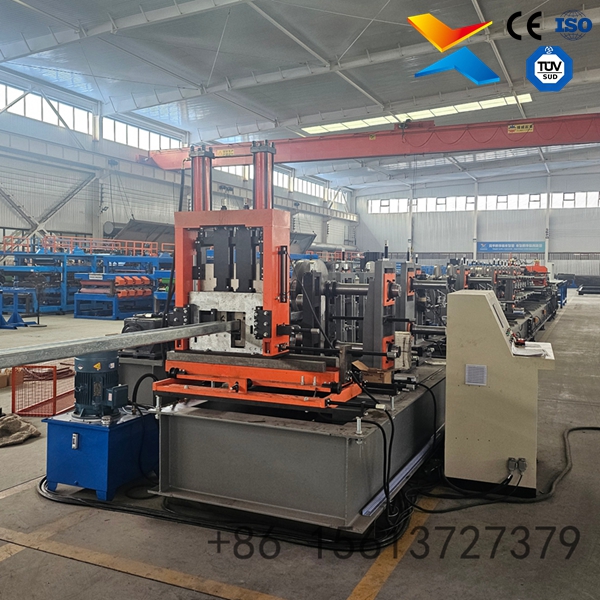

Super CZ Purlin Roll Forming Machine

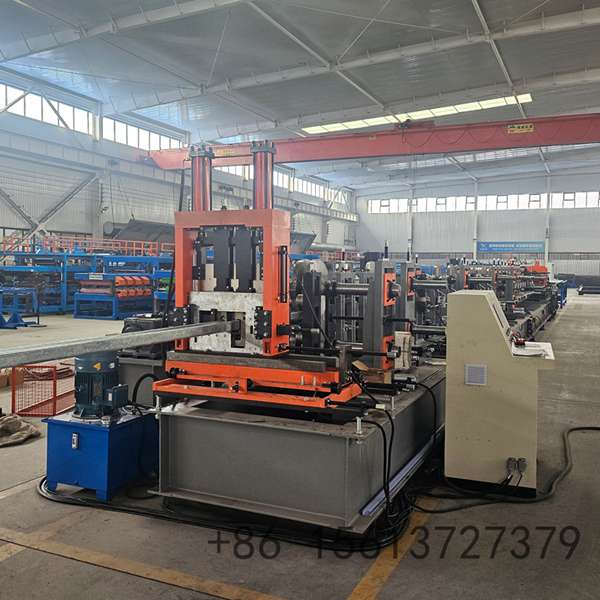

Infinite Size Adjustment Technology: Eliminates the need for physical spacer changes. Operators simply input the desired dimensions on the touch screen, and the PLC automatically adjusts the roller positions to the exact millimeter, allowing for both standard and non-standard profiles.

Rapid C/Z Interchange System: Features a patented quick-change mechanism that transitions between C and Z profiles in under 3 minutes. The forming tooling simply unclamps, rotates, and re-tightens, drastically reducing downtime between orders.

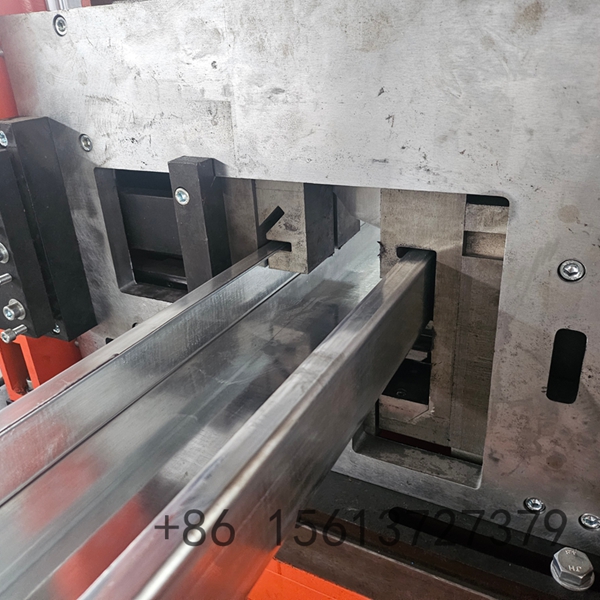

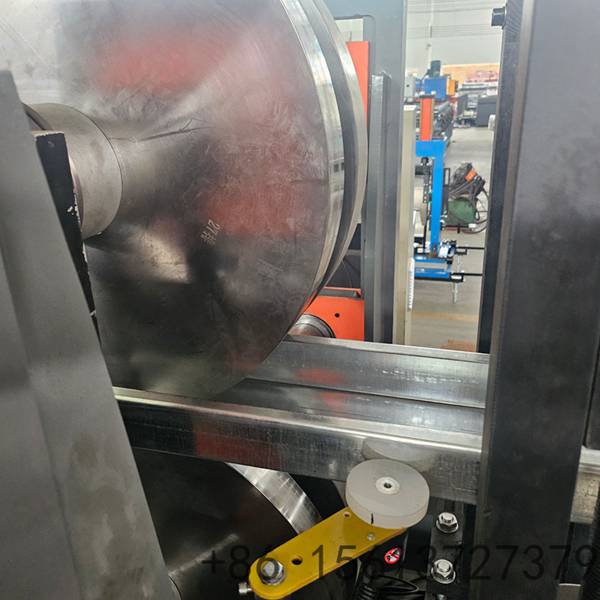

Universal Tool-Free Cutting: Utilizes an advanced universal cutting system that accommodates the entire width range without swapping blades. This ensures clean, burr-free cuts with tight tolerances (±1mm) regardless of the profile being produced.

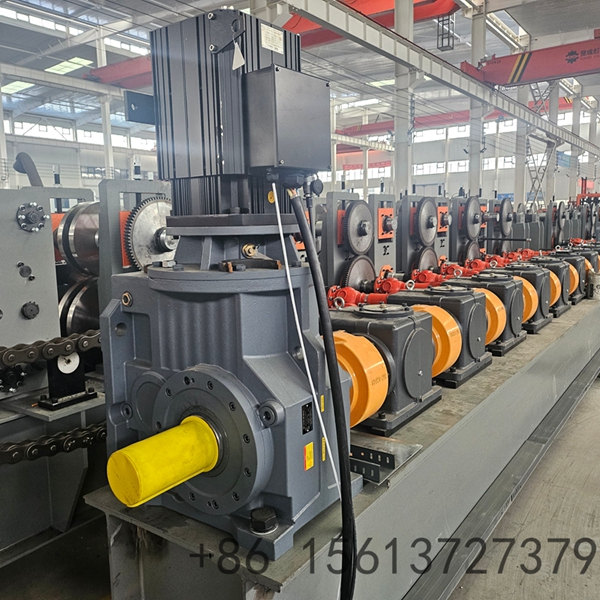

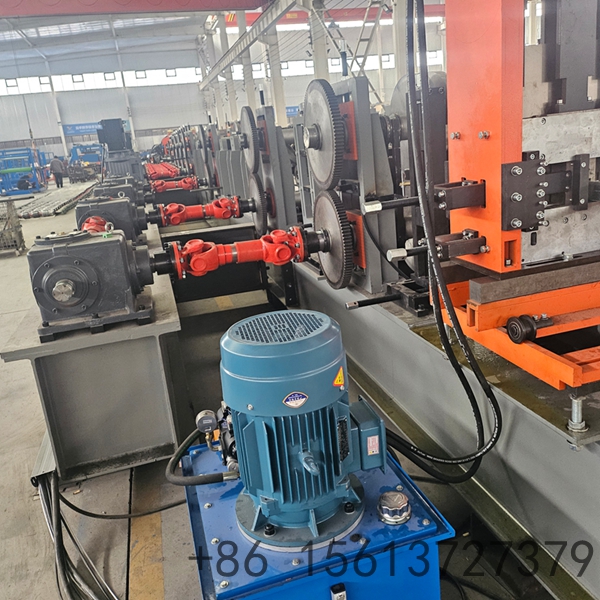

High-Speed Servo Synchronization: Driven by high-torque servo motors and precision encoders, the machine achieves forming speeds of up to 30m/min while maintaining perfect synchronization with the punching and cutting stations.

Smart Diagnostic Control: Equipped with a next-generation PLC and IoT-ready interface that monitors motor loads, hydraulic pressure, and production counts in real-time, enabling predictive maintenance and zero-defect manufacturing.

Product Description & Parameters:

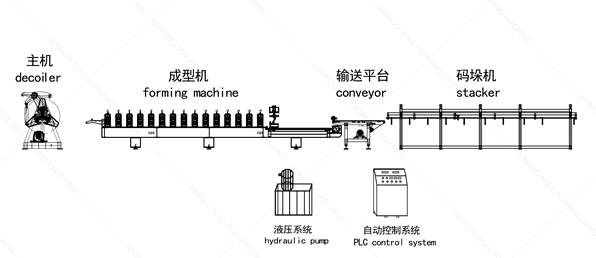

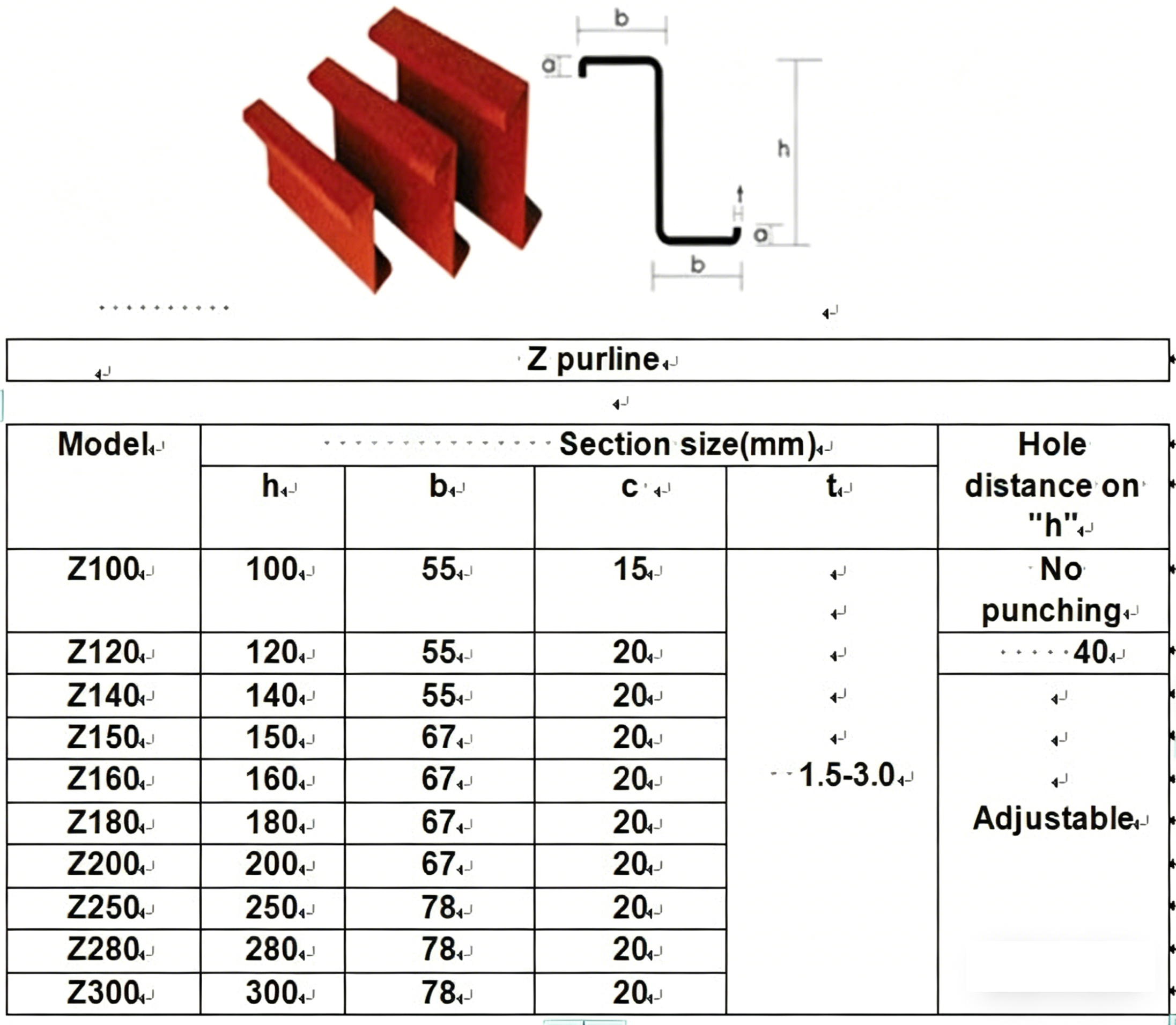

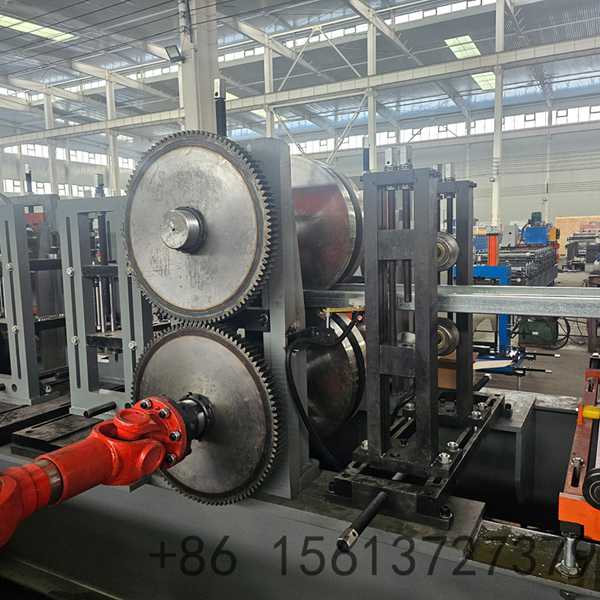

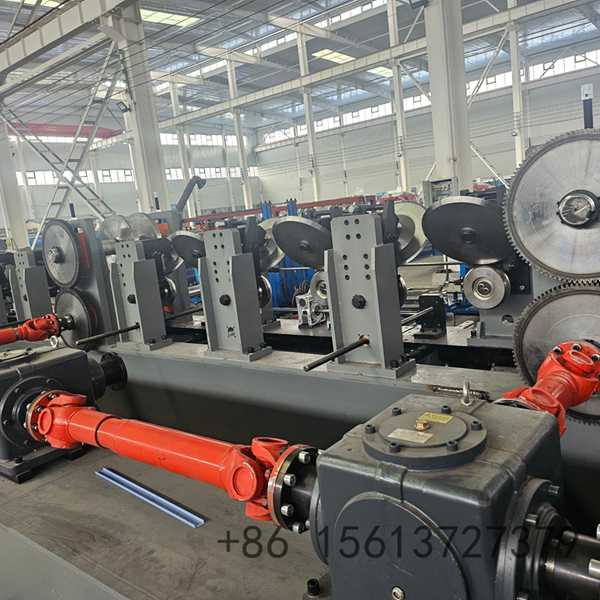

The Super CZ Purlin Roll Forming Machine is an elite-tier cold roll forming system designed for high-volume steel structure manufacturers who demand ultimate flexibility and zero-downtime production. Moving beyond traditional manual adjustment or basic automatic lines, this "Super" series integrates infinite sizing technology with rapid profile interchange. The workflow begins with automated decoiling and precision leveling, followed by continuous hydraulic punching. As the steel strip enters the main forming section, the PLC-controlled roller stations dynamically adjust their positions based on the digital blueprint. Whether producing a C80 or a Z300, the transition is seamless. After forming, the profile passes through the universal cutting station, which tracks the material speed to execute precise, stop-and-go or flying cuts. The heavy-duty 40Cr shafts and GCr15 rollers ensure that even at maximum speed, the structural integrity and dimensional accuracy of the purlins remain uncompromised.
