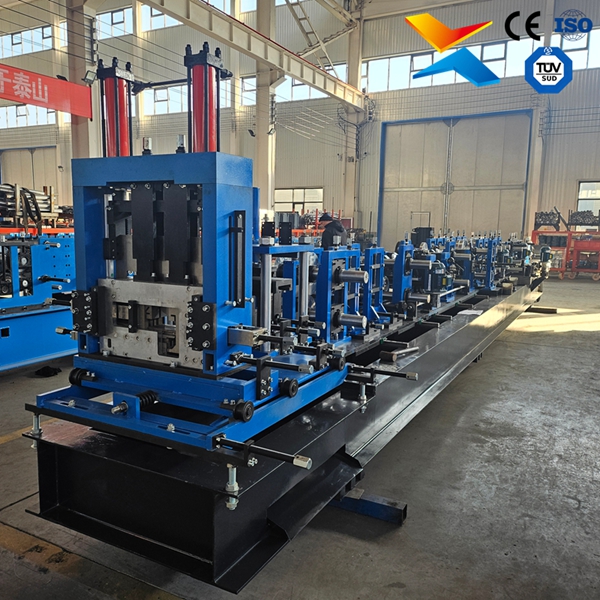

C And Z Purlin Roll Forming Machine
1.Voltage: 380V/50Hz (customizable for 220V/60Hz)
2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)
3.Weight：3000-5000kg (depending on configuration)
4.Raw Material：Galvanized steel coil
5.Model: c purlin
6.2 years for machinery warranty
7.WhatsApp：+8615613727379

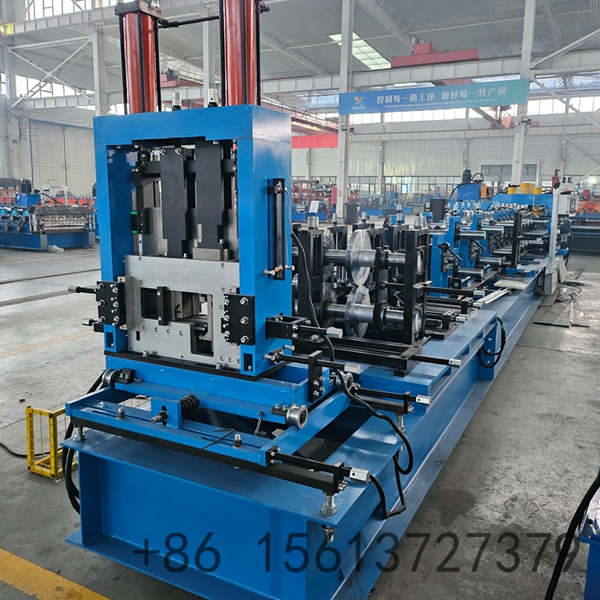

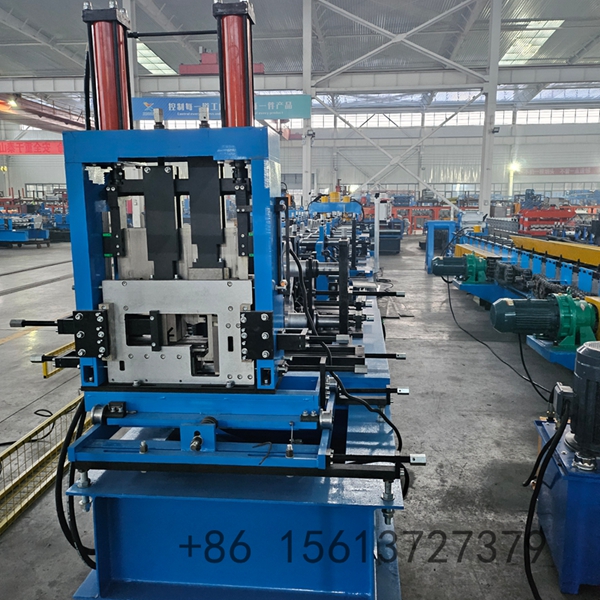

Rapid C/Z Interchange Capability: Features a streamlined quick-change mechanism that transitions between C and Z profiles in minutes, eliminating the need for separate machines and maximizing production flexibility.

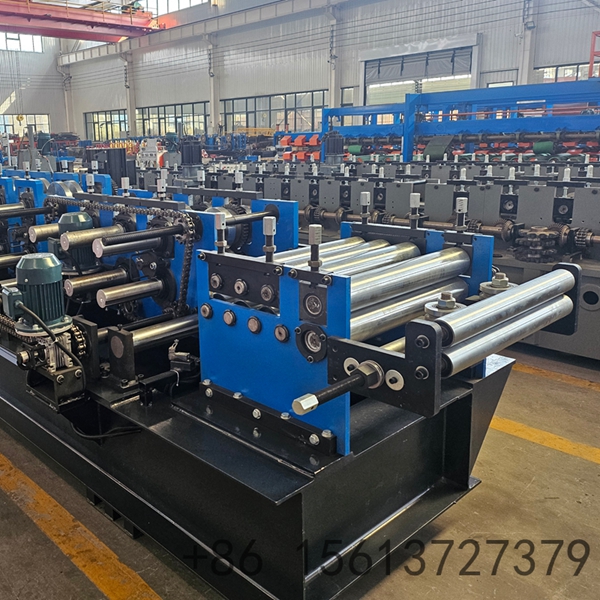

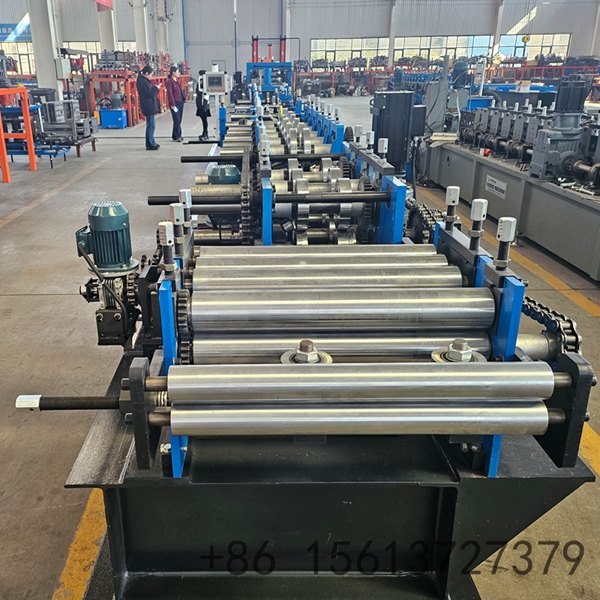

Precision Adjustable Forming System: Utilizes precision-engineered roller stations that can be easily adjusted to accommodate various purlin sizes within the machine's range, ensuring consistent dimensional accuracy.

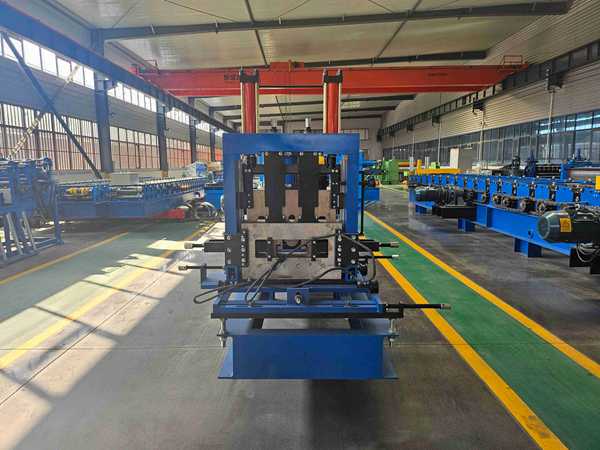

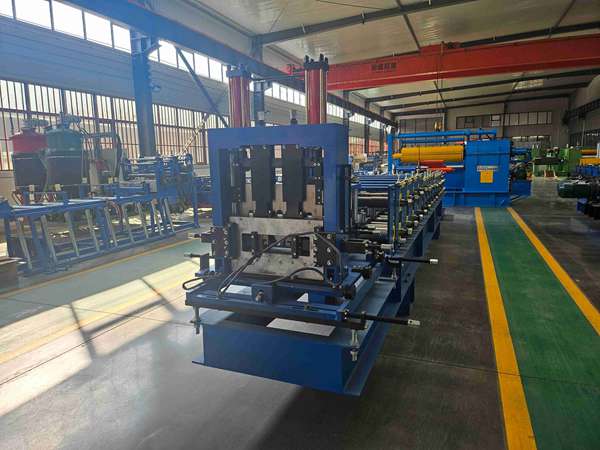

Universal Cutting Technology: Equipped with an advanced universal cutting system that handles both C and Z profiles without requiring blade or mold changes, reducing downtime and maintenance costs.

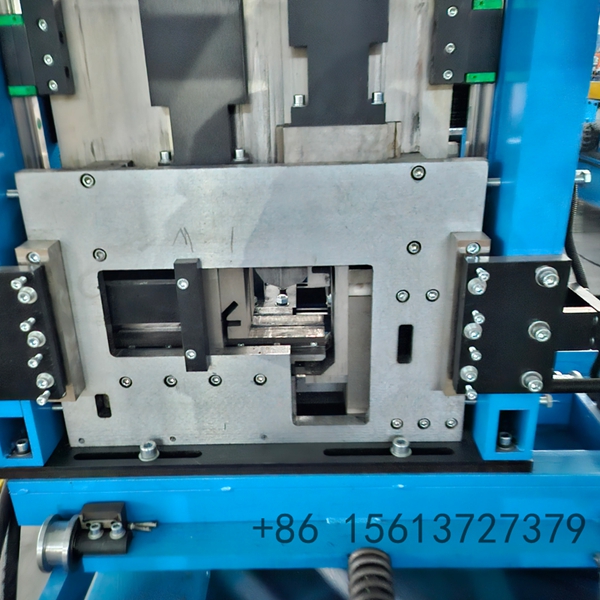

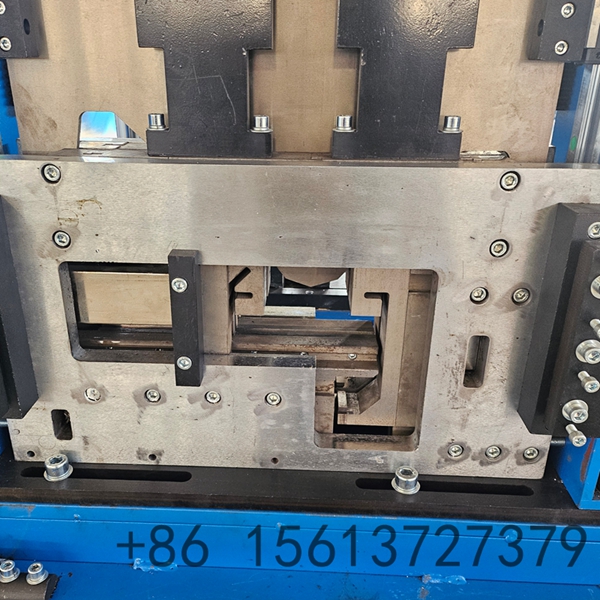

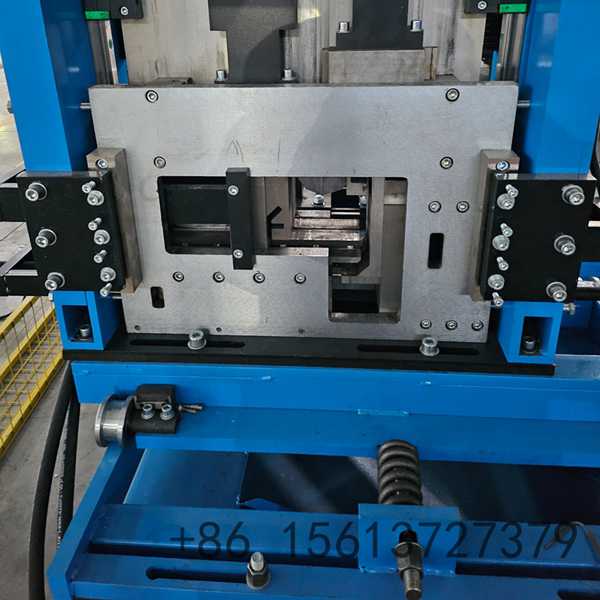

Integrated Hydraulic Punching: Features a multi-station hydraulic punching system that creates exact hole patterns for both C and Z purlins, ensuring perfect alignment during on-site assembly.
Intelligent PLC Automation: Driven by a centralized PLC control system with touch screen interface, enabling easy parameter adjustment, accurate length measurement, and reliable automated production.
The C And Z Purlin Roll Forming Machine is a versatile cold roll forming equipment designed to manufacture both C and Z steel purlins on a single production line, eliminating the need for separate machines and optimizing workshop space. This interchangeable system is specifically engineered for steel structure construction, where both C and Z purlins serve as essential load-bearing components. The machine integrates automated decoiling, precision leveling, hydraulic punching, roll forming, length measuring, and automatic cutting into one seamless workflow. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth purlin surfaces. The quick-change system allows operators to switch between C and Z profiles by simply adjusting the roller positions and forming stations, making it ideal for manufacturers who need to produce multiple purlin types efficiently.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Galvanized steel coil / Cold-rolled steel / Aluzinc |
| 2 | Material Thickness Range | 1.0 - 3.0 mm |
| 3 | Material Yield Strength | 235 - 550 MPa |
| 4 | C Purlin Width Range | 80 - 300 mm (adjustable) |
| 5 | Z Purlin Width Range | 120 - 300 mm (adjustable) |
| 6 | Forming Speed | 10 - 20 m/min (adjustable via transducer) |
| 7 | Number of Roller Stations | 16 - 20 stations (depending on model) |
| 8 | Main Motor Power | 15 - 22 kW |
| 9 | Hydraulic Station Power | 5.5 - 7.5 kW |
| 10 | Roller Material | 45# forged steel with hard chrome plating (0.05mm) |
| 11 | Shaft Material | 45# / 40Cr steel, diameter 80-90mm, tempered and polished |
| 12 | Punching System | Multi-station hydraulic punching (single/dual holes, customizable) |
| 13 | Cutting Blade Material | Cr12 mould steel with quenching treatment (HRC 58-62) |
| 14 | Cutting Method | Universal hydraulic post-cut (no blade change for C/Z) |
| 15 | Control System | PLC control with touch screen (Siemens / Mitsubishi / Delta) |
| 16 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 17 | Machine Dimensions | Approx. 10m - 14m × 1.5m - 2.0m × 1.5m - 1.8m |
| 18 | Machine Weight | Approx. 9 - 14 Tons |
| 19 | Length Tolerance | ±1 - 2 mm |
| 20 | Interchange Time | 5 - 10 minutes (C to Z profile change) |
| 21 | Driving Mode | Chain transmission |
| 22 | Warranty | 12-24 months free warranty + lifelong technical support |
