Product Briefing

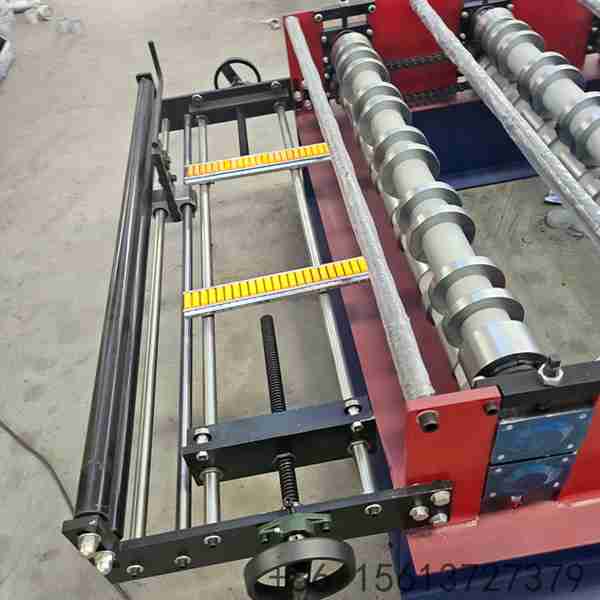

High-Torque Transmission Logic: Utilizes premium double-row chains and precision-balanced drive shafts to ensure seamless material throughput under heavy loads.

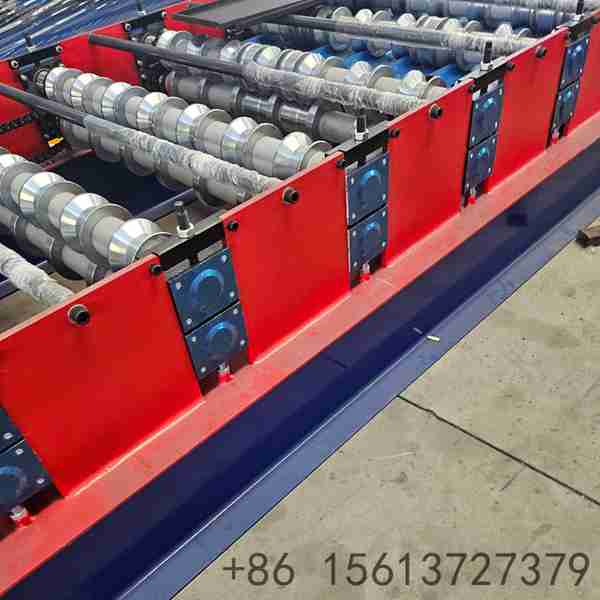

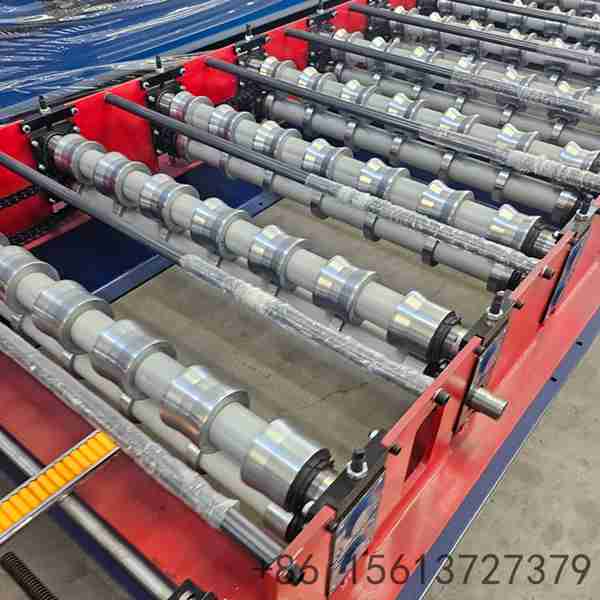

Engineered Roller Durability: Rollers are manufactured from high-grade forged steel, CNC-machined for profile accuracy, and finished with thick hard-chrome plating.
Smart Production Interface: Features a full-color PLC touch screen system supporting batch programming, real-time diagnostics, and automatic length calibration.
Global Material Compatibility: Fully optimized for processing galvanized steel, Galvalume, and color-coated metal with thicknesses from 0.3mm to 0.8mm.

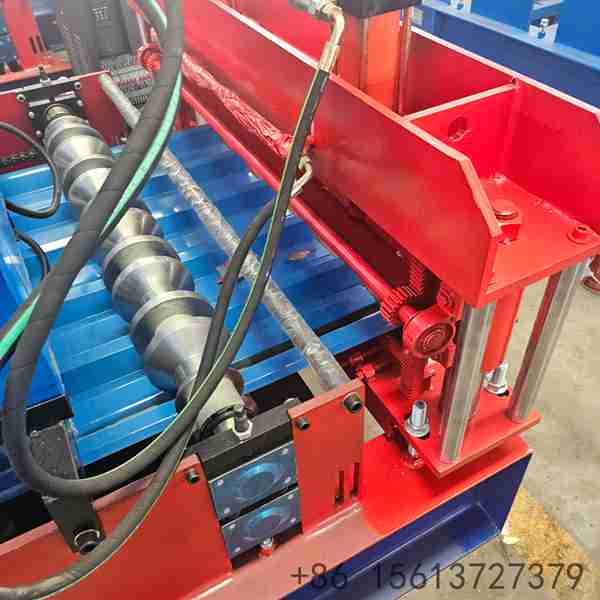

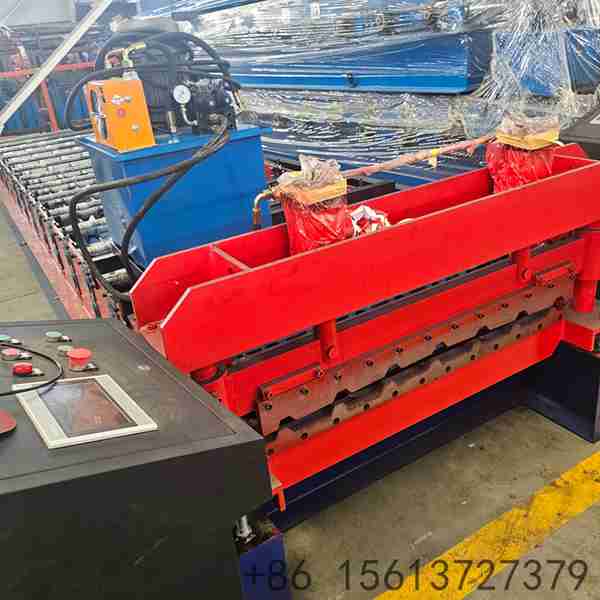

Integrated Post-Forming Cutoff: High-accuracy hydraulic cutting unit with heat-treated blades ensures clean, deformation-free edges for all finished panels.
Detailed Description
Technical Parameters
| Component | Technical Specifications |
|---|---|
| Material Capability | Pre-painted / Galvanized / Galvalume Steel Coils |
| Thickness Range | 0.3mm - 0.8mm (Customizable for heavy gauge) |
| Feed Width | 1000mm / 1200mm / 1220mm / 1250mm |
| Forming Stations | 16 - 22 Stages (Optimized for rib stability) |
| Max Speed | 15 - 25 Meters Per Minute (Adjustable) |
| Drive Shaft | Φ75mm - Φ85mm Solid Induction Hardened Shafts |
| Main Motor | 5.5KW / 7.5KW High-Efficiency Industrial Motor |
| PLC System | Full Automatic Interface (Siemens / Mitsubishi / Delta) |
Unique Technical Advantages
Advanced Stress-Relief Sequence: Our proprietary roller design incorporates specialized stress-relief zones that effectively prevent "oil canning" and edge waves in finished panels.
Active-Cooling Hydraulic Hub: The integrated hydraulic station features an independent air-cooled ventilation system, maintaining consistent oil viscosity during 24/7 high-temperature operations.
High-Precision Tapered Bearings: All main drive shafts are equipped with premium tapered roller bearings to reduce friction, minimize noise, and ensure decades of reliable service.
Modular Factory Integration: Every machine undergoes a rigorous 48-hour continuous factory test run and is shipped as a pre-wired modular unit for rapid on-site commissioning.
